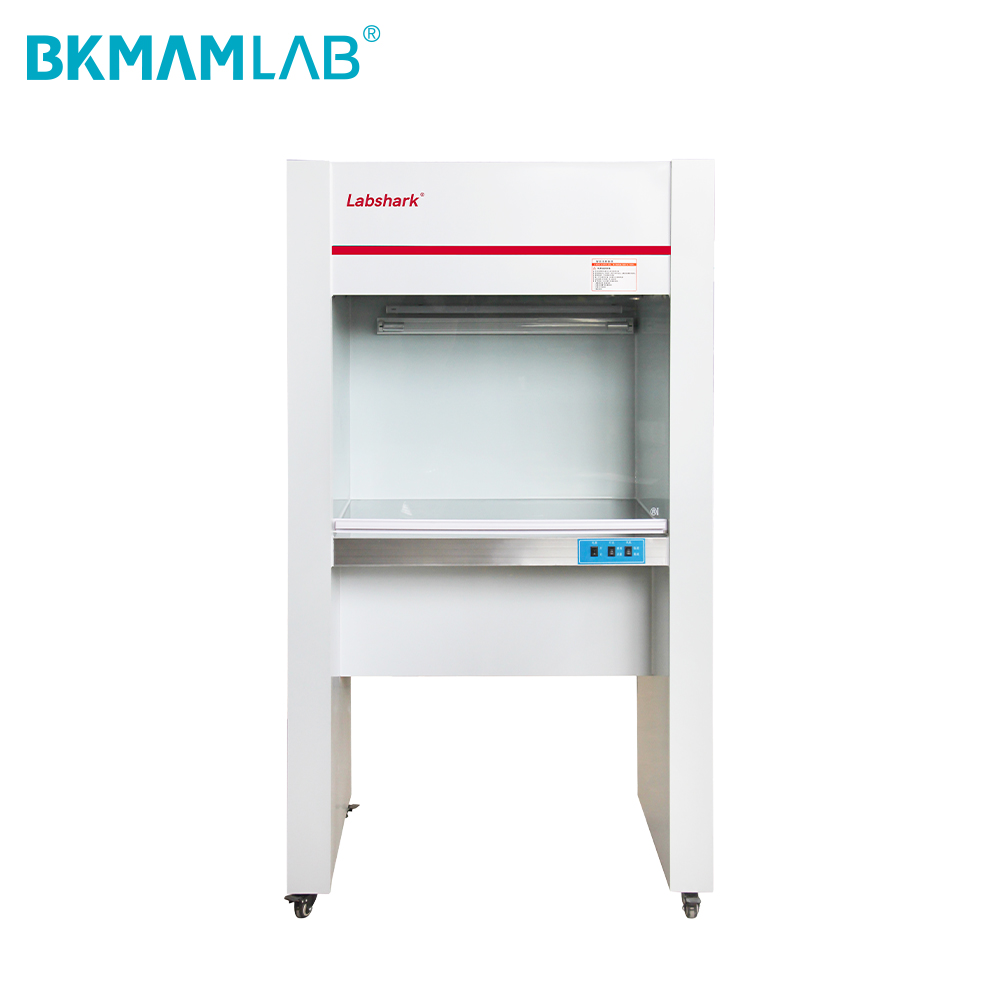

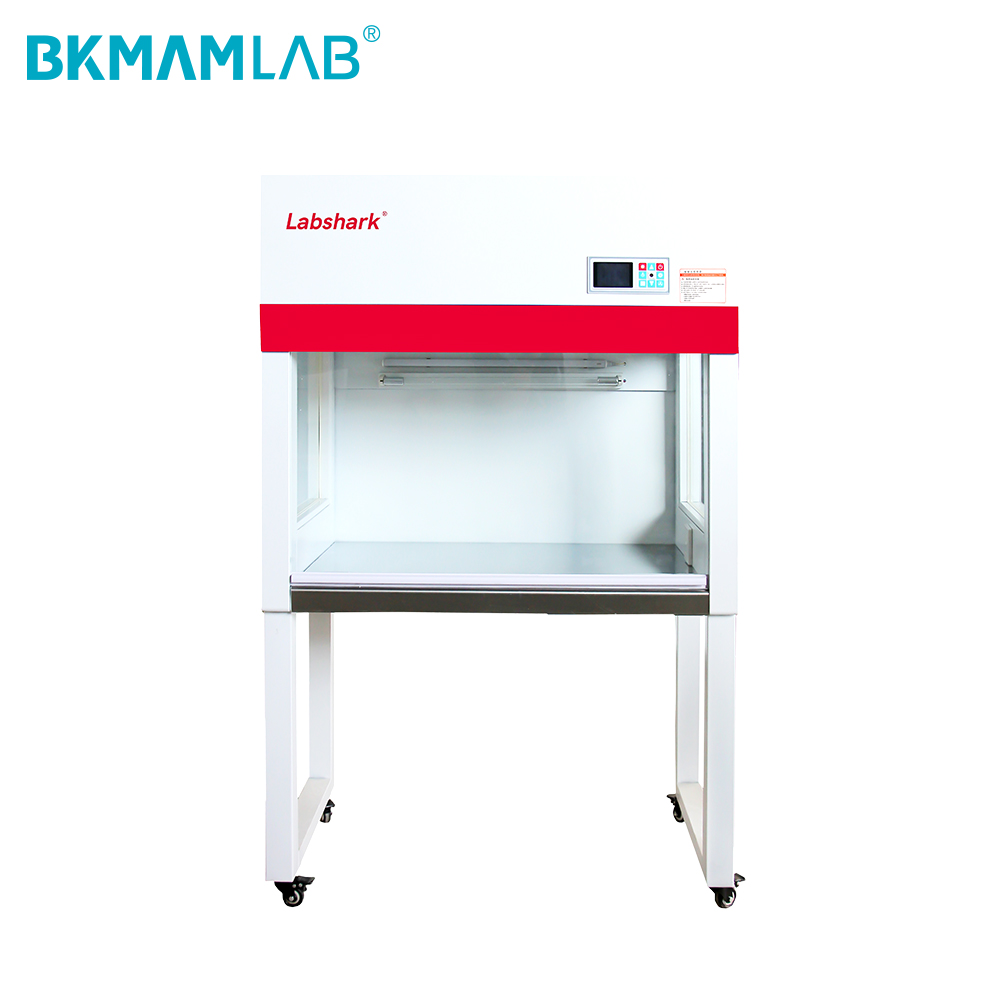

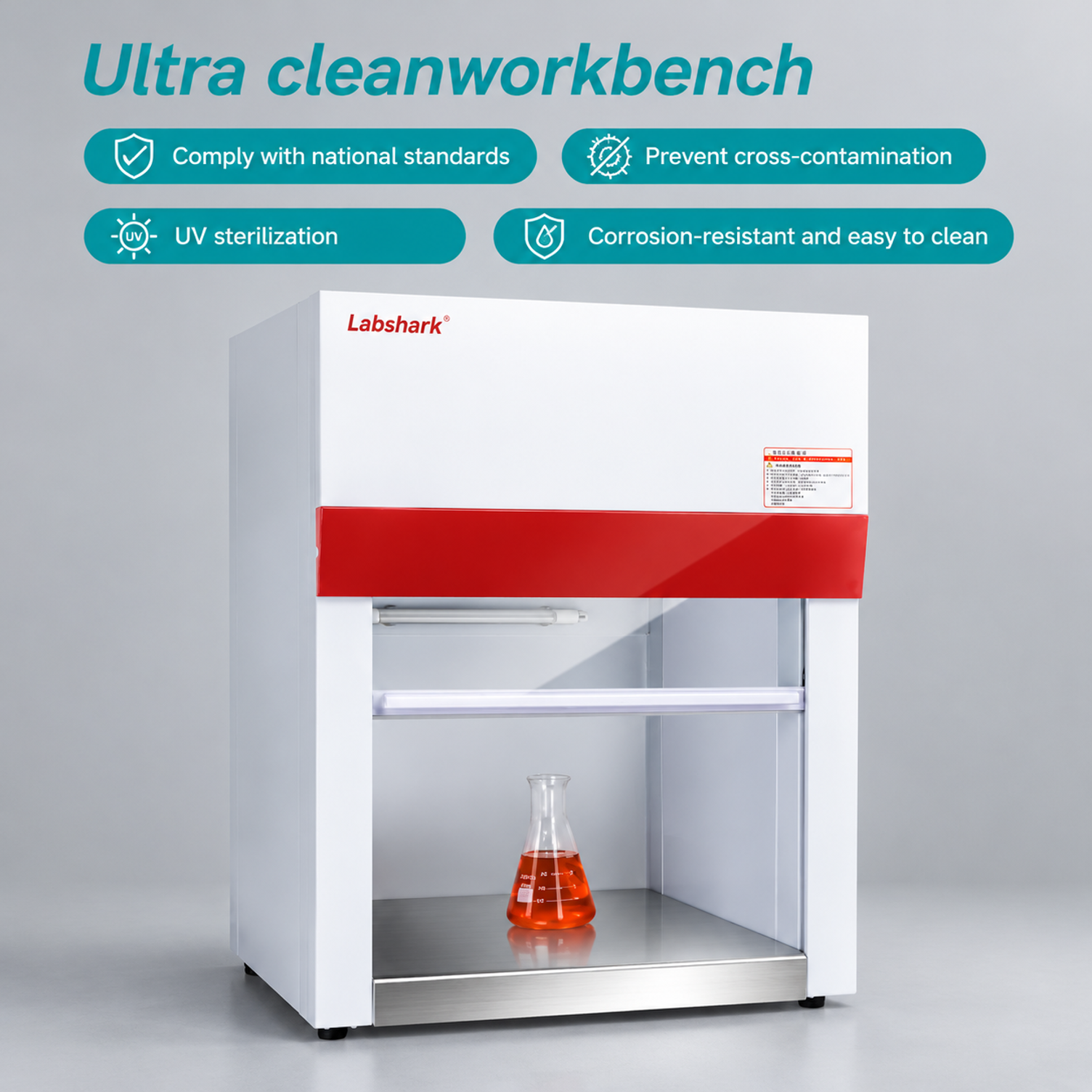

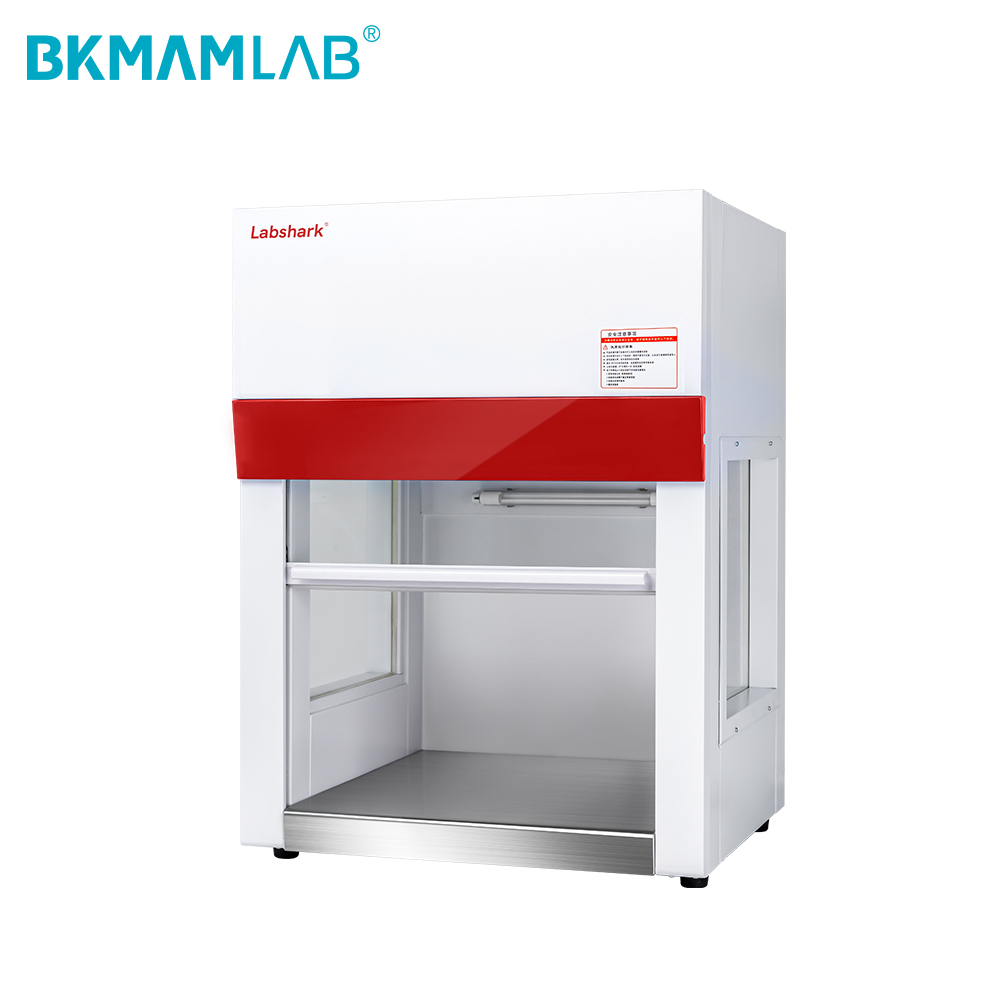

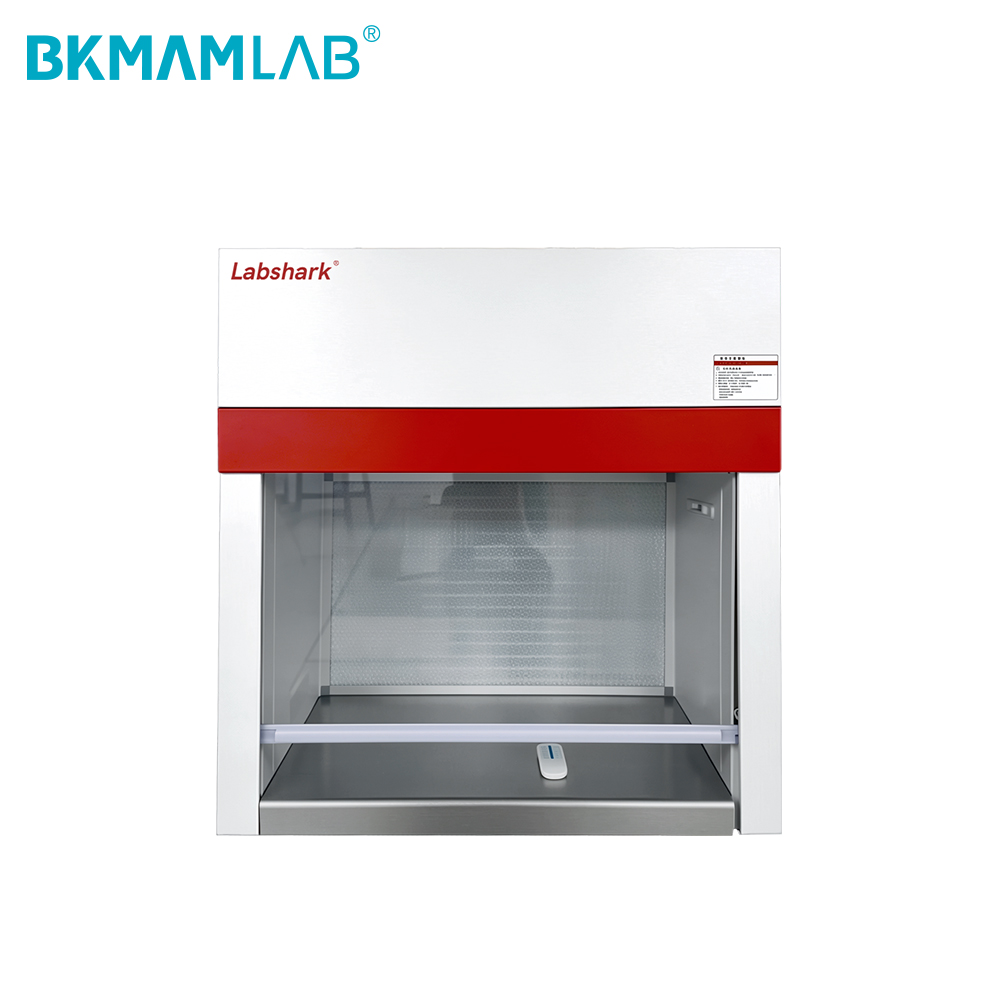

The Labshark laminar flow cabinet (also referred to as a clean bench, laminar flow hood, or biological clean bench) provides a localized ultra-clean working environment for aseptic operations in electronics, biotechnology, food industry, and related fields. It helps improve process conditions and product quality by delivering a constant stream of filtered air across the work surface.
Available in horizontal and vertical laminar flow configurations, this clean bench for laboratory features a motorized sliding front sash that minimizes air infiltration. The stainless steel clean bench work surface is corrosion-resistant and non-particulate, ensuring a clean and durable workspace. An air curtain design prevents cross-contamination between interior and exterior air, while the UV lamp provides efficient sterilization (selected models). This UV sterilization clean bench is ready to use out of the box—no installation required.

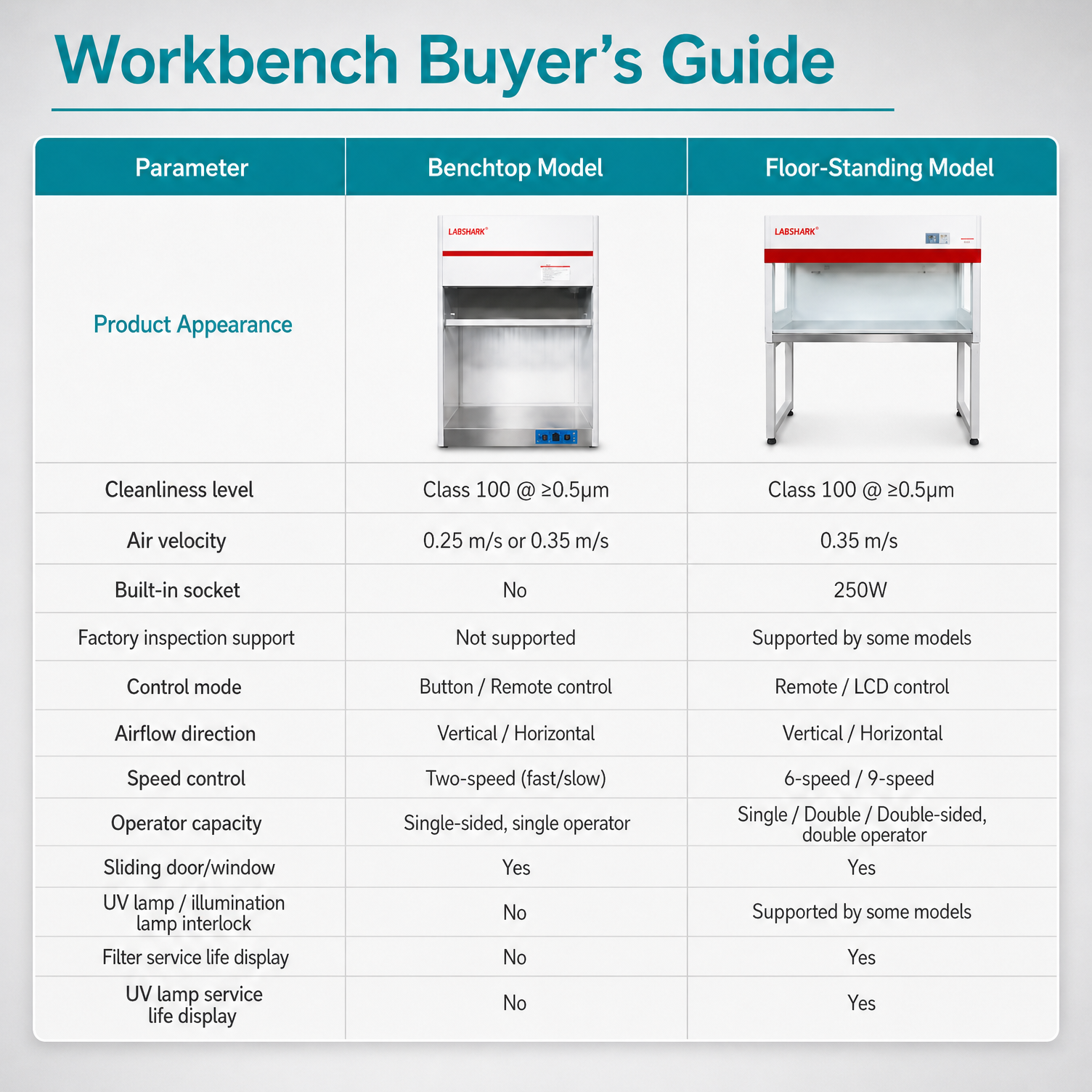

Parameter | Benchtop Workstation | Floor-Standing Workstation |
|---|---|---|
Cleanliness | Class 100 (ISO 5) at ≥0.5 μm | Class 100 (ISO 5) at ≥0.5 μm |
Air Velocity | 0.25 m/s or 0.35 m/s | 0.35 m/s |
Built-in Electrical Outlet | None | 250 W |
Third-Party Testing Support | Not supported | Supported on selected models |
Control Mode | Button / remote control | Remote control / LCD control |
Airflow Direction | Vertical / horizontal | Vertical / horizontal |
Air Speed Control | Two speeds (low/high) | Six / nine adjustable speeds |
User Capacity | Single user, single side | Single / double user, double side available |
Sliding Sash | Yes | Yes |
UV Lamp & Fluorescent Light Interlock | No | Supported on selected models |
Filter Life Indicator | No | Yes |
UV Lamp Life Indicator | No | Yes |

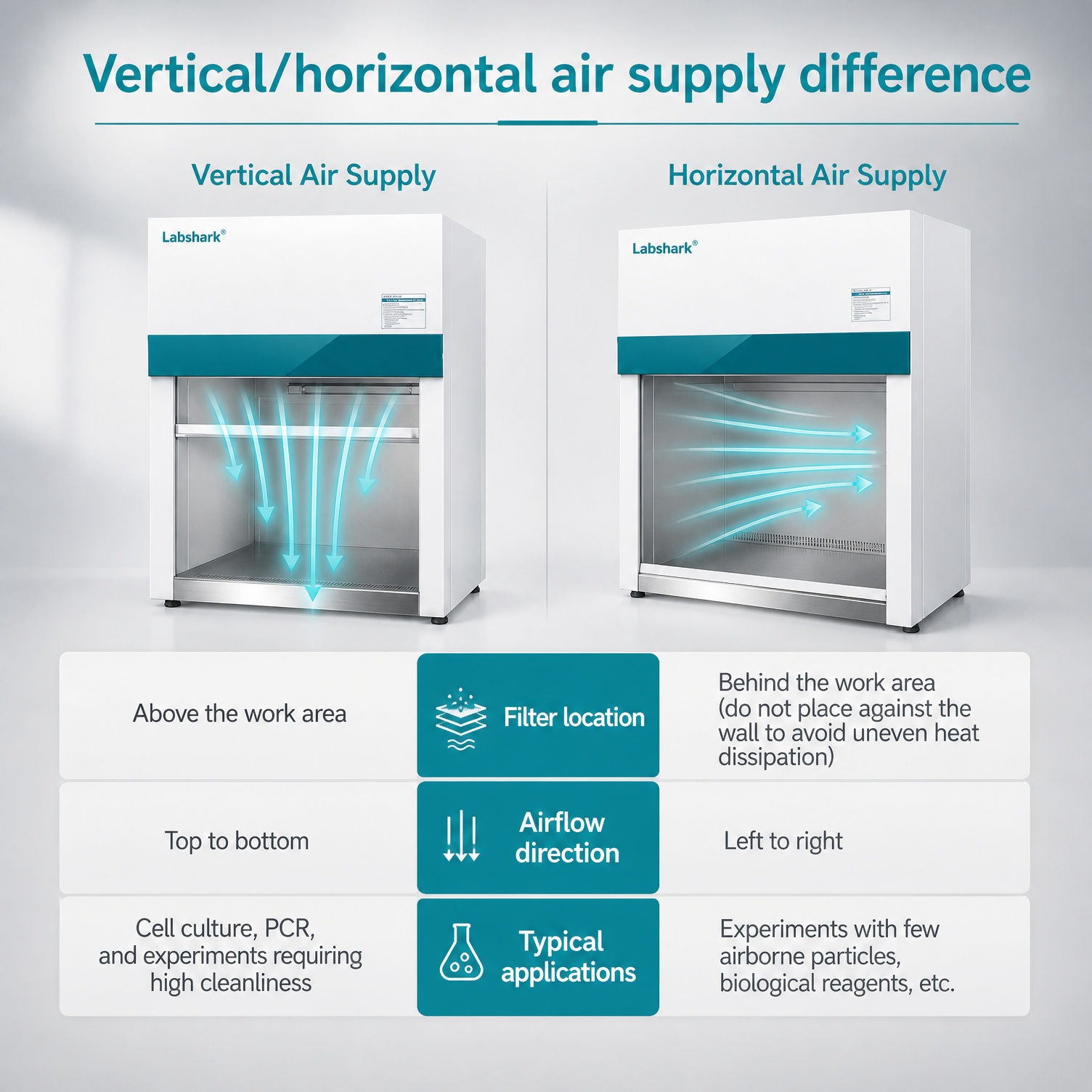

The laminar flow cabinet offers horizontal or vertical laminar flow configurations to suit different laboratory layouts. The motorized sliding front sash minimizes air infiltration, maintaining a clean working environment. This horizontal laminar flow / vertical laminar flow design ensures a steady, unidirectional airflow across the work zone.

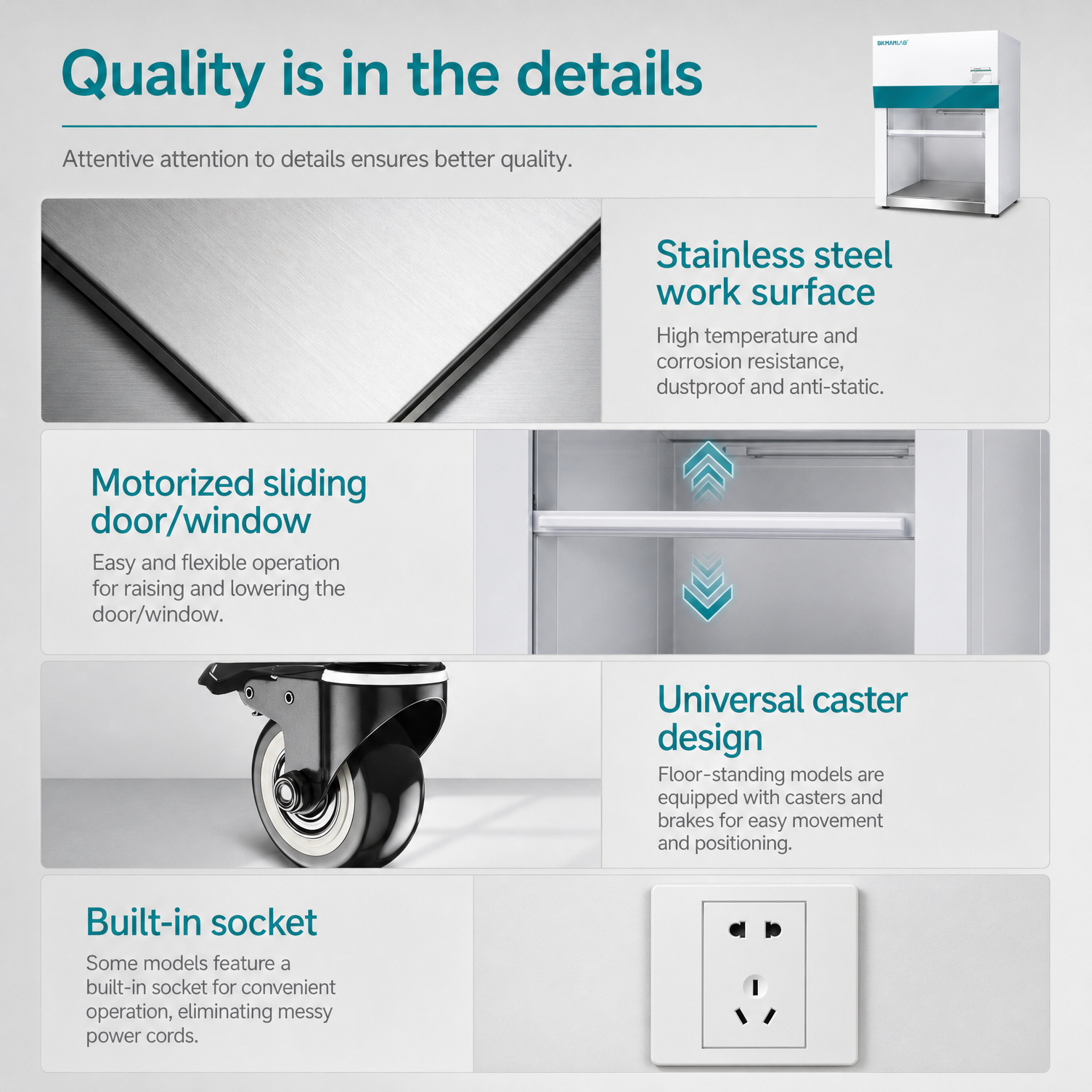

The clean bench features a stainless steel work surface that is corrosion-resistant and non-particulate. This stainless steel clean bench design ensures a durable, easy-to-clean workspace that maintains the integrity of your samples.

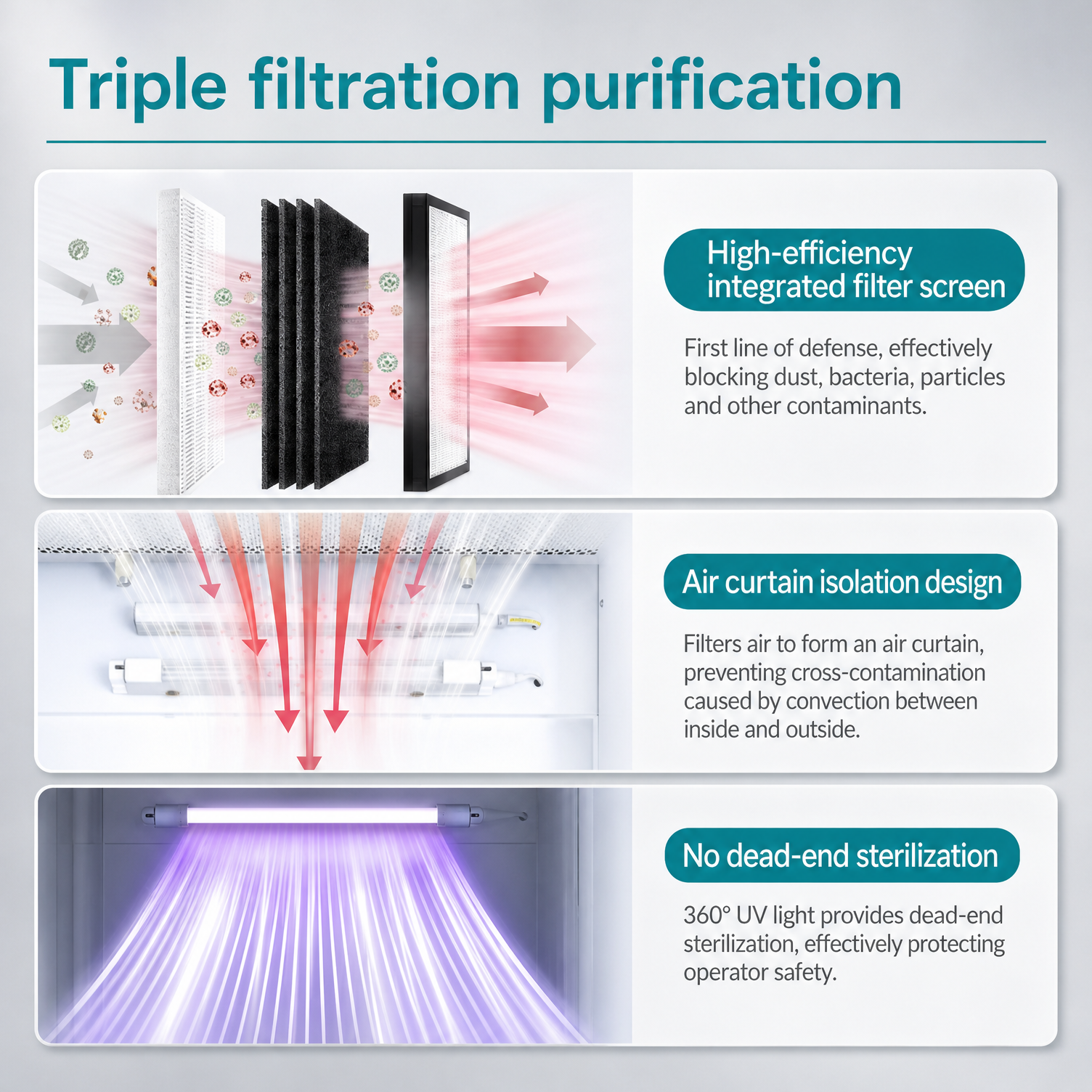

An air curtain design prevents cross-contamination between interior and exterior air, ensuring a sterile working environment. This biological clean bench is ideal for sensitive aseptic operations.

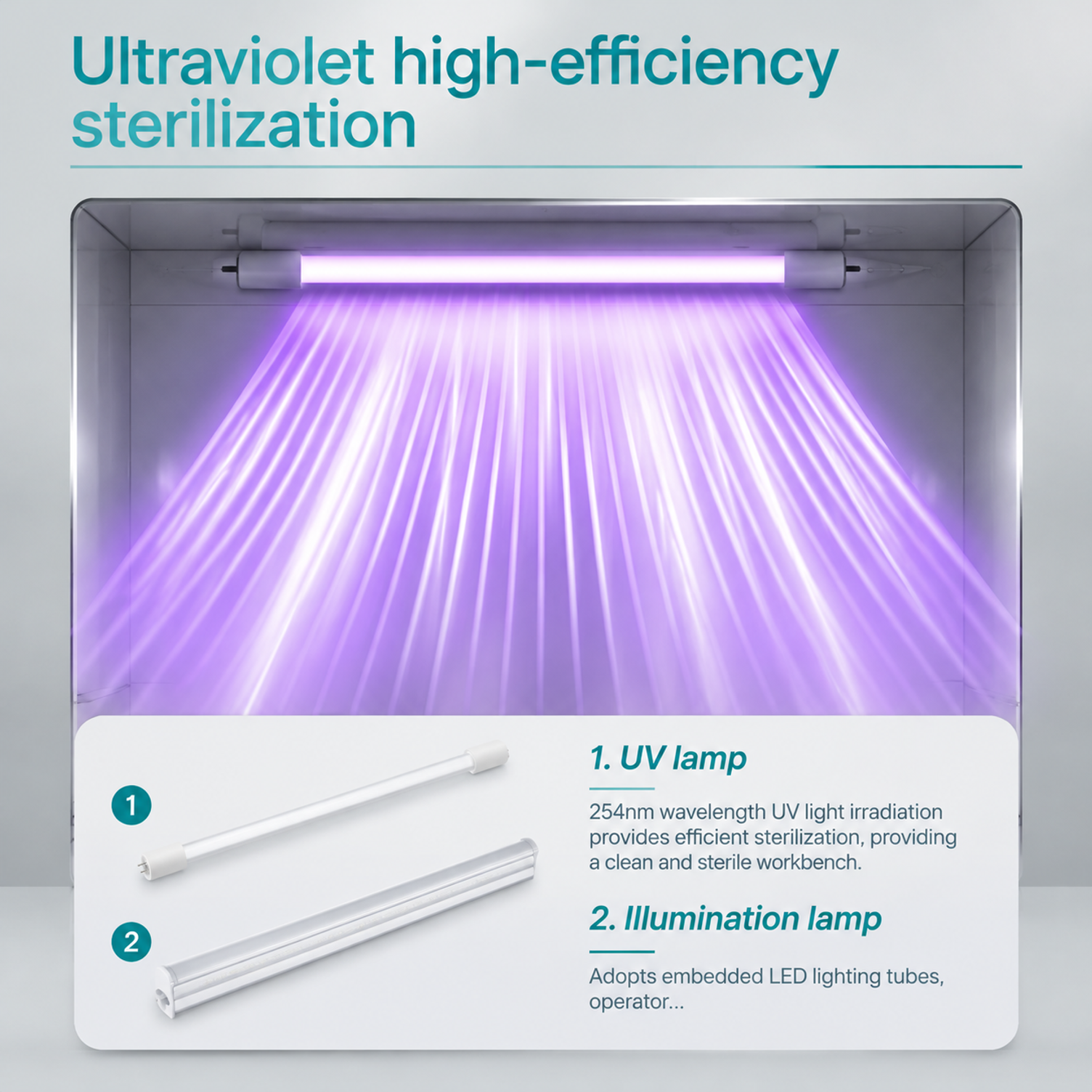

The UV sterilization clean bench is equipped with a UV lamp for efficient sterilization (selected models). Fluorescent or LED lighting ensures a bright working area, allowing you to see clearly during delicate procedures.
This clean bench is ready to use out of the box—no installation required. Simply plug it in and start working. This plug-and-play design makes it convenient for laboratories with limited setup time.

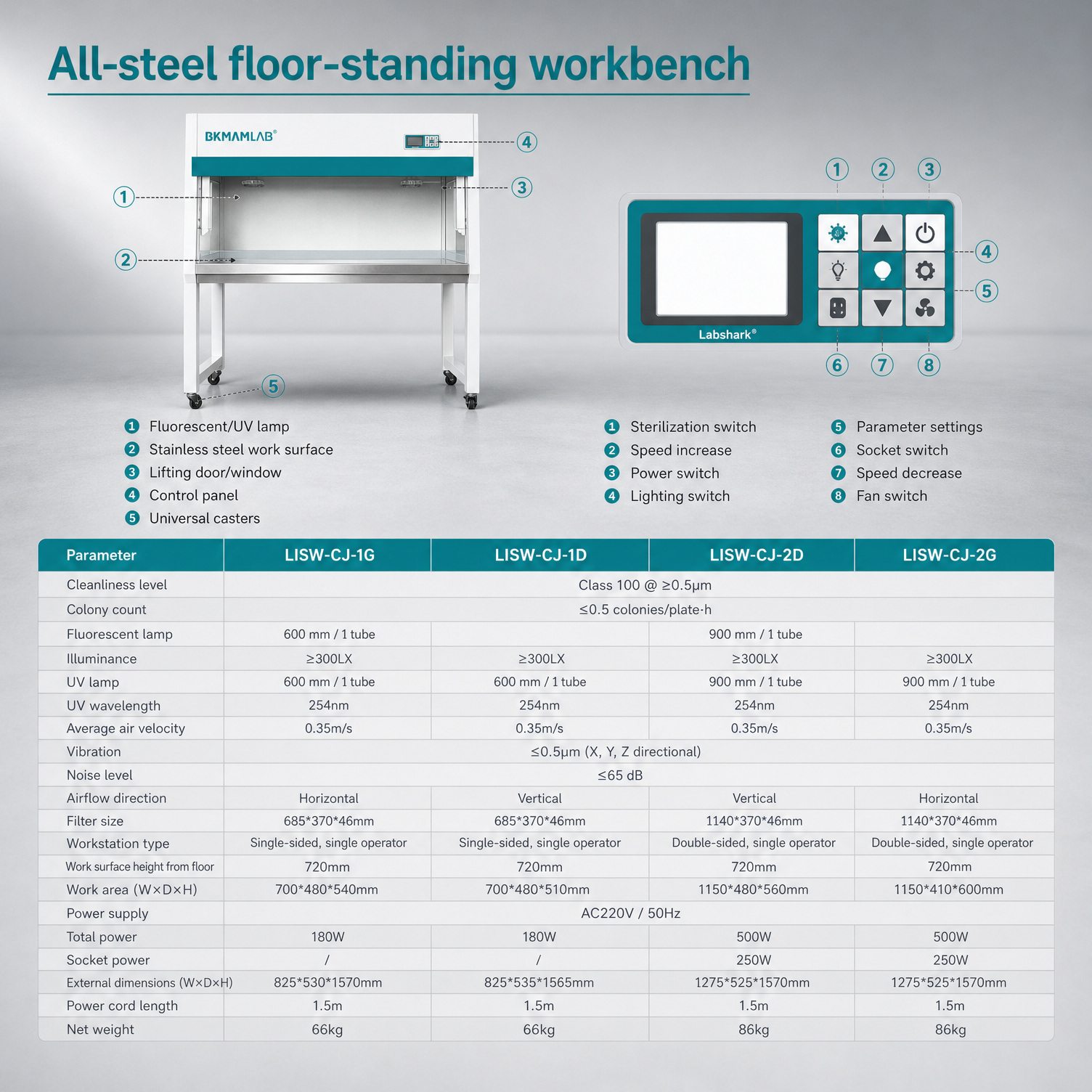

Depending on the model, the laminar flow cabinet can be controlled via button, remote control, or LCD control panel. Floor-standing models offer six or nine adjustable speeds, while benchtop models offer two speeds (low/high). This flexibility ensures precise airflow control for your specific application.
Selected floor-standing models feature a filter life indicator and UV lamp life indicator, allowing you to monitor maintenance needs and ensure continued performance. This Class 100 clean bench is designed for reliability and ease of upkeep.
Your Need | Recommended Model |
|---|---|
Single user, limited bench space | Benchtop Workstation – Class 100, 0.25/0.35 m/s, two speeds, single side. |
Multiple users, larger workspace | Floor-Standing Workstation – Class 100, 0.35 m/s, six/nine speeds, double side available. |
Third-party testing and built-in outlet | Floor-Standing Workstation – Supported on selected models with 250 W outlet. |
UV lamp & fluorescent light interlock | Floor-Standing Workstation – Supported on selected models. |
Filter and UV lamp life indicators | Floor-Standing Workstation – Yes, for easy maintenance monitoring. |
Place the laminar flow cabinet on a stable, flat surface.
Ensure the power cord is connected to a grounded outlet.
Turn on the UV lamp for sterilization before starting work (if equipped).
Turn on the fan and adjust the air speed to the desired level.
For benchtop models, select low or high speed.
For floor-standing models, use the remote or LCD to set one of the six/nine speeds.
Open the sliding sash to the appropriate height.
Place your samples on the stainless steel work surface.
Work within the laminar flow area to maintain sterility.
After work, turn off the fluorescent/LED light and fan.
Turn on the UV lamp for post-work sterilization (if needed).
Clean the work surface with a suitable disinfectant.
Check filter life and UV lamp life indicators (floor-standing models) and replace as needed.

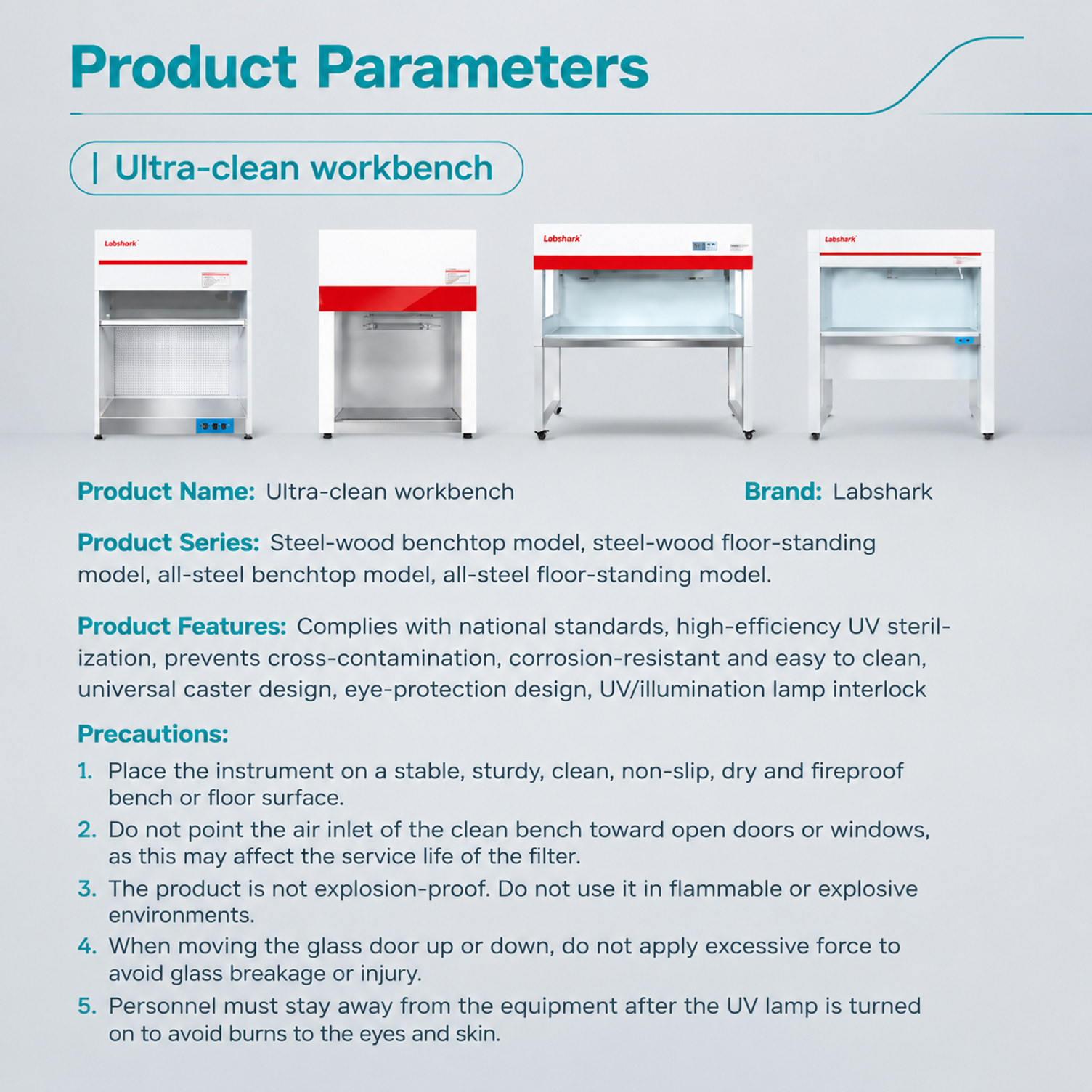

Precautions:
Do not block the air inlet or outlet grilles.
Do not use the clean bench in a highly contaminated environment.
Do not touch the UV lamp during operation.
Follow the manufacturer’s maintenance schedule for filter replacement.
The laminar flow cabinet is widely used in:
Microbiological Experiments: Aseptic handling of cultures and samples.
Electronics Assembly: Clean assembly of sensitive components.
Biotechnology: Cell culture, media preparation, and sterile transfers.
Food Industry: Quality control and aseptic packaging.
Pharmaceuticals: Sterile compounding and sample preparation.
A: The laminar flow cabinet provides Class 100 (ISO 5) cleanliness at ≥0.5 μm.
A: The air velocity is 0.25 m/s or 0.35 m/s depending on the model and setting.
A: Yes, selected models feature a UV lamp for efficient sterilization.
A: No, the clean bench is plug-and-play and ready to use out of the box.
A: Benchtop models are compact and suitable for single users with two-speed control. Floor-standing models offer larger workspace, six/nine speeds, built-in electrical outlet, and additional indicators (filter life, UV lamp life).
A: The work surface is made of stainless steel, which is corrosion-resistant and non-particulate.
A: Yes, it is ideal for cell culture and other aseptic operations requiring a clean environment.
Whether you are a microbiologist, electronics technician, or pharmaceutical researcher, the Labshark laminar flow cabinet offers the perfect combination of cleanliness, convenience, and reliability. Choose from benchtop or floor-standing models to match your specific requirements.
Order your Labshark clean bench today! Bulk inquiries and custom configurations are welcome.
