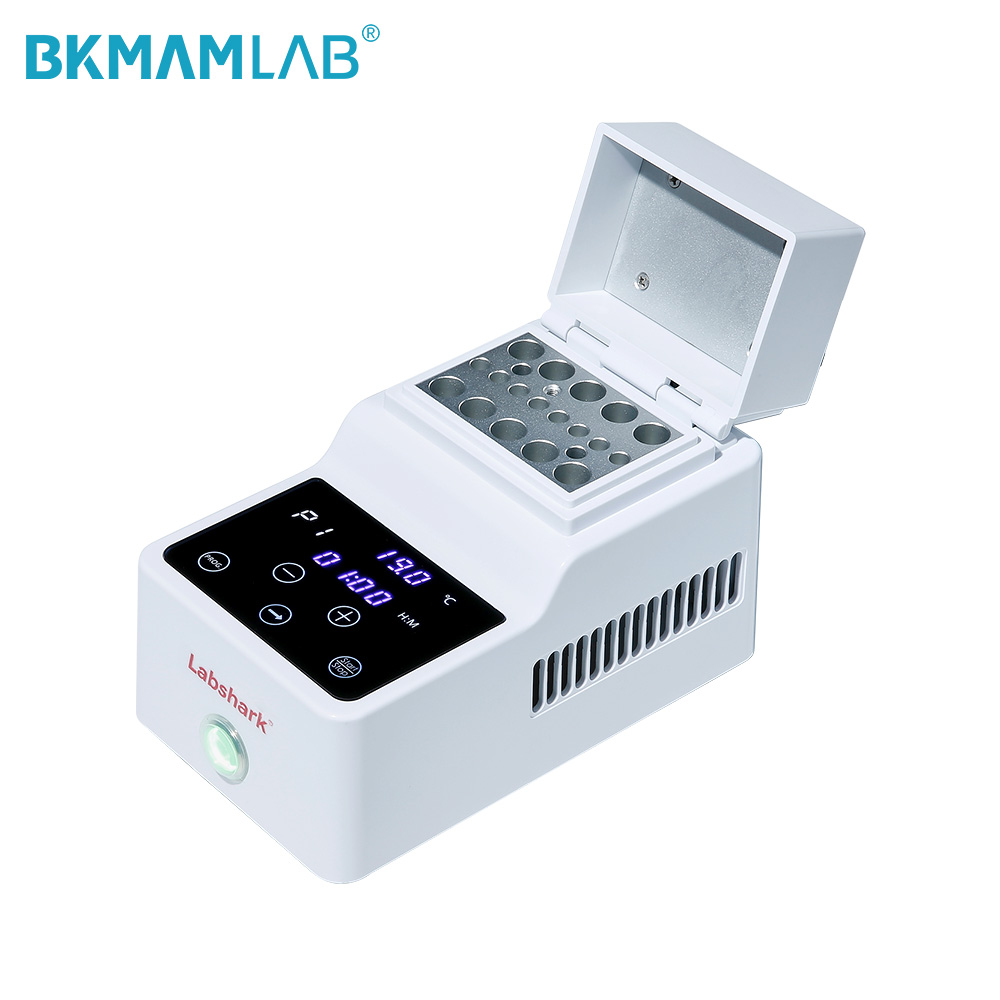

The Labshark mini metal bath (also referred to as a dry bath, digital dry bath, or dry bath incubator) is a high-precision temperature control instrument designed for PCR reactions, cell culture, enzyme activity studies, and sample pre-heating. With a compact size and lightweight design (≤1 kg), this mini dry bath is ideal for lab benches with limited space.
Available in four models—SMB-H (Heating), SMB-C (Heating/Cooling), SMB-PC (Heating/Cooling, Multi-point Run), and SMB-MH (Heating, Shaking)—this programmable dry bath features a PID algorithm with ±0.3°C accuracy, interchangeable 304 stainless steel modules, and a 10×10 program system for versatile experimental workflows.
Parameter | SMB-H (Heating) | SMB-C (Heating/Cooling) | SMB-PC (Heating/Cooling, Multi-point) | SMB-MH (Heating, Shaking) |
|---|---|---|---|---|
Temperature Range | RT ~ 100°C | 0°C ~ 100°C | 0°C ~ 100°C | RT ~ 100°C |
Timing Range | 1 min – 99 h 59 min | 1 min – 99 h 59 min | 1 min – 99 h 59 min | 1 min – 99 h 59 min |
Heating Time | — | ≤12 min (RT to 100°C) | — | — |
Cooling Time | — | ≤15 min (RT to 20°C below RT) | — | — |
Temperature Stability @40°C | ±0.5°C | ±0.5°C | ±0.5°C | ±0.5°C |
Temperature Stability @100°C | ±1°C | ±1°C | ±1°C | ±1°C |
Temperature Control Accuracy | ≤±0.3°C | ≤±0.3°C | ≤±0.3°C | ≤±0.3°C |
Temperature Uniformity | ±0.5°C | ±0.5°C | ±0.5°C | ±0.5°C |
Speed Range / Shaking Frequency | — | — | — | 100–2000 rpm |
Max. Power | 150 W | 150 W | 150 W | 150 W |
Product Dimensions | 175 × 278 × 197 mm | 175 × 278 × 197 mm | 175 × 278 × 197 mm | 175 × 278 × 197 mm |
Power Cord Length | 1.5 m | 1.5 m | 1.5 m | 1.5 m |
The dry bath features an advanced PID algorithm that ensures exceptional temperature accuracy of ≤±0.3°C and uniformity of ±0.5°C. This level of precision makes it the ideal digital dry bath for sensitive applications such as PCR reactions and enzyme activity studies.

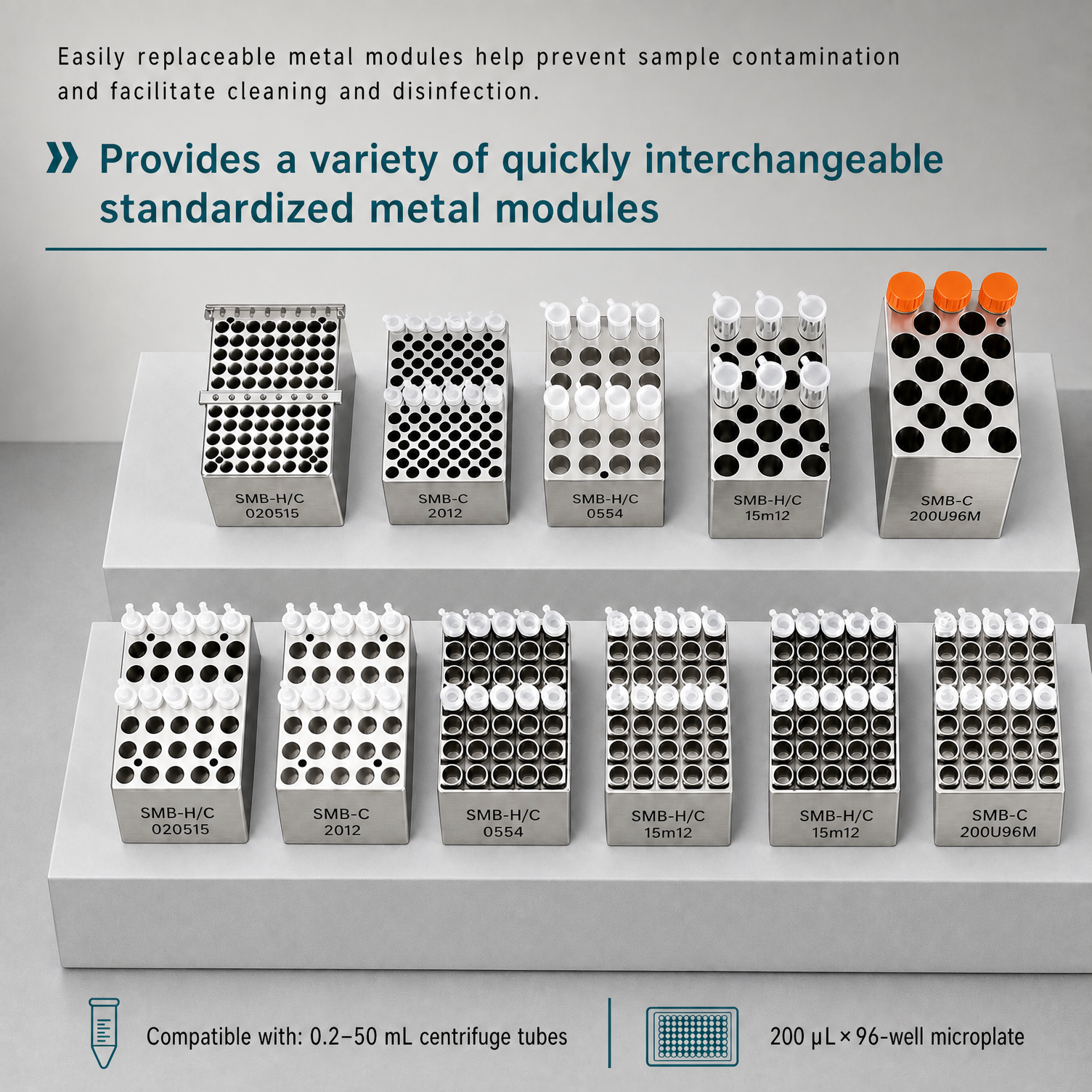

This dry bath block is compatible with interchangeable 304 stainless steel modules, accommodating containers from 1.5 mL to 50 mL. The modular design ensures contamination-free operation and allows you to quickly switch between different sample formats, making it a versatile dry bath block heater for diverse lab needs.
Choose from four models to match your specific requirements:
SMB-H: Heating only (RT~100°C) – ideal for routine incubation.
SMB-C: Heating & Cooling (0°C~100°C) – perfect for temperature-sensitive samples.
SMB-PC: Heating & Cooling with multi-point run – supports complex temperature profiles.
SMB-MH: Heating & Shaking (100–2000 rpm) – combines incubation with agitation for cell culture and mixing.
This programmable dry bath supports up to 10×10 temperature-time program segments, allowing you to create complex heating/cooling profiles tailored to your experimental protocol. The timing range covers 1 minute to 99 hours 59 minutes, ensuring flexibility for both short and long-duration experiments.
The dry heating block is equipped with dual safety protection systems: automatic fault detection and over-temperature protection. These features automatically shut down the device in case of abnormal operation, ensuring both sample and user safety.
With a net weight of ≤1 kg and compact dimensions (175×278×197 mm), this mini dry bath is exceptionally portable. It fits easily on any lab bench and can be moved effortlessly between workstations, making it an ideal dry bath lab equipment for flexible workflows.
Your Need | Recommended Model |
|---|---|
Routine heating only (RT~100°C) | SMB-H – Heating model, PID control, compact design. |
Temperature-sensitive samples (0°C~100°C) | SMB-C – Heating & Cooling model, rapid heating/cooling. |
Complex multi-point temperature profiles | SMB-PC – Heating & Cooling with multi-point run. |
Cell culture & mixing applications | SMB-MH – Heating & Shaking model, 100–2000 rpm. |
All models feature PID temperature control, ±0.3°C accuracy, and dual safety protection. Modular blocks are compatible with 1.5mL–50mL containers.
Place the dry bath on a stable, flat, and level work surface.
Select the appropriate 304 stainless steel block based on your sample containers (1.5mL–50mL).
Insert the block into the dry bath chamber and ensure it is firmly seated.
Use the backlit LCD screen to set the desired temperature.
Set the timer (1 min – 99 h 59 min) if required.
For programmable dry bath models (SMB-PC), use the 10×10 program system to create custom temperature-time profiles.
Press Start. The PID controller will heat or cool the block to the set temperature.
Monitor the display to ensure the temperature matches the set value (accuracy ≤±0.3°C).
For SMB-MH model, adjust the shaking speed (100–2000 rpm) as needed.
When the program is complete, remove your samples from the block.
Allow the block to cool before removing it from the chamber.
Clean the block with a mild detergent and dry it thoroughly.
Precautions:
Do not plug or unplug the power cord with wet hands.
Do not operate the dry bath without a properly installed block.
If the over-temperature or fault alarm sounds, stop immediately and allow the device to cool.
Use only the designated 304 stainless steel modules for optimal performance.
Our dry bath is widely used in:
PCR Reactions: Precise temperature control for DNA amplification.
Cell Culture: Incubation and shaking (SMB-MH) for cell growth.
Enzyme Activity Studies: Temperature-sensitive enzyme assays.
Sample Pre-Heating: Warming samples before analysis.
Molecular Biology: Restriction enzyme digestion and ligation reactions.
Whether you need a dry heat block for routine incubation, a cooling dry bath for temperature-sensitive samples, or a digital dry block heater for programmable workflows, Labshark provides the right solution.
A: The digital dry bath features PID algorithm control with an accuracy of ≤±0.3°C and uniformity of ±0.5°C, ensuring precise and reproducible temperature control.
A: Yes. The SMB-C and SMB-PC models support cooling down to 0°C, making them ideal for temperature-sensitive samples and cold-chain applications.
A: The SMB-MH model supports a shaking speed range of 100–2000 rpm, allowing for gentle to vigorous agitation during incubation.
A: The dry bath block system supports interchangeable 304 stainless steel modules compatible with 1.5mL, 2.0mL, 5mL, 10mL, 15mL, and 50mL containers. Select the module that best matches your tube size.
A: Yes. The programmable dry bath (SMB-PC) supports 10×10 temperature-time program segments, allowing you to create complex heating/cooling profiles for advanced protocols.
Whether you are a molecular biologist, cell culture specialist, or research technician, Labshark mini metal baths offer the perfect combination of precision, portability, and safety. Choose from SMB-H, SMB-C, SMB-PC, or SMB-MH models to match your specific needs.
Order your Labshark dry bath today! Bulk inquiries and custom configurations are welcome – contact our team for assistance.
