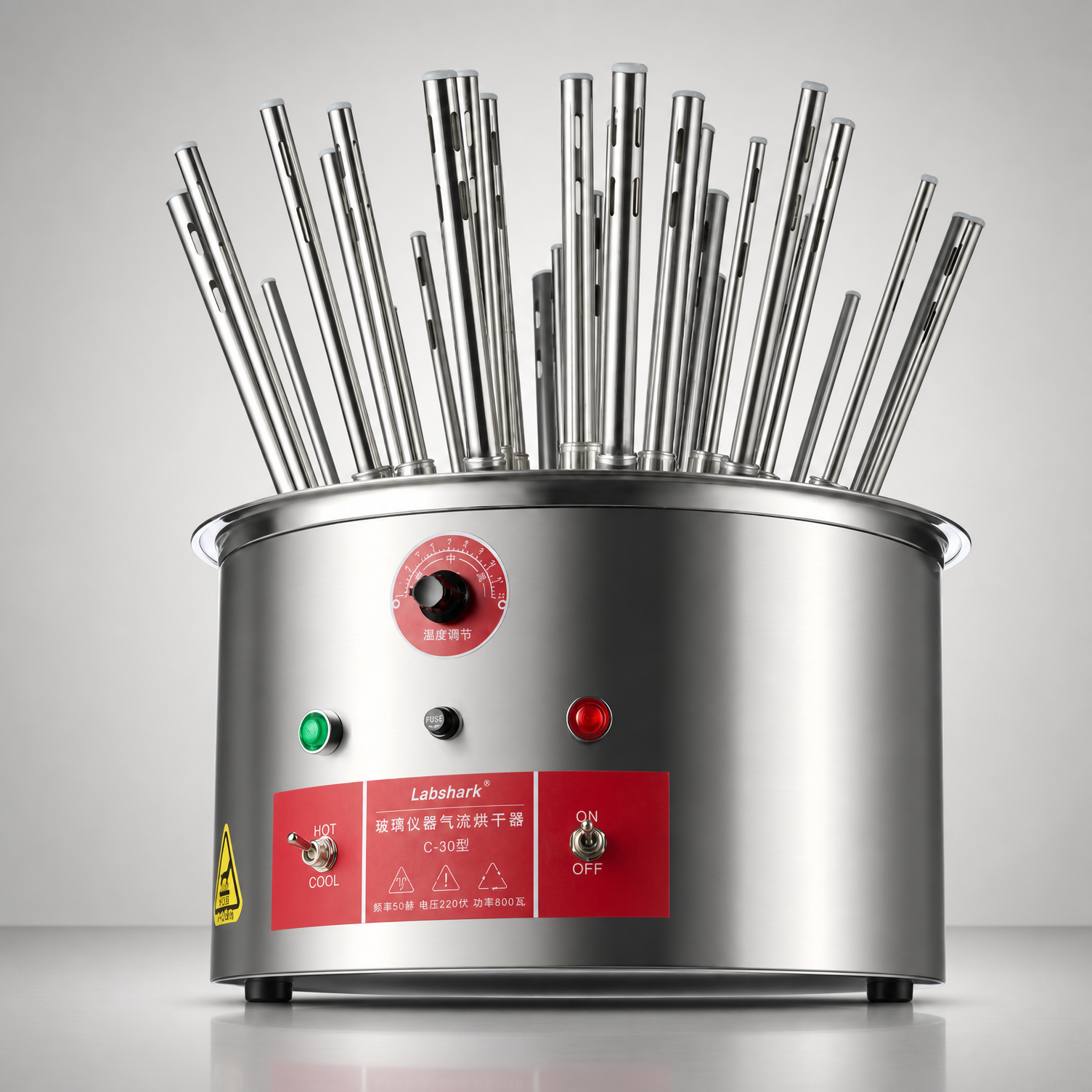

The Labshark glass airflow dryer (also referred to as a lab glass dryer, glassware dryer, or laboratory dryer) is a high-efficiency drying system designed for rapid, safe, and uniform drying of laboratory glassware. Whether you need a glassware drying rack for routine cleaning cycles in a chemistry lab, or a high-capacity airflow glass dryer for a busy pharmaceutical facility, Labshark delivers exceptional performance.
Available in three models—12-Hole, 20-Hole, and 30-Hole—this laboratory glassware drying system features a wide temperature range (40–120°C), independent suspension control, and upgraded rubber nozzle technology that boosts drying efficiency by 30%. With dual safety protection (overheating auto-power-off and buzzer alarm), it is the most reliable glassware drying cabinet for your laboratory.
Parameter | 12-Hole Model | 20-Hole Model | 30-Hole Model |
|---|---|---|---|
Temperature Adjustment Range | 40 – 120°C | 40 – 120°C | 40 – 120°C |
Drying Time | 7 – 8 min | 7 – 8 min | 7 – 8 min |
Heater Power | 900 W | 900 W | 900 W |
Number of Air Outlets | 12 holes (4/4/4) | 20 holes (6/7/7) | 30 holes (8/11/11) |
Minimum Spacing Between Outlets | 60 mm | 30 mm | 30 mm |
Air Tube Dimensions | Φ16×188mm, Φ12×188mm, Φ8×162mm | Φ16×188mm, Φ12×188mm, Φ8×162mm | Φ16×188mm, Φ12×188mm, Φ8×162mm |
Motor Power | 22 – 30 W | 22 – 30 W | 22 – 30 W |
Operating Voltage | 220 V, 50 Hz | 220 V, 50 Hz | 220 V, 50 Hz |
Product Weight | 5.1 kg | 5.2 kg | 5.6 kg |
Power Cord Length | 1.2 m | 1.2 m | 1.2 m |
Product Dimensions | 400 × 400 mm | 400 × 400 mm | 400 × 400 mm |
Body Material | 201 Stainless Steel | 201 Stainless Steel | 201 Stainless Steel |
The glass airflow dryer features an independent suspended controller or body-mounted knob design, allowing for safe, flexible, and intuitive operation. This laboratory dryer design keeps control elements away from the heated drying zone, ensuring user safety and longevity of the electronic components.
With a precise temperature adjustment range from room temperature to 120°C, this airflow glass dryer caters to a wide variety of glassware drying and heating requirements. The modular heating element delivers consistent, stable heat for uniform drying results across all air outlets.

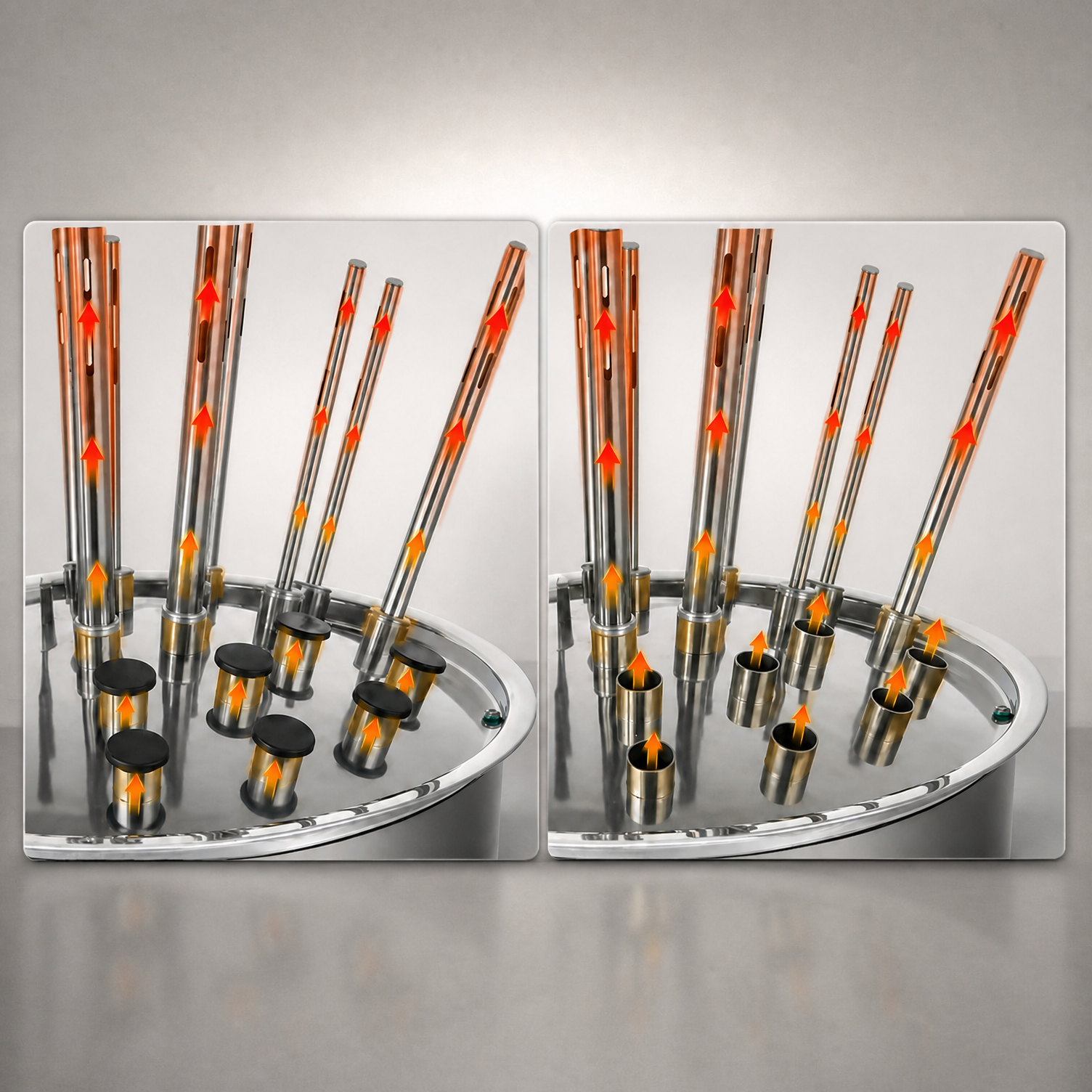

Equipped with newly upgraded rubber nozzles, the glassware dryer delivers concentrated, high-speed airflow directly into the glassware. This innovative design improves drying efficiency by 30%, significantly reducing waiting times between experiments and boosting lab productivity.

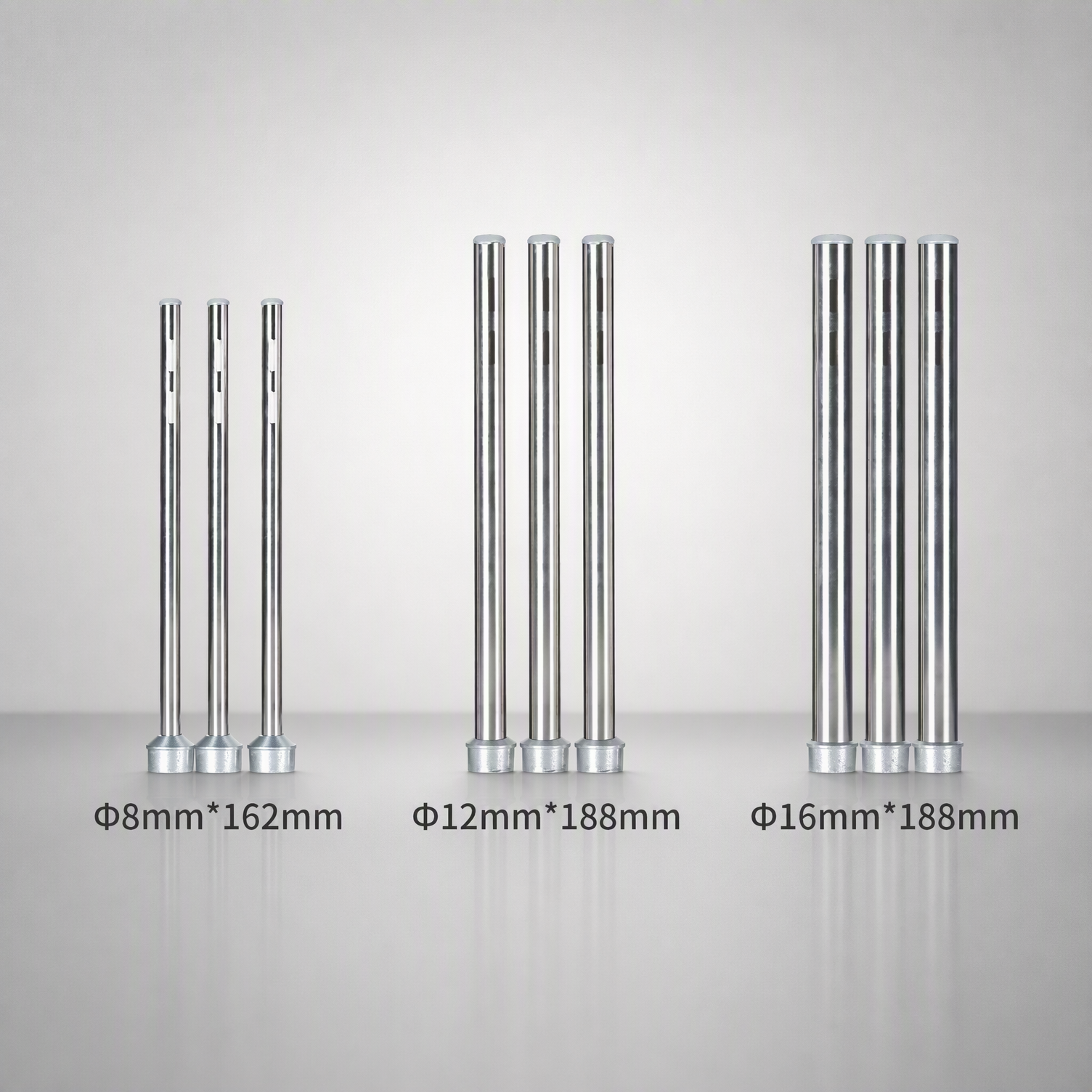

The glassware drying rack comes with multiple air tube specifications (Φ16mm, Φ12mm, and Φ8mm), making it compatible with a wide range of laboratory glassware, including beakers, flasks, cylinders, and test tubes. The modular design allows for easy disassembly and cleaning, extending the lifespan of the laboratory glassware drying system.
Safety is a top priority. This lab glass dryer is equipped with a dual protection system: automatic power-off upon overheating and a buzzer alarm to alert users in case of temperature irregularities. This ensures safe operation and prevents damage to sensitive glassware.
The main body is constructed from 201 stainless steel, offering excellent rust resistance and long-term durability. The air nozzles are made of high-quality PP (polypropylene), which prevents adhesion to glassware and allows for smooth insertion and removal of the dried items.
Your Need | Recommended Model |
|---|---|
Standard drying of up to 12 pieces of glassware | 12-Hole Model – 900W, 4/4/4 hole layout, 60mm spacing, 5.1kg. |
Medium-capacity drying (20 pieces) | 20-Hole Model – 900W, 6/7/7 hole layout, 30mm spacing, 5.2kg. |
High-throughput drying (30 pieces) | 30-Hole Model – 900W, 8/11/11 hole layout, 30mm spacing, 5.6kg. |
All models feature the same 40-120°C temperature range, 7-8 min drying time, and dual safety protection.
Place the glassware dryer on a stable, flat surface. Ensure adequate clearance around the unit for heat dissipation. Connect the power cord to a 220V, 50Hz grounded outlet.
Choose the appropriate air tube diameter (Φ16mm, Φ12mm, or Φ8mm) that best fits the mouth of your glassware (beakers, flasks, or test tubes). Insert the tube firmly into the corresponding nozzle port.
Turn on the power switch. Use the suspended controller or body-mounted knob to set the desired temperature (40-120°C). Place your washed glassware onto the air tubes. The device will automatically heat and dry the items efficiently.
If overheating occurs, the system will automatically cut off power and trigger the buzzer alarm. Turn off the main power and allow the unit to cool before restarting.
After use, wipe the stainless steel body with a damp cloth. Do not immerse the unit in water.
Precautions:
Do not plug or unplug the power connector with wet hands.
Avoid obstructing the air vents during operation.
Do not touch the air tubes or nozzles during heating to prevent burns.
If the buzzer alarm sounds, check for overheating and allow the unit to cool before resetting.
Our glass airflow dryer is widely used in:
Chemistry Laboratories: Drying beakers, flasks, and cylinders after cleaning.
Pharmaceutical Quality Control: Preparing sterile glassware for dissolution testing.
Biotechnology Research: Sterilizing and drying culture flasks and bottles.
Food Safety Testing: Drying glassware used for sample preparation and extraction.
Educational Institutions: Efficient drying of teaching lab equipment.
From 12-hole glass dryer setups to large 30-hole glass dryer models, Labshark delivers reliable, fast, and safe drying solutions for every laboratory.
A: The glass airflow dryer achieves complete drying in just 7-8 minutes, significantly faster than traditional air-drying racks.
A: Yes. The temperature range is adjustable from 40°C to 120°C with high precision, allowing you to select the ideal heat level for different types of glassware.
A: The device features dual safety protection: an automatic power-off mechanism and a buzzer alarm. If the temperature exceeds safe limits, the power will cut off and the buzzer will sound to alert you.
A: The dryer includes multiple tube sizes (Φ16mm, Φ12mm, and Φ8mm). For smaller tubes, you can select the appropriately sized nozzles. For very large glassware, we recommend using the Φ16mm tubes.
Whether you are a chemist, lab manager, or research technician, Labshark glass airflow dryers offer the perfect combination of speed, safety, and versatility. Choose from our 12-Hole, 20-Hole, or 30-Hole models to match your daily glassware processing needs.
Order your Labshark glass airflow dryer today! Bulk inquiries and custom specifications are welcome – contact our team for assistance.
