The Labshark handheld homogenizer (also referred to as a hand held homogenizer, handheld homogeniser, or hand homogenizer) is a compact, lightweight, and highly efficient tool designed for the grinding, disruption, and homogenization of biological and chemical samples. Whether you need a tissue grinder homogenizer for animal tissues, or need to process microbiological samples and plant materials, Labshark delivers exceptional performance.

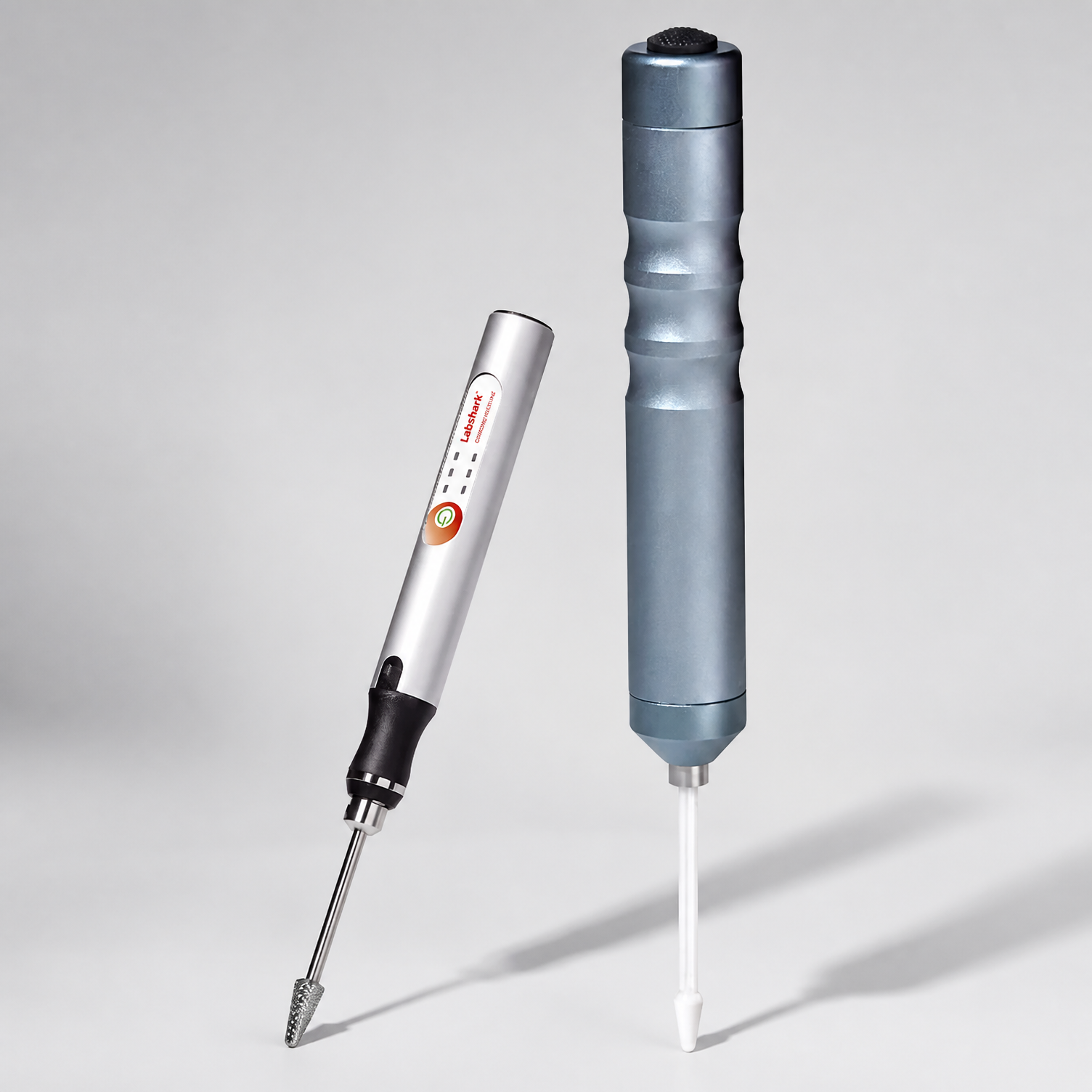

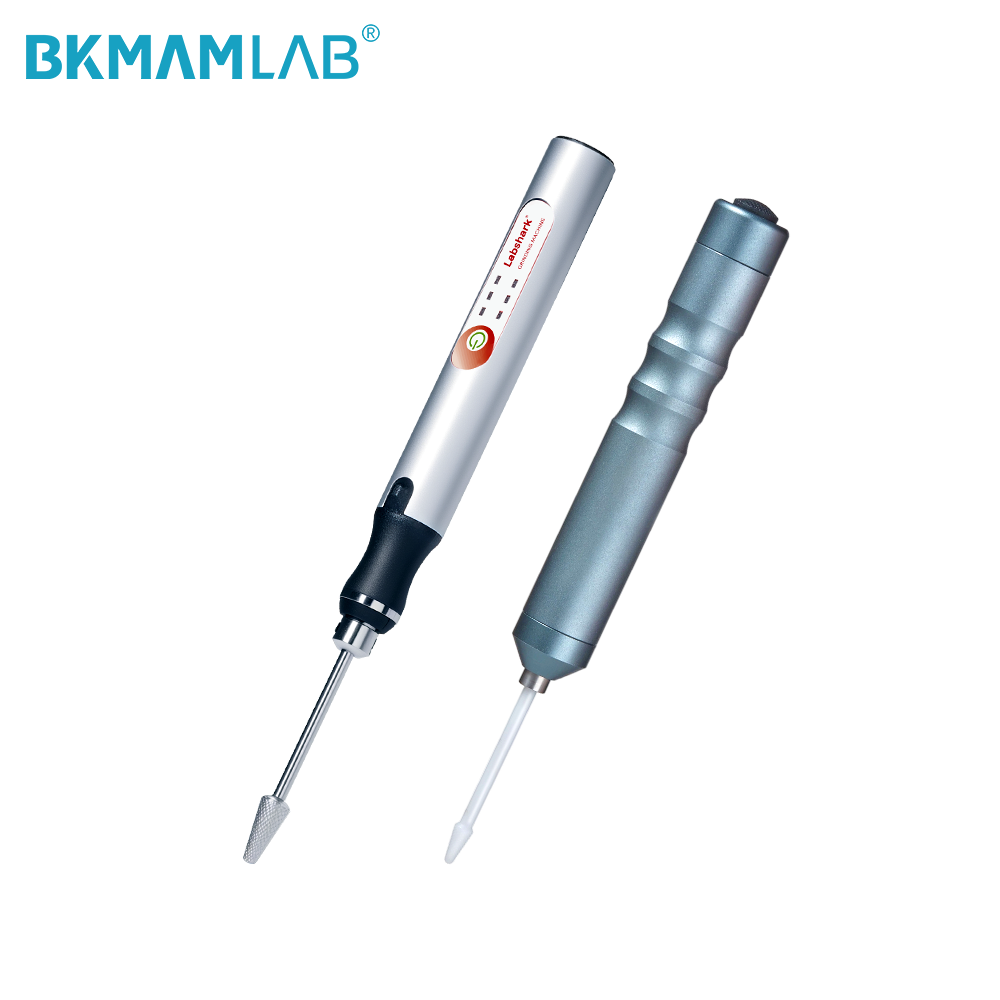

Available in two models—HTG80 (fixed speed) and LYMY-SC03 (3-speed adjustable)—this high-performance hand held homogenizer is powered by a micro DC motor (up to 18,000 rpm) and features a snap-lock anti-splash design to keep your samples contained. With a long-lasting rechargeable battery and a lightweight, ergonomic aluminum alloy body, it is the ideal hand homogenizer for both field and lab use.
Parameter | HTG80 | LYMY-SC03 |
|---|---|---|
Model Type | Fixed Speed | 3-Speed Adjustable |
Power | 10 W | 10 W |
Processing Volume | 1 mL | 2 mL |
Speed Adjustment | Fixed | 3-speed adjustable |
Speed Range | 11,000 rpm | 5,000 / 10,000 / 18,000 rpm |
Grinding Rod Diameter | Tip: 3.2mm / Head: 6.6mm / Shaft: 4.5mm | Tip: 3.2mm / Head: 6.2mm / Shaft: 3.0mm |
Standard Grinding Rod Material | Plastic | Stainless Steel |
Chuck Depth | 17 mm | 25 mm |
Power Supply | 3.7V, 18650 lithium battery | 4.2V, rechargeable battery |
Battery Capacity | 2000 mAh | 300 mAh |
Operating Time | 10 h (varies with load) | 1 h |
Charging Time | 4-6 h | 0.5 h to 80% / 1 h to full |
Net Weight (Main Unit) | 200 g | 86 g |
Main Unit Dimensions | 168 × Φ26 mm | 125 × 16 mm |
This handheld homogenizer features a built-in micro DC motor that delivers high-speed grinding—up to 11,000 rpm (HTG80) or 18,000 rpm (LYMY-SC03). This allows for rapid and thorough disruption of animal tissues, plant materials, microorganisms, and food samples. Whether you are working with tough fibers or soft tissues, this tissue grinder homogenizer ensures complete homogenization in seconds.
HTG80: Fixed speed at 11,000 rpm – ideal for standard, routine grinding tasks.
LYMY-SC03: 3-speed adjustable (5,000 / 10,000 / 18,000 rpm) – perfect for versatile applications requiring precise speed control. This hand held homogenizer gives you the flexibility to handle samples of varying hardness and viscosity.
The snap-lock adapter securely fastens the grinding cup to the main body, preventing sample splashing and ensuring a clean, safe operation. Additionally, the built-in overload protection mechanism automatically shuts down the motor when the load exceeds safe limits, protecting this hand homogenizer from damage and extending its service life.
The HTG80 model is equipped with two 18650 lithium batteries (2000mAh total), supporting up to 10 hours of continuous operation. The LYMY-SC03 features a 300mAh rechargeable battery that charges to 80% in just 30 minutes. Both models ensure you can work uninterrupted for long periods, making them the perfect handheld homogeniser for field sampling and extended lab sessions.

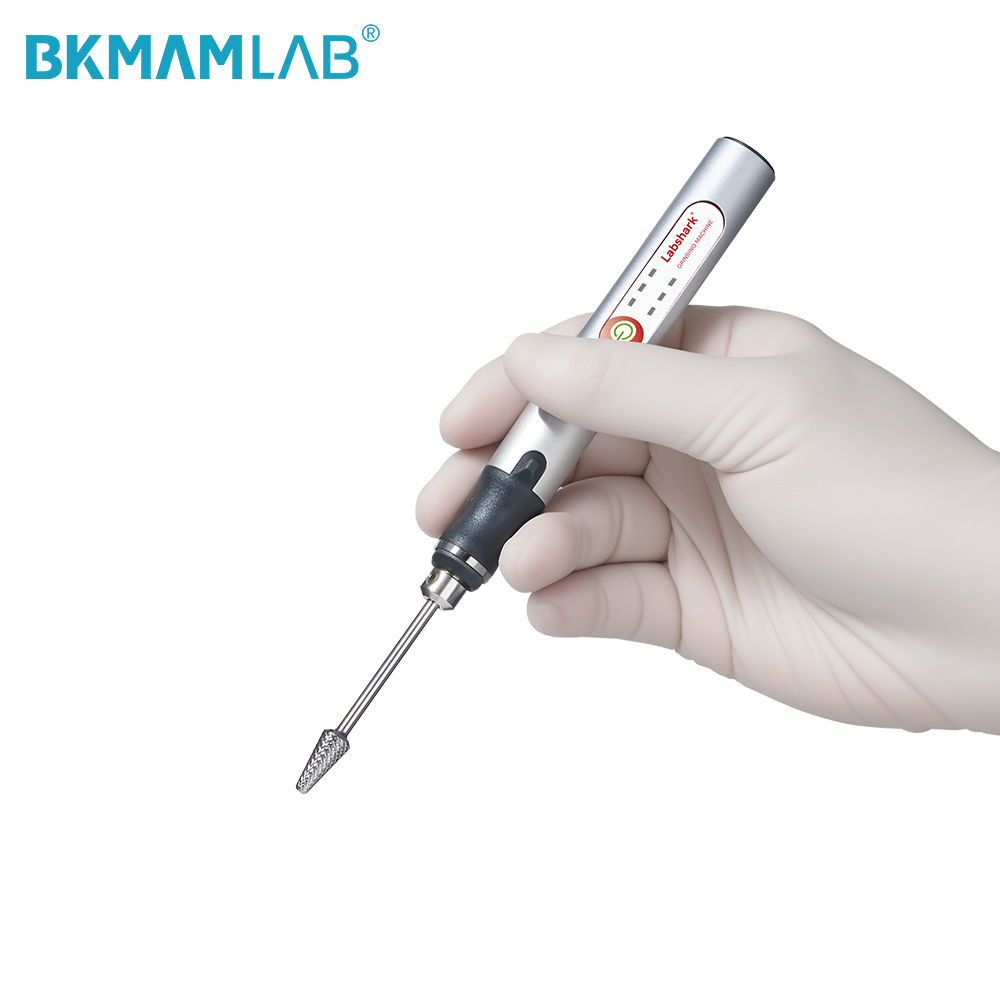

The aluminum alloy body is designed with an anti-slip texture for a secure grip, reducing hand fatigue during prolonged use. Weighing just 200g (HTG80) or 86g (LYMY-SC03), this compact hand held homogenizer fits easily into any lab drawer or field kit.

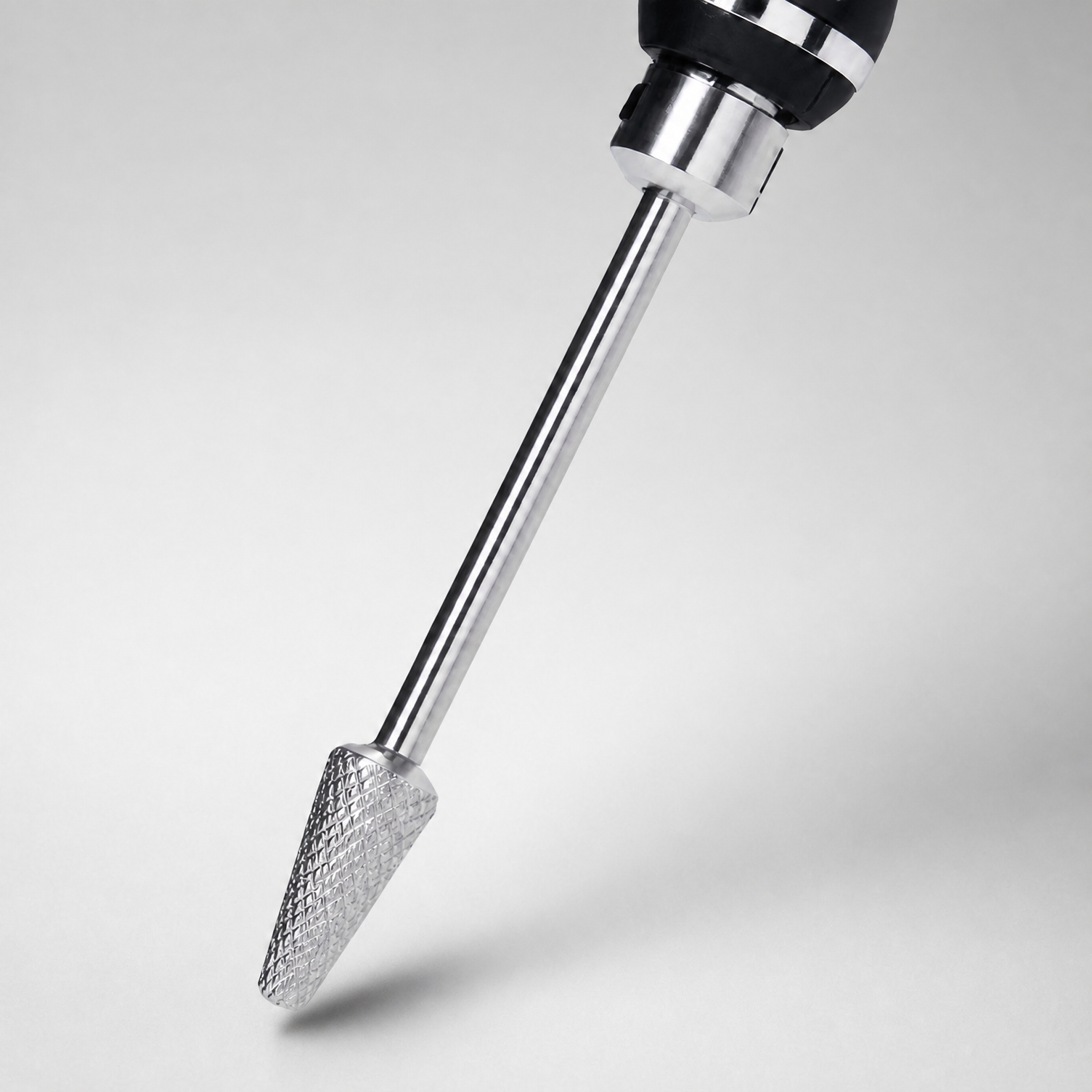

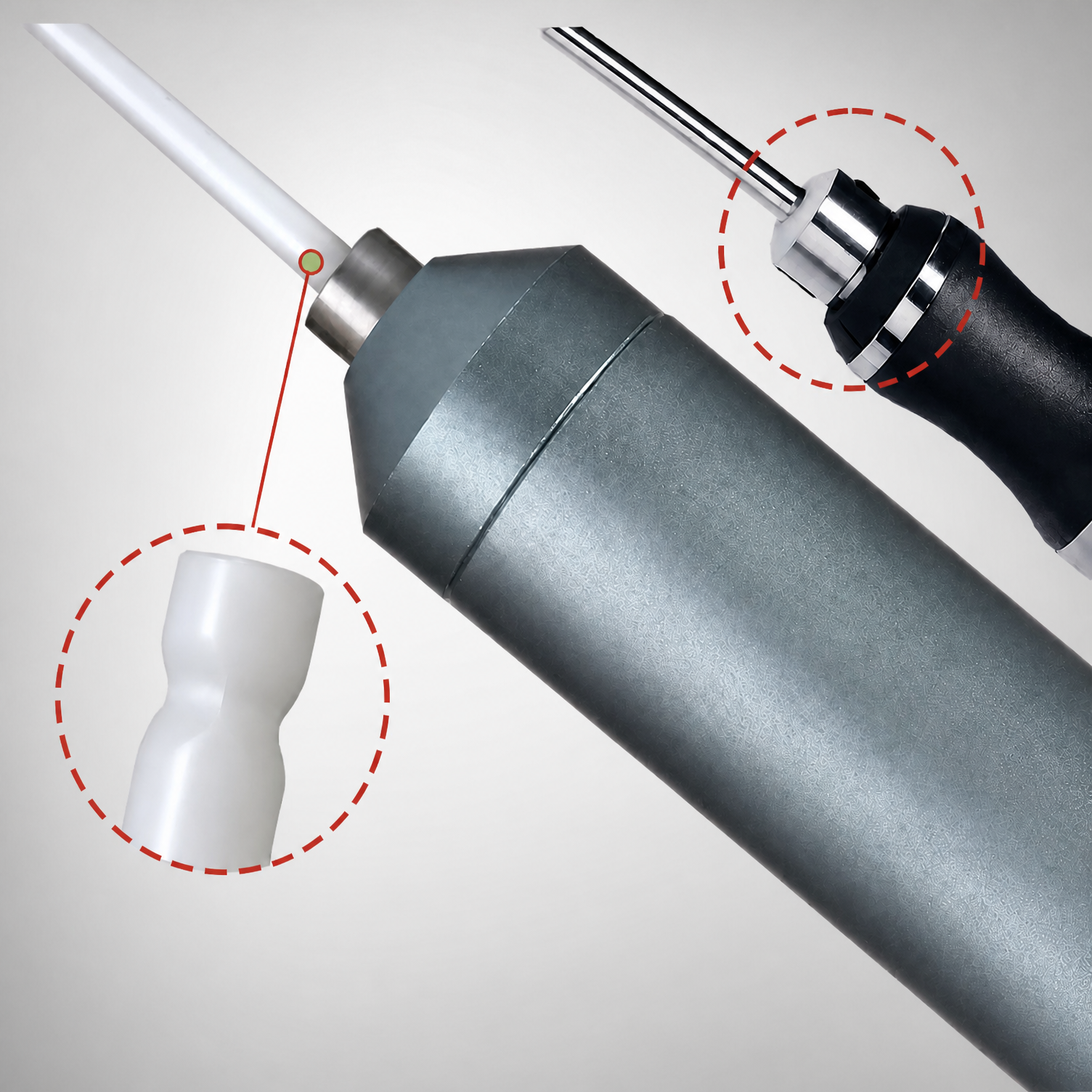

The stainless steel grinding rod (standard on LYMY-SC03) is highly durable and easy to clean. It is fully autoclavable, ensuring sterile operation for pharmaceutical and clinical applications. The grinding head features an anti-loosening design, preventing accidental detachment during high-speed operation of this tissue grinder homogenizer.
Your Need | Recommended Model |
|---|---|
Routine grinding of tissues, simple operation | HTG80 – Fixed 11,000 rpm, 2000mAh battery, 10-hour operation, plastic grinding rod. |
Versatile applications requiring different speeds | LYMY-SC03 – 3-speed adjustable (5,000/10,000/18,000 rpm), stainless steel grinding rod, lightweight (86g). |
Both models feature the snap-lock anti-splash design and overload protection, making them reliable hand homogenizers for daily lab use.
Select the appropriate grinding cup and grinding rod for your sample. Ensure the snap-lock adapter is securely fastened to prevent splashing during operation.
Place your sample (animal tissue, plant material, or microbial sample) into the grinding cup. For hard tissues, pre-cut the sample into smaller pieces to facilitate grinding.
For HTG80: Press the power button to start grinding at a fixed speed of 11,000 rpm.
For LYMY-SC03: Select your desired speed (5,000 / 10,000 / 18,000 rpm) using the control button, then start grinding.
After use, disassemble the grinding cup and grinding rod. Clean them thoroughly with distilled water or a suitable cleaning solution. For sterilization, autoclave the stainless steel components at 121°C.
Precautions:
Do not use this handheld homogeniser for samples that are too hard or excessively large to avoid damaging the motor.
Ensure the grinding head is securely tightened before use to prevent it from falling off during operation.
If the overload protection mechanism activates, wait for the motor to cool before resuming use.
Do not immerse the main body in water or other liquids.
Our hand held homogenizer is widely used across multiple industries:
Biotechnology & Research: Cell disruption, DNA/RNA extraction, and protein isolation.
Food Safety: Homogenization of meat, vegetables, and dairy products for contamination analysis.
Pharmaceuticals: Drug formulation, quality control, and active ingredient extraction.
Environmental Monitoring: Soil sample preparation and pollutant analysis.
Research Institutions: Tissue grinding for molecular biology and pathology studies.
From standard hand homogenizer tasks to specialized tissue grinder homogenizer applications, Labshark provides the tools you need for efficient sample preparation.
A: HTG80 is a fixed-speed handheld homogenizer (11,000 rpm) with a longer battery life (10 hours). LYMY-SC03 offers 3-speed adjustment (5,000 / 10,000 / 18,000 rpm), a stainless steel grinding rod, and a lighter body (86g) for more versatile tasks.
A: Yes. Both models are suitable for plant tissues, including leaves, roots, stems, and seeds. For tougher plant materials, we recommend pre-cutting the sample into smaller pieces.
A: The stainless steel grinding rod can be disassembled and autoclaved at 121°C for complete sterilization. The plastic rod should be cleaned with a suitable solvent and air-dried.
A: The built-in overload protection may have activated. Stop using the device, allow the motor to cool down, and reduce the sample load before resuming operation on your hand held homogenizer.
Whether you are a biotechnologist, food scientist, or research technician, Labshark handheld homogenizers offer the perfect combination of speed, versatility, and safety. Choose between the HTG80 and LYMY-SC03 models to match your specific sample preparation needs.
Order your Labshark hand homogenizer today! Bulk inquiries and custom configurations are welcome – contact our team for assistance.
