BKMAMLAB Multifunctional Marking Machine – UV Laser Marking System

Product Overview

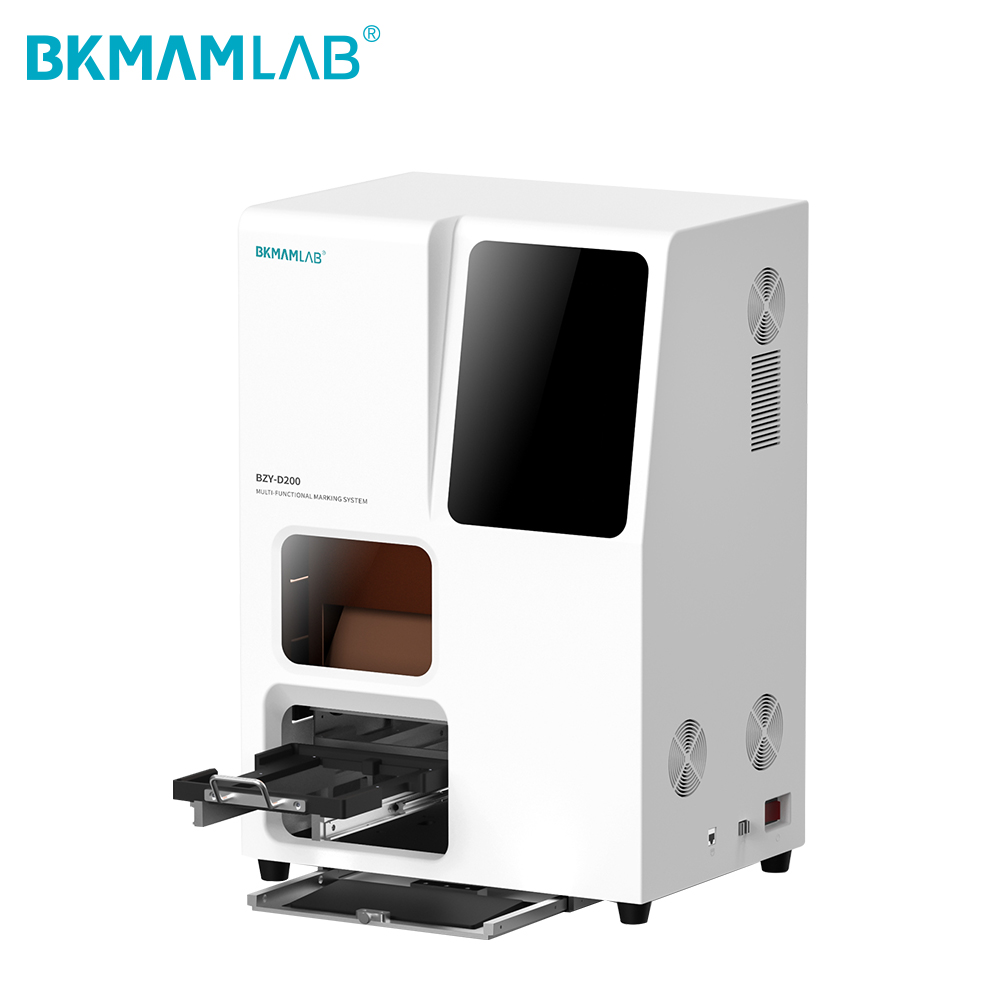

The BKMAMLAB multifunctional marking machine (also referred to as a UV laser marking system, laboratory marking machine, or laser marking machine) is a high-precision instrument designed for permanent marking of laboratory consumables. Using a 355 nm UV laser with CCD vision positioning, this CCD vision positioning marking system delivers accurate and reliable marking on centrifuge tubes, microscope slides, cryopreservation tubes, embedding frames, and other labware.

The BZY-D200 model features a 10.1-inch touch screen with multi-language interface, supports manual data entry or batch import from Excel, and offers batch processing of 14–60 pieces per cycle (depending on the fixture). With automatic self-check, fault diagnosis, and marking data logging, this batch marking machine ensures efficient and traceable sample labeling. Whether you need a centrifuge tube marking system for sample tracking or a slide marking system for pathology, BKMAMLAB delivers precision and reliability.

Product Specifications

Key Features & Advantages

1. High-Precision Positioning – 355 nm UV Laser with ±0.1 mm Accuracy

The multifunctional marking machine utilizes a 355 nm UV laser combined with CCD vision positioning to achieve marking accuracy of ±0.1 mm. This CCD vision positioning marking system ensures precise and permanent marking on even the smallest laboratory consumables.

2. Batch Processing – 14–60 Pieces per Cycle

This batch marking machine supports processing 14–60 pieces per cycle depending on the fixture type. It is ideal for high-throughput laboratories requiring efficient sample labeling and information traceability.

3. Intelligent Self-Check – Automatic Calibration at Startup

The laboratory marking machine features automatic calibration at startup, fault code diagnosis, and real-time error reporting. This laser marking machine ensures reliable operation and reduces downtime by detecting issues early.

4. Multi-Language Touch Screen – 10.1-Inch Interface

The UV laser marking system is equipped with a 10.1-inch touch screen supporting Chinese and English language switching. The intuitive interface allows easy data entry, batch import, and system configuration.

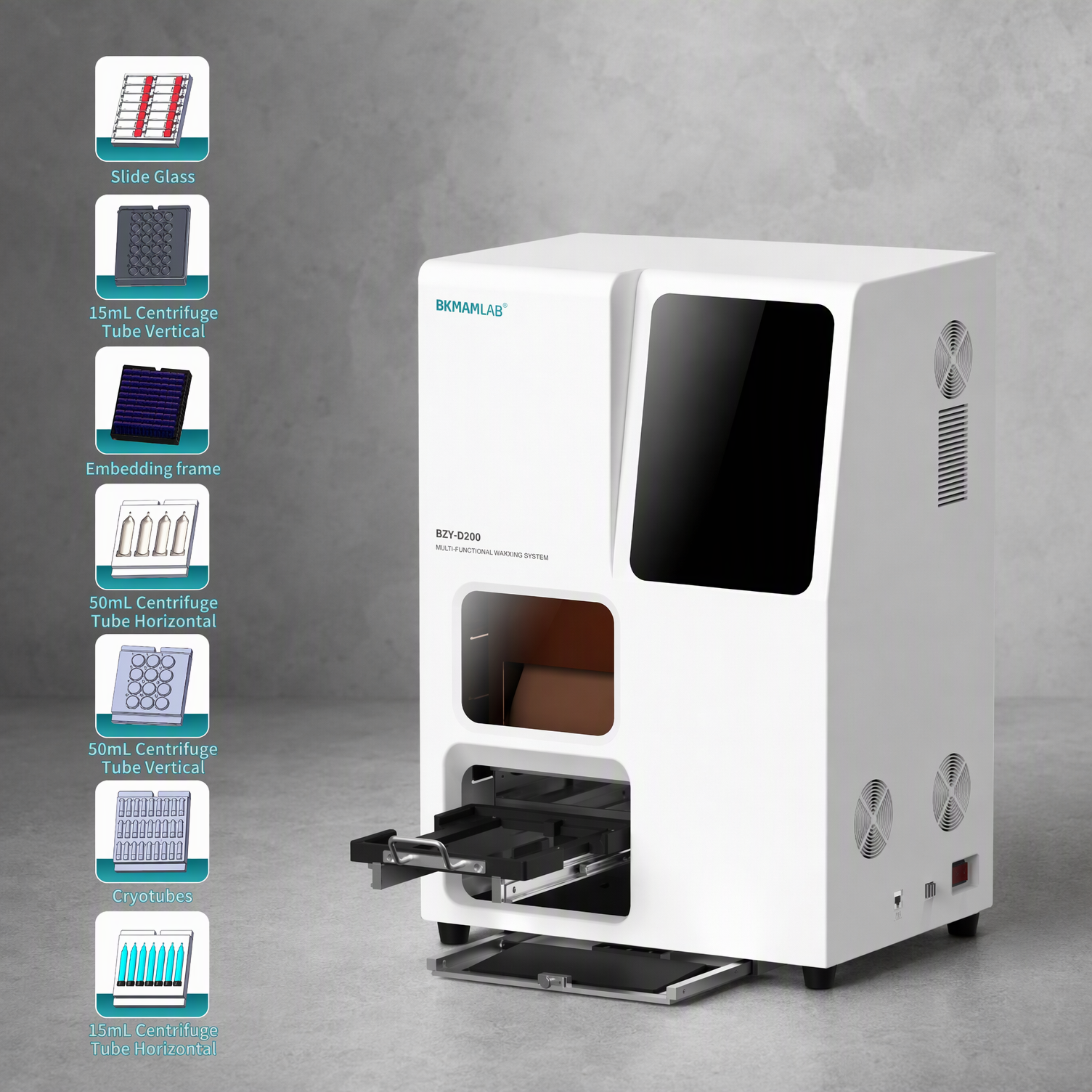

5. Multiple Adapters for Various Labware

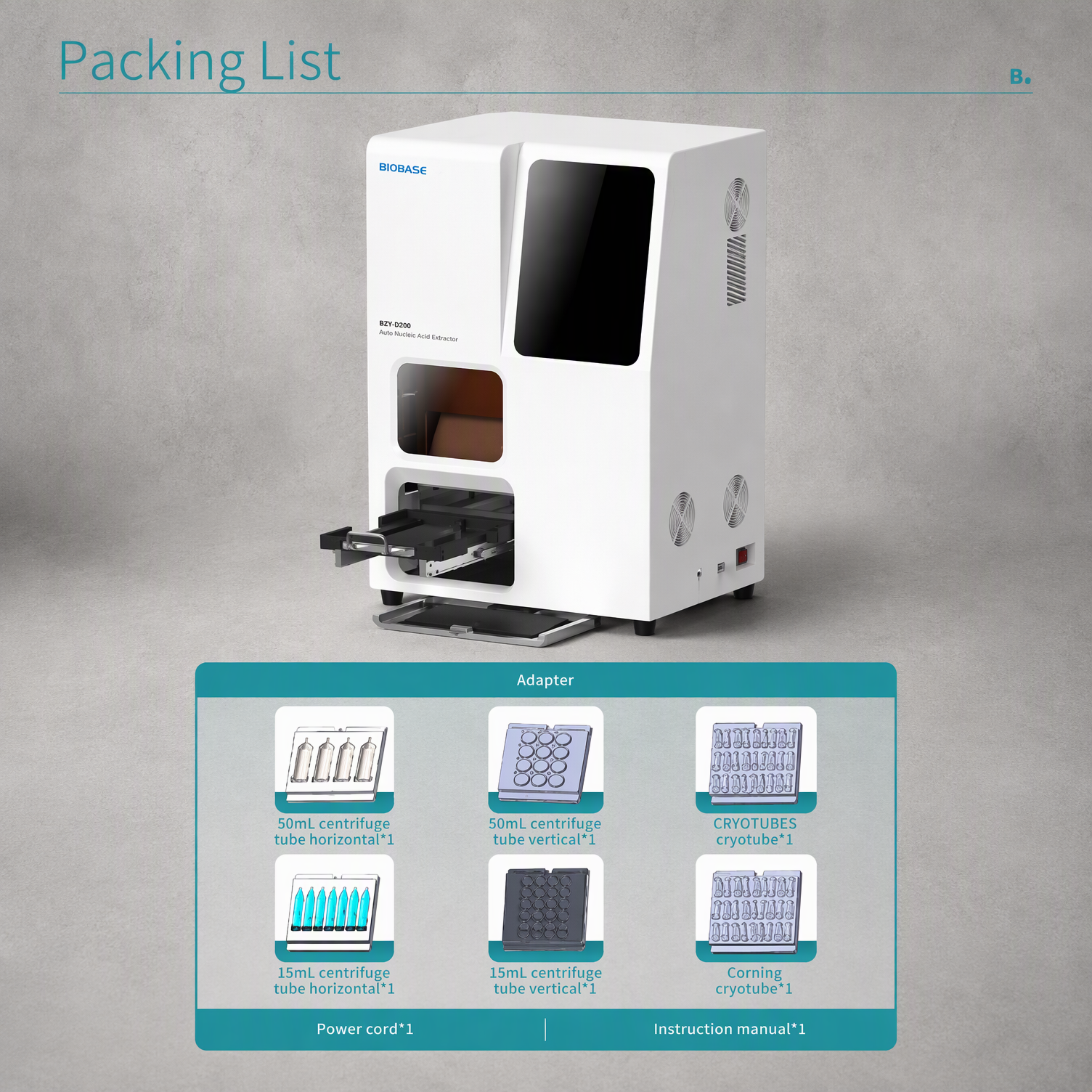

The multifunctional marking machine comes with a variety of adapters, making it compatible with:

• 15 mL centrifuge tubes (horizontal/vertical)

• 50 mL centrifuge tubes (horizontal/vertical)

• Cryotubes (Coring, BKMAMLAB)

• Embedding frames

• Slide glasses

This laboratory sample labeling system adapts to a wide range of labware formats.

6. Data Management – Excel Import & Traceability

The batch marking machine supports manual data entry or batch import from Excel. Marking data logging and fault reporting ensure full traceability of your sample labeling process.

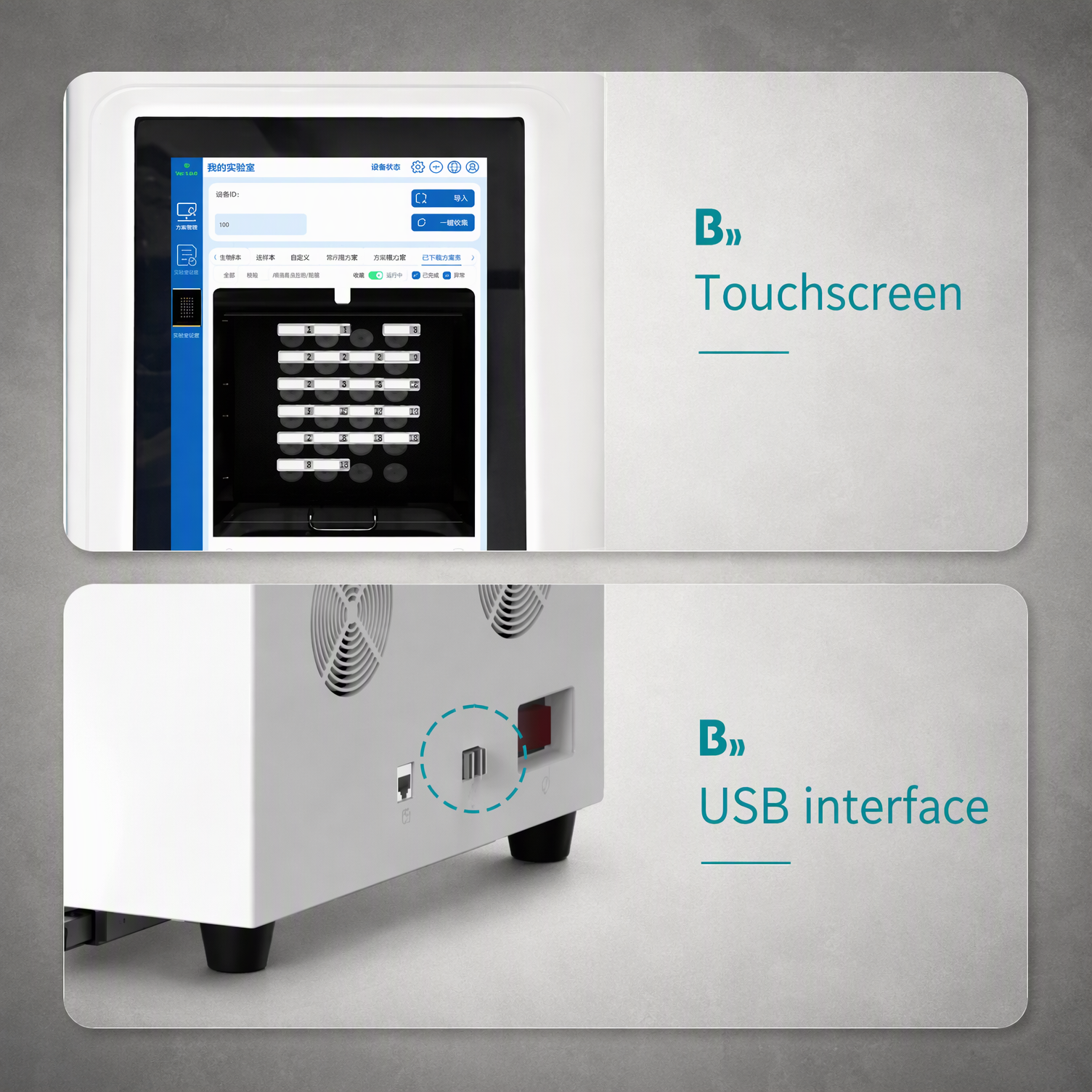

7. USB Interface & Gigabit Ethernet Port

The laser marking machine includes a USB interface and a built-in Gigabit Ethernet port for easy data transfer and network connectivity.

Purchasing Guide – How to Choose the Right Model

Instructions for Use & Precautions

Step 1: Preparation

• Place the multifunctional marking machine on a stable, flat surface.

• Ensure the operating environment is within 15–35°C and humidity ≤90%.

• Connect the power cord and network cable if needed.

Step 2: Power On & Self-Check

• Turn on the machine. The UV laser marking system will automatically perform a self-check and calibration.

• Check the touch screen for any fault messages.

Step 3: Load Adapter & Samples

• Select the appropriate adapter for your labware (centrifuge tubes, slides, cryotubes, etc.).

• Load the samples into the adapter and insert it into the carrier adapter.

Step 4: Set Marking Data

• Use the touch screen to manually enter data or import an Excel file.

• Verify the marking information on the screen.

Step 5: Start Marking

• Press the start button. The batch marking machine will begin marking.

• Do not open the machine cover during operation.

Step 6: Completion & Maintenance

• After marking, remove the samples and adapter.

• Clean the machine surface with a soft cloth.

• Do not remove the fan cover while the machine is running.

Precautions:

1. A conspicuous sign should be set on the laser equipment, and “laser protective glasses” should be worn during debugging.

2. The operator should use a sealing sleeve of corresponding material to seal the internal optical path system of the instrument laser equipment as much as possible to avoid direct exposure.

3. The position accuracy of the carrier adapter is high, and it has been precisely calibrated before delivery. Please do not apply any force other than pushing and pulling to the carrier adapter and its push-pull device.

4. Do not remove the fan cover when the machine is started.

Versatile Application Scenarios

The multifunctional marking machine is widely used in:

• Centrifuge Tube Marking: 15 mL and 50 mL tubes for sample tracking.

• Slide Marking: Microscope slides for pathology and histology.

• Cryopreservation Tube Marking: Cryotubes for biobanking.

• Embedding Frame Marking: Cassettes for tissue processing.

• Laboratory Sample Labeling: General traceability for research and clinical labs.

Frequently Asked Questions (FAQ)

Q1: What types of labware can this marking machine handle?

A: The multifunctional marking machine supports 15 mL and 50 mL centrifuge tubes, cryotubes, embedding frames, and microscope slides.

Q2: How many pieces can be marked per cycle?

A: The batch marking machine can process 14–60 pieces per cycle, depending on the adapter/fixture type.

Q3: Does it support Excel import?

A: Yes. The UV laser marking system supports manual data entry or batch import from Excel.

Q4: What is the positioning accuracy?

A: The CCD vision positioning marking system provides accuracy of ±0.1 mm.

Q5: Is a computer required?

A: No, the system has a built-in 10.1-inch touch screen for standalone operation. However, it also includes a Gigabit Ethernet port and USB interface for data transfer.

Q6: What is the laser wavelength and power?

A: The laser marking machine uses a 355 nm UV laser with 3 W power.

Order Now – Upgrade Your Laboratory Sample Labeling

Whether you are a laboratory manager, researcher, or clinical technician, the BKMAMLAB multifunctional marking machine offers the perfect combination of precision, efficiency, and traceability. With UV laser marking, CCD positioning, and multi-adapter compatibility, it is the ideal UV laser marking system for modern laboratories.

Order your BKMAMLAB multifunctional marking machine today! Bulk inquiries and custom configurations are welcome.
