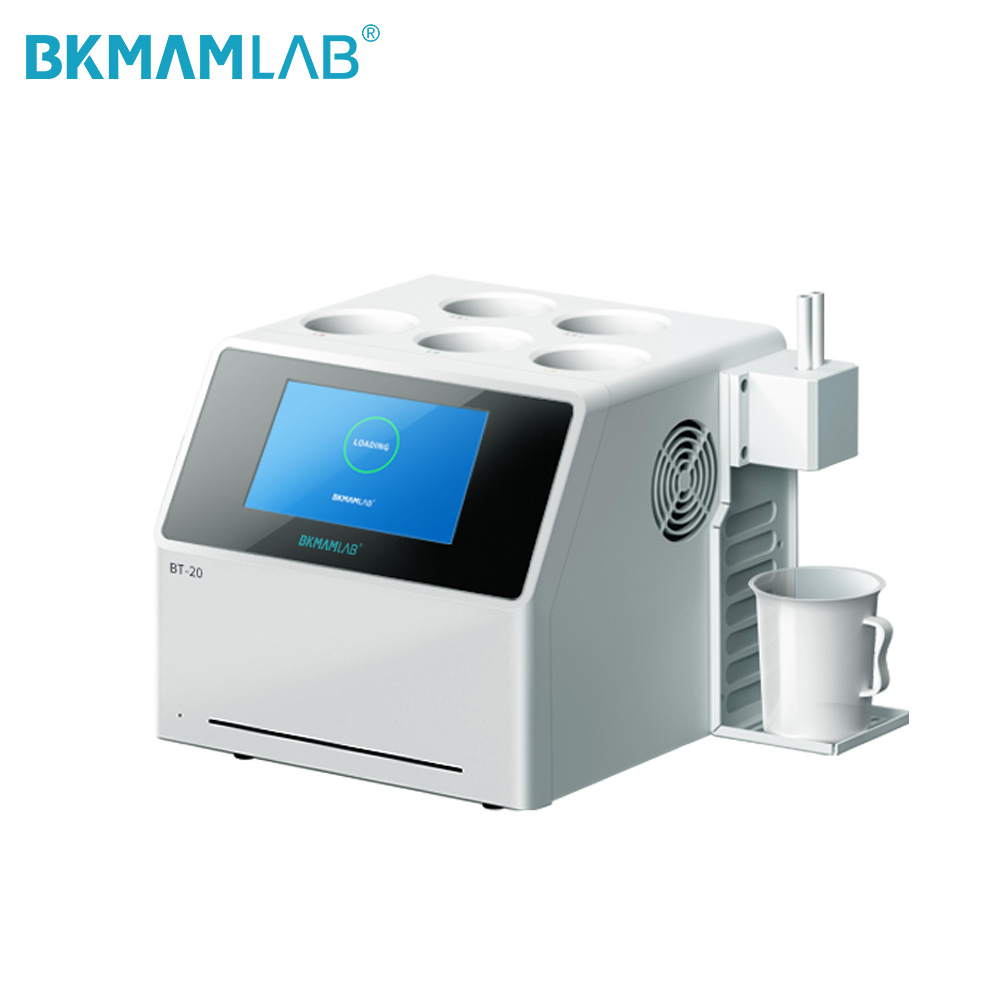

The BKMAMLAB automatic gel casting instrument (also referred to as a gel casting machine, automatic gel caster, or lab gel caster) is a fully automated system designed for rapid and batch gel casting in laboratory settings. With a 30-second gel casting time per gel and the ability to cast up to 6 gels per run, this gel casting system significantly improves efficiency and reproducibility compared to manual methods.

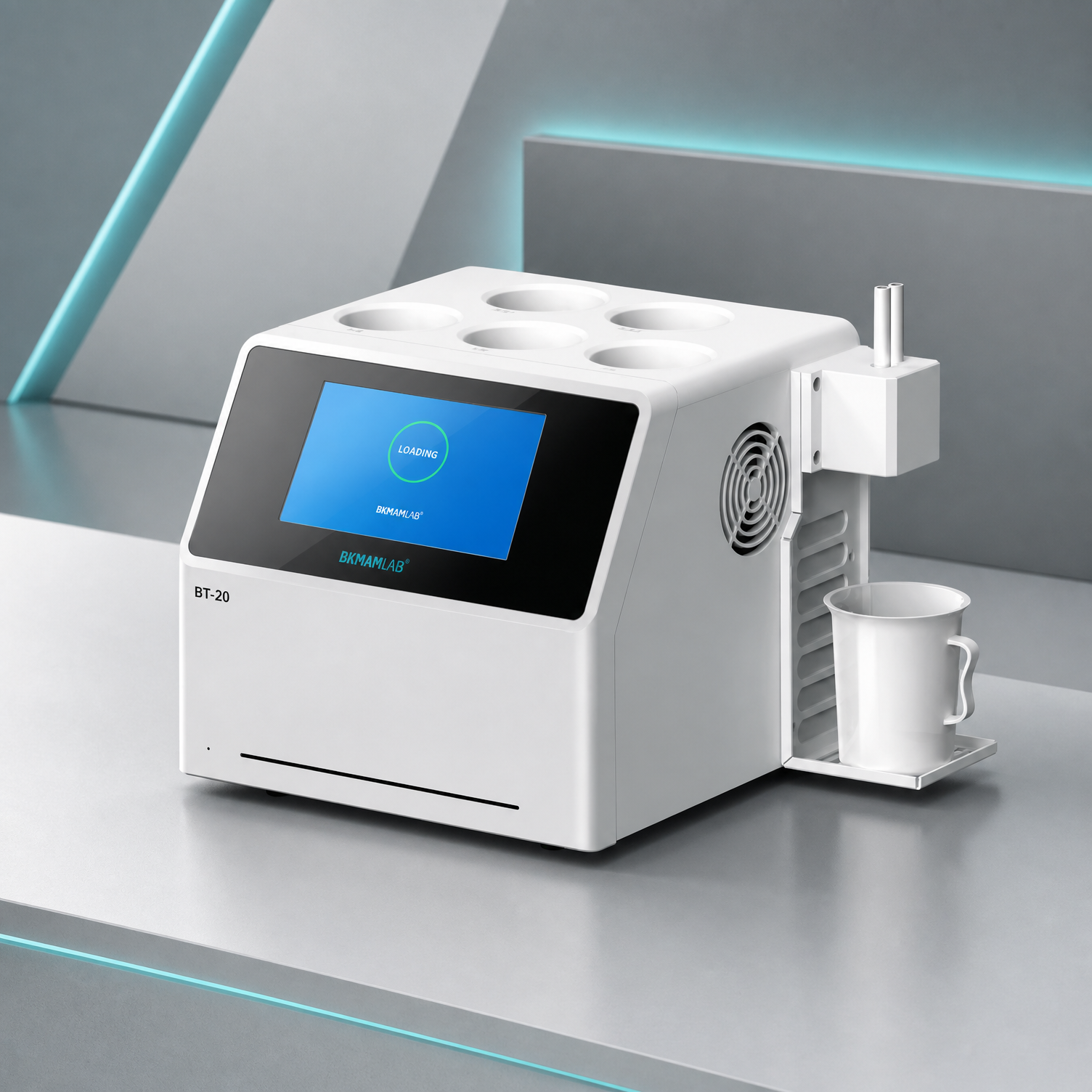

The BT-20 model supports both gradient gel casting (4%–20%) and isocratic gels, ensuring uniform distribution and excellent separation performance. It features a 7-inch color LCD touchscreen, automatic gel mixing, one-touch gel pouring, and automatic cleaning of mixing lines. The integrated design allows for easy setup—simply connect the power and reagent lines. Whether you need a gel casting equipment for protein analysis or a BKMAMLAB gel caster for high-throughput research, this system delivers reliable, high-quality results.
Parameter | BT-20 |
|---|---|
Model | BT-20 |
Application | Gradient gel preparation for WB experiments |
Gel Concentration | 4%–20% |
Gel Specifications | Mini gels, thickness 0.75 / 1.0 / 1.5 mm |
Gel Casting Time | ≤30 seconds per gel |
Reagent Bottle Holder | 4 × 500 mL reagent bottles + 1 × waste cup |
Automatic Cleaning | Supports automatic flushing of mixing lines between gel casting intervals |
Automatic Pre-filling | Supports automatic filling of casting lines |
Fault Indication | Specific fault indication function |
Display | 7-inch color LCD touchscreen (Chinese interface) |
Operating Temperature | 10–40 °C |
Input Voltage | 100–240 VAC, 50/60 Hz |
Rated Power | 210 W |
Dimensions | 305 × 305 × 270 mm |
Net Weight | 12.5 kg |
Power Cord Length | 1.5 m |

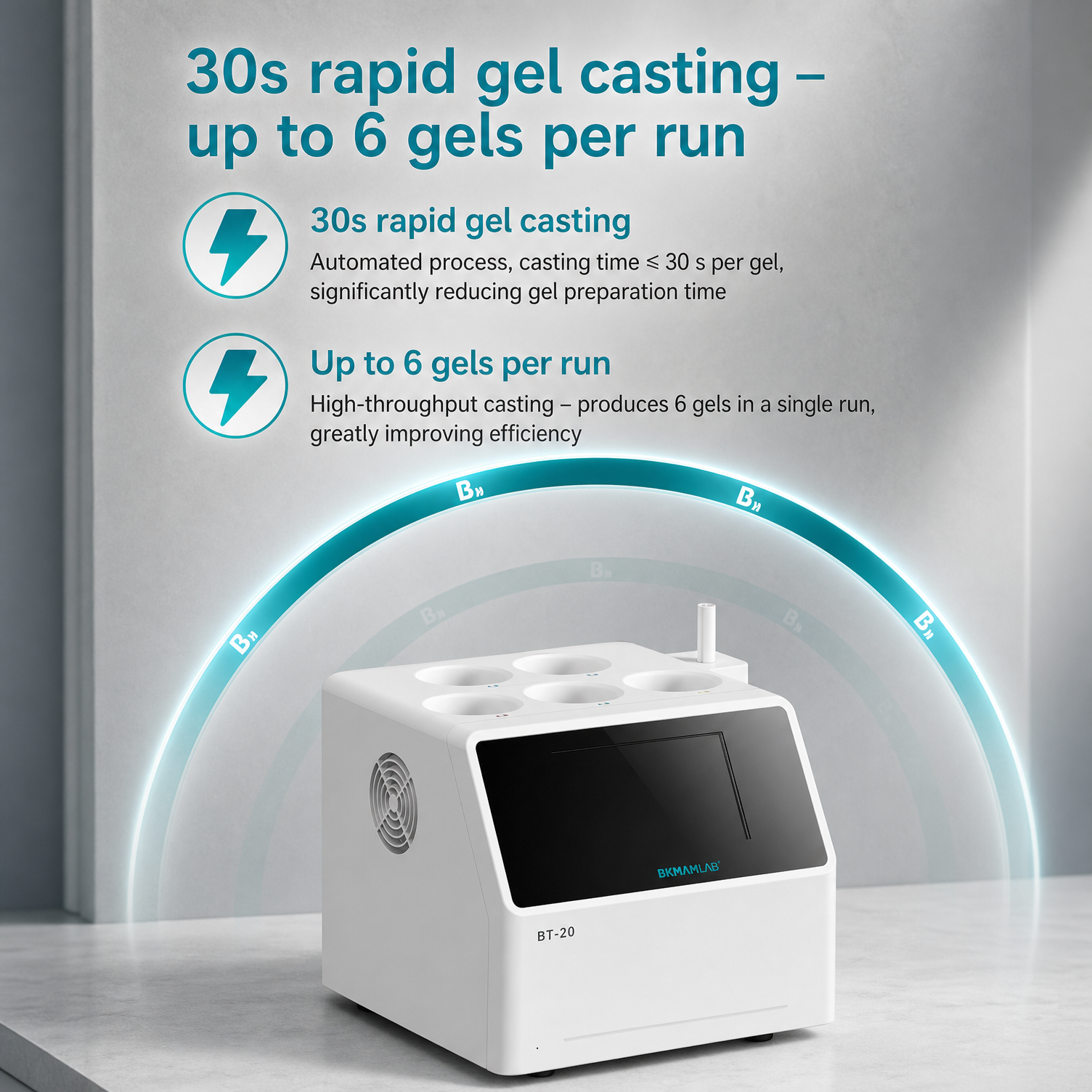

The automatic gel casting instrument completes gel casting in ≤30 seconds per gel, dramatically reducing preparation time. With the ability to cast up to 6 gels per run, this gel casting machine delivers high-throughput production, improving efficiency for busy laboratories.

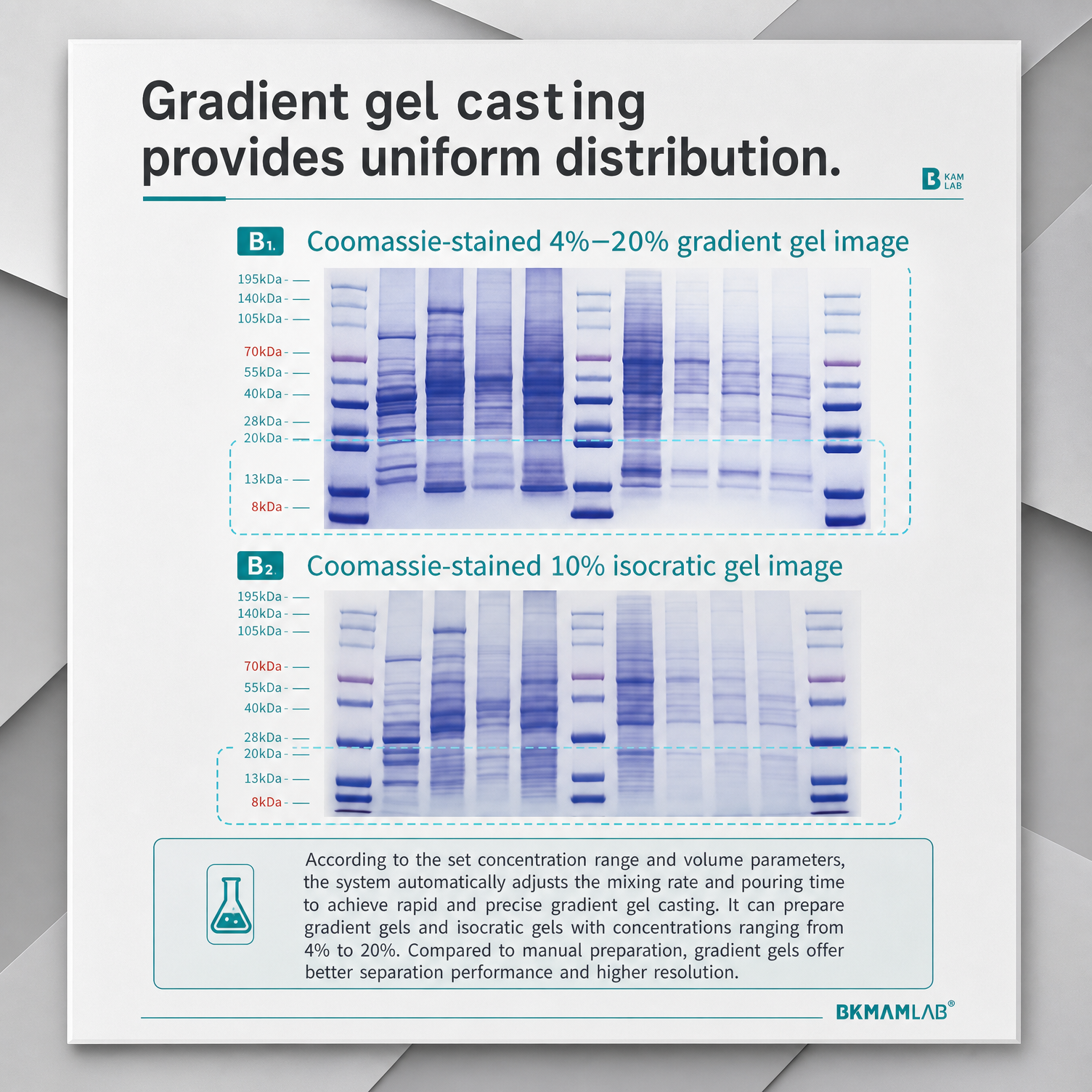

This gel casting system supports direct preparation of 4%–20% gradient gels and isocratic gels with uniform distribution and excellent separation performance. The system automatically adjusts mixing ratio and pouring time to achieve precise gradients, offering better separation performance and higher resolution than manual preparation.
The lab gel caster features automatic cleaning that flushes the mixing lines between gel casting intervals. This prevents gel polymerization inside the tubing and ensures consistent performance. The one-touch cleaning function simplifies maintenance and extends the life of the gel casting equipment.

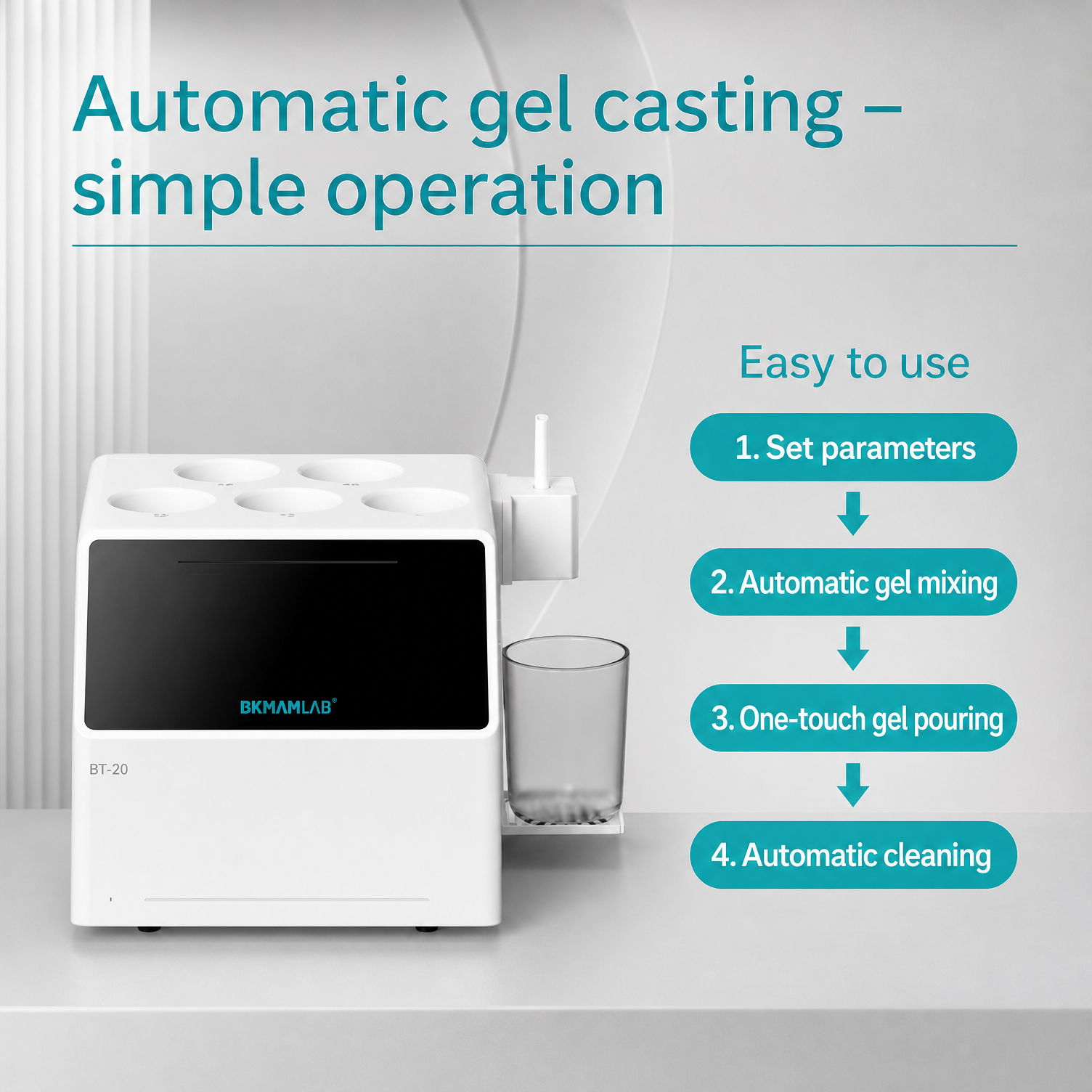

With an integrated design, the automatic gel caster is ready to use by simply connecting the power and reagent lines. The 7-inch color LCD touchscreen provides a clear interface for setting parameters, and the automated workflow (set parameters → automatic gel mixing → one-touch gel pouring → automatic cleaning) makes operation simple even for non-experts.

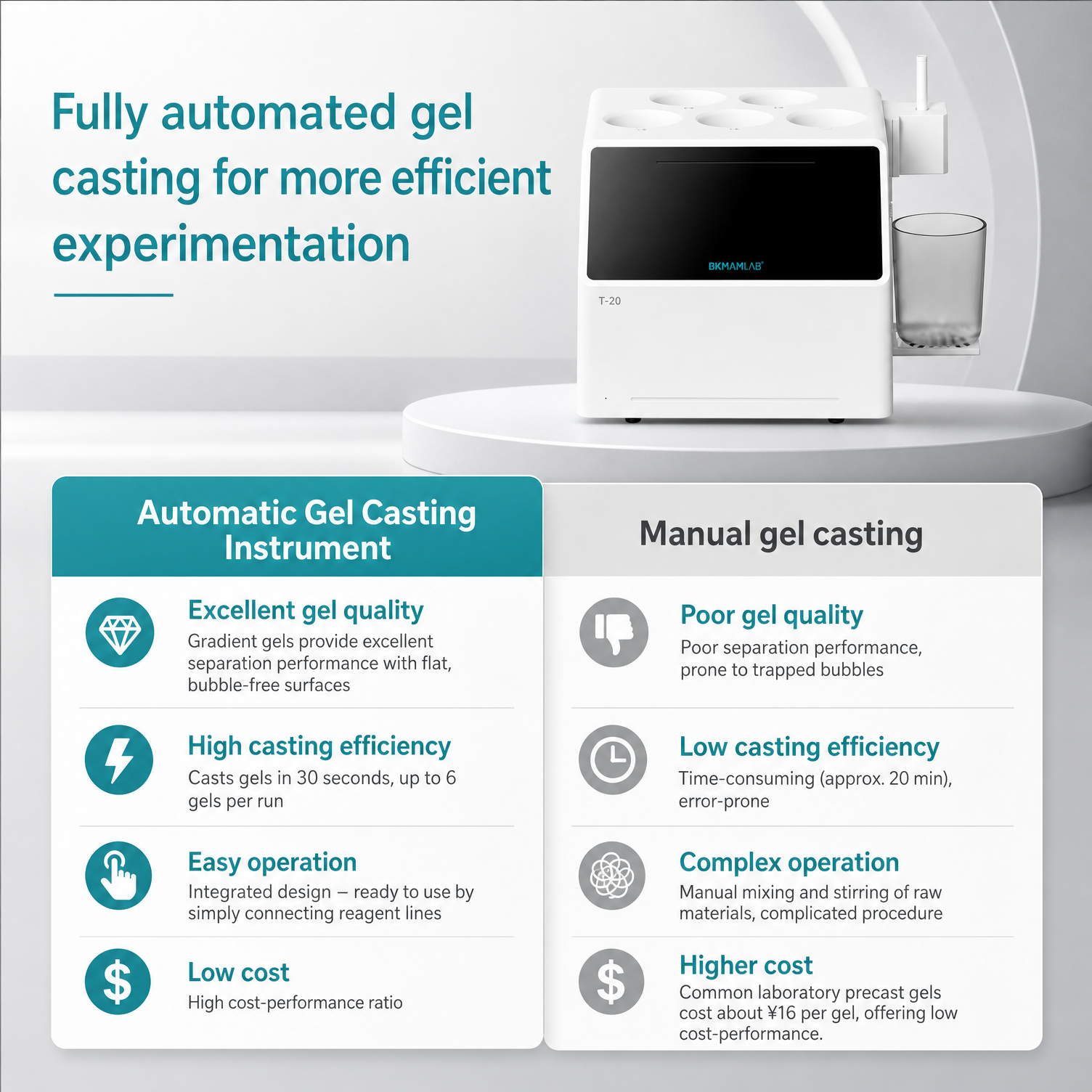

Compared to manual gel casting, the automatic gel casting instrument delivers:
Excellent gel quality: Gradient gels provide excellent separation performance with flat, bubble-free surfaces.
High casting efficiency: ≤30 seconds per gel, up to 6 gels per run.
Easy operation: Integrated design with simple reagent line connection.
Low cost: High cost-performance ratio compared to manual methods.
Your Need | Recommended Model |
|---|---|
High-throughput gel casting for WB experiments | BT-20 – 30s per gel, up to 6 gels per run, gradient 4%–20%. |
Reproducible gradient gels with minimal manual effort | BT-20 – Automatic mixing, pouring, and cleaning. |
Laboratory with limited technical staff | BT-20 – One-touch operation, 7-inch touchscreen. |
Place the automatic gel casting instrument on a stable, flat work surface.
Connect the power cord and reagent lines.
Fill the reagent bottles (4 × 500 mL) and place the waste cup.
Use the 7-inch color LCD touchscreen to set the desired gel concentration (4%–20%), gel thickness (0.75/1.0/1.5 mm), and number of gels (up to 6).
Press start. The system automatically mixes the gel solution and pours it into the cassettes.
Gel casting time is ≤30 seconds per gel.
The system supports gradient gel casting with automatic mixing ratio adjustment.
After casting, the system automatically flushes the mixing lines.
For extended storage, clean and drain the lines.
Wipe the instrument surface with a soft cloth or tissue paper. Avoid using corrosive cleaning agents.
Precautions:
Avoid spilling liquids during use. If liquid enters the instrument, turn off the power immediately.
After gel casting, promptly clean the lines. If not used for an extended period, clean and drain the lines.
Wipe the instrument surface with a soft cloth or tissue paper. Avoid using corrosive cleaning agents.
Dispose of waste liquid in accordance with local safety regulations to avoid environmental contamination.
Calibrate the instrument regularly to ensure casting accuracy.
The automatic gel casting instrument is widely used in:
Biology: Protein and nucleic acid analysis, proteomics research.
Pharmaceuticals / Medicine: Disease marker detection (ELISA, PCR), drug residue detection.
Education and Scientific Research: University laboratories, genomics analysis.
Two-Dimensional Gel Electrophoresis: Automated sample processing.
A: The automatic gel casting instrument completes gel casting in ≤30 seconds per gel, with up to 6 gels per run.
A: Yes. The gel casting machine supports both gradient gel casting (4%–20%) and isocratic gels with uniform distribution.
A: The system supports mini gels with thicknesses of 0.75 mm, 1.0 mm, and 1.5 mm.
A: Yes. The lab gel caster features automatic cleaning that flushes the mixing lines between gel casting intervals.
A: The automatic gel caster features a 7-inch color LCD touchscreen (Chinese interface).
Whether you are a protein researcher, pharmaceutical scientist, or laboratory manager, the BKMAMLAB automatic gel casting instrument offers the perfect combination of speed, precision, and ease of use. With 30-second gel casting and gradient capability, it is the ideal gel casting system for modern laboratories.
