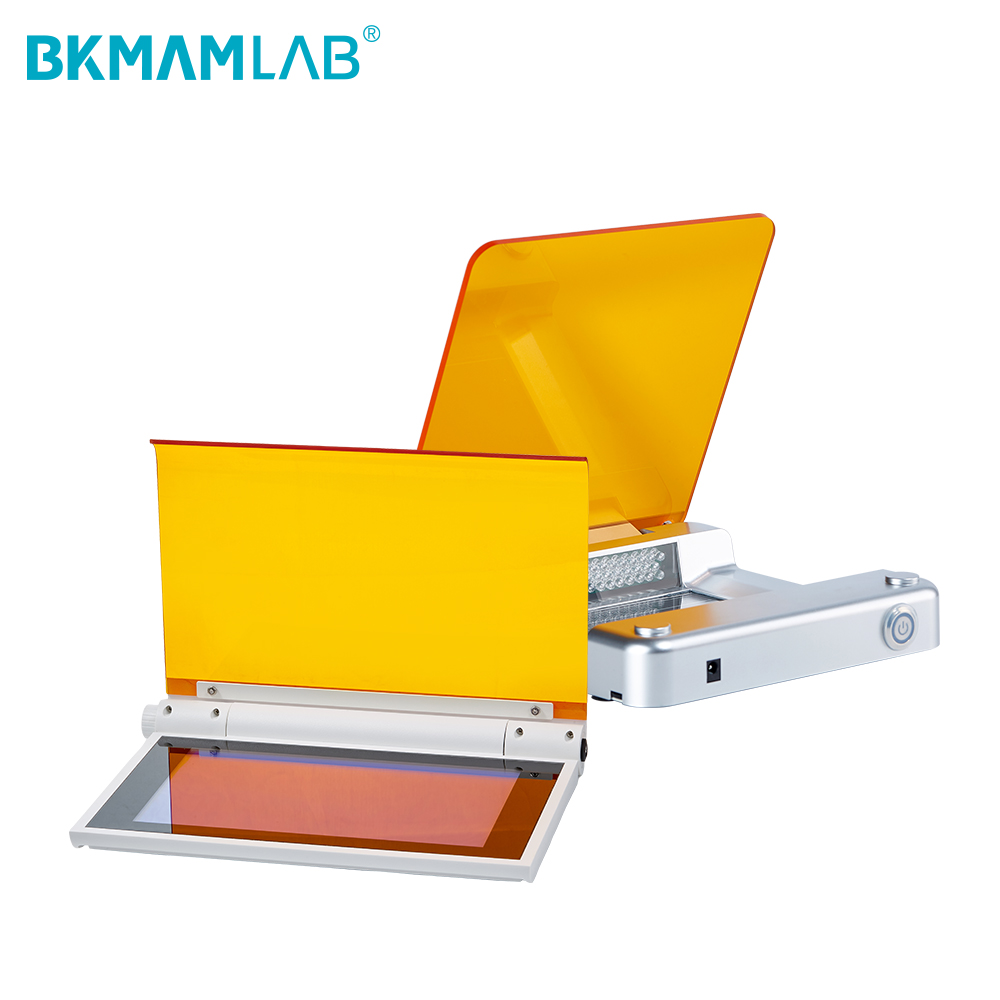

The Labshark blue light transilluminator (also referred to as a blue light gel cutter, blue light LED transilluminator, or blue transilluminator) is a safe and efficient instrument for observing nucleic acid and protein gels. Using 470 nm LED blue light technology instead of UV radiation, this blue-light transilluminator protects both the operator and the samples from harmful UV exposure. It is widely used in molecular biology, medical health, and life science research.
Available in three models—LBVT-470, LABC-800, and BQJY-470—this blue light transilluminator features an amber filter, stepless dimming with brightness memory, and a lightweight, portable design. The blue light transilluminator compatible with SYBR Safe and other stains provides clear, high-definition gel imaging. Whether you need a blue light gel observation system for routine lab work or a dual LED blue/white light transilluminator for advanced imaging, Labshark delivers reliable performance.
Parameter | LBVT-470 | LABC-800 | BQJY-470 |
|---|---|---|---|
Dimensions | 177 × 160 × 50 mm | 210 × 210 × 42 mm | 265 × 195 × 40 mm |

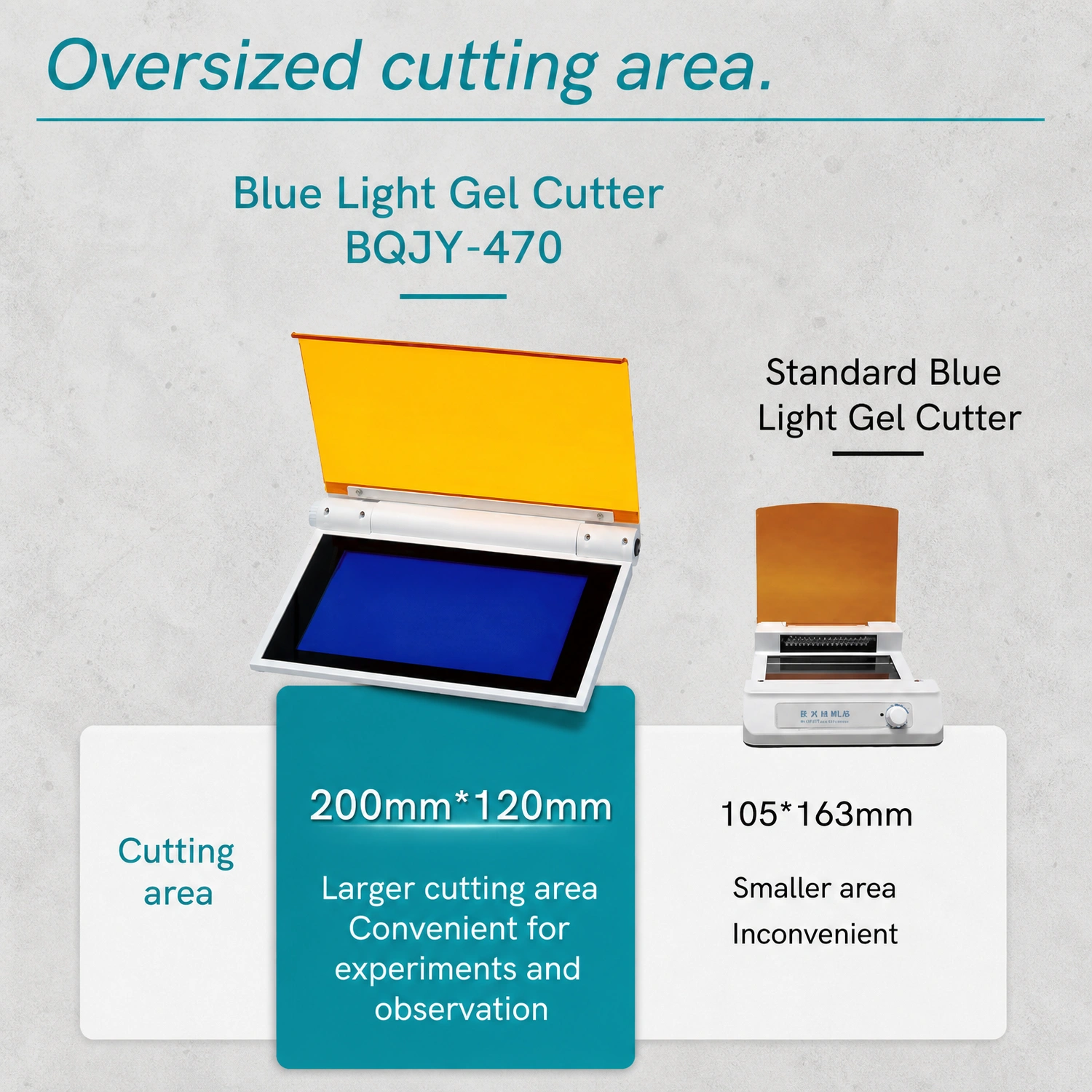

Viewing Area (W × L) | 70 × 130 mm | 70 × 160 mm | 200 × 120 mm |
Weight | 1.5 kg | 1.2 kg | 1 kg |
Input Current | DC 24 V, 0.6 A | 1 A | 1 A |
LED Light Source | Matrix surround dual-side illumination | Matrix surround dual-side illumination | Built-in LED blue light |

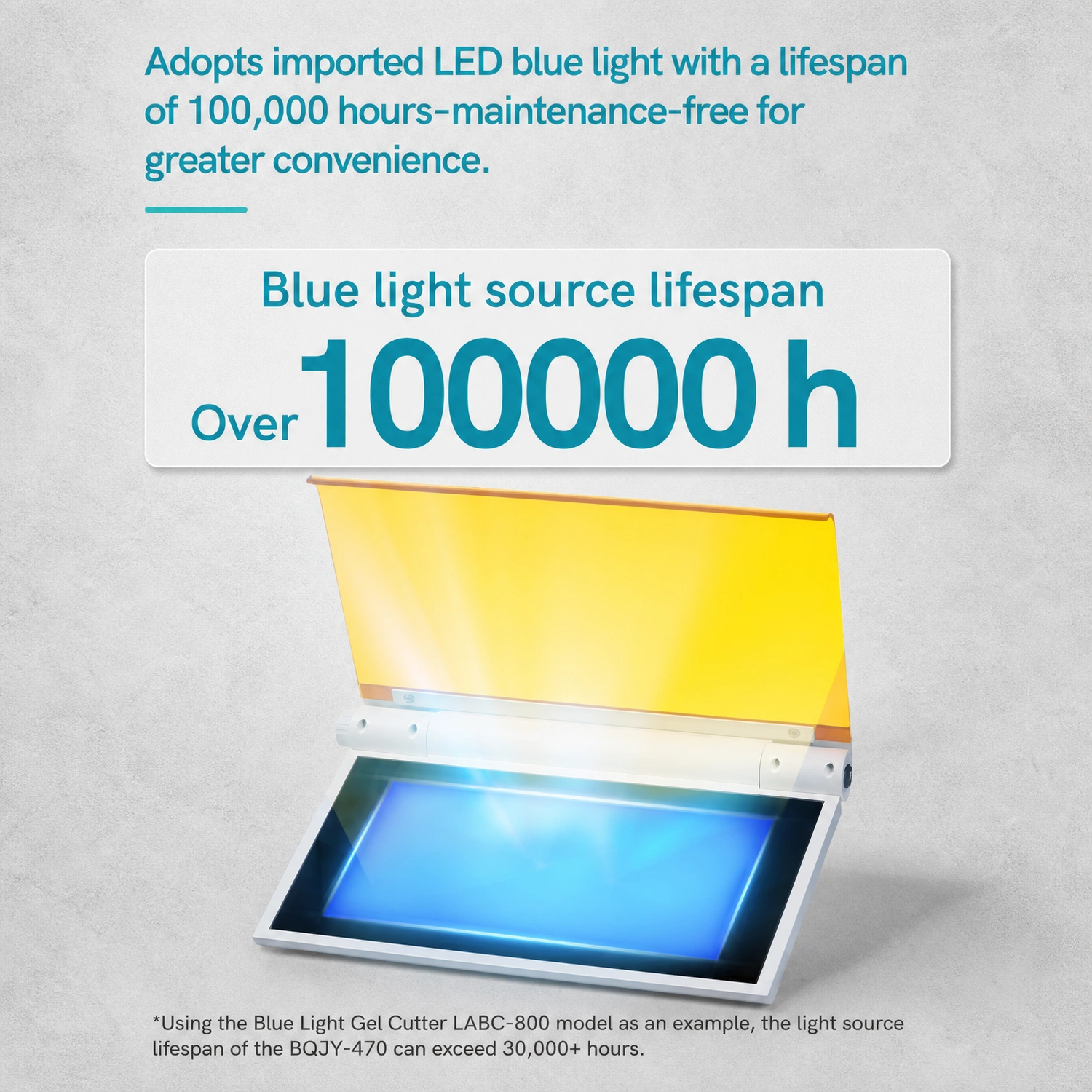

LED Lifespan | 100,000 h | 100,000 h | >30,000 h |
Peak Emission Wavelength | 470 nm | 470 nm | 470 nm |
Storage Temperature | 25 °C | — | 25 °C |
Allowable Ambient Temperature | 5–40 °C | — | 5–40 °C |
Overheat Protection | 80 °C | — | 45 °C |
Auto Shutdown Timer | — | — | 5 min |
Filter Type | Amber filter | Amber filter | Amber filter |
Data Cable Length | 1 m | 1.2 m | 1.5 m |

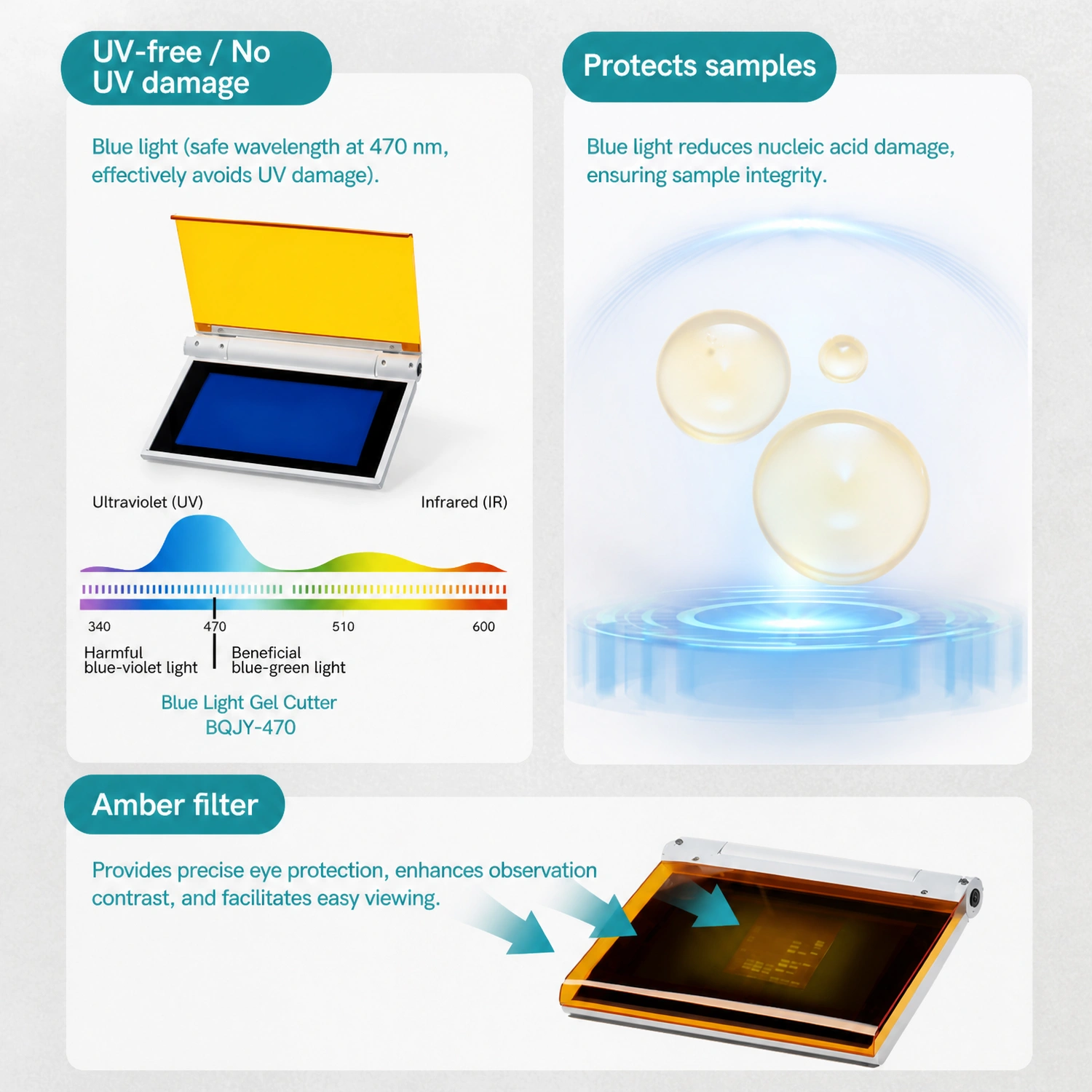

This blue light transilluminator uses a 470 nm LED blue light source instead of UV, paired with an amber filter to protect both the operator and the samples. The LED lifespan is over 30,000 hours (up to 100,000 hours on select models), ensuring long-term, safe operation. This makes it an ideal blue light transilluminator compatible with SYBR Safe and other safe stains.
The blue light LED transilluminator features a knob-controlled stepless dimming system with brightness memory function. This allows you to adapt the light intensity to different staining types and gel concentrations, ensuring optimal visualization for every sample.

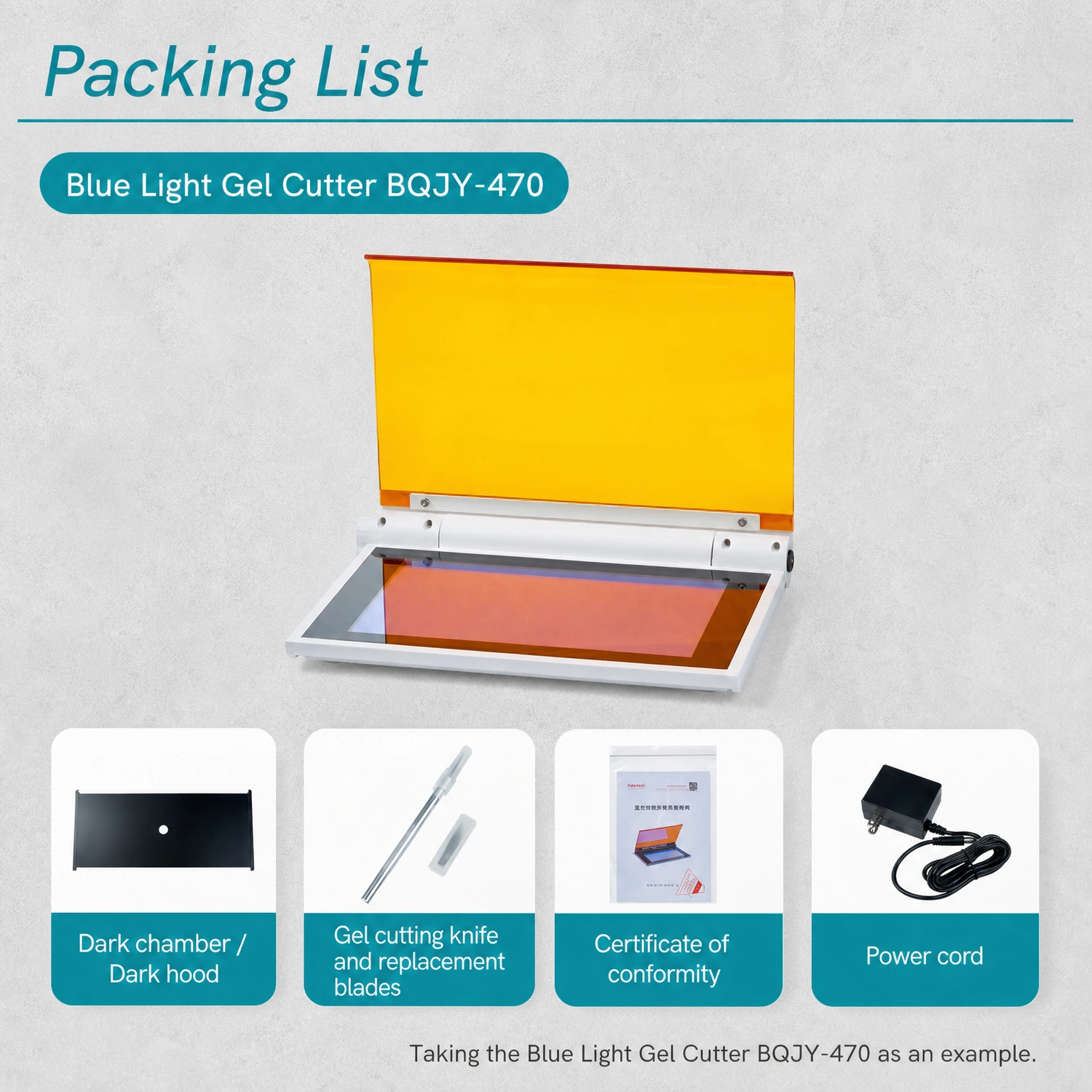

The BQJY-470 model includes a built-in darkroom that supports instant photo capture with a mobile phone. The system also includes specialized cutting tools (blade/cutting knife) to improve gel cutting efficiency. This blue light gel cutter design makes sample recovery faster and more convenient.

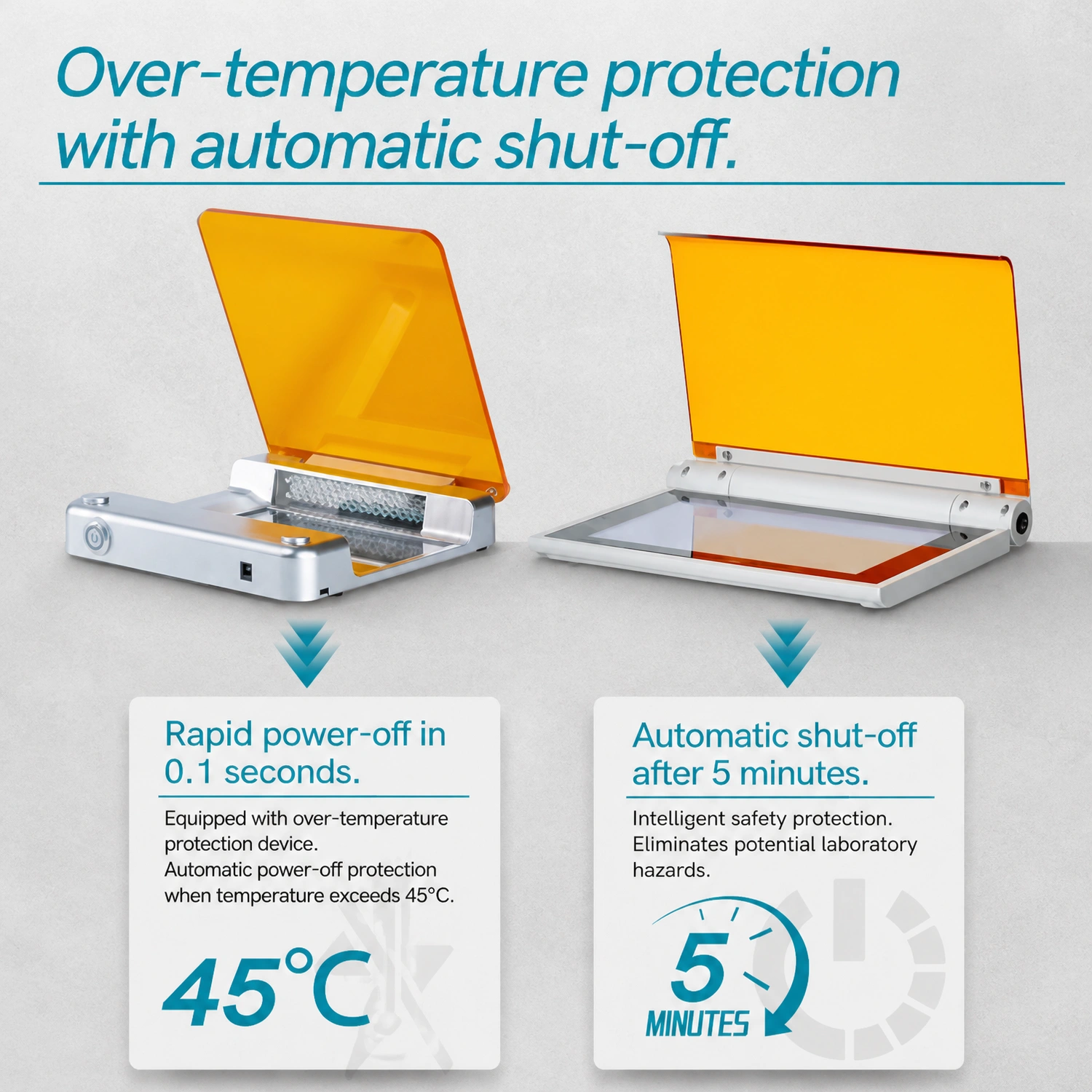

This blue light transilluminator features a sealed structure to prevent contamination and a thermal protection mechanism (LABC-800 model) to prevent overheating. The operating temperature range is 0–40 °C, ensuring safe and reliable performance in laboratory environments.
With a compact design and weight of ≤1.5 kg, this blue light transilluminator is lightweight and portable, suitable for benchtop operation in any laboratory. The small footprint saves valuable bench space.

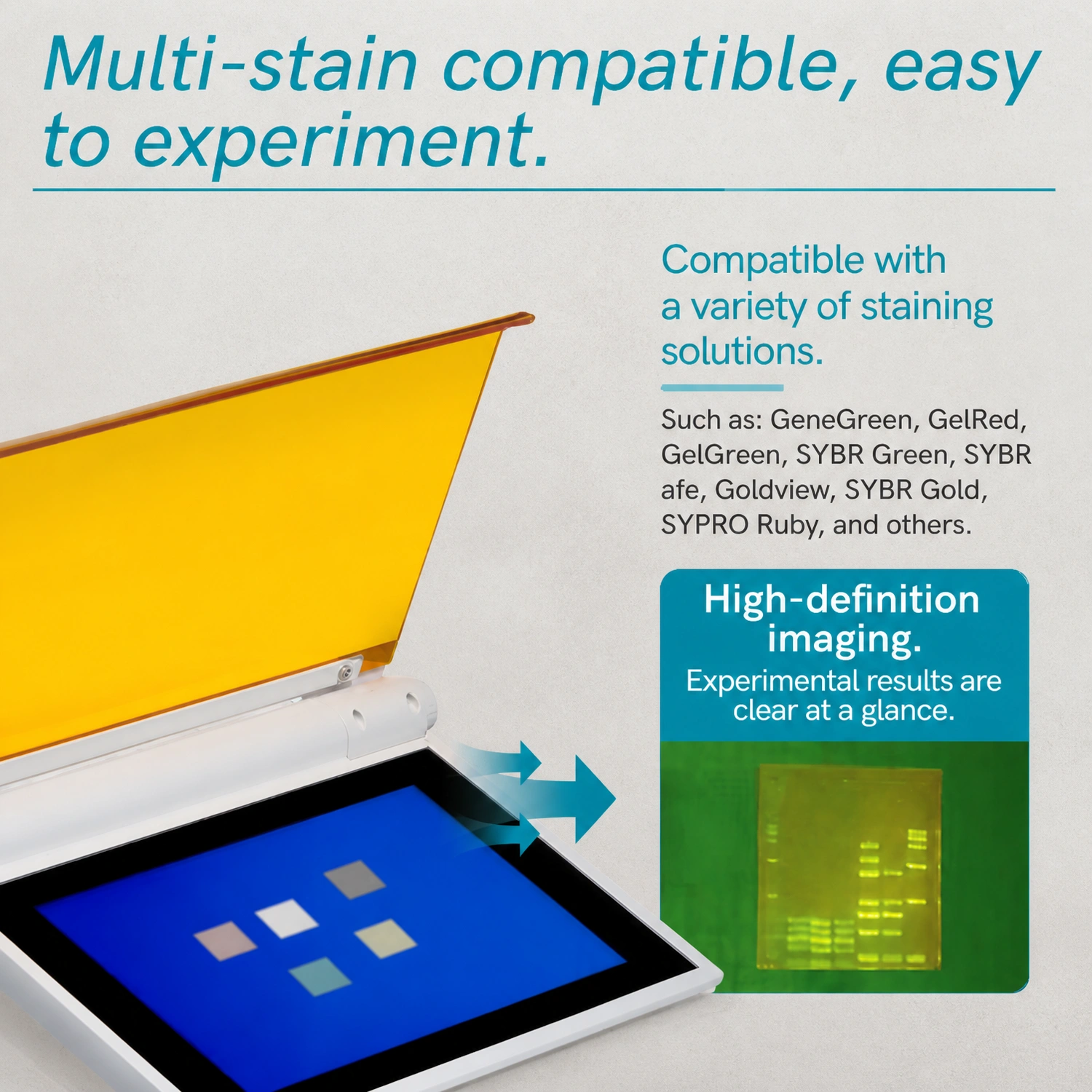

The blue light transilluminator provides high-definition imaging for clear observation of nucleic acid and protein gels. The amber filter enhances contrast, allowing precise band cutting and sample recovery.

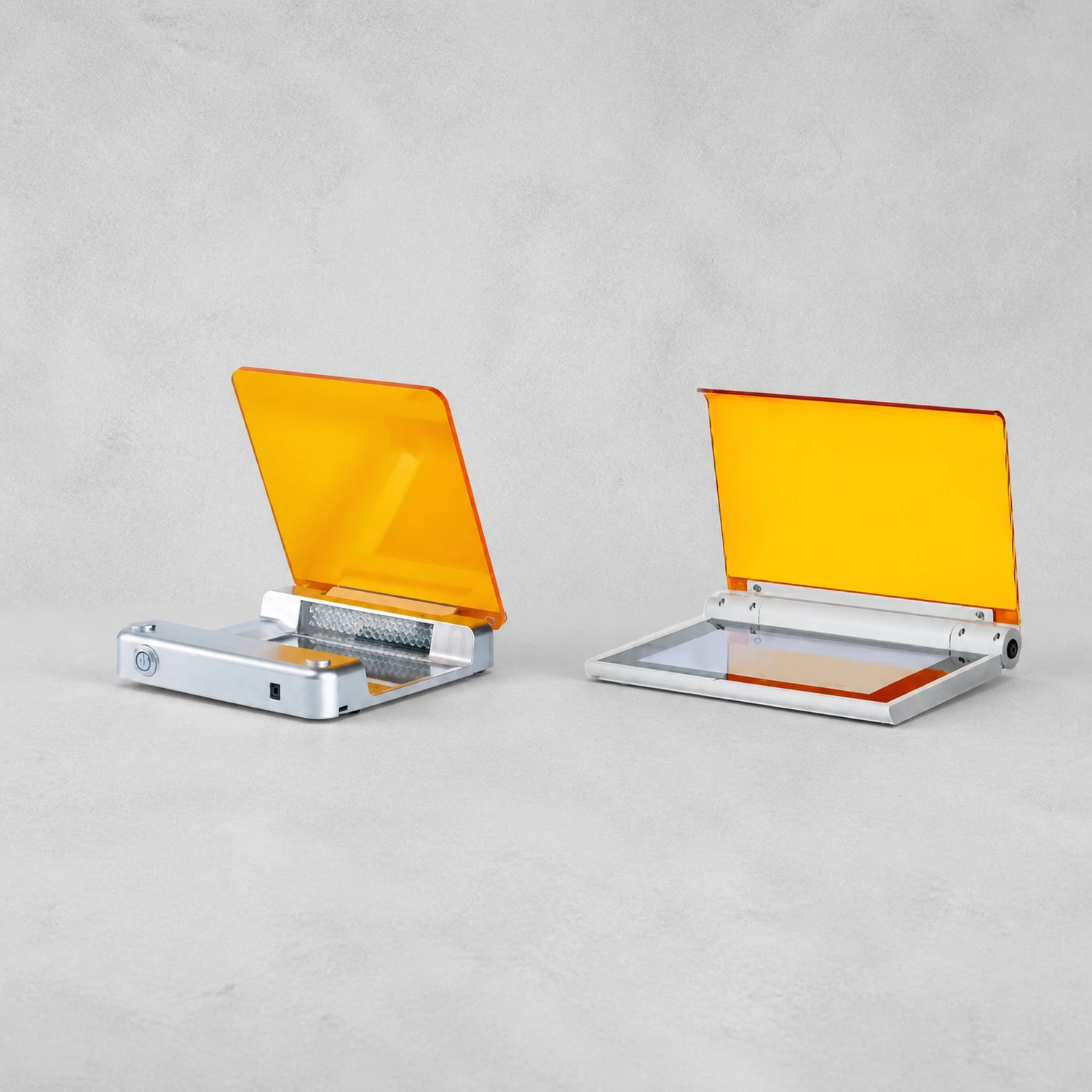

Choose from three models:

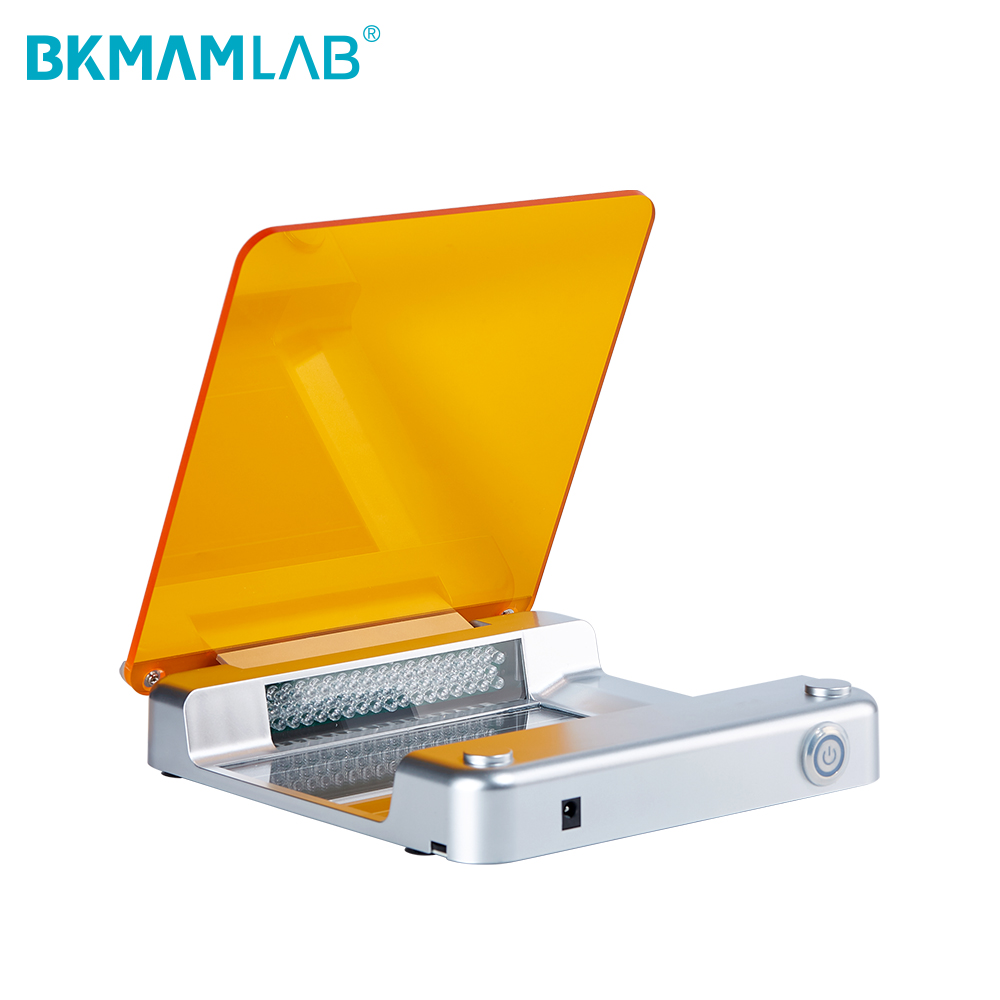

LBVT-470: Compact size, matrix surround dual-side illumination, 1.5 kg.
LABC-800: Larger viewing area, thermal protection, 1.2 kg.

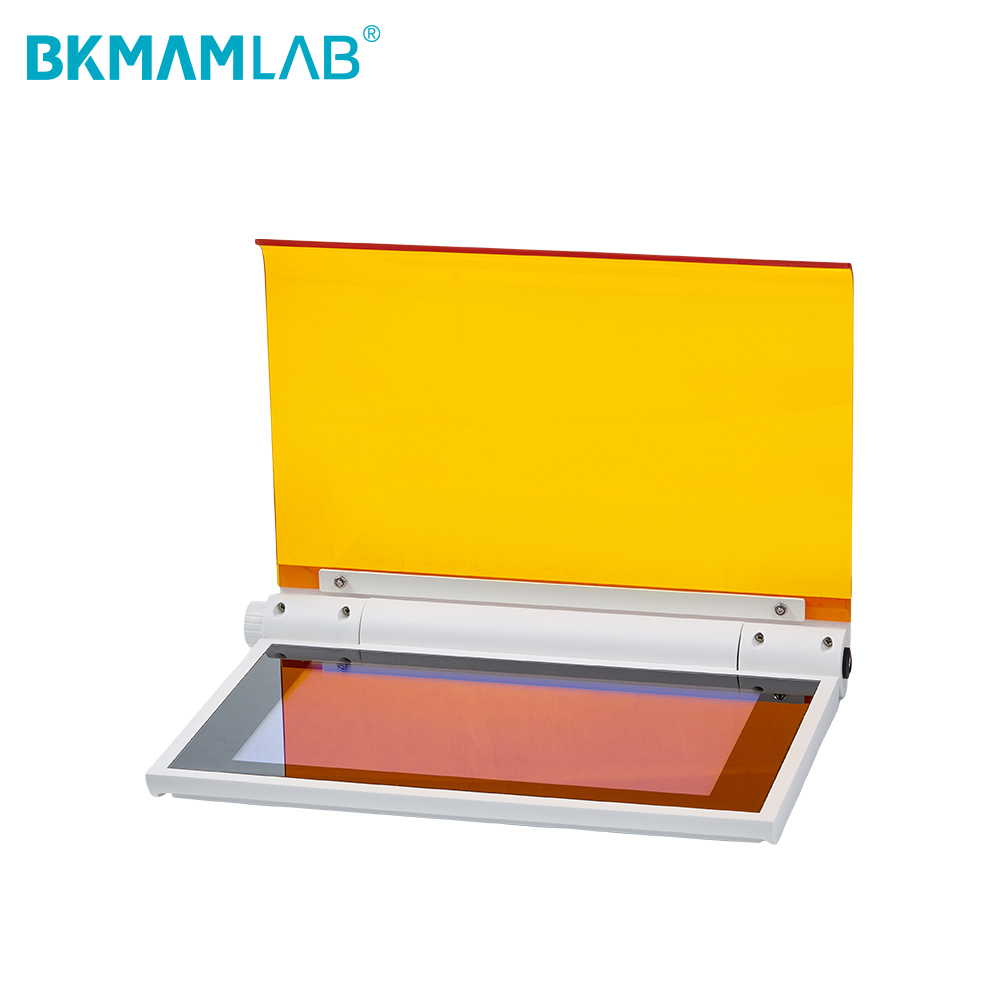

BQJY-470: Built-in LED blue light, auto shutdown timer, 1 kg.
This variety makes it easy to select the right blue light transilluminator for your specific application.
Your Need | Recommended Model |
|---|---|
Compact benchtop gel observation | LBVT-470 – 177×160×50 mm, 1.5 kg, 100,000 h LED. |
Larger viewing area with thermal protection | LABC-800 – 210×210×42 mm, 1.2 kg, overheat protection. |
Built-in darkroom and mobile phone imaging | BQJY-470 – 265×195×40 mm, 1 kg, auto shutdown 5 min. |
Dual LED blue/white light transilluminator needs | LABC-800 / BQJY-470 – depending on viewing area and features. |
Place the blue light transilluminator on a stable, flat, and dry work surface.
Connect the power cable and ensure the input voltage matches the specifications.
Remove the protective film from the amber filter if present.
Turn on the power switch. The LED blue light will illuminate.
Adjust the brightness using the stepless dimming knob to suit your gel.
Place the gel on the viewing area.
Observe the bands through the amber filter.
Use the specialized cutting tools to excise target bands precisely.
Place your mobile phone in the built-in darkroom.
Capture images of the gel for documentation.
Turn off the power and unplug the device after use.
Clean the surface with a soft, dry cloth.
Do not use corrosive cleaning agents.
Precautions:
Do not look directly at the LED blue light without the amber filter.
Avoid using in humid or oily environments.
Do not block the ventilation openings.
Keep away from high-temperature environments.
Do not disassemble the instrument; contact qualified service personnel for repair.
The blue light transilluminator is widely used in:
Molecular Biology: Observation of DNA/RNA gels after electrophoresis.
Protein Research: Viewing protein gels and Western blot membranes.
Medical Health: Clinical sample analysis and genetic testing.
Life Science Research: Gel cutting and sample recovery.
Education: Teaching demonstrations in university laboratories.
A: The blue light transilluminator uses a 470 nm peak emission wavelength, which is safe for the operator and samples.
A: Yes. The blue light transilluminator compatible with SYBR Safe and other safe nucleic acid stains provides clear visualization without UV damage.
A: LBVT-470 is compact with matrix surround dual-side illumination. LABC-800 has a larger viewing area and thermal protection. BQJY-470 features a built-in darkroom for mobile phone imaging and auto shutdown.
A: Yes. The blue light LED transilluminator features stepless knob-controlled dimming with brightness memory.
A: The LED lifespan is 100,000 hours for LBVT-470 and LABC-800, and >30,000 hours for BQJY-470.
A: Yes. This blue light gel cutter is designed for precise gel cutting and sample recovery.
A: Yes. The blue light transilluminators are lightweight (≤1.5 kg) and compact for benchtop use.
Whether you are a molecular biologist, researcher, or laboratory technician, the Labshark blue light transilluminator offers a safe, efficient, and convenient alternative to UV transilluminators. With 470 nm blue light, amber filter, and stepless dimming, it is the ideal blue light gel cutter for modern laboratories.
