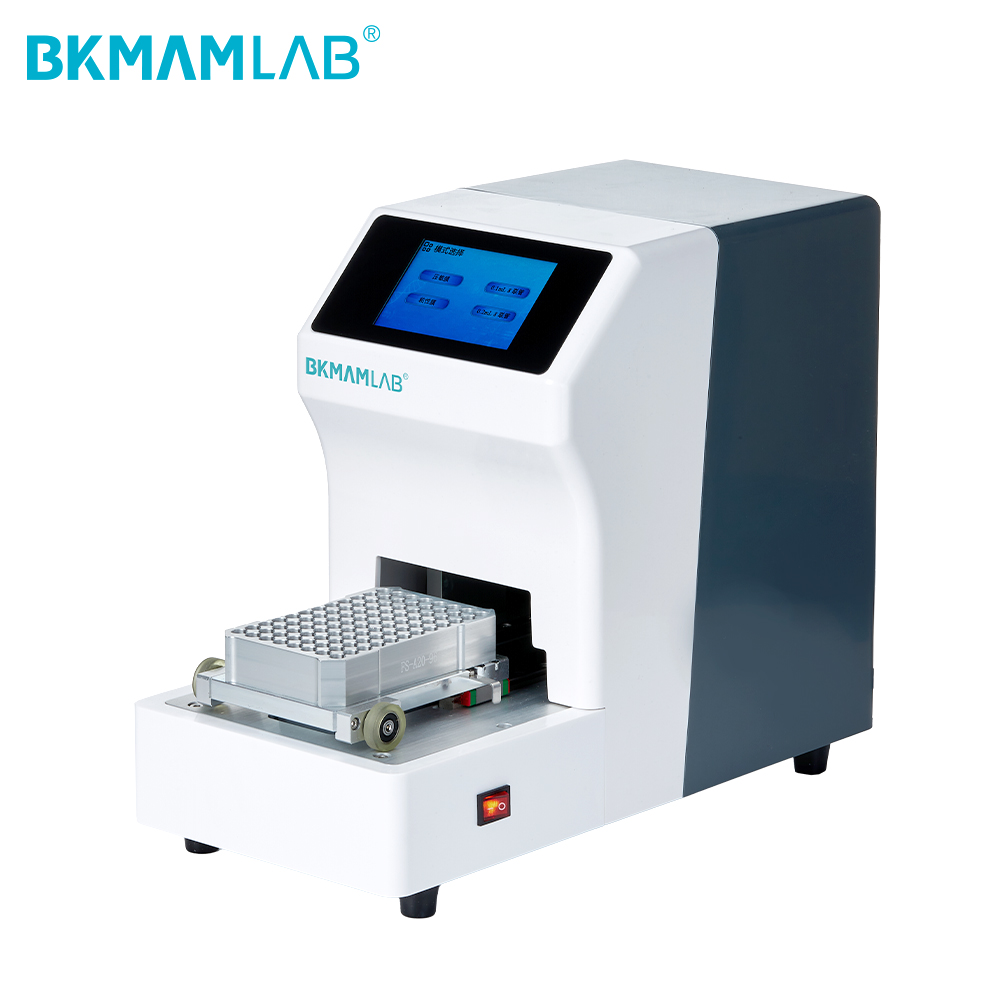

The BKMAMLAB automatic film sealing machine (also referred to as a PCR plate sealer, roller sealer, or microplate sealer) is a high-performance instrument designed for tight, leak-free sealing of PCR plates and tubes. Using an innovative roller pressing design, this plate sealer prevents sample evaporation, leakage, and cross-contamination, ensuring reliable results for PCR, real-time PCR, and other laboratory applications.

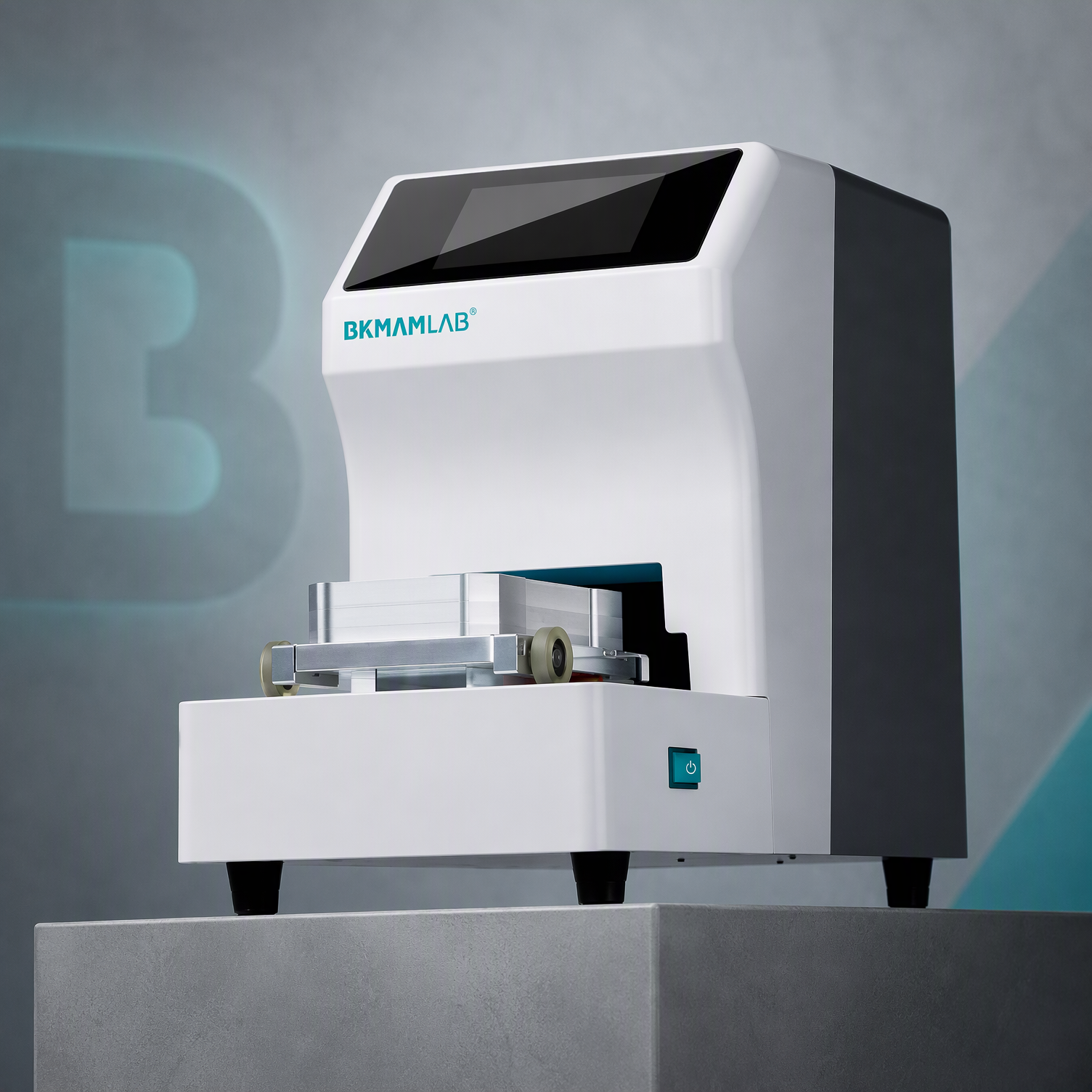

The BFS-A20 model features a 7-inch intuitive touchscreen for easy parameter setting, supports multiple sealing modes, and is compatible with a wide range of plate types including non-skirted, semi-skirted, and fully-skirted PCR plates, as well as 0.1 mL and 0.2 mL PCR 8-strip tubes. With adjustable rolling cycles (1–99) and pressure levels (1–3), this automated plate sealer delivers consistent, high-quality sealing for diverse laboratory needs. Its quiet, low-noise operation ensures a comfortable working environment.
Parameter | BFS-A20 |
|---|---|
Model | BFS-A20 |
Overall Dimensions (L×W×H) | 362 × 178 × 291 mm |
Compatible Plate Types | Non-skirted, semi-skirted, fully-skirted PCR plates; Microplates (optional); 0.1 mL / 0.2 mL PCR 8-strip tubes |
Compatible Sealing Films | PCR sealing film (pressure-sensitive, adhesive) |
Rolling Cycles | 1–99 |
Pressure Level | 1–3 |
Display | 7-inch touchscreen |
Weight | 7 kg |
Power Supply | 220 V, 50/60 Hz (reference) |
Noise Level | Low noise design |

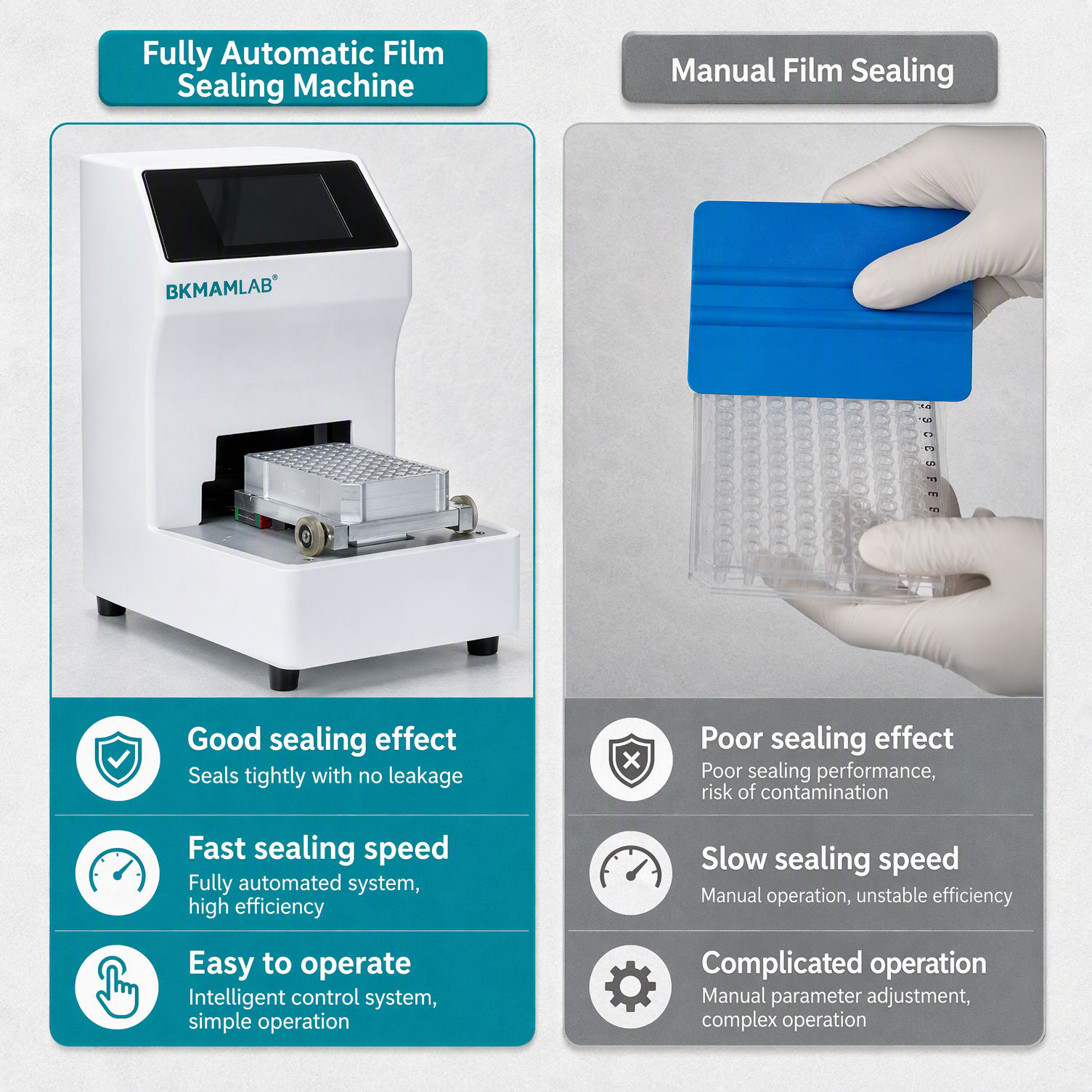

Compared to manual film sealing, the automatic film sealing machine delivers:
Good sealing effect: Seals tightly with no leakage.
Fast sealing speed: Fully automated system, high efficiency.
Easy to operate: Intelligent control system, simple operation.
Manual sealing suffers from poor sealing effect, slow speed, and complicated operation. This PCR plate sealer eliminates these issues.

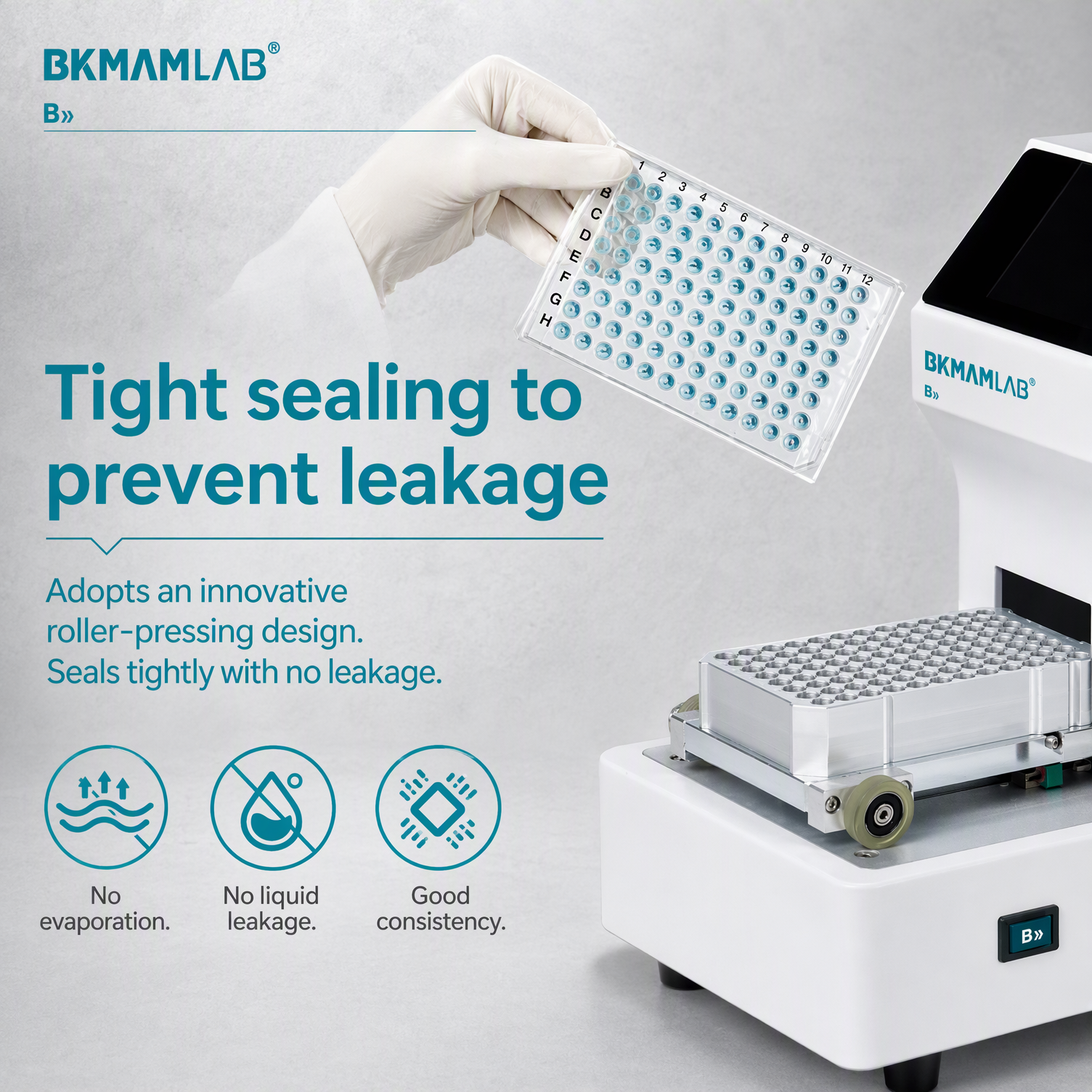

The roller sealer adopts an innovative roller-pressing design that ensures tight sealing with no leakage. This prevents sample evaporation, liquid leakage, and cross-contamination, maintaining sample integrity and consistency.

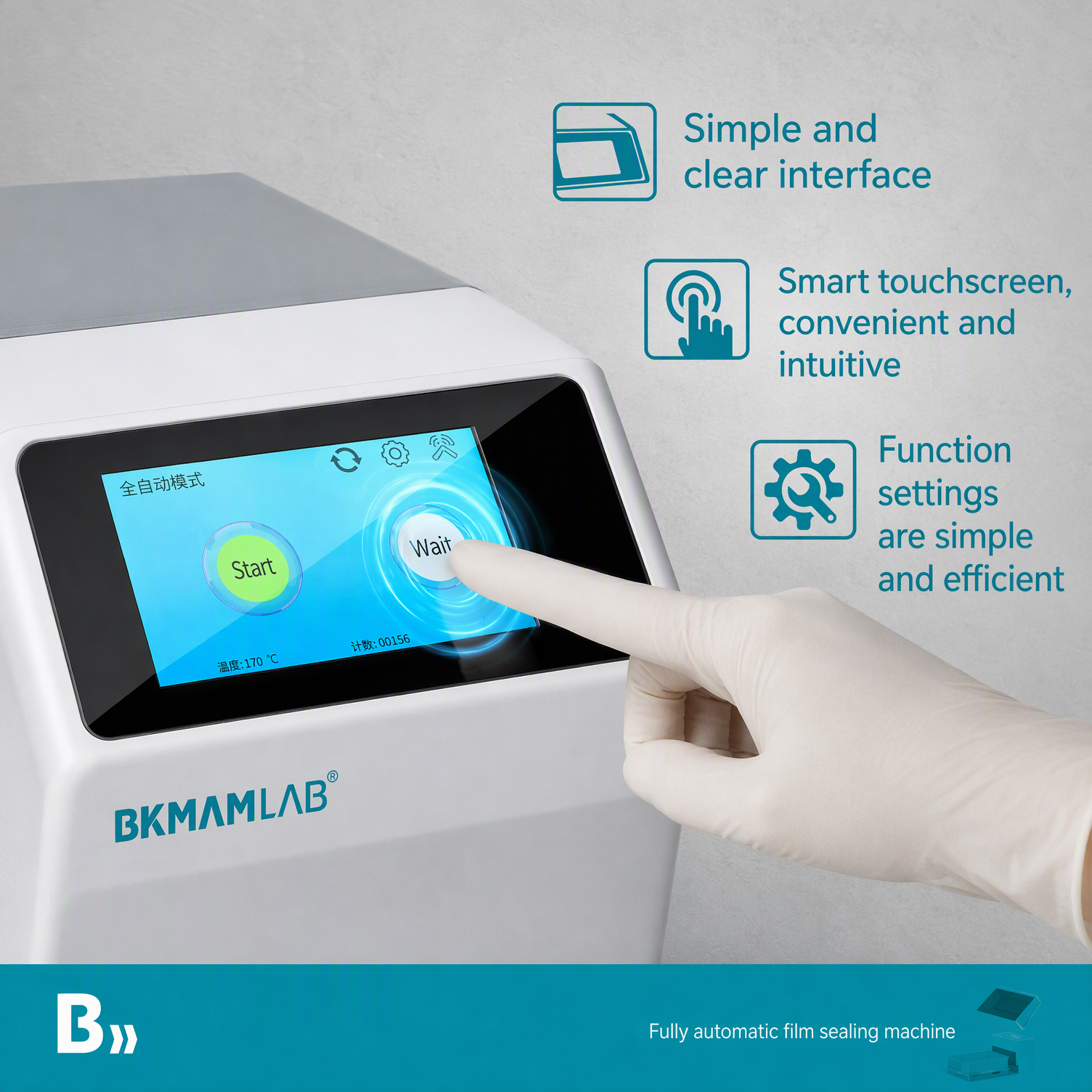

The microplate sealer features a 7-inch smart touchscreen with a simple and clear interface. The intuitive design allows for easy parameter setting, making operation convenient and efficient. Function settings are simple and efficient, reducing training time.

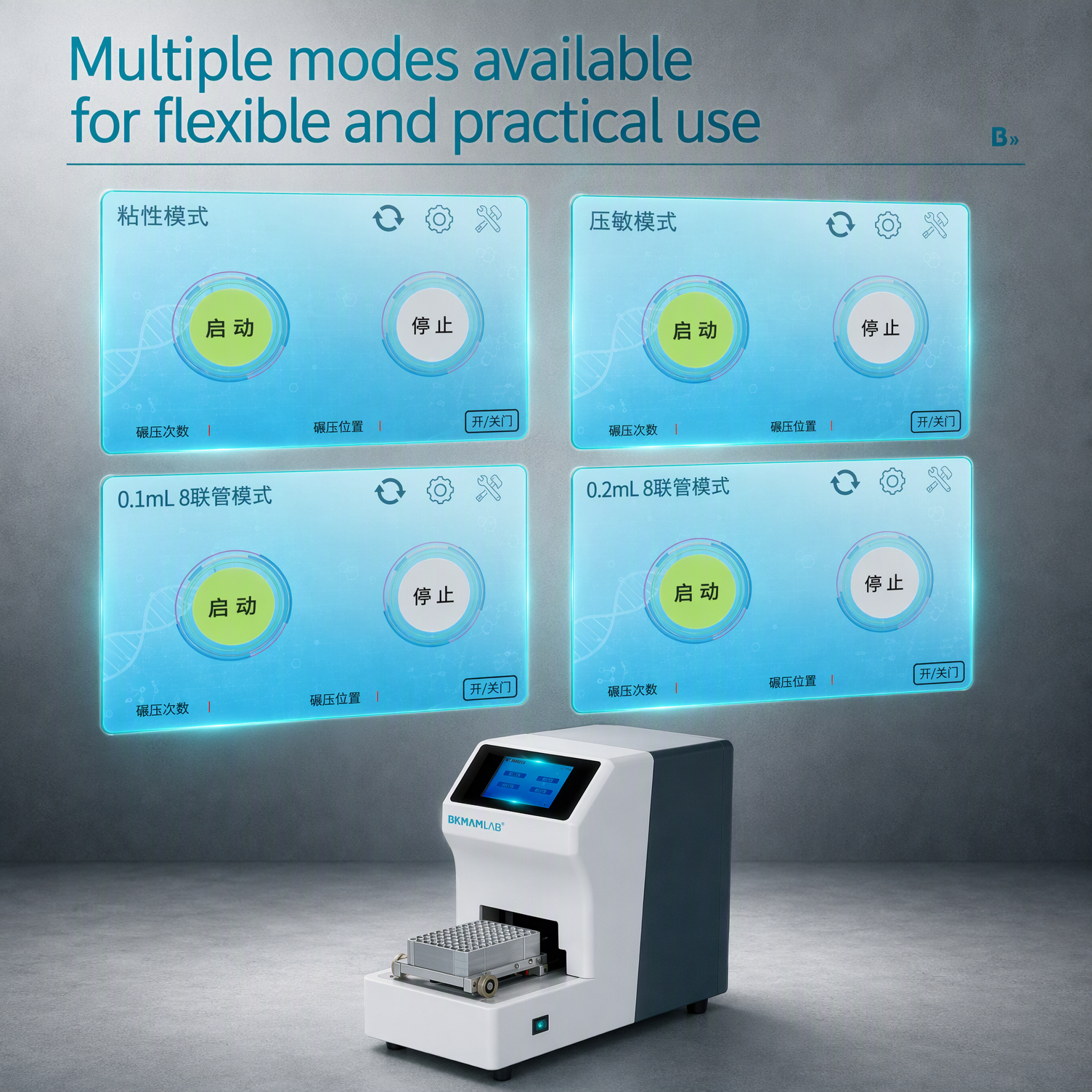

The thermal sealer offers multiple modes for flexible and practical use:
Adhesive mode for pressure-sensitive films
Pressure mode for adhesive films
0.1 mL 8-strip mode
0.2 mL 8-strip mode
This versatility makes it suitable for a wide range of sealing applications.

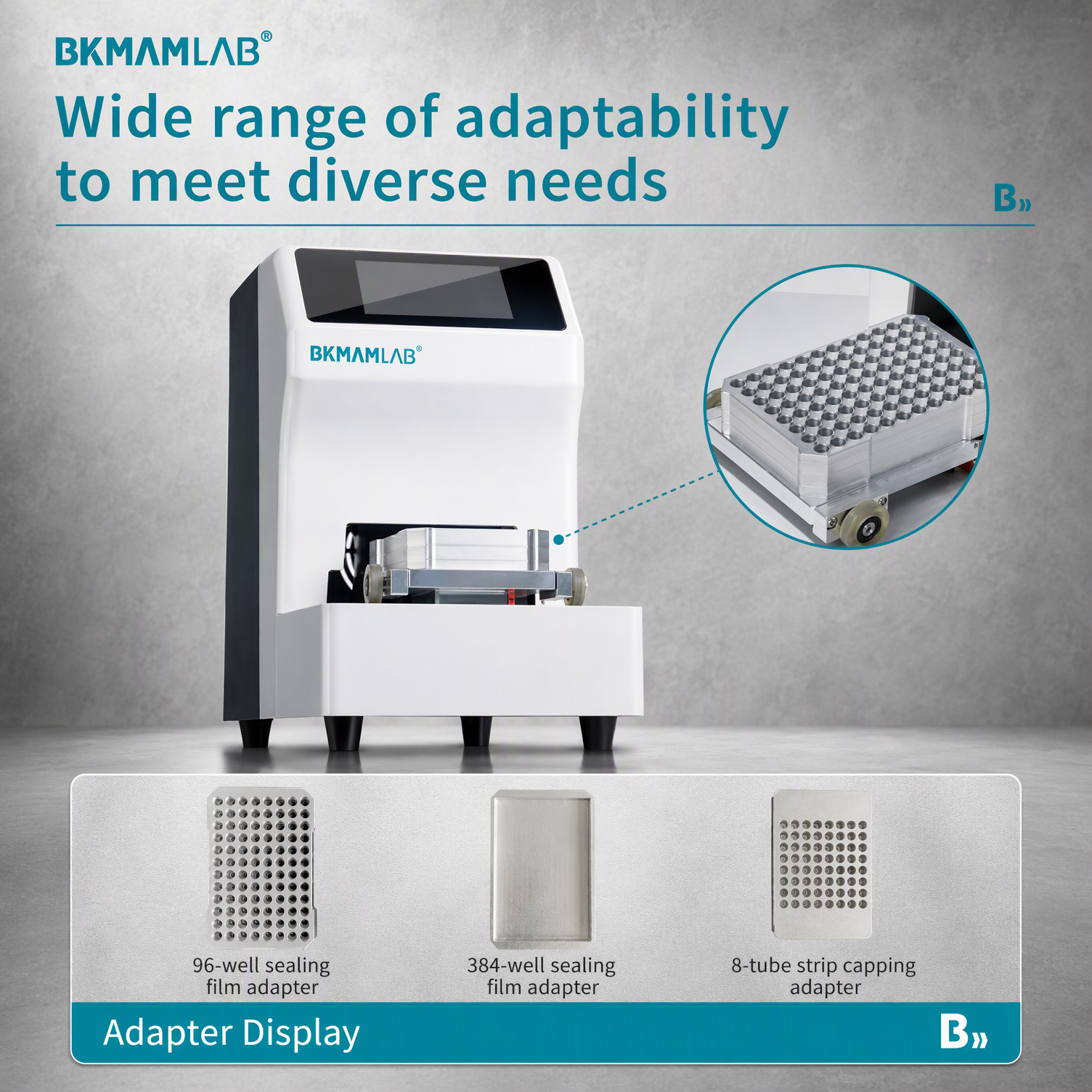

The automated plate sealer is compatible with non-skirted, semi-skirted, and fully-skirted PCR plates, as well as 0.1 mL and 0.2 mL PCR 8-strip tubes. Optional microplate adapters further extend its versatility.

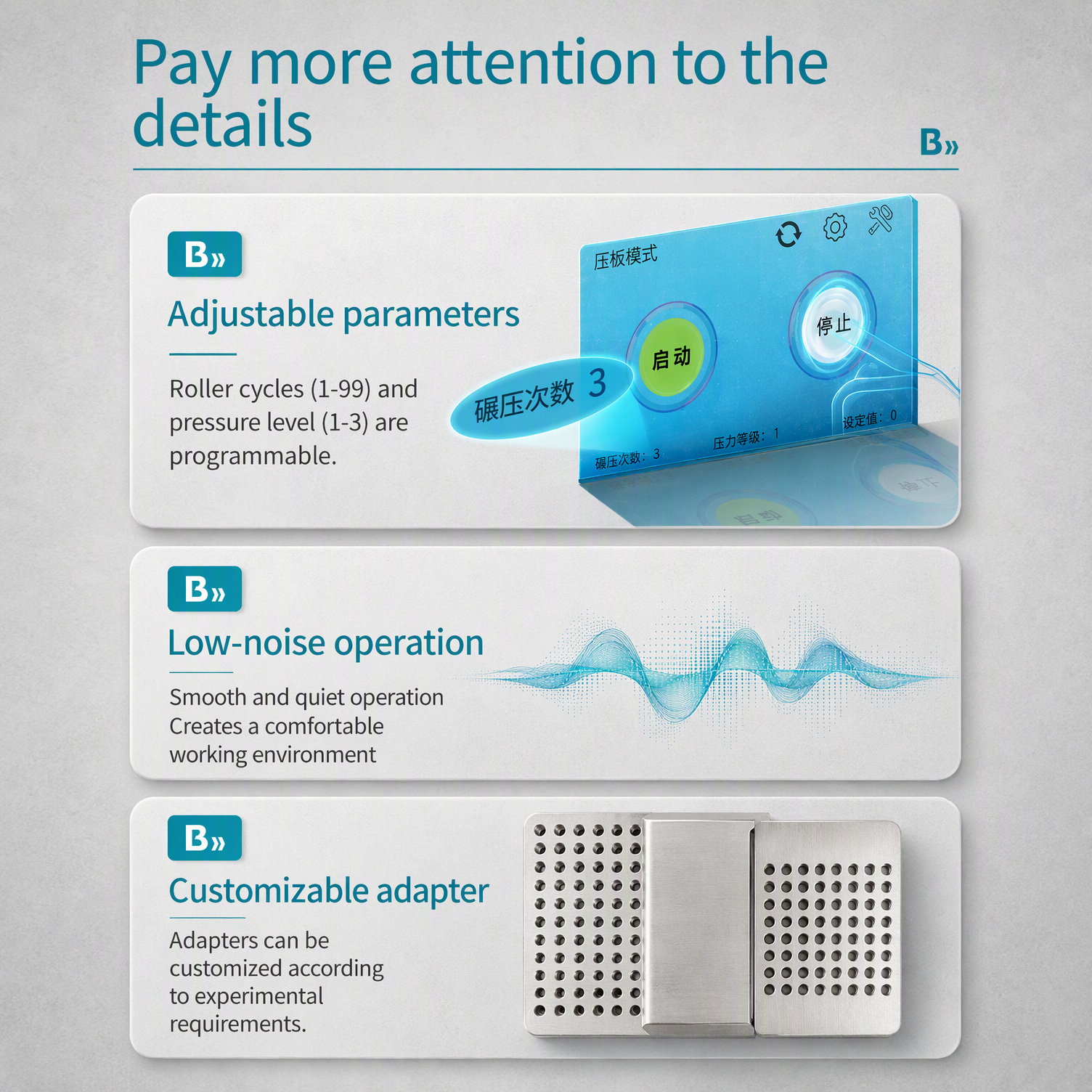

The laboratory sealing machine allows adjustable rolling cycles from 1 to 99 and pressure levels from 1 to 3. These programmable parameters ensure optimal sealing for different film types and plate materials.
The automatic film sealing machine features a low-noise design that ensures smooth and quiet operation. This creates a comfortable working environment, especially in shared laboratory spaces.
Adapters can be customized according to experimental requirements. This makes the plate sealer adaptable to special plate formats or tube configurations.
Your Need | Recommended Model |
|---|---|
Standard PCR plate sealing (96/384-well) | BFS-A20 – 7-inch touchscreen, roller pressing, 1–99 cycles. |
Sealing 0.1/0.2 mL 8-strip tubes | BFS-A20 – Multi-mode support, 8-strip capping adapter. |
High-throughput automated sealing | BFS-A20 – Fully automatic, fast sealing speed, low noise. |
Place the automatic film sealing machine on a stable, flat work surface.
Connect the power cord to a grounded outlet.
Ensure the appropriate adapter is installed for your plate or tube type.
Turn on the machine using the power switch.
Use the 7-inch touchscreen to select the desired sealing mode (adhesive, pressure, 8-strip).
Set the rolling cycles (1–99) and pressure level (1–3) as needed.
Place the PCR plate or 8-strip tubes into the adapter.
Apply the sealing film evenly over the plate.
Insert the adapter into the machine.
Press the start button. The roller sealer will automatically perform the sealing process.
Do not open the door during operation.
If an error occurs, press the stop button; the door will automatically open.
After sealing, remove the plate and inspect the seal.
Clean the machine surface with a soft, dry cloth.
Do not use corrosive cleaning agents.
Precautions:
If an operation error or sample issue occurs and you need to stop the run and remove the PCR plate, simply click the stop button and the instrument will automatically open the door.
Do not directly remove the PCR plate with your hands during operation to avoid personal injury or sample loss.
Do not open the door while the machine is running.
The automatic film sealing machine is widely used in:
PCR and qPCR: Sealing reaction plates to prevent evaporation and contamination.
Sample Storage: Long-term storage of PCR plates and 8-strip tubes.
High-Throughput Screening: Automated sealing for large batch processing.
Clinical Diagnostics: Sample preparation and traceability.
Research Laboratories: General laboratory sealing applications.
A: The automatic film sealing machine is compatible with non-skirted, semi-skirted, and fully-skirted PCR plates, microplates (optional), and 0.1/0.2 mL PCR 8-strip tubes.
A: The PCR plate sealer works with PCR sealing films that are pressure-sensitive or adhesive.
A: The roller sealer allows adjustable rolling cycles from 1 to 99.
A: No, the microplate sealer features a low-noise design for quiet operation.
A: Yes, adapters can be customized according to specific experimental requirements.
A: The BFS-A20 weighs 7 kg and measures 362 × 178 × 291 mm.
Whether you are a PCR technician, research scientist, or laboratory manager, the BKMAMLAB automatic film sealing machine offers the perfect combination of speed, precision, and reliability. With a 7-inch touchscreen, multiple sealing modes, and adjustable parameters, it is the ideal PCR plate sealer for modern laboratories.
Order your BKMAMLAB automatic film sealing machine today! Bulk inquiries and custom configurations are welcome.
