The BKMAMLAB electrophoresis apparatus (also referred to as a gel electrophoresis system, electrophoresis equipment, or electrophoresis machine) is a high-performance laboratory instrument designed for the separation and analysis of nucleic acids and proteins. Available in three configurations—Horizontal (BIVL-2), Vertical (BIVE-4), and Transfer (BIVT-4)—this gel electrophoresis system covers a wide range of applications, from DNA/RNA agarose gel separation to protein SDS-PAGE and Western blot transfer.
Featuring integrated molding for stable performance, a position-limiting function for safety, and excellent electrical conductivity, this electrophoresis apparatus delivers reliable and reproducible results. Whether you need a horizontal electrophoresis unit for routine nucleic acid analysis, a vertical electrophoresis chamber for protein separation, or a transfer electrophoresis system for Western blotting, BKMAMLAB provides the right solution for your research.
Parameter | BIVL-2 |
|---|---|
Overall Dimensions | 310 × 150 × 120 mm |
Gel Tray Specifications | Large gel: 120 × 120 mm / Wide gel: 60 × 120 mm / Long gel: 120 × 60 mm / Small gel: 60 × 60 mm |
Comb Specifications | 1.0 mm: 25/11 teeth / 1.5 mm: 13/6 teeth / 2.0 mm: 3/2 teeth |
Blue Light Wavelength | 470 nm |
Buffer Capacity | 260 mL |
Parameter | BIVE-4 |
|---|---|
Gel Dimensions | 83 × 73 mm |
External Dimensions | 140 × 180 × 185 mm |
Number of Gels | 1–4 |
Comb Specifications | 1.0 mm: 11/5 teeth / 1.5 mm: 11/15 teeth / 0.75 mm: 11/15 teeth |
Maximum Buffer Capacity | 1.5 L |
Parameter | BIVT-4 |
|---|---|
Number of Gels | 1–4 |
Transfer Membrane Dimensions | 75 × 100 mm |
External Dimensions | 140 × 180 × 185 mm |
Maximum Buffer Capacity | 1.3 L |
Electrophoresis Experiment | Recommended Instrument | Recommended Power Supply |
|---|---|---|
Nucleic Acid (DNA, RNA) | BIVL-2 | BPW-6S, BPW-DM |
Protein | BIVE-4 | BPW-6S, BPW-DM |
Transfer | BIVT-4 | BPW-6S, BPW-DM |
Western Blot Transfer | BIVT-4 | BPW-DM |

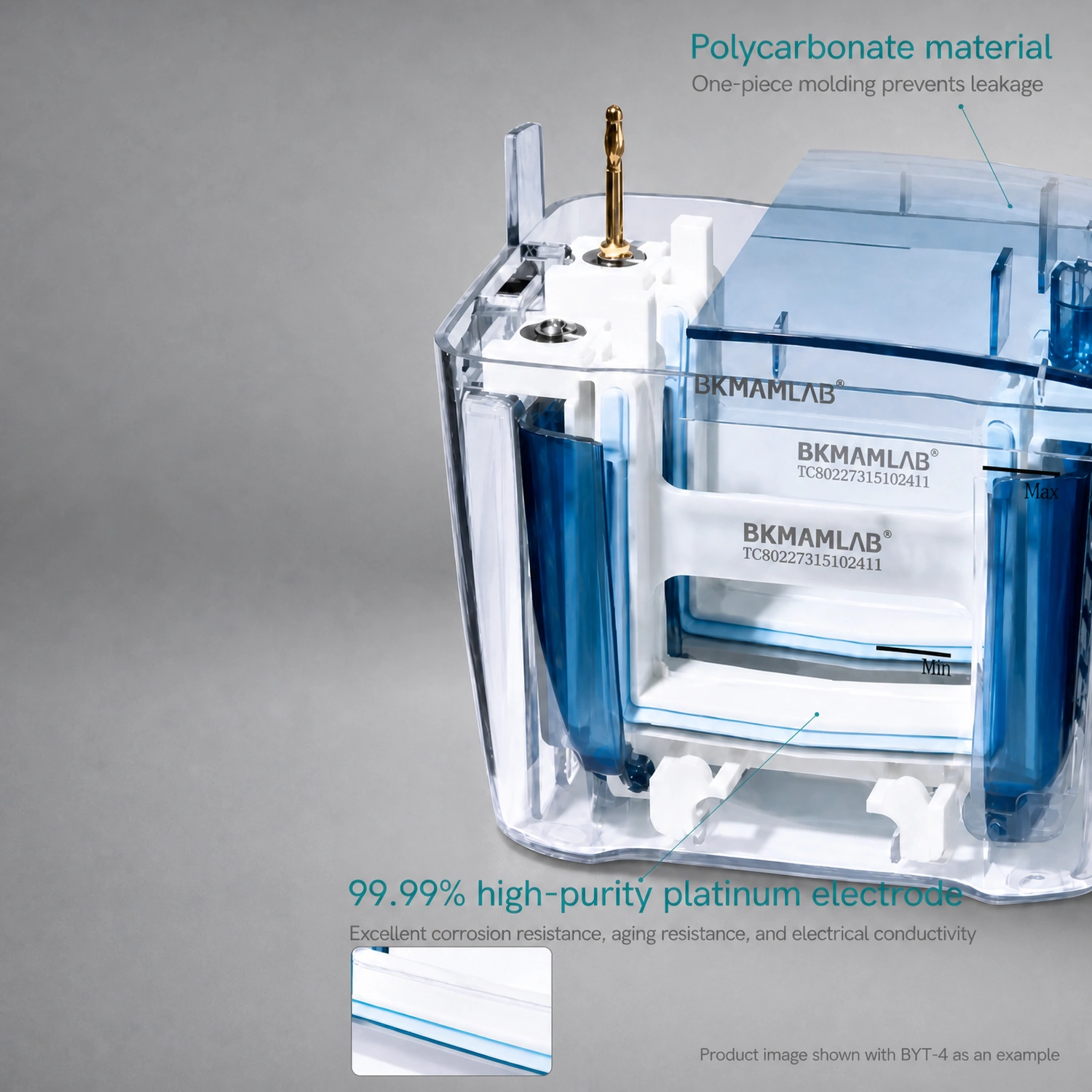

The electrophoresis apparatus features integrated molding that ensures structural stability during operation. This design minimizes vibration and prevents chamber deformation, delivering consistent results for your gel electrophoresis experiments.

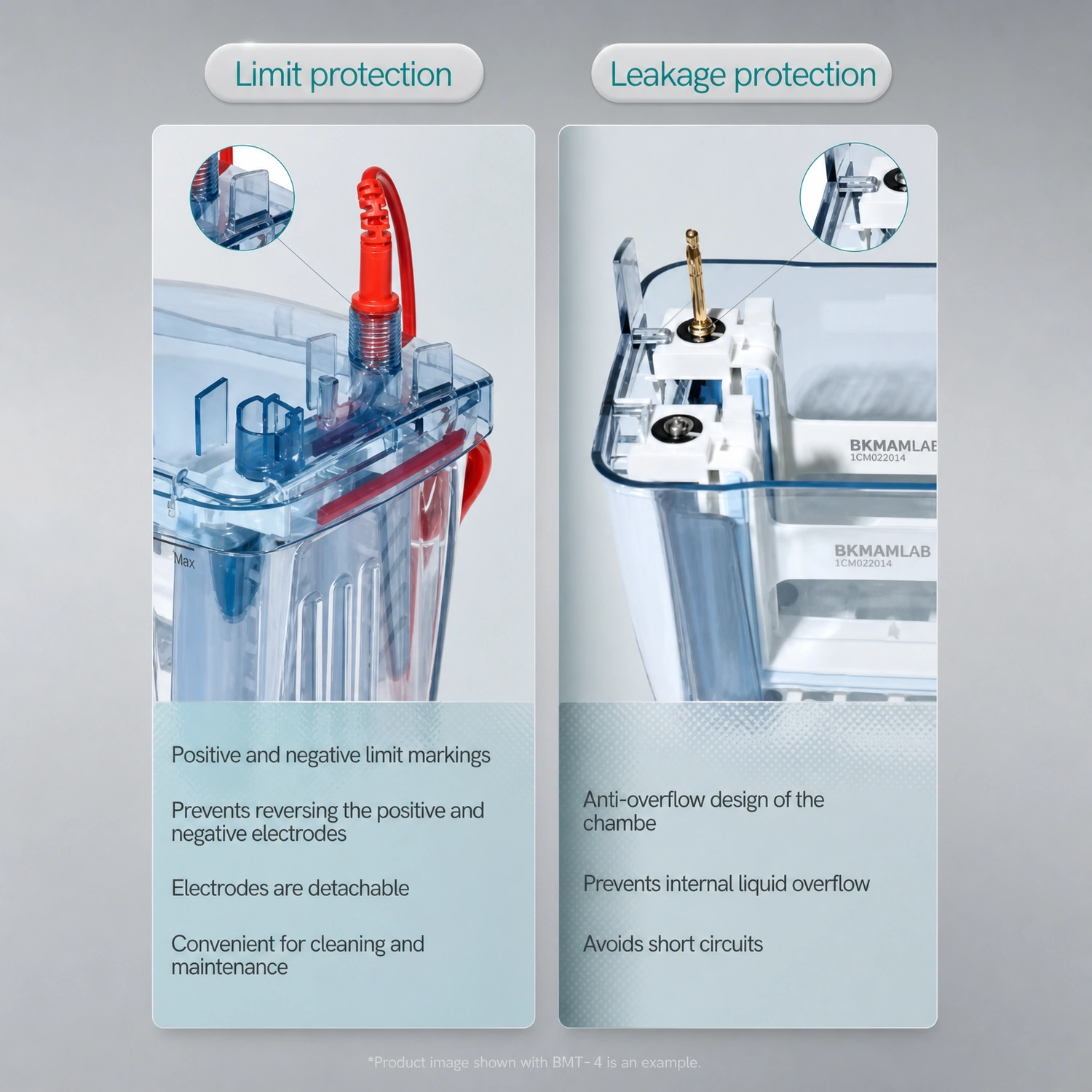

Equipped with a position-limiting function, this electrophoresis system provides positioning and stop protection to prevent accidental misalignment during operation. This safety feature ensures the chamber stays securely in place, protecting both the user and the samples.
The gel electrophoresis chamber is designed with strong adaptability, allowing it to work seamlessly with different gel trays, combs, and power supplies. Whether you need a horizontal electrophoresis apparatus for agarose gels or a vertical gel apparatus for SDS-PAGE, this system adapts to your experimental needs.
Built with high-quality materials, this electrophoresis equipment ensures excellent electrical conductivity for consistent and uniform migration of molecules. This results in clear, reproducible band patterns for DNA, RNA, and protein analysis.

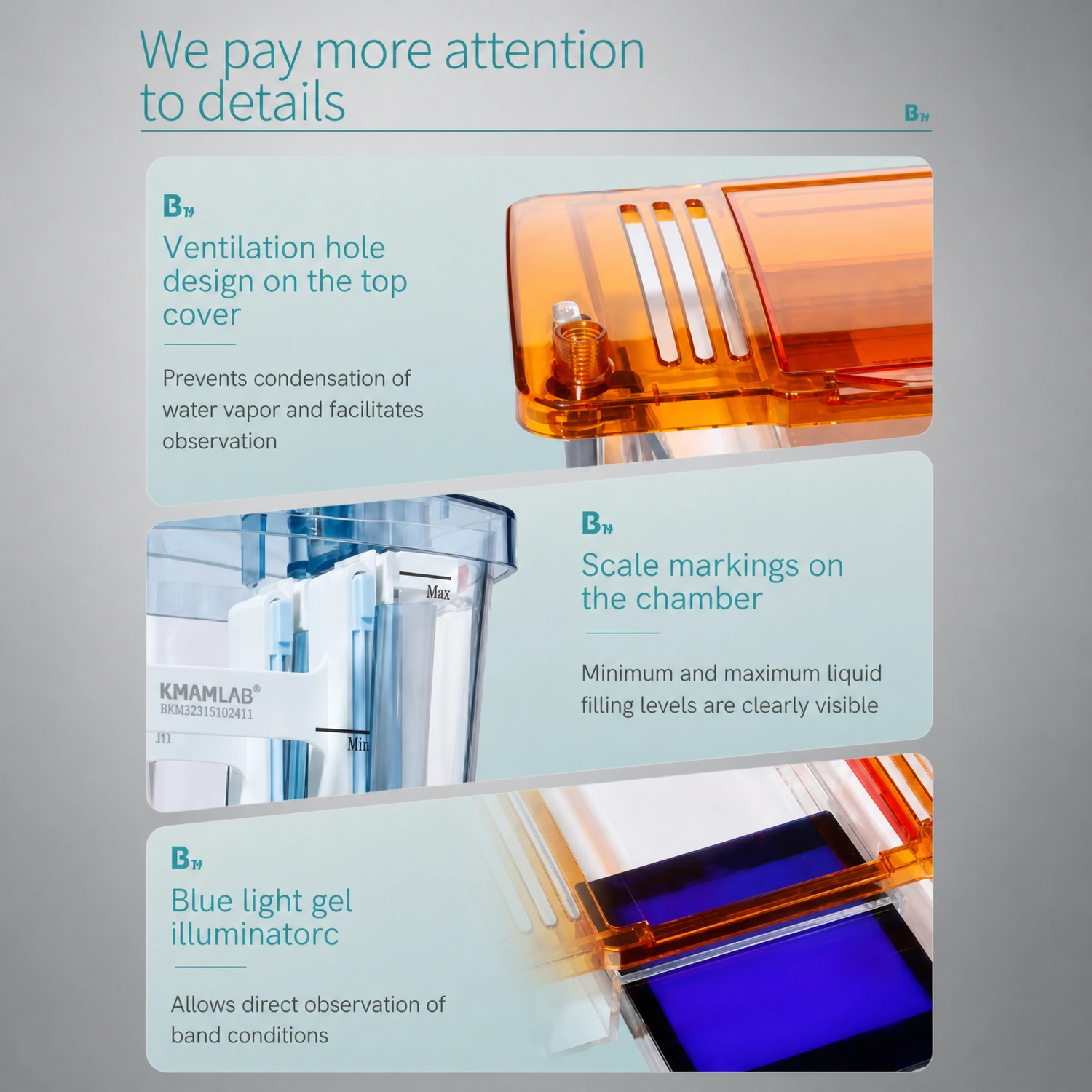

The BIVL-2 horizontal model includes a 470nm blue light illuminator built into the cover plate, allowing you to visualize DNA bands in real-time during agarose gel electrophoresis without needing a separate transilluminator.
This electrophoresis system supports three distinct modes:

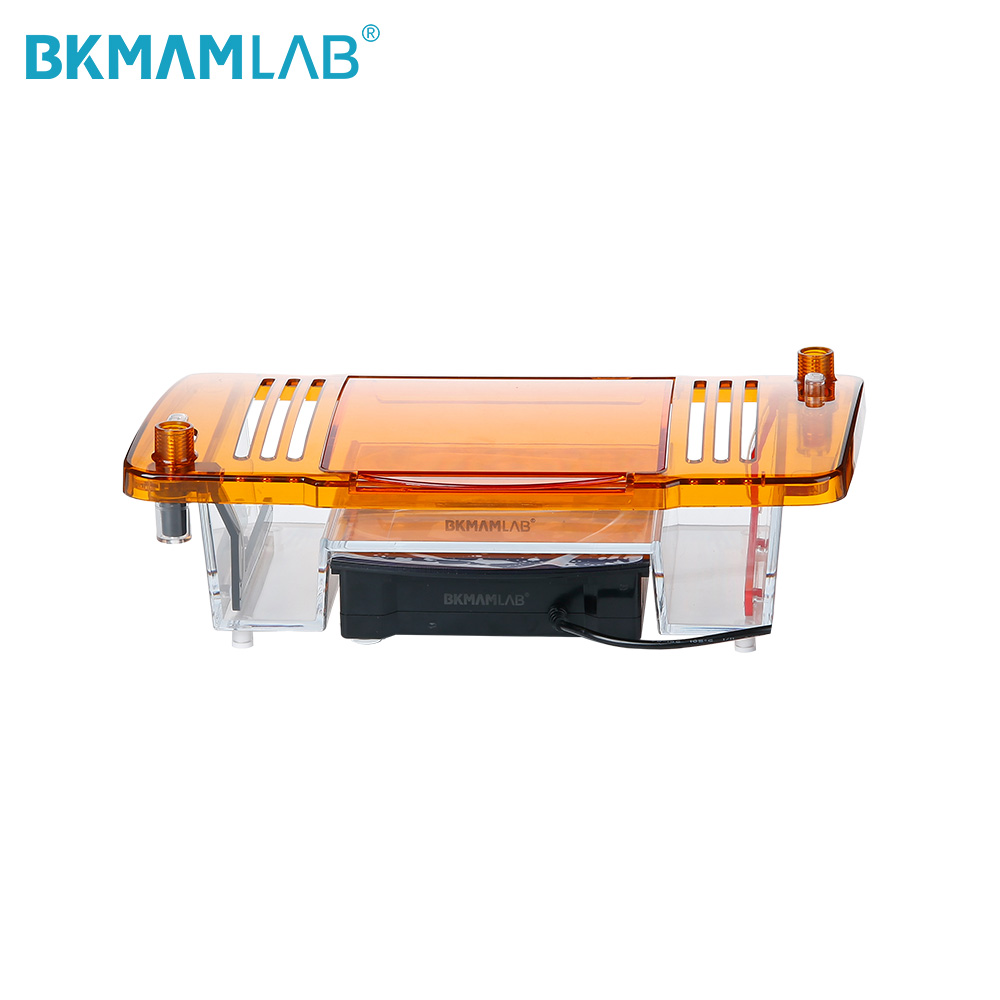

Horizontal (BIVL-2): Rapid agarose gel separation of small DNA/RNA samples.

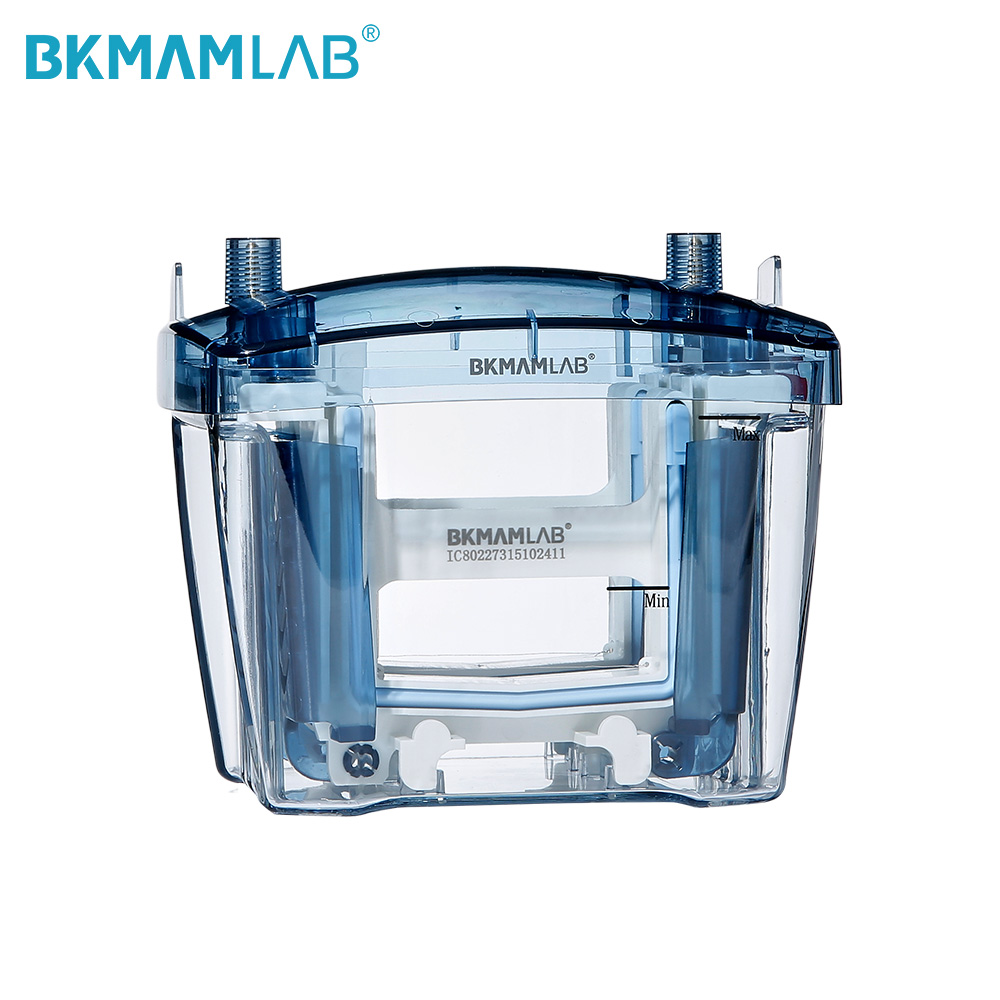

Vertical (BIVE-4): Protein separation and quantification (SDS-PAGE).

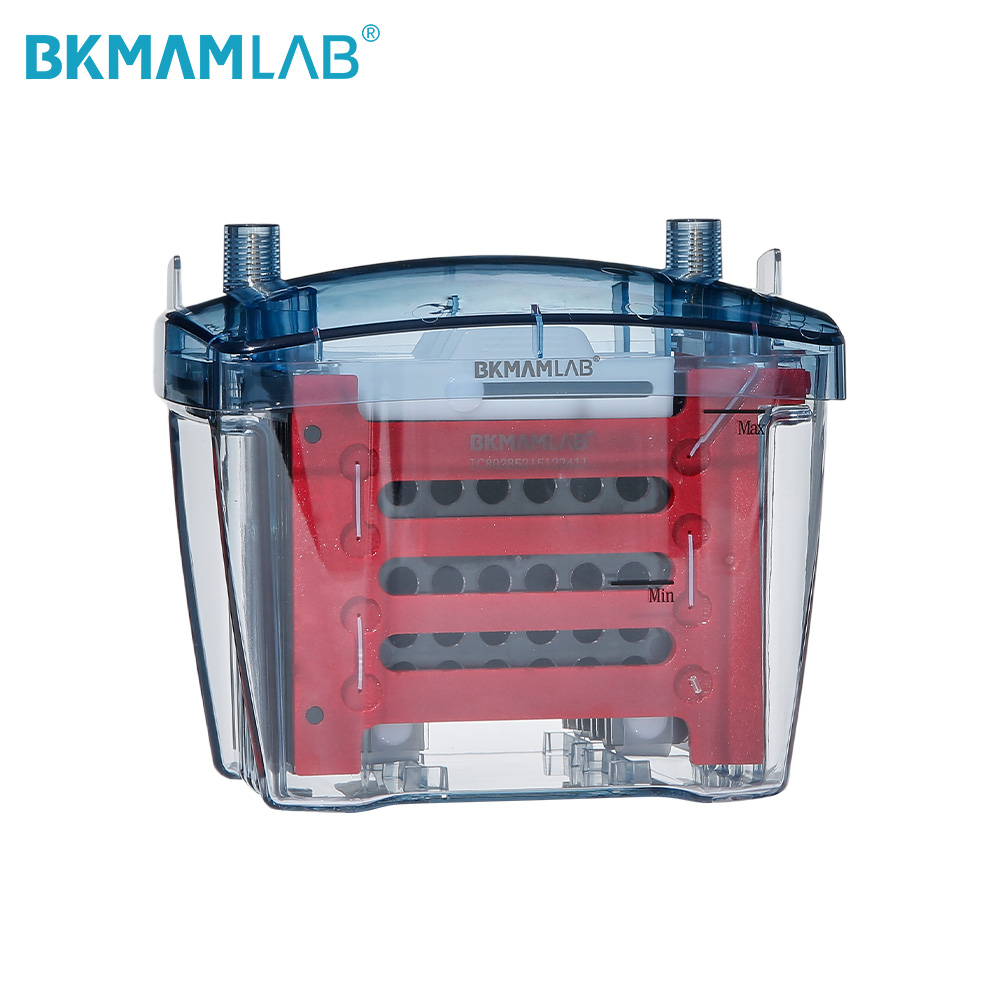

Transfer (BIVT-4): Electrophoretic transfer of proteins/nucleic acids onto membranes for Western blot analysis.
This versatility makes it a complete gel electrophoresis kit for molecular biology laboratories.
Your Need | Recommended Model |
|---|---|
DNA/RNA agarose gel separation | BIVL-2 – Horizontal, 470nm blue light, multiple gel tray sizes. |
Protein separation and quantification | BIVE-4 – Vertical, 1-4 gels, SDS-PAGE compatible. |
Western blot transfer | BIVT-4 – Transfer, 75×100mm membranes, 1.3L buffer capacity. |
For horizontal electrophoresis, prepare an agarose gel of the appropriate concentration and pour it into the gel tray with the comb inserted.
For vertical electrophoresis, assemble the glass plates and prepare the polyacrylamide gel (SDS-PAGE) according to your protocol.
After the gel has solidified, remove the comb and place the gel tray into the electrophoresis chamber.
Fill the chamber with the appropriate running buffer (e.g., TAE, TBE, or Tris-Glycine).
Load your DNA, RNA, or protein samples into the wells.

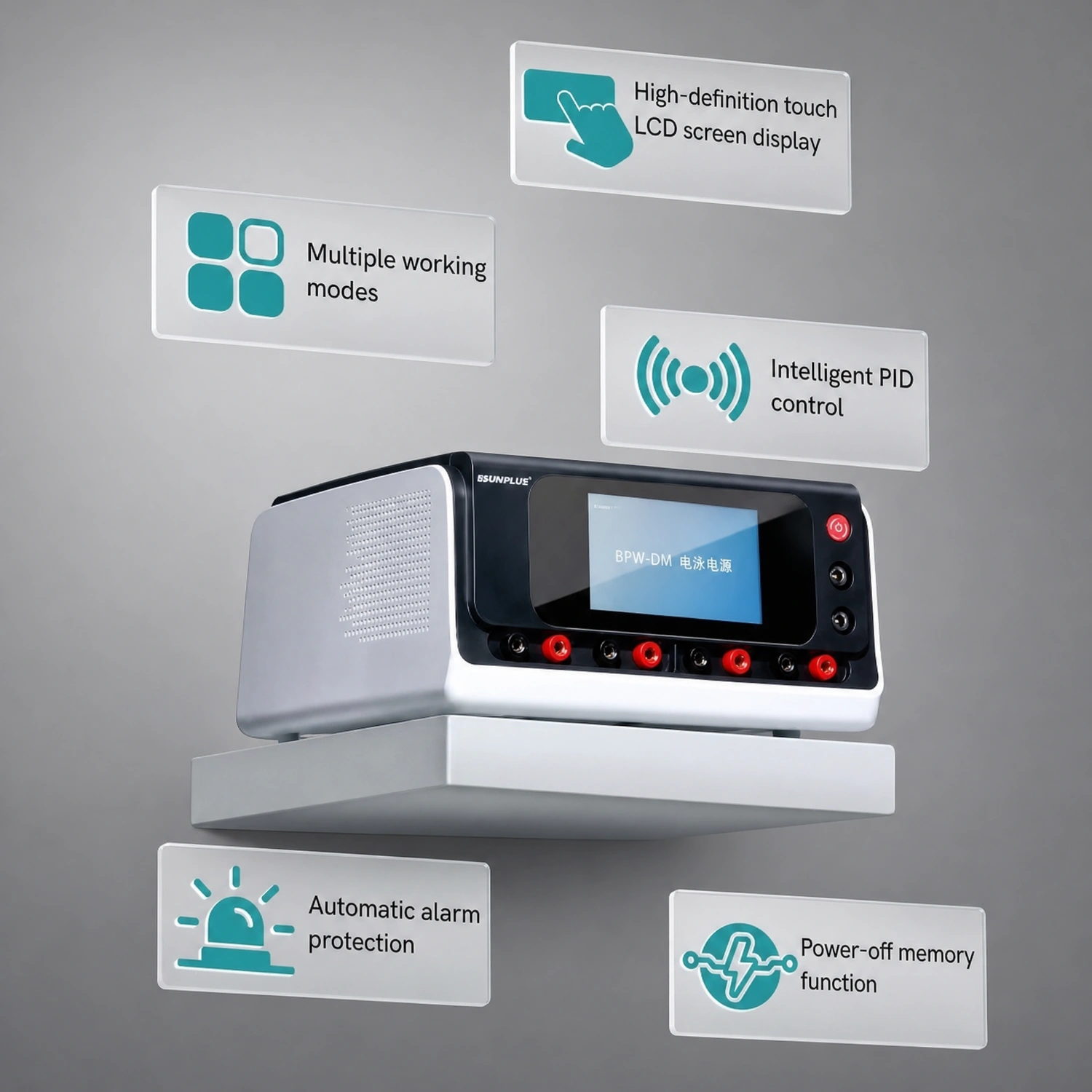

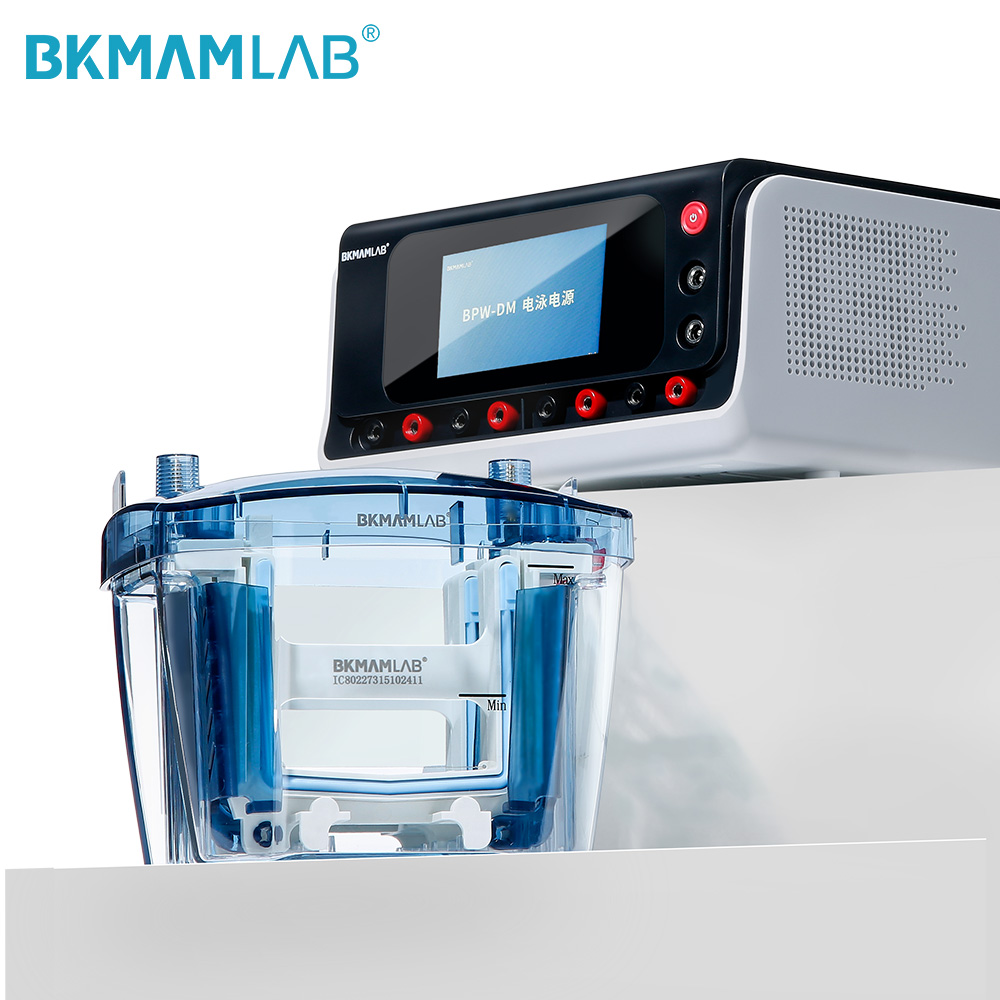

Connect the electrophoresis apparatus to a compatible power supply (BPW-6S or BPW-DM).
Set the appropriate voltage and time according to your experimental protocol.
For BIVL-2, you can visualize DNA bands in real-time using the blue light illuminator.
After electrophoresis is complete, turn off the power supply.
For transfer electrophoresis, assemble the transfer stack (membrane, gel, filter paper) and place it in the BIVT-4 chamber with transfer buffer.
Run the transfer at the appropriate voltage and time, then proceed with immunodetection (Western blot).
Precautions:
Always turn off the power supply before opening the chamber or handling gels.
Do not fill the chamber with buffer beyond the maximum capacity.
Ensure electrodes are correctly connected to avoid reverse migration.
For protein electrophoresis, handle the polyacrylamide gels with care as they are fragile.
Our electrophoresis apparatus is widely used in:
Molecular Biology: DNA/RNA separation and analysis.
Genetic Engineering: Restriction fragment analysis and cloning verification.
Protein Research: SDS-PAGE protein separation and quantification.
Immunology: Western blot transfer for protein detection.
Forensic Science: DNA fingerprinting and paternity testing.
Clinical Diagnostics: Genetic screening and disease marker analysis.
Whether you need a gel electrophoresis tank for nucleic acid analysis, a protein electrophoresis chamber for SDS-PAGE, or a transfer electrophoresis system for Western blotting, BKMAMLAB provides reliable and accurate solutions.
A: BIVL-2 is for horizontal agarose gel electrophoresis of DNA/RNA. BIVE-4 is for vertical protein SDS-PAGE. BIVT-4 is for transfer electrophoresis (Western blot).
A: The electrophoresis system is compatible with the BPW-6S and BPW-DM power supplies.
A: The horizontal model (BIVL-2) supports gel trays from 60×60mm to 120×120mm. The vertical model (BIVE-4) supports gels of 83×73mm.
A: Yes. The BIVL-2 includes a 470nm blue light illuminator for real-time DNA visualization during agarose gel electrophoresis.
Whether you are a molecular biologist, geneticist, or protein researcher, BKMAMLAB electrophoresis systems offer the perfect combination of stability, safety, and versatility. Choose from BIVL-2, BIVE-4, or BIVT-4 models to match your specific experimental needs.
Order your BKMAMLAB electrophoresis apparatus today! Bulk inquiries and custom configurations are welcome – contact our team for assistance.
