Transitioning assays from individual tubes to microplates exposes the immediate limitations of single-channel liquid handling. The primary issues are excessive time consumption and unacceptable data variance across the plate. Lab managers must scale throughput without compromising assay reproducibility. They also need to avoid risking technician repetitive strain injury (RSI) from constant thumb depression and tip ejection. Prematurely over-investing in complex robotics is another common pitfall that drains budgets without solving immediate workflow bottlenecks. Evaluating whether an 8 Channel Pipette is the correct operational bridge requires careful analysis of your daily bench work. You must analyze plate formats, protocol complexity, and specific volume requirements. Format transitions against technical trade-offs also play a major role in this decision. Upgrading your manual tools bridges the gap between low-throughput struggle and fully automated systems.
Throughput Thresholds: An 8 channel pipette becomes operationally necessary when labs transition to standard 96 well plate pipetting, reducing dispensing steps by 87% compared to single-channel tools.
Configuration Logic: Choosing 8 channels over 12 channels depends entirely on assay layout (row-wise vs. column-wise processing), the need to minimize tip waste during partial plate runs, and future scalability to 384-well formats.
Electronic vs. Manual: High-throughput workflows requiring multi-dispensing, serial dilutions, or precise timing justify the higher initial cost of electronic 8 channel models.
Format Flexibility: Adjustable tip spacing models bridge the gap between disparate labware, allowing seamless transfers from microcentrifuge tubes directly to 96-well plates.
Risk Mitigation: The primary failure points in 8 channel liquid handling are uneven tip sealing and inconsistent calibration across channels, requiring strict adherence to ISO 8655 standards.
Using single-channel tools for microplates creates massive mathematical inefficiency. Filling a standard plate requires 96 individual movements. You aspirate, dispense, and eject 96 separate times. A multichannel tool reduces this to just 12 steps. This represents an 87% reduction in physical movements. Time delays between the first and last well severely impact time-sensitive kinetic assays. If an enzyme reaction starts in well A1, well H12 might lag by several minutes. This delay skews your data baseline. It makes accurate comparative analysis nearly impossible. Upgrading your tools eliminates this lag. It ensures all samples in a column react simultaneously. Let's look at a standard ELISA protocol. You have multiple wash steps, blocking buffers, and substrate additions. Doing this one well at a time takes roughly 15 minutes per plate just in liquid transfer time. Multichannel tools cut this down to under two minutes. When you process ten plates a day, you save over two hours of pure bench time. That is time your technicians can spend analyzing data instead of pushing plungers. Furthermore, reducing the time plates sit open on the bench minimizes the risk of airborne contamination and sample evaporation, which directly protects the integrity of your results.
We must frame this transition as a strict health and safety requirement. Repetitive strain injury (RSI) is a severe threat in high-volume labs. Technicians suffer cumulative thumb and wrist strain daily. Repetitive single-channel tip ejection requires significant force. Plunger depression adds continuous tension to the hand muscles. Over time, this leads to chronic pain and lost working hours. Multichannel tools distribute this physical load. They reduce the total number of repetitive motions required per shift. Protecting your team's physical health directly protects your lab's productivity. Consider the mechanics of tip ejection. Ejecting a single tip might require 2 to 4 pounds of force. Doing that 96 times equals hundreds of pounds of cumulative force on a single thumb joint per plate. Multichannel tools often feature geared or spring-assisted ejection mechanisms. This spreads the required force across the entire hand or reduces the peak force needed. Implementing these ergonomic improvements aligns with occupational health guidelines and prevents costly medical leaves associated with severe tendonitis or carpal tunnel syndrome.
You need clear baseline metrics before upgrading your equipment. Do not upgrade simply for the sake of new technology. Look at your daily plate volume. Processing more than three full plates per day justifies the switch. Protocols requiring simultaneous reaction initiations also demand multichannel tools. If your team spends more than two hours daily on repetitive transfers, you have met the threshold. Consider your error rates as well. High variance across plate columns often indicates operator fatigue. This fatigue stems directly from single-channel overuse. Establishing these criteria ensures your investment solves real operational problems. Track your assay CV (coefficient of variation) values. If you notice the CV creeping up on the right side of your plates, your technicians are likely getting tired by the time they reach column 12. This is a hard metric that proves the need for an upgrade. You should also audit the specific types of assays being run. Assays with multiple reagent additions, such as multiplex cytokine panels, benefit exponentially more from multichannel processing than simple single-step transfers.
Analyzing plate orientation is the first step in this debate. An 8-channel tool processes plates column by column. This requires 12 distinct steps across the plate. A 12-channel tool processes row by row. This requires only 8 steps. However, assay design flexibility often favors the 8-channel format. Many standard protocols require serial dilutions down the columns. Partial plate usage is also much easier to manage. You waste fewer tips when working with smaller sample sets. Scalability beyond 96 wells requires specific techniques. You can use staggered dispensing to manage 384-well formats. This makes the 8-channel tool highly versatile for future expansion. Let's break down the tip waste issue. If you only need to run 24 samples, an 8-channel tool uses exactly three columns. A 12-channel tool forces you to use two rows, but you might have to load partial tip boxes, which slows down the workflow. Most commercial assay kits are designed around column-based processing. The reagents are supplied in volumes optimized for 8-tip aspiration. Standardizing on the 8-channel format ensures seamless compatibility with the vast majority of off-the-shelf diagnostic and research kits.
Feature | 8 Channel Models | 12 Channel Models | Automated Systems |
|---|---|---|---|
Plate Orientation | Column-by-column (12 steps) | Row-by-row (8 steps) | Full plate simultaneous |
Serial Dilutions | Highly efficient across rows | Less common for standard assays | Fully programmable |
Partial Plate Utility | Excellent, minimal tip waste | Poor, high tip waste | Variable based on software |
Setup Complexity | Low | Low | High |
Maintenance Requirements | Moderate (8 channels to calibrate) | Moderate (12 channels to calibrate) | Extensive (Service contracts required) |
Evaluate the operational necessity of adjustable-spacing models. Standard fixed-spacing tools only work with uniform labware. Workflows often require direct transfers from microcentrifuge tube racks. Moving samples from tubes to plates usually requires intermediate transfer steps. Adjustable models eliminate these intermediate steps entirely. You expand the tips to fit the tube rack. You aspirate the samples. You then contract the tips to fit the microplate. This rapid transfer saves significant time. It also reduces the risk of cross-contamination. You handle the liquid fewer times, which preserves sample integrity. Think about genomic workflows. You often extract DNA in 1.5mL tubes. Transferring those extracts into a 96-well PCR plate is a massive bottleneck. An adjustable tool lets you pull from the tube rack and dispense directly into the PCR plate. This single feature can cut sample prep time in half. It also minimizes the physical footprint required on the benchtop, as you no longer need intermediate reservoir troughs to bridge the gap between different labware formats.
Manual models are best for straightforward, repetitive transfers. They are ideal when your budget is tightly constrained. They require no charging and have fewer internal electronic parts to fail. However, manual tools rely entirely on operator thumb speed. This can introduce slight variations in dispensing force. Electronic models are necessary for complex high-throughput liquid handling. They handle aliquoting, mixing, and serial dilutions automatically. They drastically reduce user-to-user variability. A junior technician and a senior scientist will achieve the exact same dispensing speed. The integration of programmable timing ensures absolute consistency across every single well. Electronic tools also offer multi-dispense modes. You aspirate a large volume once and dispense smaller aliquots across multiple columns. This is incredibly useful for adding stop solutions or master mixes. Furthermore, many modern electronic models feature Bluetooth connectivity, allowing you to push protocols directly from your Laboratory Information Management System (LIMS) to the device, ensuring strict adherence to standard operating procedures.
Frame this tool as the intermediate step before full automation. Fully automated liquid handlers cost tens of thousands of dollars. They require dedicated programming and extensive maintenance contracts. A multichannel hand tool costs a fraction of that amount. It provides an immediate boost to your throughput. The cost-to-throughput ratio is highly favorable for growing labs. You gain speed and accuracy without the massive capital expenditure. It allows your team to scale operations organically. You can delay the purchase of heavy robotics until your daily plate volume truly demands it. Automation also requires significant footprint space on your bench or in your biosafety cabinet. Handheld tools stay in the drawer when not in use. They offer flexibility that large robots simply cannot match. If a protocol changes suddenly, a technician can adapt immediately with a hand tool. Reprogramming a robotic deck for a new plate layout or a different liquid class can take hours of validation and testing.
Understanding the physics of accuracy is non-negotiable. Pipettes perform best at the top end of their nominal volume. Accuracy degrades significantly at the lower end of the range. You must provide strict selection frameworks for your team. If a protocol requires 8µL transfers, do not use a 10–100µL model. The air cushion inside the larger barrel is too large. It compresses inconsistently, leading to poor precision. Instead, choose a 0.5–10µL model for that specific task. This maximizes precision during 96 well plate pipetting. Matching the tool's maximum capacity closely to your target volume guarantees better data. Let's look at the dead volume inside the tip. A larger tip has more surface area for liquid to cling to. When you dispense a tiny volume from a large tip, capillary action fights against the dispensing force. You end up leaving a fraction of a microliter behind. In qPCR setups, that fraction of a microliter completely alters your Cq values. Always maintain a diverse fleet of volume ranges to ensure technicians have the exact tool required for their specific assay steps.
Securing multiple tips simultaneously presents a unique mechanical challenge. If one tip sits higher than the others, it aspirates less liquid. This ruins the entire column's data. You must evaluate the tip cone design carefully. Look for spring-loaded tip cones. These cones compress slightly when you press down into the tip box. They ensure all tips lock on with equal force. Proprietary interlocking tip systems also prevent loose tips. They guarantee an airtight seal across the entire manifold. Uneven aspiration is the most common failure point in multichannel work. Investing in superior tip-fit technology eliminates this risk entirely. Do not underestimate the force required to mount eight tips. If your technicians have to bang the tool into the tip box repeatedly, they will damage the internal shafts. A good tip system requires only a gentle push to achieve a perfect seal. You should also inspect the O-rings on the tip cones regularly. Worn O-rings are the primary cause of vacuum leaks, which directly result in uneven liquid levels across the eight channels.

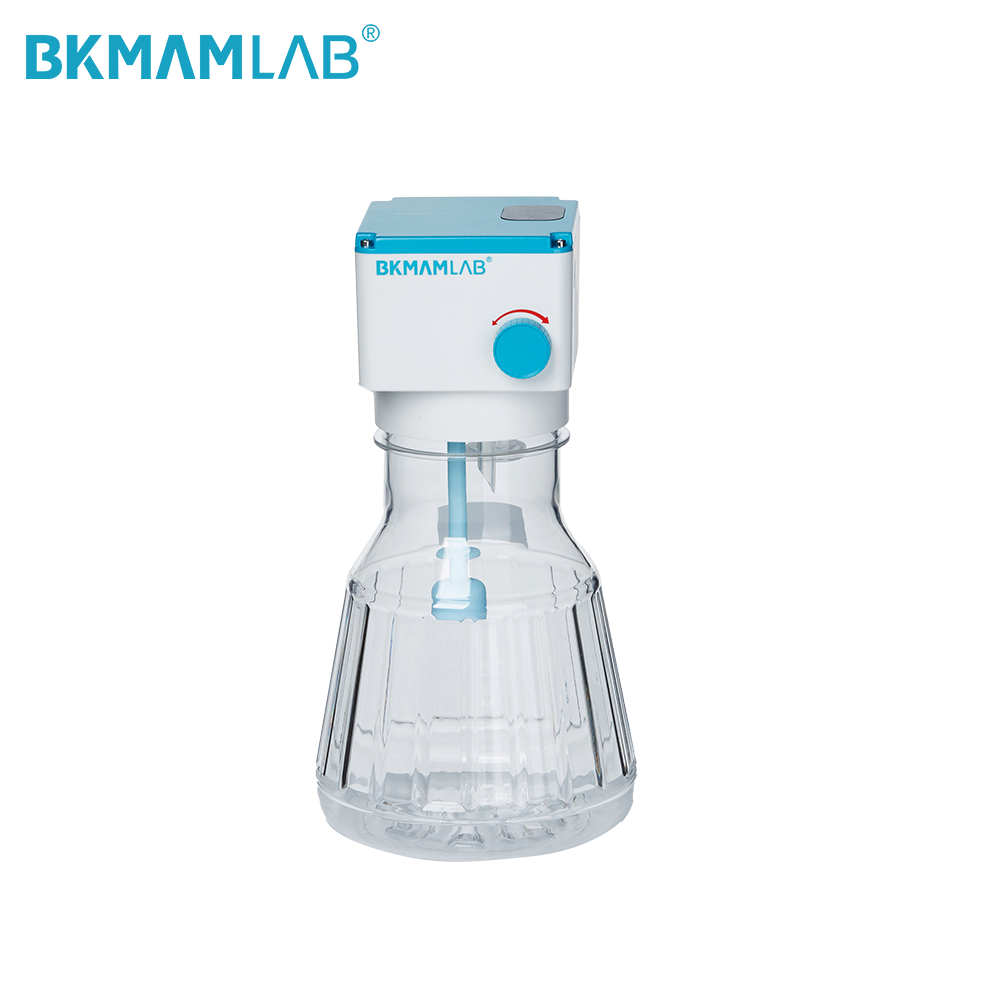

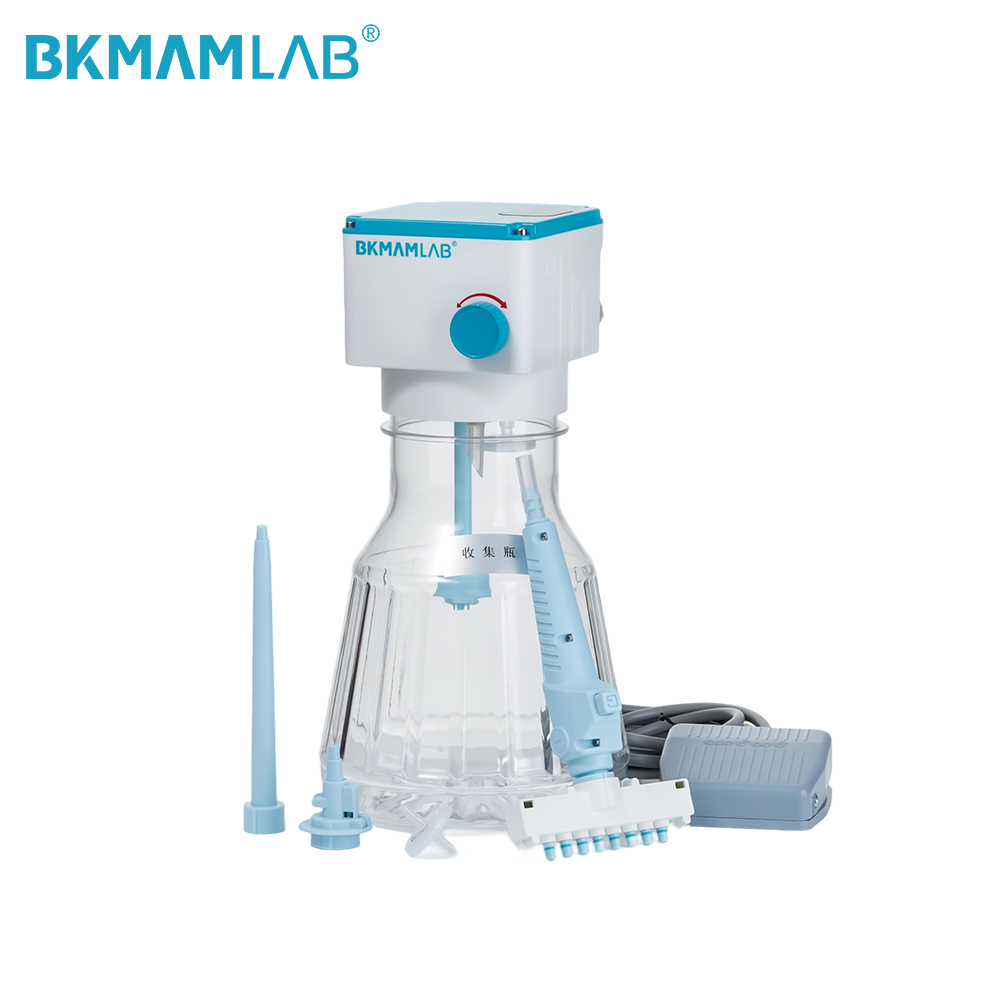

Dispensing liquid is only half of the workflow. Removing media and washing plates are equally demanding tasks. Integrating a multi-channel laboratory aspirator transforms your process. Single-channel vacuuming is slow and risks scratching the well bottoms. A multichannel aspirator removes liquid from an entire column instantly. Pairing your dispensing tool with a matching aspirator creates a highly efficient ecosystem. You dispense rapidly. You wash rapidly. You remove waste rapidly. This complementary setup maximizes the speed of manual high-throughput tasks. It keeps the entire protocol moving without bottlenecks. When working with adherent cell cultures, you must remove media without disturbing the cell layer. An 8-channel aspirator allows you to angle the tips against the side of the wells uniformly. This draws the liquid up smoothly without shearing the cells off the bottom of the plate. Ensure your vacuum system has a trap and a hydrophobic filter to protect the central vacuum lines from aerosolized biological contaminants.
Multichannel calibration introduces significant complexity to lab maintenance. Each individual channel must independently meet accuracy and precision tolerances. You cannot simply test one channel and assume the rest are fine. ISO 8655 standards require rigorous testing across the entire manifold. This means performing gravimetric testing for all separate channels. The hidden maintenance costs can add up quickly. A single tool requires eight times the calibration effort of a standard model. You must factor these service costs into your annual budget. Failing to maintain calibration across all channels guarantees skewed assay results. If channel 4 is dispensing 5% less volume than the others, every fourth well in your assay will show an artificial drop in signal. You must track calibration data per channel to identify wear and tear on specific pistons or O-rings. Use a highly sensitive microbalance in a draft-free, temperature-controlled room to perform these gravimetric checks accurately. Distilled water must be used, and evaporation rates must be factored into the final volume calculations.
Replacing older fleets requires strategic economic analysis. Standardizing on a single manufacturer streamlines your entire operation. It simplifies universal tip purchasing immensely. You no longer need to stock five different brands of tips. This bulk purchasing power reduces your consumable costs. It also simplifies bulk calibration contracts. Service technicians can process uniform fleets much faster. Inventory consolidation reduces bench clutter and operator confusion. Technicians do not have to guess which tip fits which tool. A unified fleet drives operational efficiency from procurement down to daily bench work. When you standardize, you also standardize the training protocols. New hires only need to learn one interface and one set of maintenance procedures. This reduces onboarding time and minimizes early-stage handling errors. Furthermore, standardizing allows you to keep a smaller pool of spare parts, such as replacement ejector arms or internal springs, ensuring that broken tools can be repaired on-site without waiting weeks for manufacturer shipping.
Viscous, volatile, or dense liquids pose severe risks across multiple channels. Volatile liquids like ethanol evaporate quickly. They increase the vapor pressure inside the tip. This causes the liquid to drip before you can dispense it. Viscous liquids like glycerol cling to the inside of the tips. They refuse to dispense fully. You must implement strict mitigation strategies. Use reverse pipetting techniques for viscous solutions. You aspirate extra liquid and dispense only the target volume. If air-displacement fails completely, you must utilize positive displacement alternatives. Understanding fluid dynamics is critical for successful 8 channel liquid handling. Pre-wetting the tips is mandatory for volatile solvents. You must aspirate and dispense the solvent back into the reservoir three times before moving to the plate. This saturates the air cushion and prevents dripping during the transfer. For foaming liquids like protein solutions or detergents, you must reduce your aspiration speed significantly to prevent drawing bubbles into the tip, which would displace the liquid and ruin the volume accuracy.
Prolonged holding of the device body alters dispensing accuracy. Human hands generate significant heat during a long shift. This heat transfers through the plastic casing into the internal components. It warms the air inside the displacement cylinder. Warm air expands. This expansion changes the volume of liquid aspirated. High-throughput runs exacerbate this thermal transfer problem. You must evaluate the internal insulation features of any tool you purchase. Some models use specialized polymers to block body heat. Others isolate the internal cylinder entirely. Managing thermal drift ensures your first plate is as accurate as your tenth plate. Encourage your technicians to place the tool back on its stand between plates. Even a thirty-second rest allows the internal components to cool down and stabilize the air cushion. If you are working in a cold room, the opposite effect occurs. The air cushion contracts, leading to over-aspiration. You must calibrate the tool specifically for the temperature environment in which it will be used.
Upgrading your liquid handling tools requires a structured approach to ensure immediate workflow improvements. Follow these specific steps to execute the transition effectively:
Audit your current assay protocols to determine if column-wise processing aligns with your standard reagent kits and plate layouts.
Calculate your daily plate throughput and track technician RSI complaints to build a hard data case for the equipment upgrade.
Request in-lab physical demos from manufacturers to test tip-loading ergonomics and verify airtight compatibility with your existing universal tip inventory.
Establish a strict quarterly gravimetric calibration schedule to ensure all individual channels maintain ISO 8655 compliance.
A: An 8 channel model processes standard 96-well plates column by column, requiring 12 steps. A 12 channel model processes plates row by row, requiring 8 steps. The 8 channel format is generally preferred for serial dilutions and partial plate work, as it minimizes tip waste.
A: Not always. While many models accept universal tips, the fit may not be perfectly airtight across all channels. Uneven tip sealing leads to inconsistent aspiration. It is highly recommended to test your specific brand of universal tips with the device before committing to a purchase.
A: ISO 8655 standards generally recommend annual calibration, but high-throughput labs should calibrate every 3 to 6 months. Because each channel must independently meet accuracy tolerances, frequent gravimetric testing is required to ensure consistent performance across the entire manifold.
A: Uneven aspiration is usually caused by a poor tip seal. If one tip is not seated firmly, air leaks in, reducing the vacuum pressure for that specific channel. It can also be caused by worn O-rings inside the tip cones or internal contamination blocking a channel.
A: Yes, if your workflow involves complex protocols. Electronic models automate multi-dispensing, mixing, and serial dilutions. They eliminate user-to-user variability caused by different thumb speeds. For high-throughput labs requiring strict reproducibility, the reduction in human error easily justifies the higher initial investment.
A: Accuracy is always highest at the top end of a tool's nominal volume. If your protocol requires dispensing 10µL, a 0.5–10µL model will be significantly more accurate than a 10–100µL model. Always match your target volume as closely as possible to the tool's maximum capacity.
A: It ensures that multiple samples are aspirated and dispensed at the exact same time. This eliminates the time delay between the first and last well found in single-channel work. Simultaneous processing is critical for time-sensitive kinetic assays, ensuring all samples share the same reaction baseline.
