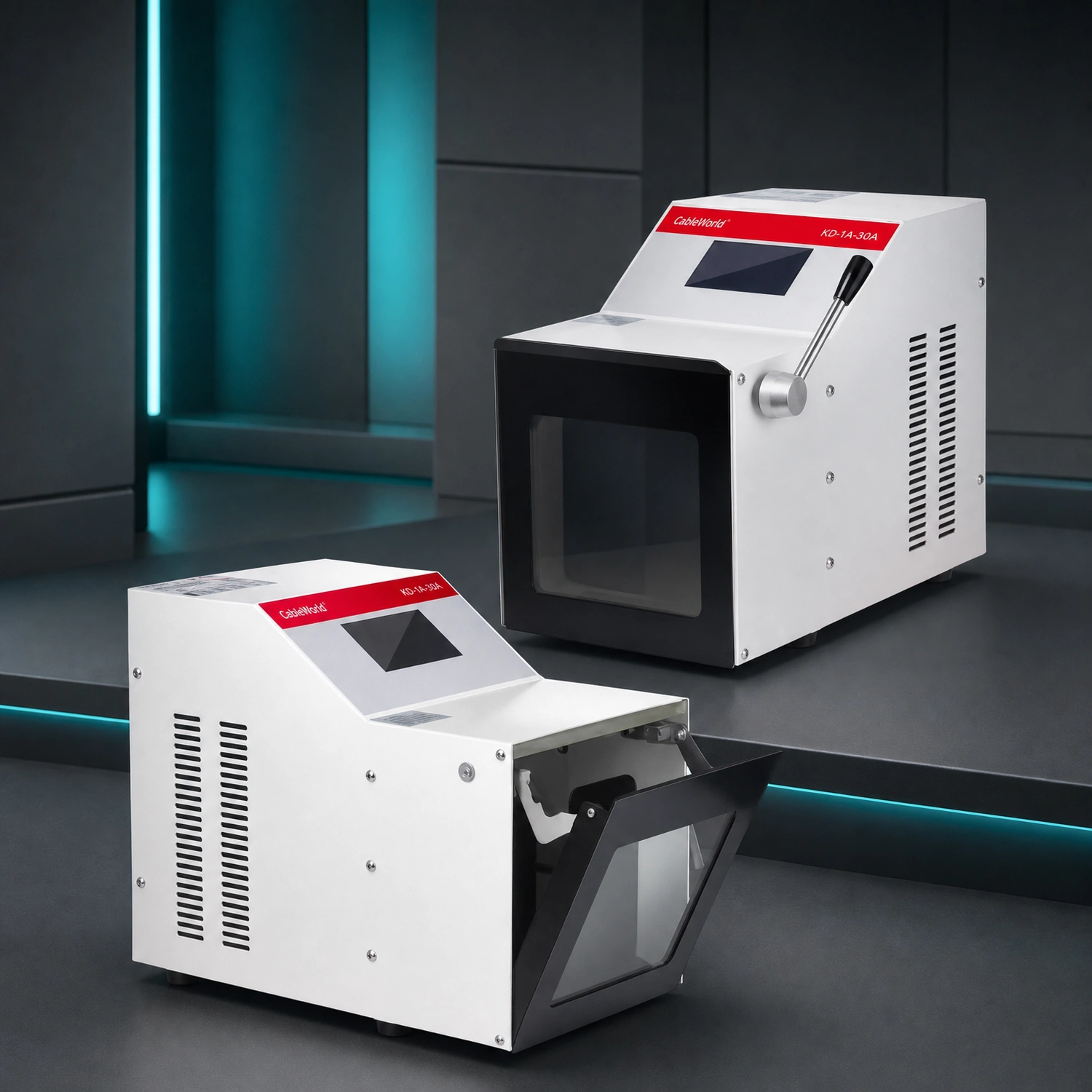

The Labshark paddle homogenizer (also referred to as a sterile homogenizer, lab homogenizer, or sample homogenizer) is a high-performance instrument designed for homogenizing, mixing, and dispersing samples through high-speed paddling. It is widely used in biological tissue extraction, microorganism homogenization, food emulsion preparation, and pharmaceutical sample processing.
Available in three models—BPD-10A (Standard), BPD-20A (UV Sterilization), and BPD-30A (Heating Sterilization)—this laboratory homogenizer features a 4.3-inch touch screen with 8-segment programming, adjustable paddle speed (3–12 times/sec), and paddle gap (0–50 mm). The disposable sterile homogenization bag ensures sealed operation, preventing cross-contamination and protecting cell integrity. Whether you need a tissue homogenizer for biological samples or a food homogenizer for emulsion preparation, Labshark delivers reliable and reproducible results.
Parameter | BPD-10A (Standard) | BPD-20A (UV Sterilization) | BPD-30A (Heating Sterilization) |
|---|---|---|---|
Display | 4.3-inch touch screen | 4.3-inch touch screen | 4.3-inch touch screen |
Control Method | Microcomputer + 8-segment programming | Microcomputer + 8-segment programming | Microcomputer + 8-segment programming |
Paddle Speed | 3–12 times/sec (programmable, 8 groups) | 3–12 times/sec (programmable, 8 groups) | 3–12 times/sec (programmable, 8 groups) |
Paddle Time | 0.1–99 min 59 sec or continuous | 0.1–99 min 59 sec or continuous | 0.1–99 min 59 sec or continuous |
Paddle Gap | 0–50 mm adjustable | 0–50 mm adjustable | 0–50 mm adjustable |
Disinfection Function | — | Yes, 253.7 nm UV | Yes, 253.7 nm UV |
Temperature Control Range | — | — | Ambient to 60°C |
Voice Prompt | Yes | Yes | Yes |
Effective Volume | 3–400 mL | 3–400 mL | 3–400 mL |
Paddle Plate Material | Stainless steel + black protective sleeve | Stainless steel + black protective sleeve | Stainless steel + black protective sleeve |
Sterile Bag Size | 17×30 cm (compatible with 20×22 cm, 20×32 cm) | 17×30 cm (compatible with 20×22 cm, 20×32 cm) | 17×30 cm (compatible with 20×22 cm, 20×32 cm) |
Start Mode | Soft start (gradual acceleration) | Soft start (gradual acceleration) | Soft start (gradual acceleration) |
Anti-Pinch Function | Yes, automatic stop | Yes, automatic stop | Yes, automatic stop |
Other Features | Removable window + tempered glass safety door | Removable window + tempered glass safety door | Removable window + tempered glass safety door |
Pause Function | Yes | Yes | Yes |
Power Supply / Power | 220 V, 300 W | 220 V, 350 W | 220 V, 500 W |
Instrument Dimensions | 420×230×330 mm | 420×230×330 mm | 420×230×330 mm |
Net Weight | 19 kg | 18.5 kg | 18.5 kg |
Outer Packaging | 540×310×410 mm | 540×310×410 mm | 540×310×410 mm |
Power Cord Length | 1.5 m | 1.5 m | 1.5 m |

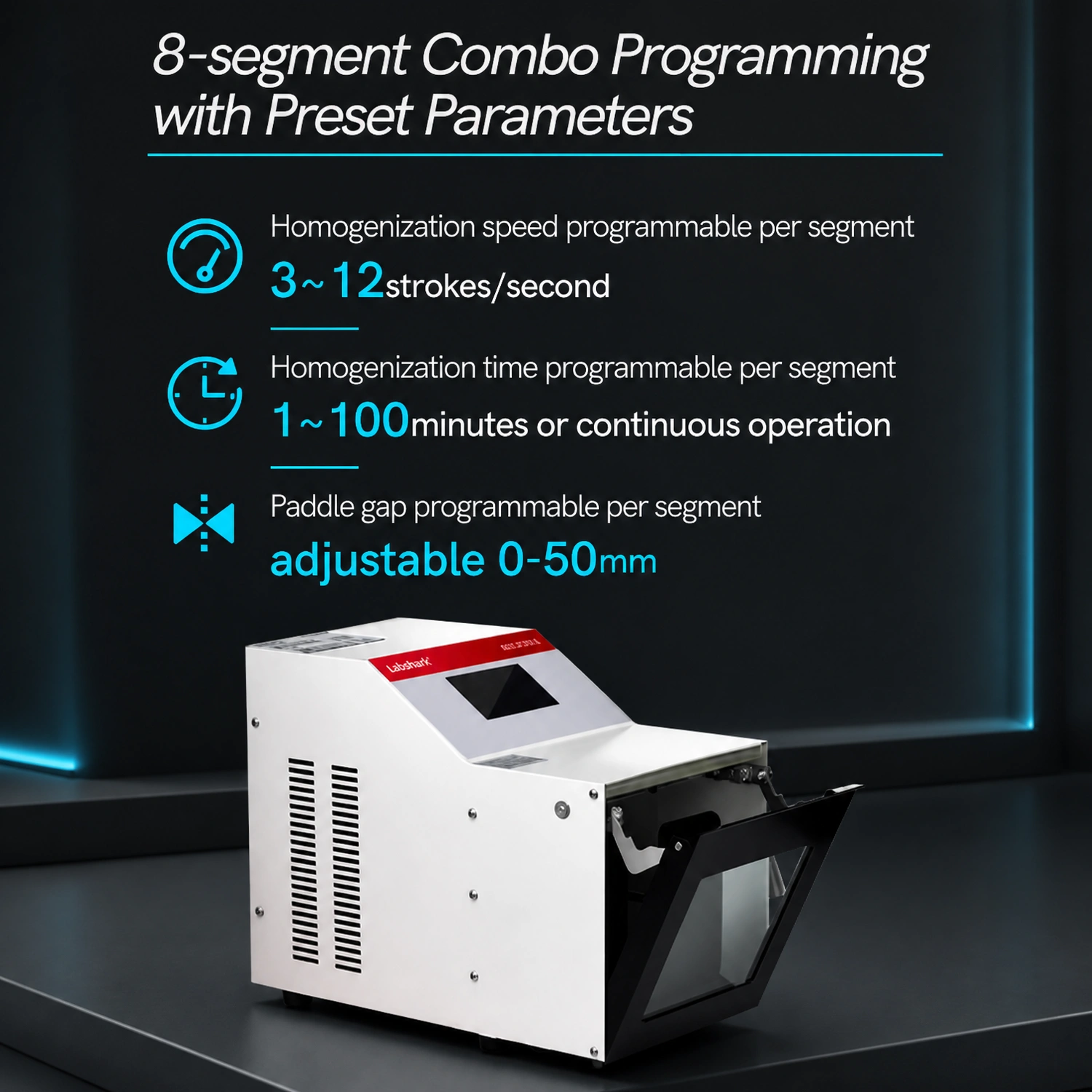

The paddle homogenizer features a 4.3-inch high-definition color touch screen for easy operation. The 8-segment programming function allows you to preset homogenization speed, time, and paddle gap for each segment, enabling customized protocols for different sample types. This lab homogenizer supports time adjustment from 0.1 to 99 minutes 59 seconds and speed adjustment from 3 to 12 times per second.

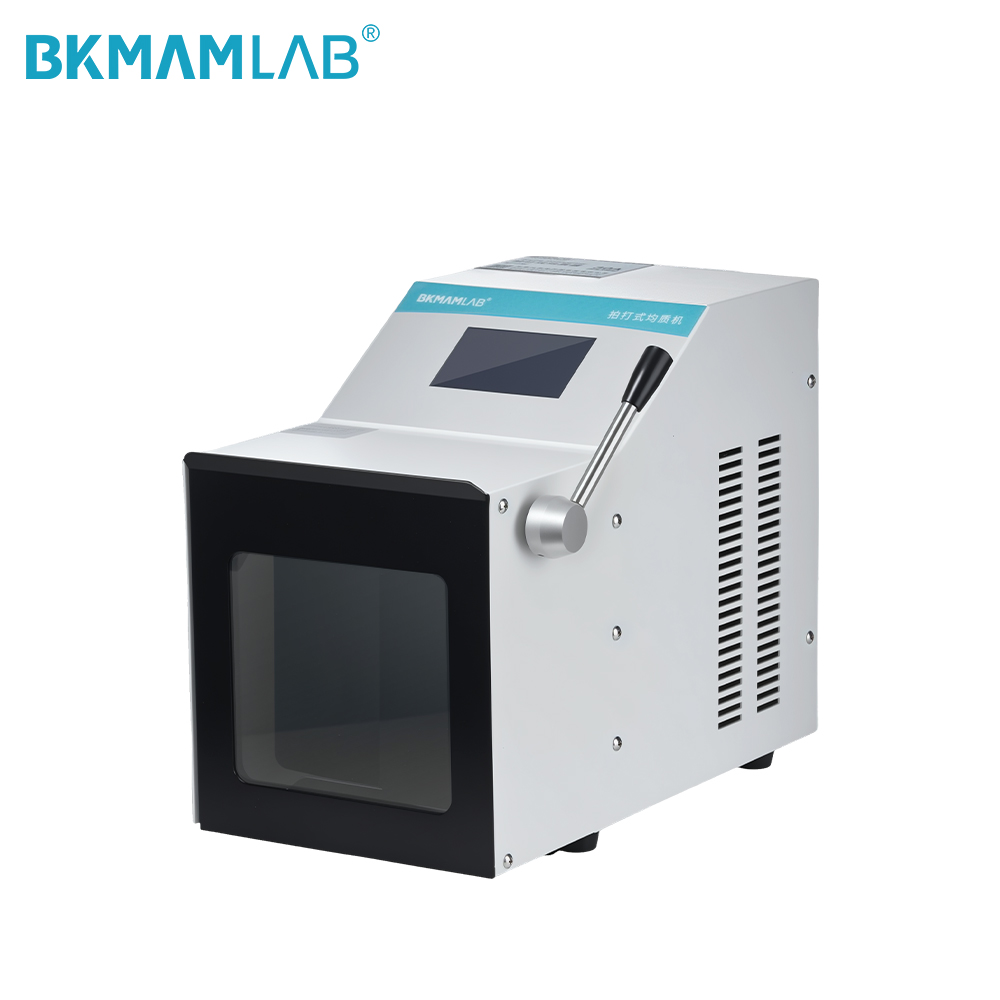

The sterile homogenizer uses a disposable sterile homogenization bag for sealed operation, preventing cross-contamination between samples. The full stainless steel chamber is corrosion-resistant and easy to clean, making this sample homogenizer ideal for microbiological and clinical applications.
The laboratory homogenizer features an automatic stop anti-pinch device and a tempered glass safety door. If the door is opened during operation, the paddle stops immediately, preventing sample splash and ensuring operator safety. The progressive homogenization protects cell integrity.

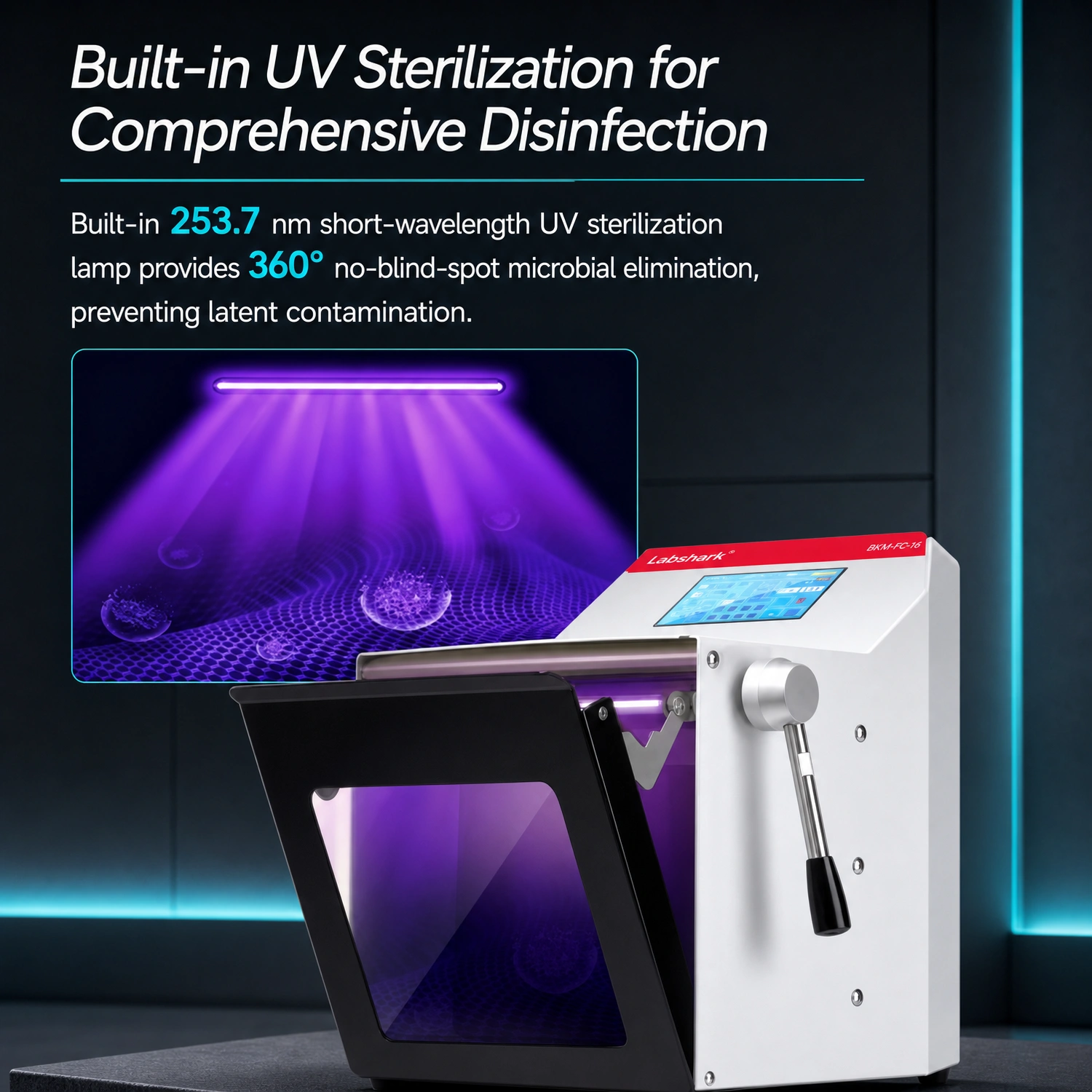

The paddle homogenizer features an adjustable paddle gap from 0 to 50 mm, allowing you to accommodate different bag sizes and sample volumes. The BPD-20A model includes UV sterilization (253.7 nm), while the BPD-30A model adds heating sterilization with temperature control from ambient to 60°C. This makes it a versatile homogenizer equipment for various applications.

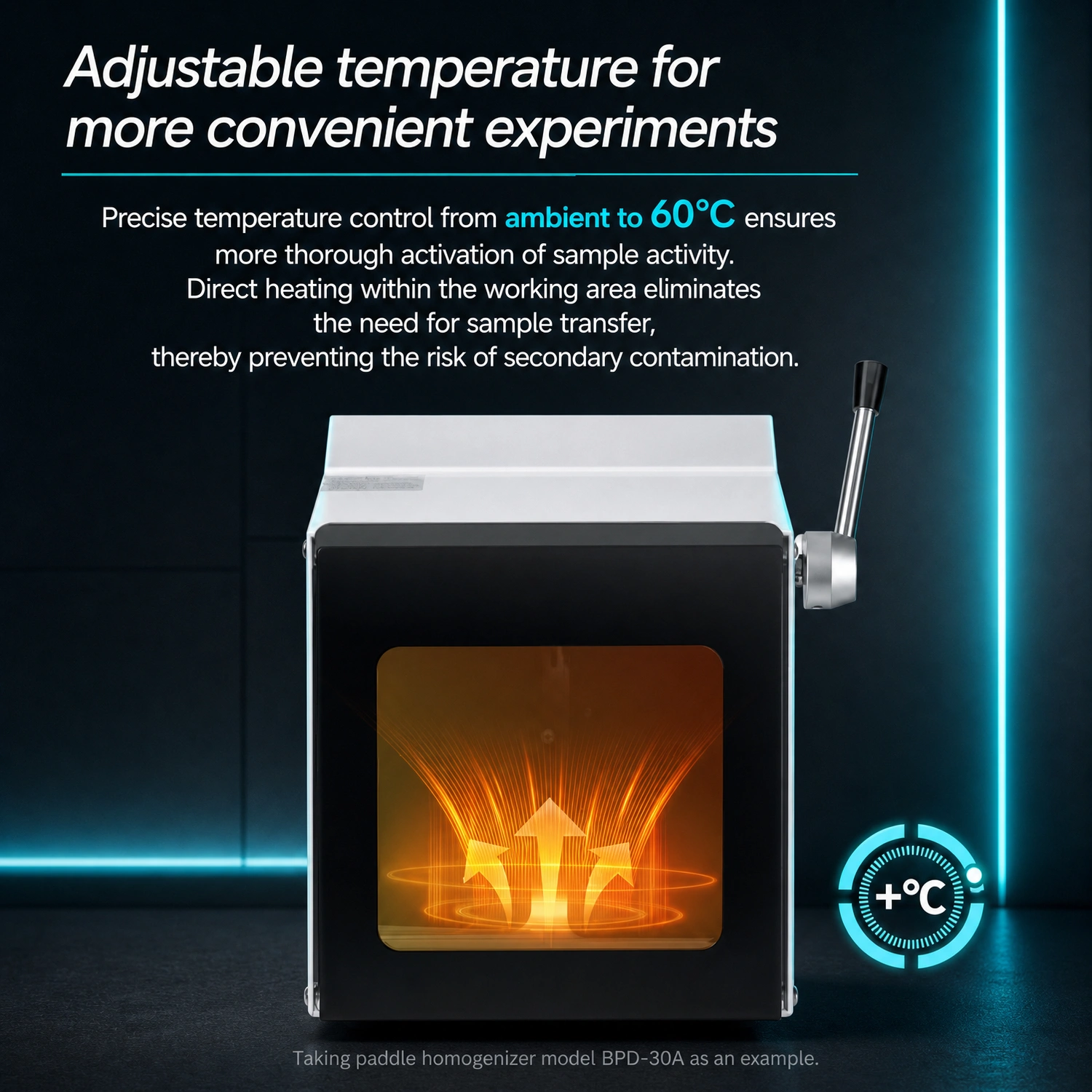

The BPD-30A model offers precise temperature control from ambient to 60°C, ensuring more thorough activation of sample activity. Direct heating in the working area eliminates the need for a separate sample transfer, thereby preventing the risk of secondary contamination.

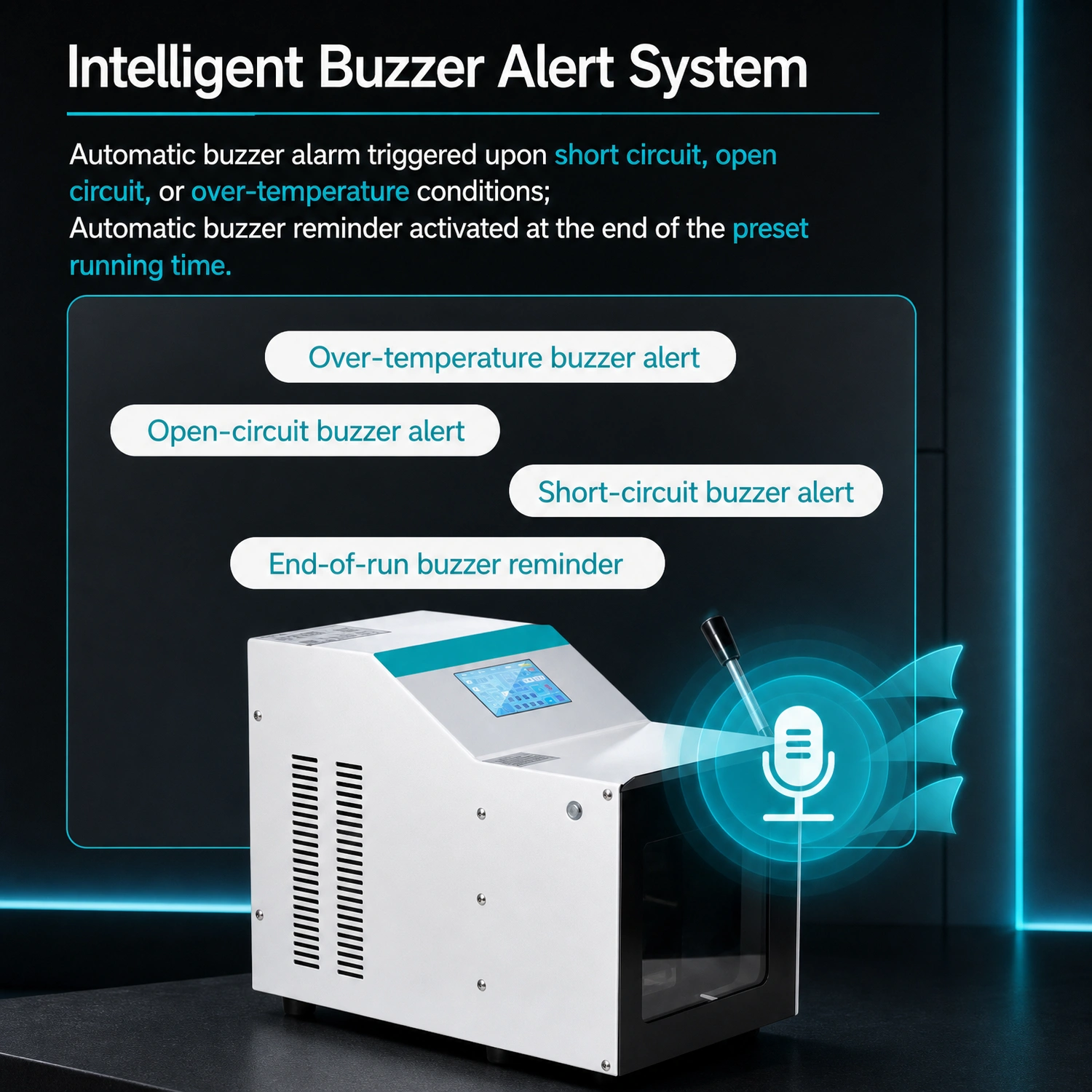

The sterile homogenizer features an automatic buzzer alarm triggered upon short circuit, open circuit, or over-temperature conditions. It also reminds you when the preset running time is reached, ensuring you never miss a step in your protocol.

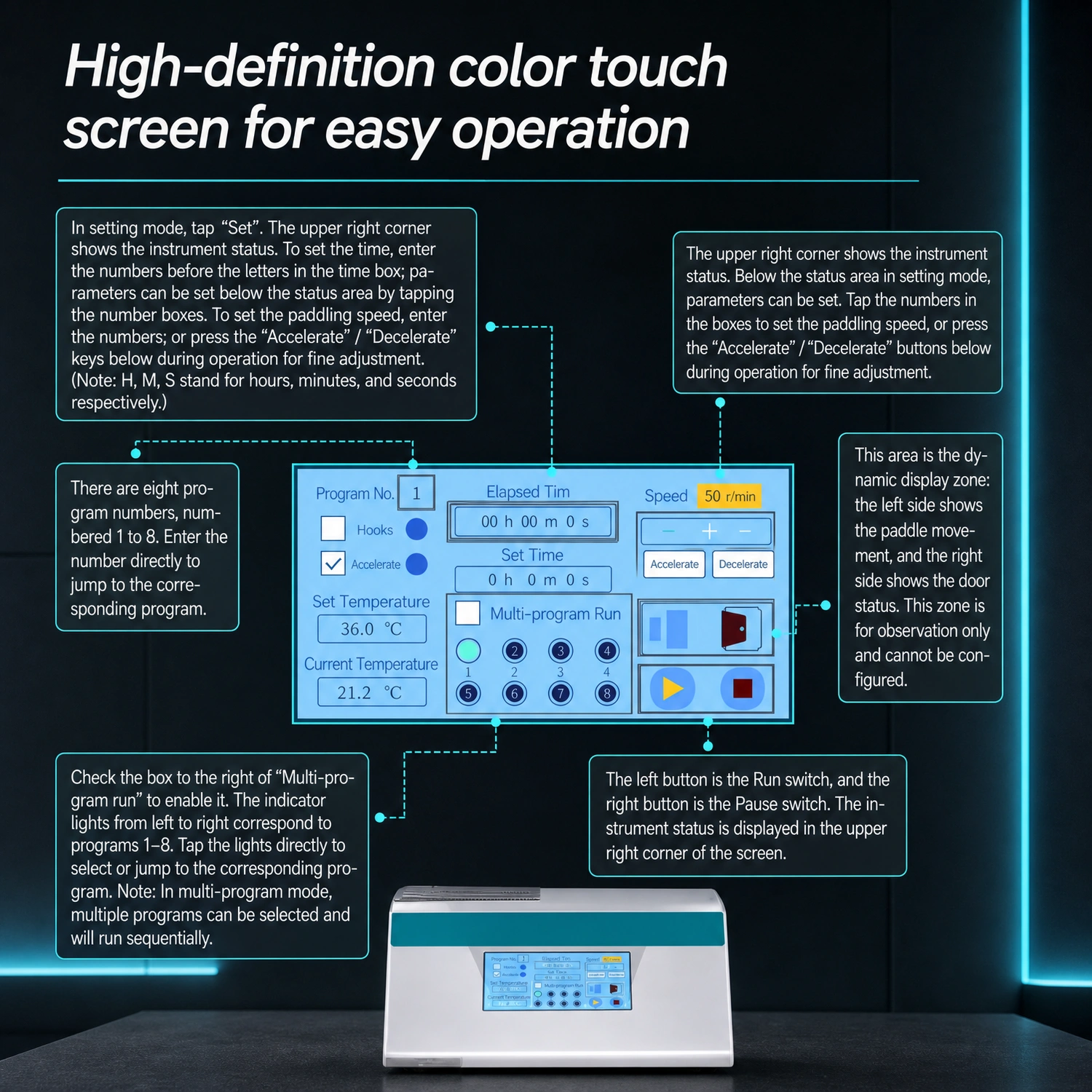

The high-definition color touch screen provides clear visual feedback and intuitive operation. The interface displays paddle speed, time, and gap settings, allowing you to monitor and adjust parameters in real time. This user-friendly design makes the paddle homogenizer easy to operate for both beginners and experienced technicians.
Your Need | Recommended Model |
|---|---|
Standard homogenization without sterilization | BPD-10A – 300 W, 19 kg, basic paddle homogenization. |
UV sterilization for contamination control | BPD-20A – 350 W, 18.5 kg, 253.7 nm UV sterilization. |
Heating sterilization and temperature control | BPD-30A – 500 W, 18.5 kg, ambient to 60°C heating. |
Place the paddle homogenizer on a stable, flat surface.
Insert the disposable sterile homogenization bag into the chamber.
Adjust the paddle gap so that the paddle plate just contacts and compresses the bag.
Use the 4.3-inch touch screen to set the paddle speed (3–12 times/sec), time (0.1–99 min 59 sec), and gap (0–50 mm).
For BPD-20A/30A, select UV or heating sterilization if needed.
Close the tempered glass door securely.
Press the “Start/Stop” button. The lab homogenizer will begin with a soft start (gradual acceleration).
Do not open the door during operation. If you need to pause, press “Start/Stop” and wait for the unit to stop automatically.
When the preset time is reached, the buzzer will alert you.
Open the door and remove the sample bag.
Clean the stainless steel chamber with a mild detergent. Do not use abrasive cleaners.
Precautions:
The distance of the paddle plate should not be adjusted too far forward; it is sufficient that the paddle plate just contacts and compresses the homogenization bag.
The power plug must be fully and securely inserted. Loose connection may cause system lock-up. If this occurs, turn off the main power switch on the rear panel, wait 3 minutes, and restart.
Do not open the homogenizer door during paddle operation to prevent sample splash or spillage. Press the “Start/Stop” button to allow the unit to stop automatically. After closing the door, press “Start/Stop” again to resume operation.
Our paddle homogenizer is widely used in:
Animal Samples: Tissue extraction and homogenization.
Biological Samples: Microorganism homogenization and cell disruption.
Cosmetics: Emulsion and cream preparation.
Pharmaceuticals: Drug formulation and quality control.
Food Industry: Emulsion preparation and sample processing.
Chemical Industry: Mixing and dispersion of chemical samples.
Whether you need a tissue homogenizer for biological research, a food homogenizer for emulsion preparation, or a sterile homogenizer for pharmaceutical QC, Labshark provides reliable and efficient solutions.
A: BPD-10A is the standard model without sterilization. BPD-20A adds UV sterilization (253.7 nm). BPD-30A adds both UV and heating sterilization (ambient to 60°C).
A: The paddle homogenizer supports an effective volume of 3–400 mL using compatible sterile bags.
A: Yes. The laboratory homogenizer allows you to adjust speed from 3 to 12 times per second using the touch screen, and you can program 8 different segments.
A: Yes. The stainless steel chamber is corrosion-resistant and easy to clean. The removable window and tempered glass door also facilitate maintenance.

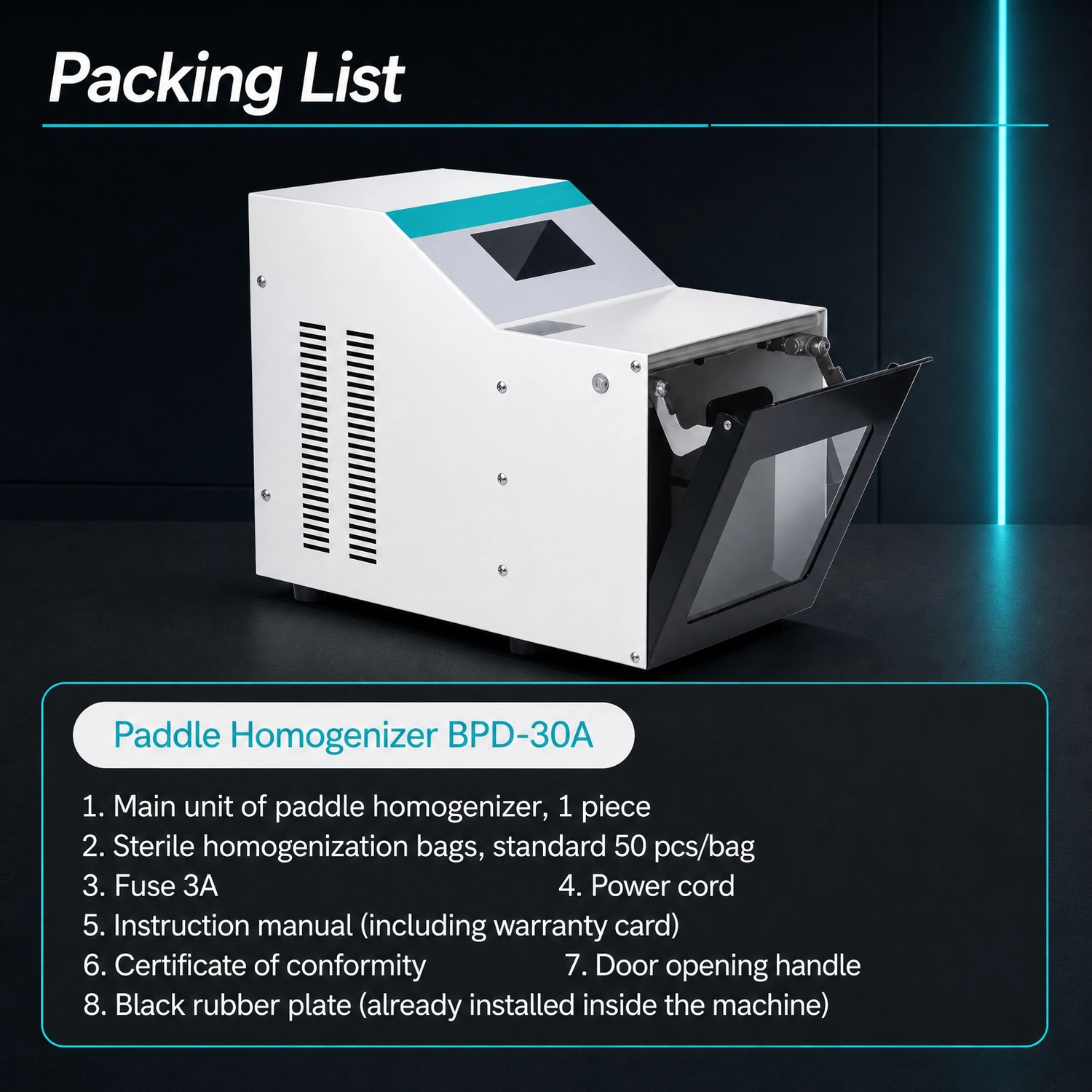

A: The package includes 50 sterile bags (17×30 cm). It is also compatible with 20×22 cm and 20×32 cm bags.
Whether you are a biologist, food scientist, or pharmaceutical researcher, Labshark paddle homogenizers offer the perfect combination of intelligent control, contamination prevention, and user-friendly operation. Choose from BPD-10A, BPD-20A, or BPD-30A to match your specific homogenization needs.
Order your Labshark paddle homogenizer today! Bulk inquiries and custom configurations are welcome – contact our team for assistance.
