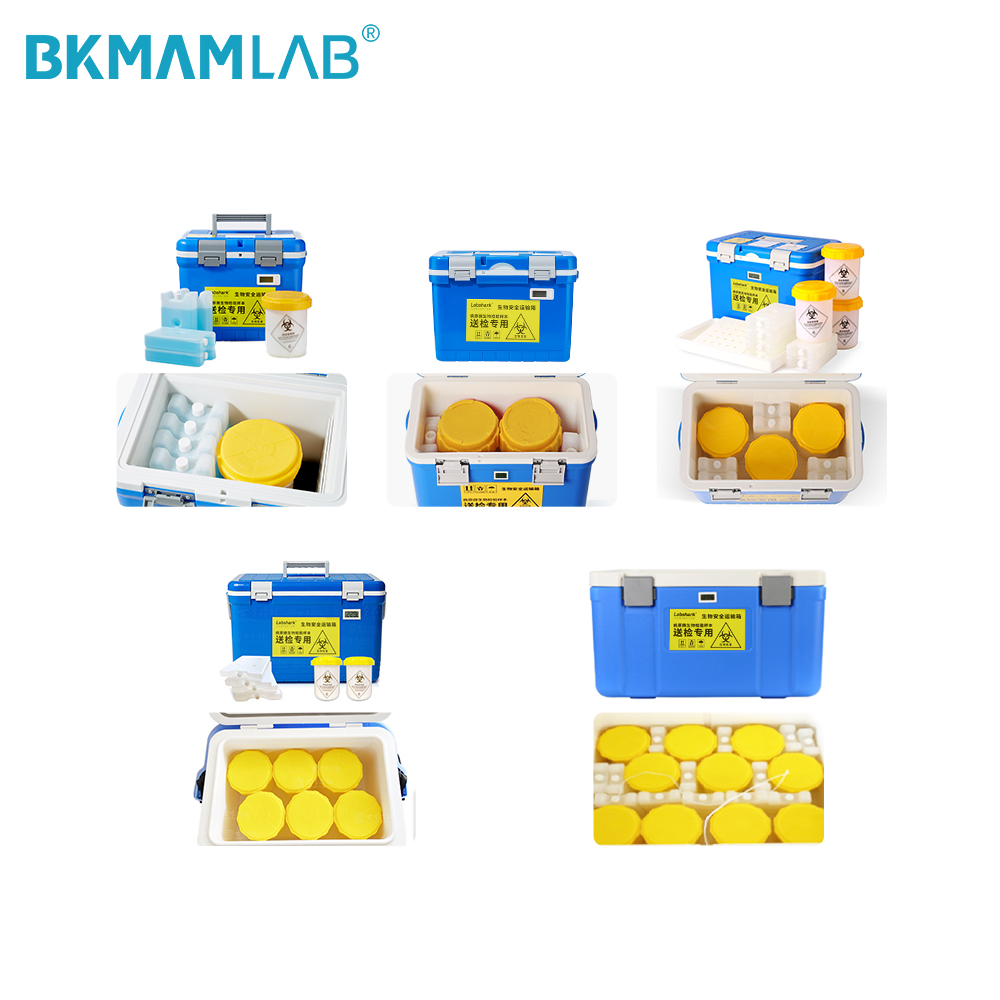

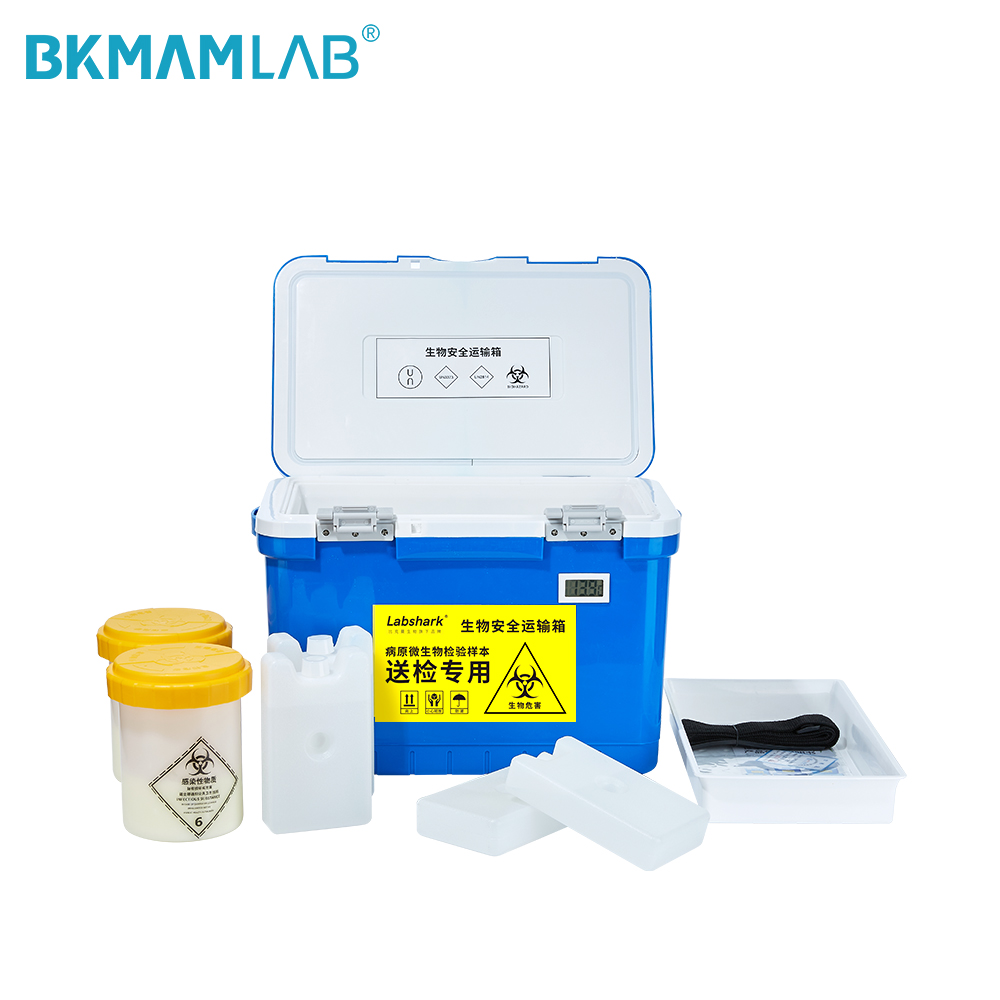

The biological safety transport box adopts a three-layer PP + PU foam structure with a 95kPa high-pressure sealed tank design, enabling safe transport and precise temperature control of infectious samples. It covers a full volume range of 6L to 65L and meets biosafety level 3 (BSL‑3) protection standards.
1.Triple protection structure: inner and outer PP material for impact resistance + middle PU foam layer for insulation – compressive strength increased by 40%.
2.Precise temperature control system: compatible with phase change refrigeration packs – maintains cooling for 24‑48 hours after pre‑freezing at -35°C.
3.Full‑process sterility assurance: the tank supports 121°C autoclaving; the outer box can be disinfected with alcohol – eliminating cross‑contamination.
4.Lightweight design: the smallest model weighs only 1.9 kg, offering strong portability and adaptability to multiple transport scenarios.
5.Optimized compatibility: the inner cavity features a square design, allowing layered storage of test tube racks and culture dishes.
Low‑temperature transport of infectious substances such as virus samples, pathological tissues, and vaccines in medical institutions and laboratories.
Model | Material | Biological Safety Transport Vessel | Phase Change Cold Pack | External Dimensions (mm) | Internal Dimensions (mm) | Gross Weight (KG) |
SJ-6L | Outer: PE Insulation: High-density PU | / | 400g*1 | 300x206x203 | 234x145x158 | 1.35 |
SJ-12L | 400g*4 | 420x240x295 | 330x170x225 | 4.3 | ||
SJ-20L | 400g*6 | 430x265x300 | 370x210x250 | 5.5 | ||
SJ-30L | 400g*7 | 560x330x365 | 446x240x280 | 7.25 | ||
SJ-65LA | 1100g*4 | 630x480x365 | 535x410x300 | 11.2 | ||
SJ-6YSC-6L | 1 | 400g*4 | 360x263x291 | 254x165x193 | 4.15 | |
SJ-12YSC-12L | 2 | 400g*4 | 420x240x295 | 330x170x225 | 4.7 | |
SJ-20YSC-20L | 3 | 400g*6 | 430x265x300 | 370x210x250 | 6.1 | |
SJ-33YSC-33L | 5 | 900g*4 | 550x300x360 | 465x235x300 | 8.55 | |
SJ-65YSC-65L | 10 | 400g*13 | 655x495x365 | 535x410x300 | 18.15 |
