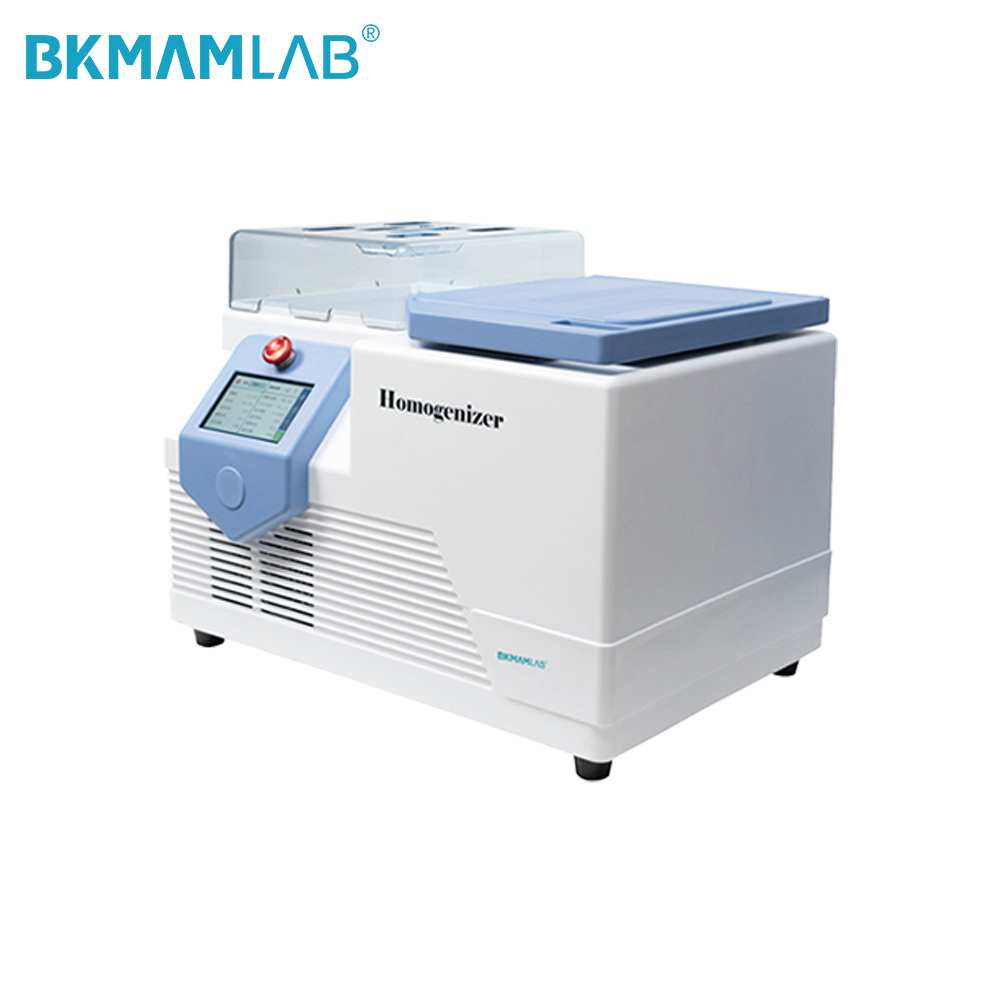

The BKMAMLAB tissue grinder represents a foundational instrument for modern laboratory sample preparation. Designed as a highly efficient benchtop homogenizer, this equipment provides researchers and laboratory professionals with a reliable method for the rapid disruption of complex biological and chemical structures. By standardizing the initial stages of sample processing, it ensures that subsequent analytical procedures are built upon consistent and reproducible foundations. It is specifically engineered to be suitable for rapid preparation of plant and animal tissues, food, and pharmaceutical samples, making it a versatile asset for diverse laboratory environments and rigorous testing facilities.
At the core of this benchtop homogenizer's performance is its sophisticated kinetic design. The BKMAMLAB tissue grinder operates on three‑dimensional figure‑eight or vertical oscillation principles. This specialized mechanical movement is crucial for maximizing the kinetic energy transferred to the grinding matrix. In the three-dimensional figure-eight mode, the sample tubes are subjected to a complex, multi-directional trajectory. This continuous, rapid shifting of direction prevents the sample material from settling or forming dead zones within the tube. Alternatively, the vertical oscillation principle provides intense, direct impact forces. By utilizing these engineered motion paths, the equipment ensures that every fraction of the sample is consistently exposed to the grinding media, resulting in a highly uniform breakdown of cellular walls and fibrous structures.
The primary mechanism for tissue disruption in this benchtop homogenizer relies on the precise application of mechanical energy. Tissue disruption is achieved through shear forces generated by collisions between the sample and grinding beads. As the oscillation system drives the sample tubes at high speeds, the internal grinding beads are accelerated, creating a high-energy environment. When these beads collide with the sample material and with each other, they generate intense multi-directional impacts and powerful shear forces. This combination of crushing and shearing effectively pulverizes tough matrices, tearing apart cell membranes and releasing intracellular components. This mechanical disruption mechanism is highly effective for processing tough samples while maintaining the integrity of target molecules during the extraction process.
To accommodate the varying demands of different laboratory protocols, this equipment is designed with exceptional operational flexibility. It comprehensively supports dry grinding, wet grinding, and homogenization. For moisture-sensitive materials or protocols requiring lyophilized samples, the dry grinding capability ensures rapid pulverization into fine powders without the addition of buffers. When processing fresh tissues or samples that require immediate stabilization, the wet grinding function allows for the inclusion of extraction buffers, facilitating simultaneous disruption and homogenization. Furthermore, the system excels at general homogenization tasks, seamlessly blending solid samples into liquid matrices to create uniform suspensions. This multi-mode functionality allows procurement managers and laboratory directors to consolidate their sample preparation equipment, relying on a single, versatile unit to meet diverse processing requirements across multiple research disciplines.
When selecting a reliable benchtop homogenizer for laboratory sample preparation, efficiency, accuracy, and sample integrity are the primary concerns. This advanced homogenization equipment is engineered to meet the rigorous demands of modern research facilities, offering an optimal combination of high-capacity processing and precise environmental control to streamline your daily analytical workflow.
Equipped with an advanced three-dimensional or vertical oscillation system, this benchtop homogenizer is capable of processing up to 192 samples simultaneously. This high-throughput capability is a critical advantage for laboratories dealing with large-scale screening, genomics, or proteomics projects. By allowing technicians to prepare multiple samples in a single run, the equipment significantly reduces hands-on time and accelerates the overall experimental workflow. This operational efficiency translates directly into lower labor costs and faster turnaround times for critical research or quality control testing.
For temperature-sensitive biological samples, maintaining a strictly controlled environment during the grinding process is essential to prevent the degradation of nucleic acids or proteins. This homogenizer features an exceptional cooling system, with the Grinding chamber temperature from –50 °C to ambient, and the freezer chamber from –20 °C to ambient. Furthermore, the system maintains a strict temperature control accuracy ±1 °C. This precise thermal regulation effectively dissipates the heat generated by mechanical friction during homogenization, ensuring that delicate samples remain stable and viable for sensitive downstream analysis.
Versatility is a key factor in maximizing the return on investment for laboratory equipment. This benchtop homogenizer supports multiple preparation methods, including dry grinding, wet grinding, and thorough homogenization. It is highly applicable to a wide variety of biological materials, ranging from tough plant tissues like roots, stems, seeds, and fruits, to softer materials such as leaves, flowers, and delicate animal organs. By accommodating different sample textures and preparation protocols within a single compact unit, it eliminates the need for multiple specialized instruments, streamlining the laboratory setup and simplifying equipment maintenance.
Maintaining sample purity and preventing cross-contamination are paramount in molecular biology and analytical chemistry. To address this, the homogenizer exclusively uses closed disposable centrifuge tubes for all processing tasks. By keeping each sample completely isolated within its own sealed vessel, the risk of sample-to-sample contamination is virtually eliminated. This closed-tube design not only ensures the accuracy and reproducibility of sensitive downstream assays, such as PCR or sequencing, but also provides an added layer of safety for laboratory personnel by containing potentially hazardous aerosols generated during the homogenization process.
By integrating these four core features, this benchtop homogenizer provides a comprehensive solution for efficient, safe, and highly reproducible sample preparation, making it an indispensable asset for demanding research institutions, clinical labs, and industrial testing facilities.
The following technical specification table provides a detailed comparison of four benchtop homogenizer models: BTG-3D, BTG-FP, BTG-D6, and BTG-C6. This data is designed to help laboratory managers and procurement professionals select the appropriate tissue grinder based on operating modes (3D figure-8 motion vs. vertical oscillation), maximum sample capacity, and temperature control requirements. Models with low-temperature capabilities feature precise cooling systems to protect heat-sensitive samples during the grinding process.
Parameter | BTG-3D (110909003) | BTG-FP (110909002) | BTG-D6 (110909005) | BTG-C6 (110909004) |
Operating Mode | 3D figure-8 motion | Vertical oscillation system | 3D figure-8 motion | Vertical oscillation system |
Max Sample Capacity | 192 | 192* | 192 | 24 |
Grinding Chamber Temp. Range | –50 °C to ambient | –50 °C to ambient | – | – |
Cooling Stage Temp. Range | –20 °C to ambient | –20 °C to ambient | – | – |
Temperature Control Accuracy | ±1 °C | ±1 °C | – | – |
Screen Size | 5-inch | 5-inch | 5-inch | 5-inch |
Operation Time Settings | Run time 0–9999 s, cycles 1–99 | Run time 0–9999 s, cycles 1–99 | Run time 0–9999 s, cycles 1–99 | Run time 0–9999 s, cycles 1–99 |
Dimensions (mm) | 650 × 420 × 430 | 650 × 420 × 430 | 296 × 452 × 376 | 296 × 452 × 376 |
Weight (kg) | 54 | 54 | 28 | 26.2 |
Power Supply | 200–240 VAC, 50–60 Hz, 800 W | 200–240 VAC, 50–60 Hz, 800 W | 200–240 VAC, 50–60 Hz, 800 W | 200–240 VAC, 50–60 Hz, 800 W |
Please review the dimensions, weight, and power supply requirements (200–240 VAC, 800 W) to ensure compatibility with your laboratory's available bench space and electrical infrastructure. For specific application needs, refer to the operating mode and capacity differences between the units to ensure optimal sample processing efficiency.
The benchtop homogenizer is an essential sample preparation instrument designed to meet the rigorous demands of modern analytical and research laboratories. It is highly suitable for the rapid grinding and disruption of plant and animal tissues, food, and pharmaceutical samples. By providing consistent and uniform sample breakdown, this equipment helps research facilities, testing centers, and industrial laboratories streamline their pre-analytical workflows. Its adaptability across different sample matrices ensures that procurement teams can select a single, versatile platform to serve diverse departmental needs, thereby reducing the risk of equipment redundancy and improving overall laboratory efficiency.
Processing botanical materials often presents significant challenges due to the presence of rigid cell walls, fibrous structures, and tough outer layers. This homogenizer is specifically capable of handling a wide variety of botanical specimens, including plant roots, stems, leaves, flowers, fruits, and seeds. Whether dealing with soft leaf tissue for RNA extraction or hard seeds for metabolic profiling, the equipment ensures thorough cellular disruption. This rapid processing is critical for agricultural research, plant genetics, and botanical studies, as it effectively releases intracellular components while minimizing the risk of sample degradation during the preparation phase.
In biomedical research, clinical diagnostics, and veterinary sciences, obtaining uniform homogenates from biological specimens is a fundamental requirement. The device excels in the processing of various animal organs and tissues, such as liver, heart, muscle, and brain samples. By achieving a fine and consistent disruption, it facilitates reliable downstream molecular applications, including PCR, Western blotting, and enzymatic assays. The rapid homogenization process helps maintain the integrity of sensitive nucleic acids and proteins, ensuring that researchers can depend on the prepared samples for critical pathology and pharmacological investigations.
Food safety and quality control laboratories require highly representative samples to conduct accurate analytical testing. This benchtop homogenizer is widely applied in the rapid grinding of complex food matrices, ranging from fresh produce and meat to grains and highly processed foods. It is a vital tool utilized prior to testing for pesticide residues, heavy metal contamination, foodborne pathogens, and nutritional profiling. By completely homogenizing the sample, the equipment ensures that the tested aliquot accurately reflects the entire batch. This level of consistency is crucial for reducing sampling errors and supporting strict regulatory compliance in the food and beverage industry.
Within the pharmaceutical sector, precise and reproducible sample preparation is mandatory for drug development and quality assurance. The homogenizer effectively processes a variety of pharmaceutical samples, including the grinding of solid dosage forms like tablets and capsules, as well as raw active pharmaceutical ingredients (APIs). This capability is indispensable for dissolution testing, impurity profiling, and formulation analysis. By providing consistent particle size reduction, the equipment assists analytical laboratories in meeting stringent pharmacopeial standards, ultimately supporting the evaluation of drug efficacy, stability, and safety.
