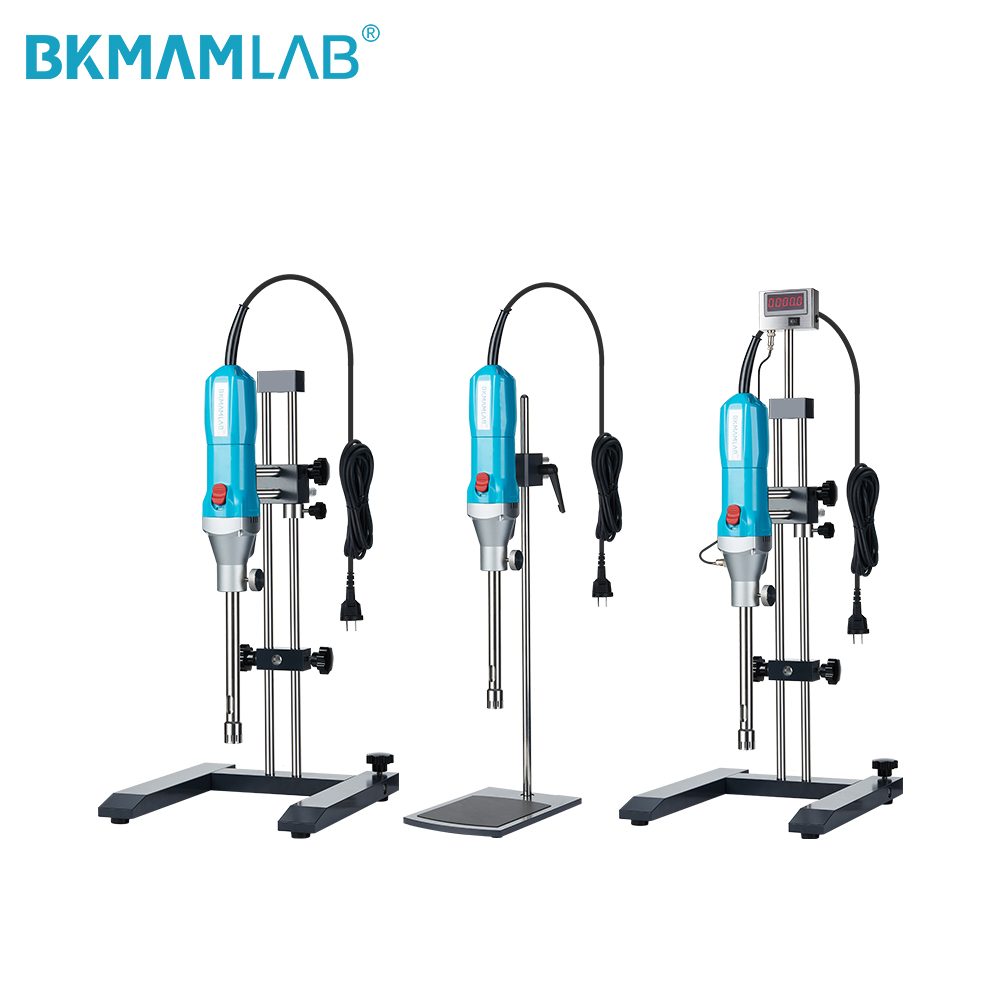

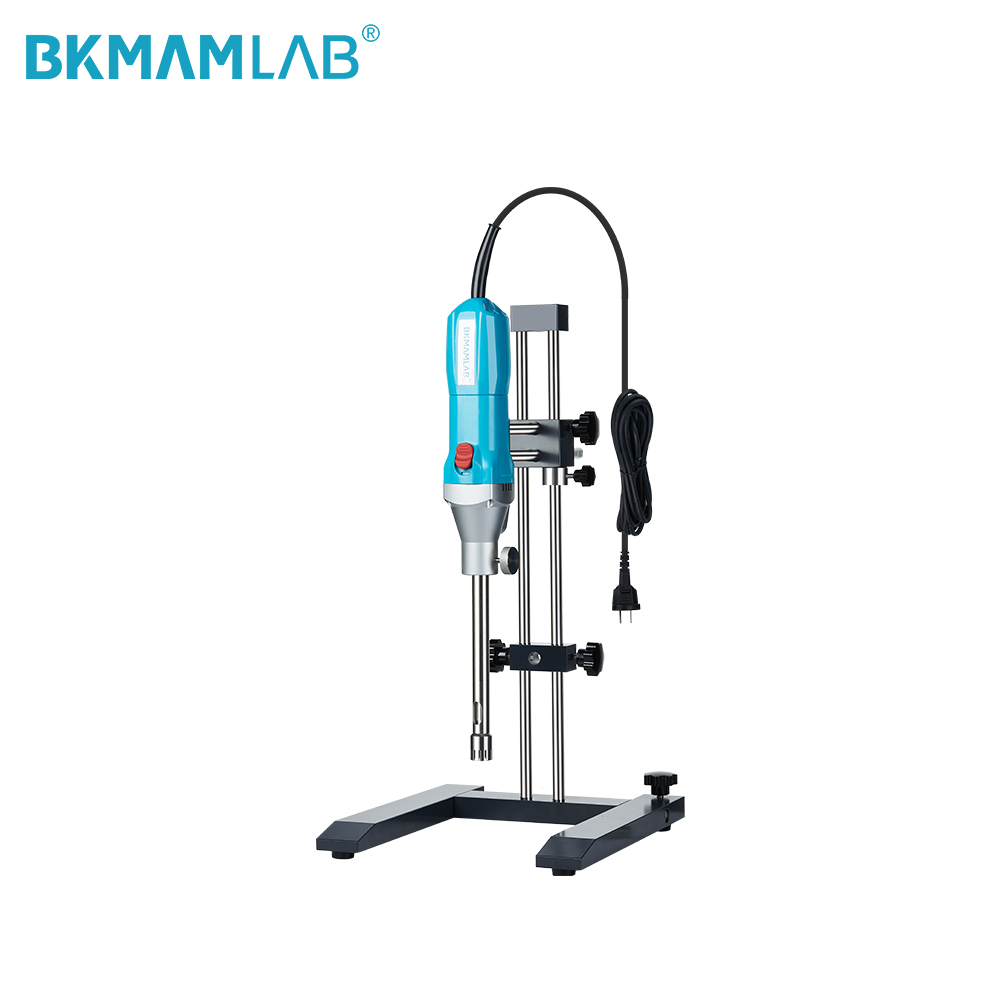

BKMAMLAB High Shear Homogenizer – BHE-500 Digital Lab Homogenizer for Emulsion & Dispersion

Product Overview

BKMAMLAB presents its premium high shear homogenizer (also referred to as a lab homogenizer, laboratory homogenizer, or homogenizer machine), engineered for high-speed dispersion, emulsification, and homogenization of a wide range of materials. Whether you need a mechanical homogenizer for routine lab work or a digital homogenizer for precise speed control, our BHE-500 and BHE-500D models deliver exceptional performance.

Powered by a genuine imported motor with multi-speed adjustment up to 30,000 rpm, this overhead homogenizer ensures efficient and consistent results. Compatible with multiple generators (18G, 20G, 25G), it can process volumes from 0.2 mL to 7000 mL, making it the ideal laboratory homogenizer mixer for pharma, cosmetic, and R&D applications.

Product Specifications

Key Features & Advantages

1. Genuine Imported Motor – High Speed & Powerful Output

Equipped with a genuine imported motor, this homogenizer delivers stable, high-speed performance with multi-speed adjustment. Maximum speed reaches 30,000 rpm, ensuring rapid and efficient dispersion for even the most challenging samples. Whether you need a high speed homogenizer or a lab mixer homogenizer, this unit meets your demands.

2. Multiple Generator Compatibility – Versatile Volume Processing

The homogenization equipment comes with compatible 18G, 20G, and 25G generators, allowing you to process a wide range of sample volumes:

• 18G generator: Ideal for small volumes (0.2 – 100 mL).

• 20G generator: Suitable for medium volumes (10 – 500 mL).

• 25G generator (standard): Handles 100 – 7000 mL, perfect for batch processing.

This flexibility makes it the ultimate lab scale homogenizer for diverse applications.

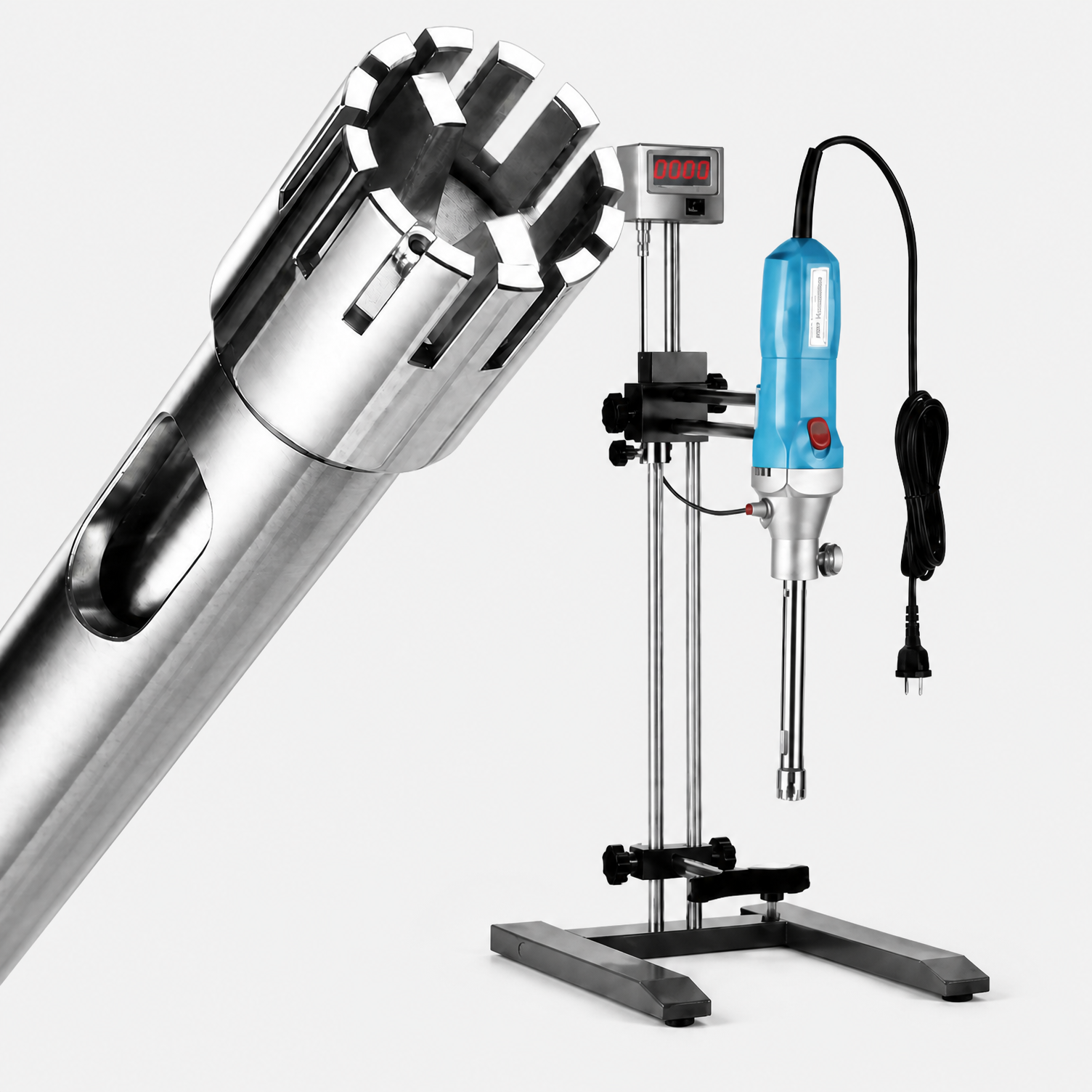

3. 316 Stainless Steel Generator – Corrosion Resistant & Autoclavable

The generator is made of high-quality 316 stainless steel, providing excellent resistance to acids, alkalis, and corrosion. It withstands sterilization at 120°C, ensuring safe and hygienic operation for pharmaceutical homogenizer and cosmetic homogenizer applications. The PTFE bushing ensures smooth, low-friction operation.

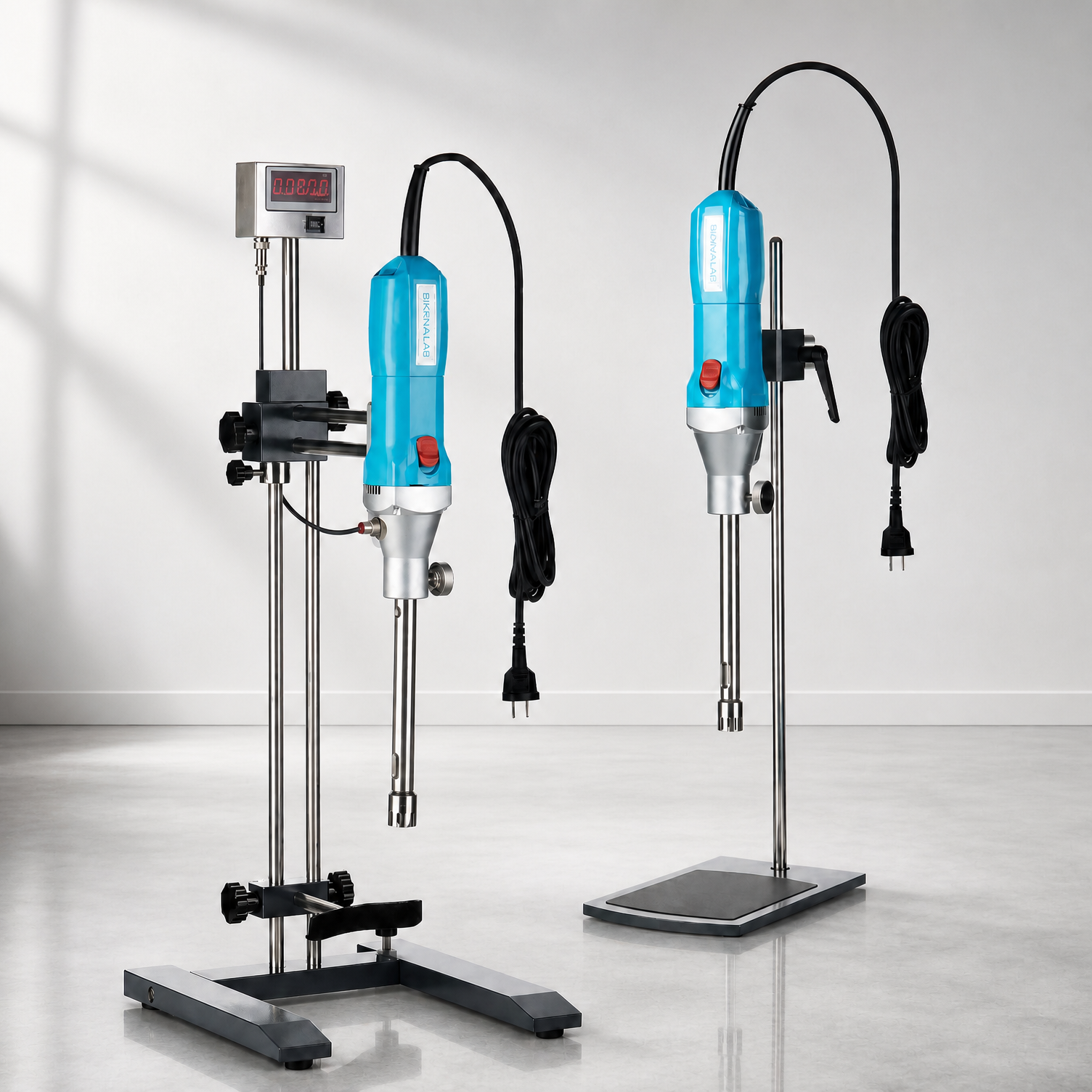

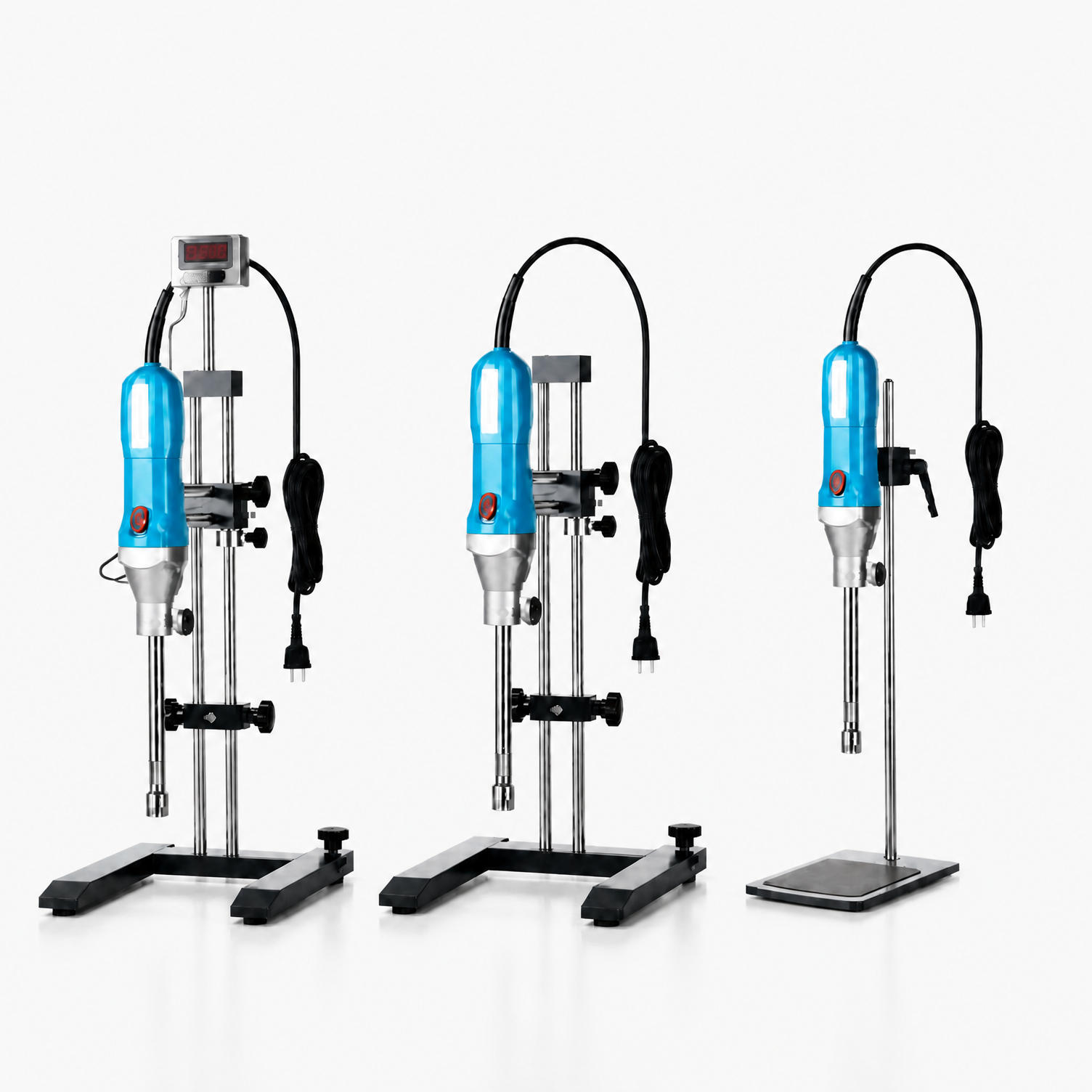

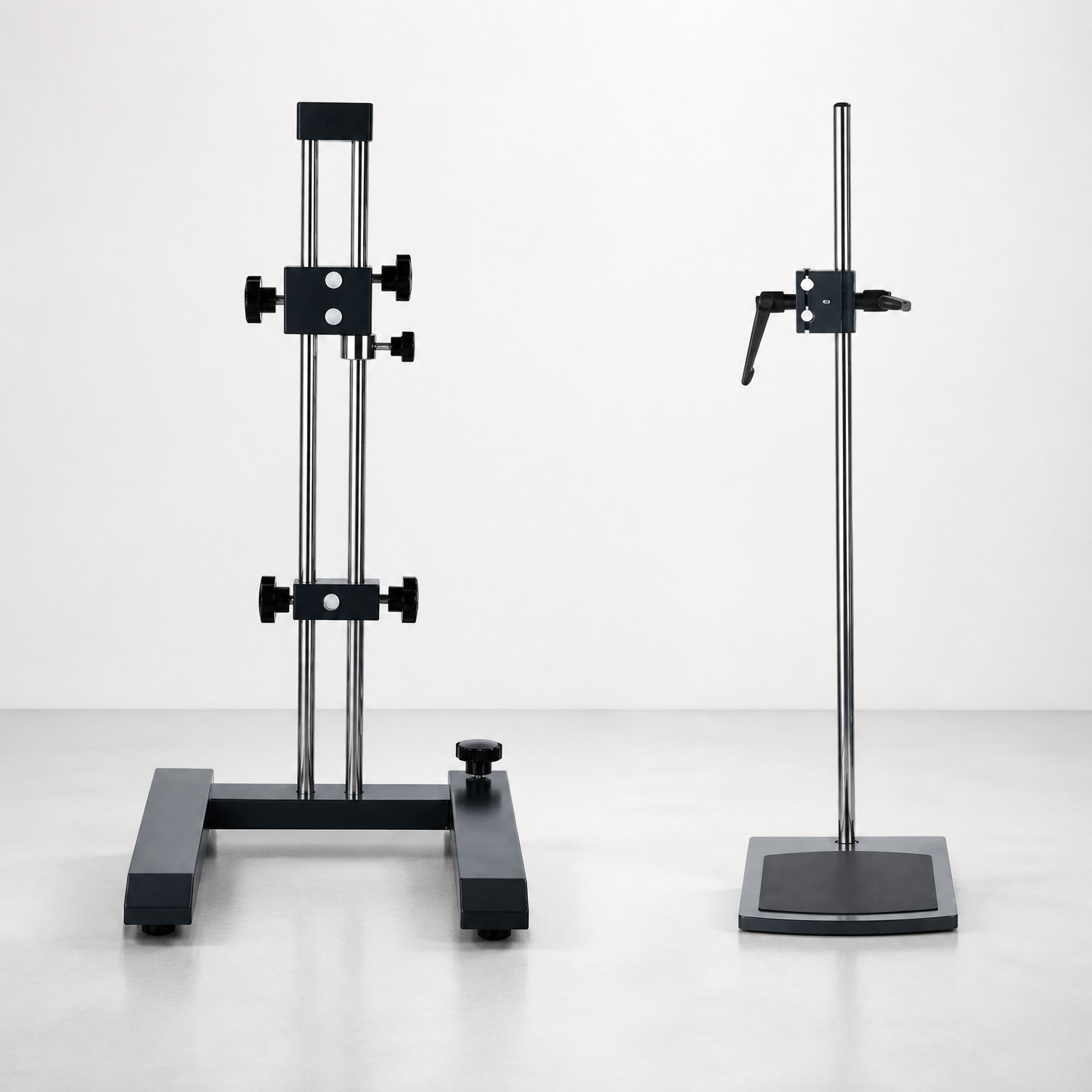

4. Flexible Stand Options – Dual-Column or Flat-Plate

Choose between:

• Dual-column stand: Offers enhanced stability for larger vessels.

• Flat-plate stand: Compact design for limited bench space.

Both stands feature quick lifting, lowering, and locking mechanisms, making it easy to adjust the homogenizer equipment to the optimal working height.

5. Digital Display Model (BHE-500D) – Precise Speed Control

For users requiring exact speed monitoring, the BHE-500D digital display homogenizer provides a clear digital readout of the current speed. This is especially valuable for research and development homogenizer tasks where reproducibility and precision are critical.

Purchasing Guide – How to Choose the Right Model

All models come with a standard 25G generator (100–7000 mL processing volume). For small-volume applications, we recommend purchasing the 18G or 20G generator separately.

Instructions for Use – Quick Setup Guide

Step 1: Mount the Stand

Secure the dual-column or flat-plate stand on a stable bench. Attach the motor unit to the stand and ensure it is locked firmly.

Step 2: Install the Generator

Select the appropriate generator (18G/20G/25G) based on your sample volume. Insert the generator into the motor coupling and tighten it securely.

Step 3: Adjust the Height

Use the quick-lift mechanism to raise or lower the motor unit until the generator is positioned at the desired depth in your sample container.

Step 4: Set Speed & Start Homogenization

• For BHE-500: Rotate the knob to gradually increase speed from 8,000 rpm to 30,000 rpm.

• For BHE-500D: Use the knob to adjust speed, and monitor the exact RPM on the digital display (range: 12,000–30,000 rpm).

Precautions: Always start at the lowest speed and gradually increase to avoid splashing. Do not run the homogenizer without liquid for extended periods to prevent overheating.

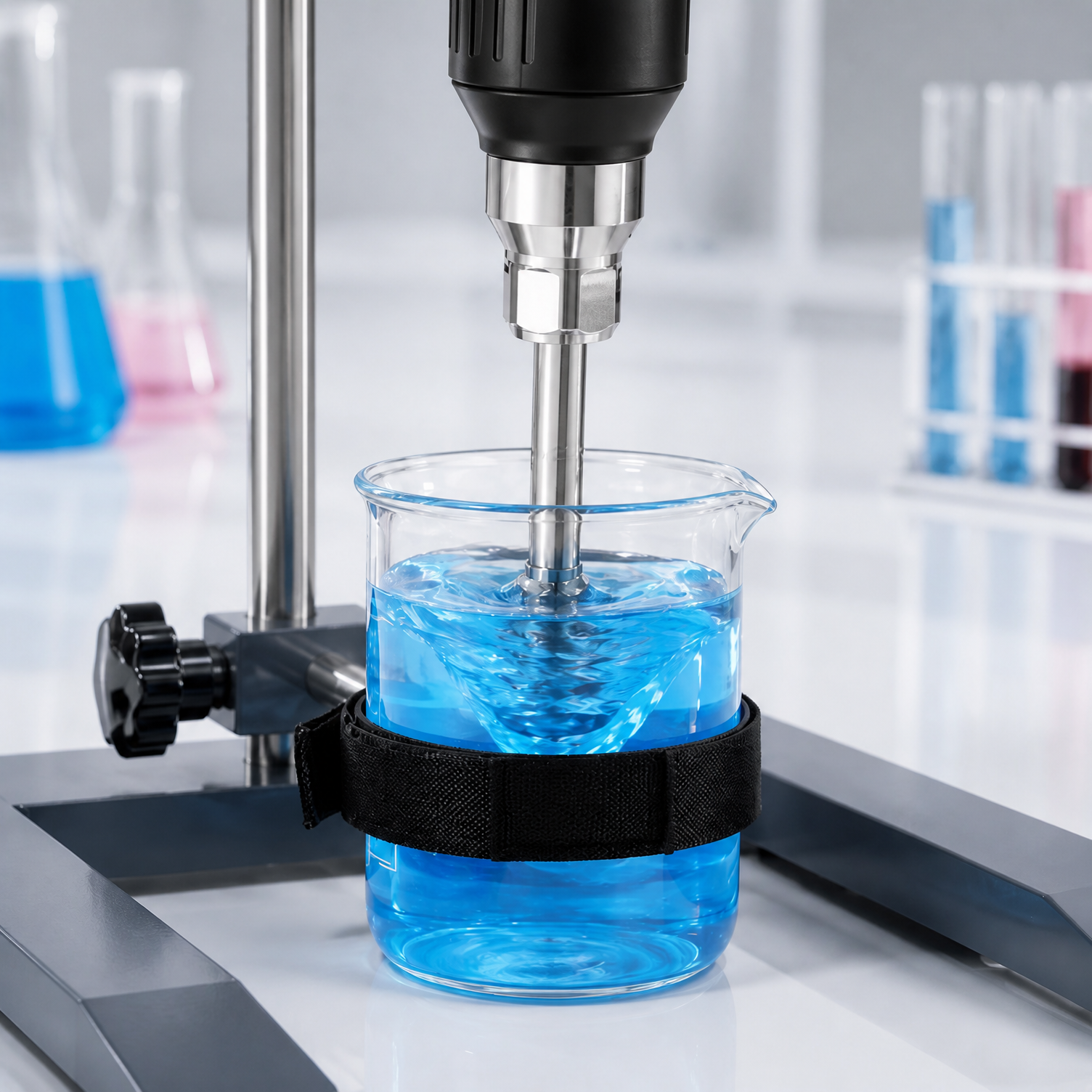

Versatile Application Scenarios

Our laboratory homogenizer is widely used in:

• Pharmaceuticals (Pharma Homogenizer): Emulsion preparation, drug formulation, and API dispersion.

• Cosmetics (Cosmetic Homogenizer): Creams, lotions, serums, and pigment blending.

• Chemical & Material Science: Nanoparticle dispersion and polymer mixing.

• Food & Beverage: Sauce emulsification and flavor homogenization.

• Biotechnology: Cell disruption and sample preparation.

From emulsion homogenizer tasks to R&D formulation, the BHE-500 series delivers consistent, high-quality results.

Frequently Asked Questions (FAQ)

Q1: What is the difference between BHE-500 and BHE-500D?

A: The BHE-500 is the basic model with a graduated scale for speed indication. The BHE-500D features a digital display that shows the exact speed in real-time, making it ideal for precision-sensitive tasks. Both models offer the same high-performance motor and generator options.

Q2: Can I use this homogenizer for small volumes (less than 1 mL)?

A: Yes. While the standard 25G generator handles 100–7000 mL, you can purchase the 18G generator separately, which is compatible with volumes as low as 0.2 mL.

Q3: Is the generator autoclavable?

A: Yes. The 316 stainless steel generator withstands 120°C autoclaving, ensuring thorough sterilization between experiments.

Q4: What is the maximum viscosity this homogenizer can process?

A: This high shear homogenizer can process samples with a viscosity of up to 5000 cP, making it suitable for most emulsions, creams, and suspensions.

Order Now – Upgrade Your Lab Homogenization Efficiency

Whether you are a researcher, quality control specialist, or production engineer, BKMAMLAB high shear homogenizers deliver the speed, precision, and durability you need. Choose between the BHE-500 and BHE-500D models, with dual-column or flat-plate stand options.

Order your BKMAMLAB homogenizer today! Bulk inquiries and custom configurations are welcome – contact our team for assistance.
