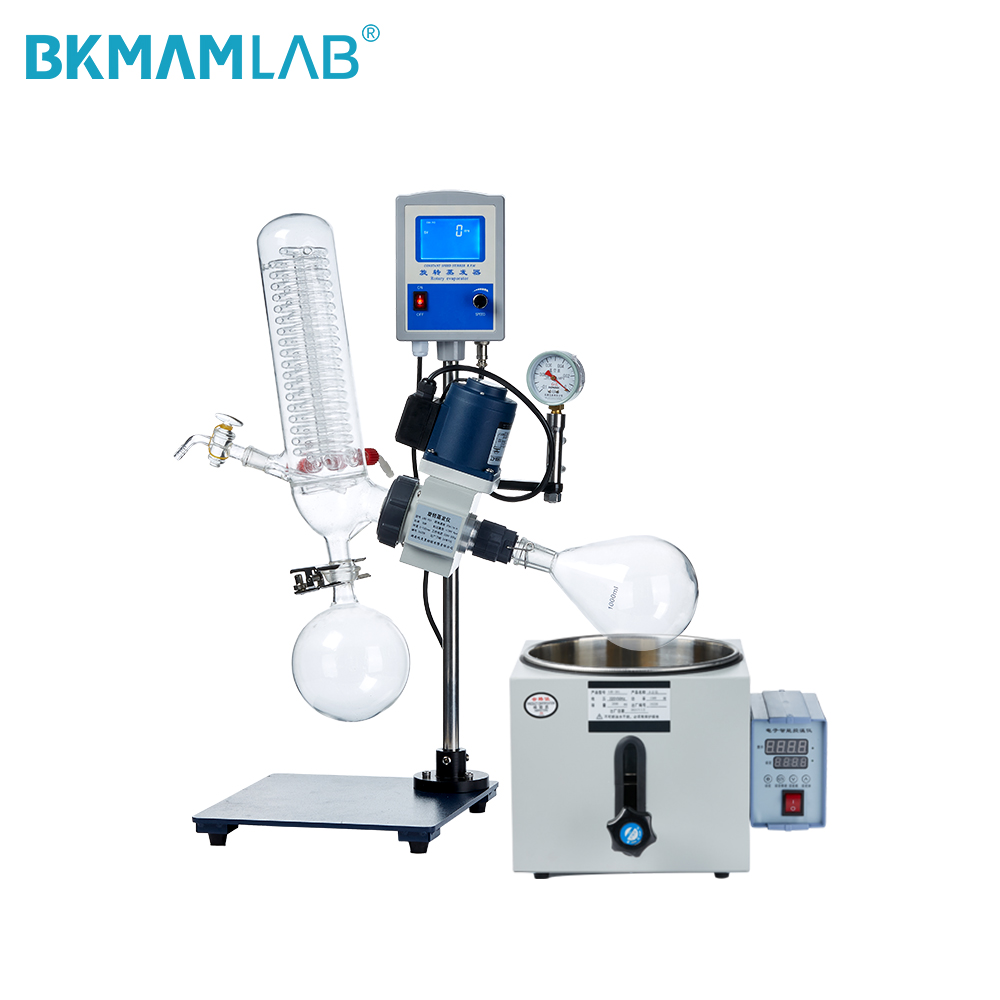

Rotary Evaporator for Efficient Solvent Recovery

Product Introduction

The rotary evaporator is an essential instrument designed for the efficient and continuous distillation of volatile solvents under controlled conditions. Serving as a foundational tool in modern laboratories and industrial facilities, this equipment facilitates complex separation, concentration, and solvent recovery processes. By integrating precise mechanical rotation with thermodynamic control, it ensures optimal evaporation rates while maintaining the integrity of the processed materials. This system is engineered to meet the rigorous demands of continuous operation, providing reliable performance for critical scientific applications.

Variable Frequency Motor and Constant-Speed Rotation

At the heart of the system's mechanical operation is a high-performance variable frequency motor, which meticulously controls the constant-speed rotation of the evaporation flask. This rotational movement is not merely for agitation; it serves a crucial thermodynamic function. As the flask rotates, the liquid sample is distributed across the inner glass surface, forming a continuously renewing thin film. This significantly expands the evaporation surface area, thereby accelerating the distillation process. Furthermore, the steady, controlled rotation prevents localized overheating and minimizes the risk of sudden boiling or bumping, ensuring a smooth and predictable operation throughout the entire cycle.

Uniform Heating and Vacuum Dynamics

The evaporation process is further optimized by the synergistic application of a uniform water bath and a carefully regulated vacuum environment. The water bath provides consistent and gentle heating to the rotating flask, ensuring that thermal energy is evenly transferred to the thin film of the sample. Simultaneously, operating under vacuum conditions drastically reduces the internal pressure of the system. This reduction in pressure lowers the boiling point of the solvents, allowing evaporation to occur at significantly lower temperatures. This mechanism is particularly vital for processing heat-sensitive compounds, as it prevents thermal degradation while maximizing evaporation efficiency.

Condensation and Solvent Recovery Mechanism

Once the solvent transitions into a vapor state, it is immediately directed into a highly efficient condenser system. The condenser is designed to rapidly cool the vapor, facilitating an immediate phase change back into a liquid state. This rapid condensation is critical for maintaining the pressure differential that drives the continuous evaporation process. The recovered solvent is then safely collected in a receiving flask. This closed-loop recovery mechanism not only ensures high yield and purity of the extracted materials but also minimizes environmental exposure to volatile organic compounds, promoting safer and more sustainable laboratory practices.

Macro Application Fields

Thanks to its robust operational mechanics, the rotary evaporator is widely applied across multiple advanced scientific and industrial sectors. In the field of chemistry, it is indispensable for the rapid concentration of synthesized products and the purification of complex mixtures. In chemical engineering, the equipment supports critical solvent recovery operations and serves as a reliable platform for process development and scale-up evaluations. Additionally, in the biomedicine sector, it plays a vital role in the extraction and concentration of active pharmaceutical ingredients from natural products, where maintaining the biological activity of heat-sensitive compounds is paramount. Through its precise control over rotation, heating, and vacuum parameters, this system delivers consistent and reproducible results across these demanding disciplines.

Product Features

Engineered for demanding laboratory and industrial distillation requirements, this rotary evaporator integrates premium materials, advanced sealing technology, and intelligent controls. These core technical advantages are specifically designed to maximize solvent recovery, ensure operational safety, and provide reliable long-term performance for your facility.

1. Corrosion-Resistant Construction

The structural integrity of the rotary evaporator relies on a robust stainless steel and aluminum alloy frame, providing exceptional stability and resistance to mechanical stress during continuous operation. For the critical fluid pathway, high-quality borosilicate glass components are utilized alongside premium PTFE seals. This specific material combination ensures maximum chemical inertness, preventing cross-contamination and resisting harsh, corrosive solvents. For procurement teams, investing in these durable materials means fewer replacement parts, lower maintenance overhead, and a reduced total cost of ownership. Additionally, the borosilicate glass offers excellent thermal shock resistance and optical clarity for precise visual monitoring of the evaporation process.

2. High Vacuum Sealing Performance

Maintaining a stable and deep vacuum is critical for highly efficient evaporation. This unit features an advanced PTFE-rubber composite seal designed to withstand continuous rotational friction while maintaining a strict vacuum level of ≤399.9 Pa. This exceptional sealing capability allows for the effective lowering of solvent boiling points, which is essential when processing heat-sensitive or volatile materials. By preventing pressure fluctuations and system leaks, the evaporator ensures higher solvent recovery rates and reproducible distillation results across multiple batches. Furthermore, a reliable vacuum environment reduces the thermal load on the heating bath, protecting the structural integrity of delicate active ingredients from thermal degradation.

3. Efficient Condensation System

To maximize recovery efficiency, the equipment is fitted with a specialized vertical serpentine coil condenser. Offering an expansive cooling surface area ranging from 0.15 to 0.27 m², this design optimizes thermal exchange within a compact footprint. The extended vapor pathway ensures that even highly volatile solvents are rapidly and thoroughly condensed. The vertical orientation not only saves valuable laboratory bench space but also facilitates the smooth, gravity-assisted collection of the condensed liquid into the receiving flask. This structural advantage significantly improves the overall recovery rate, reduces processing time, and minimizes solvent waste, making it highly suitable for scaling up daily throughput in busy research environments.

4. Precise Temperature Control & Safety Mechanisms

Thermal accuracy is meticulously managed through an intelligent microcomputer PID control system. The heating bath supports a precise temperature range from ambient ±5 °C up to 99 °C, maintaining a strict accuracy of ±2 °C. This precise thermal regulation is vital for consistent evaporation without damaging sensitive biological or chemical compounds. The intuitive PID interface allows operators to easily set and monitor parameters, reducing the learning curve and minimizing user error. Operational safety is heavily prioritized through a built-in fuse mechanism designed to prevent dry heating. If the bath fluid depletes, the system automatically interrupts the heating process, safeguarding both the equipment and the laboratory environment from potential thermal hazards during unattended distillation runs.

The rotary evaporator is an essential instrument designed for the efficient and gentle removal of solvents from samples by evaporation. In modern laboratory and industrial environments, it is primarily utilized for the vacuum distillation of volatile solvents during chemical synthesis and the precise concentration of biological samples. By operating under reduced pressure, this equipment significantly lowers the boiling point of solvents, ensuring that sensitive materials are processed safely without thermal degradation.

Vacuum Distillation of Volatile Solvents in Chemical Synthesis

In the field of chemical synthesis, separating the desired reaction product from the reaction mixture or extracting solvent is a critical daily workflow. The rotary evaporator serves as a fundamental tool for this exact purpose. Researchers and production technicians rely on this equipment to perform vacuum distillation of volatile solvents rapidly and safely, ensuring the integrity of their chemical processes.

Protecting Heat-Sensitive Compounds

Many synthesized compounds, intermediate products, and active pharmaceutical ingredients (APIs) are highly sensitive to elevated temperatures. Traditional distillation methods often require high heat, which can lead to thermal decomposition, oxidation, or unwanted side reactions. By applying a vacuum, the rotary evaporator reduces the internal pressure of the system, allowing volatile solvents to boil and evaporate at significantly lower temperatures. This gentle distillation process preserves the structural integrity and purity of the target chemical compounds, which is vital for successful synthesis and subsequent formulation.

Efficient Solvent Recovery and Recycling

Beyond product purification, the equipment is widely used for solvent recovery. In both research and pilot-scale production, dealing with large volumes of volatile solvents such as ethanol, methanol, ethyl acetate, or hexane is common. The rotary evaporator facilitates the continuous and efficient recovery of these solvents, which can then be recycled for future use. This not only reduces the consumption of expensive chemical reagents but also minimizes hazardous waste disposal, supporting more sustainable and cost-effective laboratory operations.

Biological Sample Concentration and Preparation

Another primary application scenario for the rotary evaporator is the concentration of biological samples. In life sciences, biochemistry, and pharmaceutical research, extracting active components from natural products, plant tissues, or microbial cultures often results in highly diluted solutions. Concentrating these solutions is a mandatory step before downstream analysis, such as chromatography (HPLC, GC) or mass spectrometry.

Preserving Biological Activity

Biological samples, including proteins, enzymes, peptides, and fragile natural extracts, require extreme care during the concentration phase. Excessive heat can cause rapid denaturation, loss of biological activity, or complete destruction of the sample. The rotary evaporator addresses this challenge by enabling rapid solvent evaporation under carefully controlled, low-temperature conditions. This ensures that the delicate molecular structures and the inherent biological activity of the samples remain intact throughout the concentration process.

Optimizing Analytical Workflows

For laboratory personnel, achieving a consistent and precise concentration level is vital for accurate analytical results. The rotary evaporation process provides a controlled environment where the evaporation rate can be closely monitored and adjusted based on the specific requirements of the biological extract. Whether preparing samples for drug discovery, food safety testing, or environmental analysis, the equipment ensures that the final concentrated sample is free from residual solvent interference, thereby improving the reliability and reproducibility of subsequent analytical tests.

Meeting Diverse Laboratory and Production Needs

Whether the goal is the rapid removal of volatile solvents after a complex chemical synthesis or the careful concentration of delicate biological samples, the rotary evaporator provides a versatile and reliable solution. It is designed to integrate seamlessly into various workflows, from small-scale academic research laboratories to larger industrial pilot plants. By prioritizing sample preservation, operational safety, and process efficiency, this equipment helps laboratory technicians and production engineers achieve consistent, high-quality results across a wide range of demanding application scenarios.

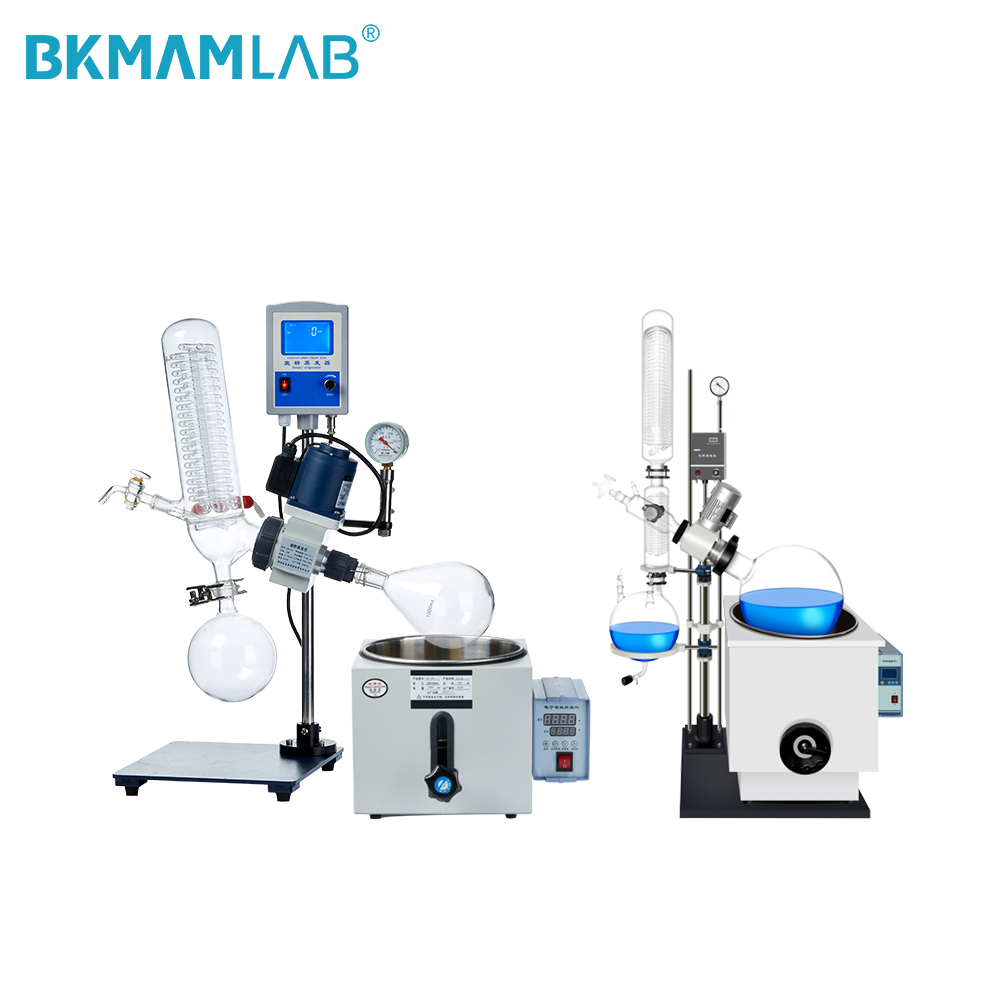

Choose your core requirements: Our Rotary Evaporators are available in two main configurations to suit different operational scales and technical demands. Use the series selection guide below to evaluate the macro differences in flask volume, heating range, and lift methods to find the optimal match for your facility. For standard laboratory tasks, the LER 201/301/501 series offers reliable performance up to 5 L. For pilot-plant scale or high-temperature applications, the LER 2010/2020/5003 upgraded series provides expanded capacity up to 50 L and advanced heating capabilities up to 400 °C.

* Note: The specifications provided are strictly for the standard configurations of the LRE series. Ensure the selected model's capacity and flange standards align with your existing laboratory or production setups.
