The Labshark microplate centrifuge (also referred to as a plate centrifuge, 96 well plate centrifuge, or pcr plate centrifuge) is a high-performance laboratory instrument designed for rapid, efficient spin-down of microplates. Whether you need a cell culture centrifuge for routine cell work, a microtiter plate centrifuge for ELISA plates, or a 384 well plate centrifuge for high-throughput screening, Labshark delivers exceptional performance.

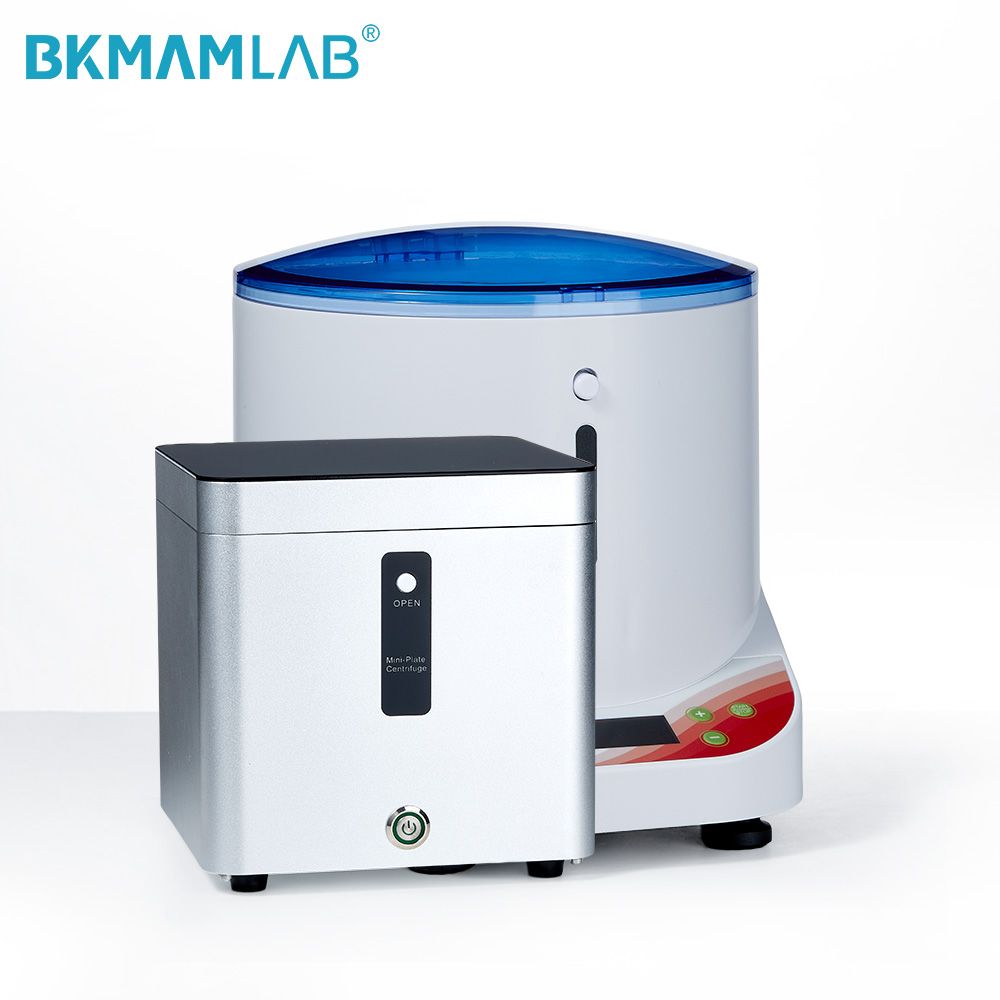

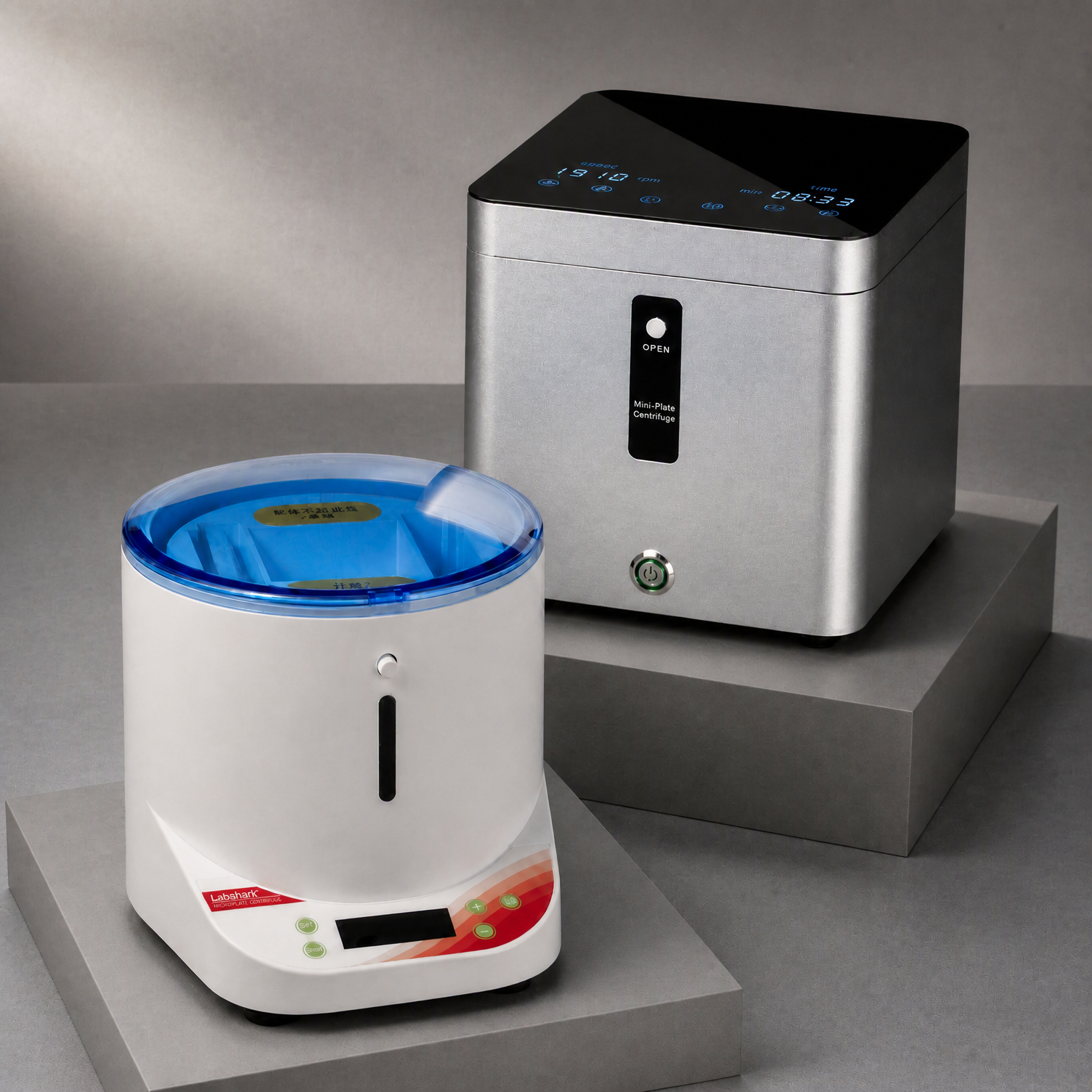

Available in two models—MPC-25L (touch screen) and LMP-25 (push button)—this centrifuge for 96 well plate features a holographic rear-projection touch screen for precise control, dual-mode centrifugation (instant/timed), and broad compatibility with skirted and non-skirted PCR microplates. With a maximum RCF of 600×g and rapid dwelling in ≤45 seconds, it is the ultimate centrifuge microplate solution for modern labs.
Parameter | MPC-25L | LMP-25 |
|---|---|---|
Max Centrifugal Force (RCF) | 600×g | 650×g |
Speed Setting Range | 300 – 3000 rpm | 300 – 3000 rpm |
Time Setting Range | 1 s – 99 min 59 s | 1 s – 99 min 59 s |
Acceleration Time | ≤10 s (0 to 3000 rpm) | ≤10 s (0 to 3000 rpm) |
Braking Time | ≤4 s (3000 to 0 rpm) | ≤4 s (3000 to 0 rpm) |
Lid-Opening Stop | Supported | Supported |
Control Method | Touch Screen | Push Button |
Capacity | 2 × 96/384-well PCR plates (also compatible with microplates and cell culture plates) | 2 × 96/384-well PCR plates (also compatible with microplates and cell culture plates) |
Input Power | ≤45 W | 48 W |
Instrument Dimensions | 210 × 200 × 205 mm | 235 × 195 × 215 mm |
Package Weight | 4.12 kg | 2.5 kg |

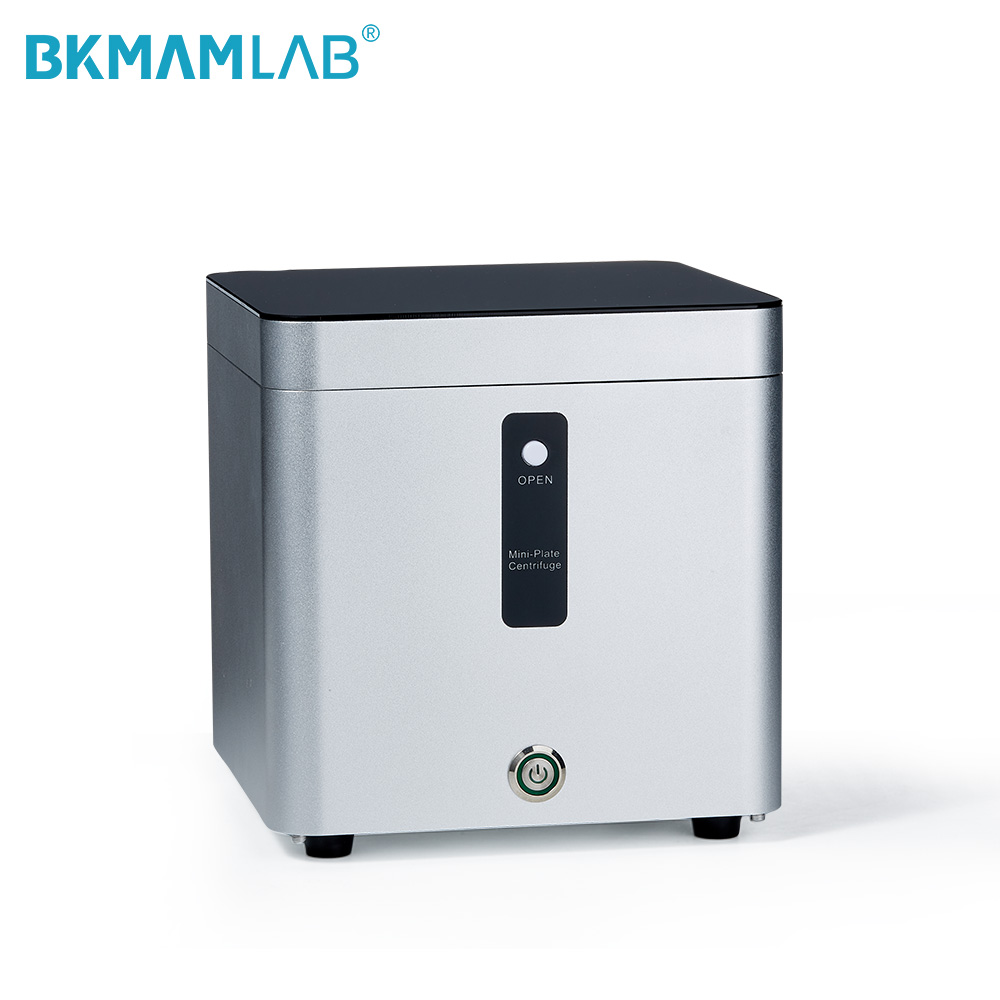

The microplate centrifuge features a high-strength metal integrated housing that ensures stable operation, safety, and a clean aesthetic appearance. This robust construction minimizes vibration and extends the lifespan of the plate centrifuge, making it ideal for demanding laboratory environments.

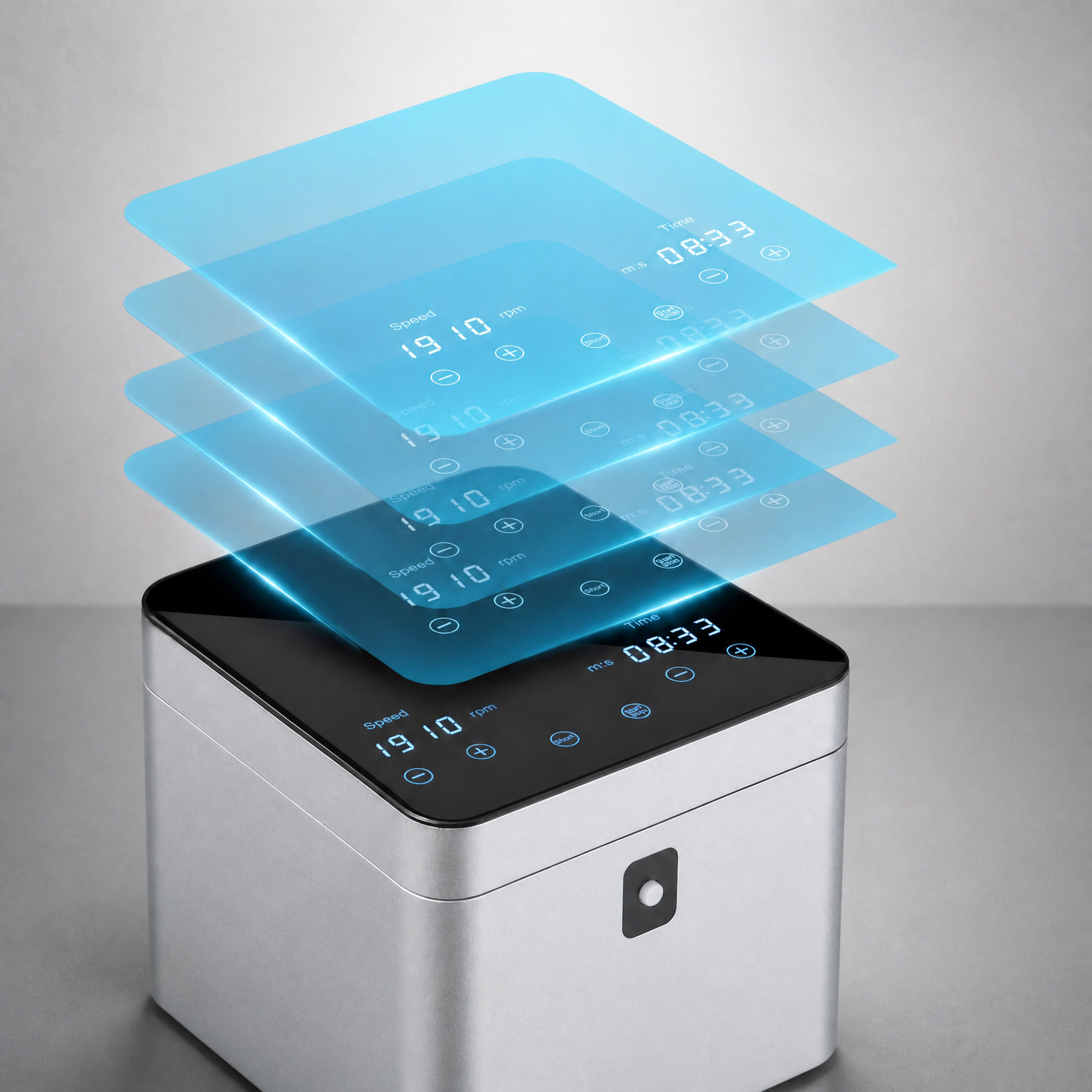

The MPC-25L model features an innovative holographic rear-projection touch screen that allows for independent and precise adjustment of speed and time. This intuitive interface makes it one of the most user-friendly automated centrifuges on the market, enabling effortless parameter setting with just a touch.

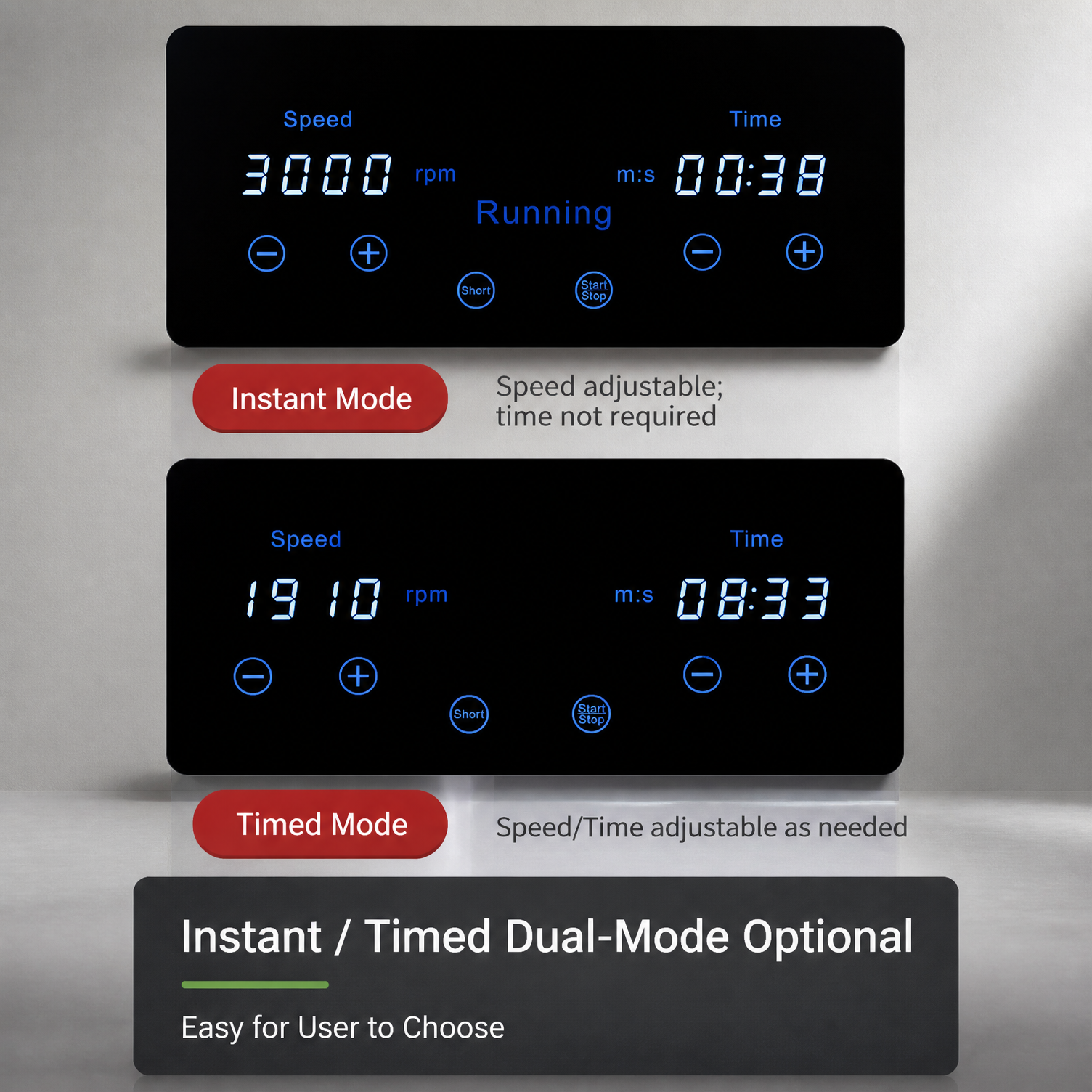

This centrifuge for 96 well plate supports both momentary (instant) and timed centrifugation modes. With a wide speed range of 300-3000 rpm and timing from 1 second to 99 minutes 59 seconds, you have full control over your sample processing. The automated centrifuge system ensures precise, repeatable results every time.

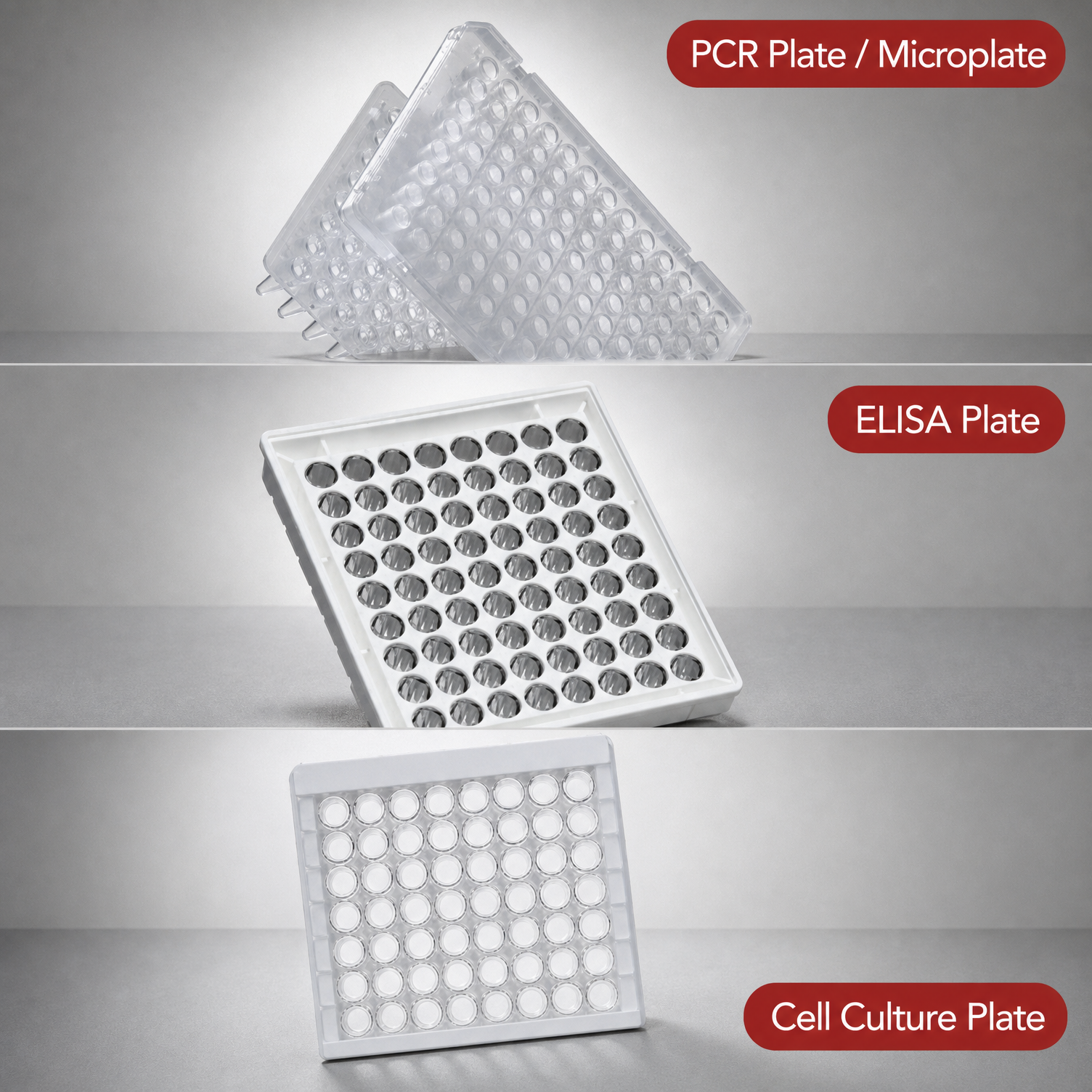

The microtiter plate centrifuge is compatible with a wide range of plate types, including:
Skirted and non-skirted PCR microplates
96-well and 384-well plates
Microplates and cell culture plates of the same dimensions
This versatility makes it an essential well plate centrifuge for applications ranging from PCR preparation to cell culture maintenance.
The pcr plate centrifuge features a 95° flip-top lid that allows for one-handed loading and removal of microplates. This ergonomic design reduces the risk of accidental spills and improves workflow efficiency, especially when handling multiple plates in sequence.
With a maximum RCF of 600×g and a rapid acceleration time of ≤10 seconds (0 to 3000 rpm), this 96 well centrifuge delivers fast, efficient spin-downs. The braking time of ≤4 seconds ensures quick turnaround between runs, making it perfect for high-throughput laboratories.
Your Need | Recommended Model |
|---|---|
Intuitive touch-screen control, modern interface | MPC-25L – 600×g, touch screen, 210×200×205mm, 4.12kg. |

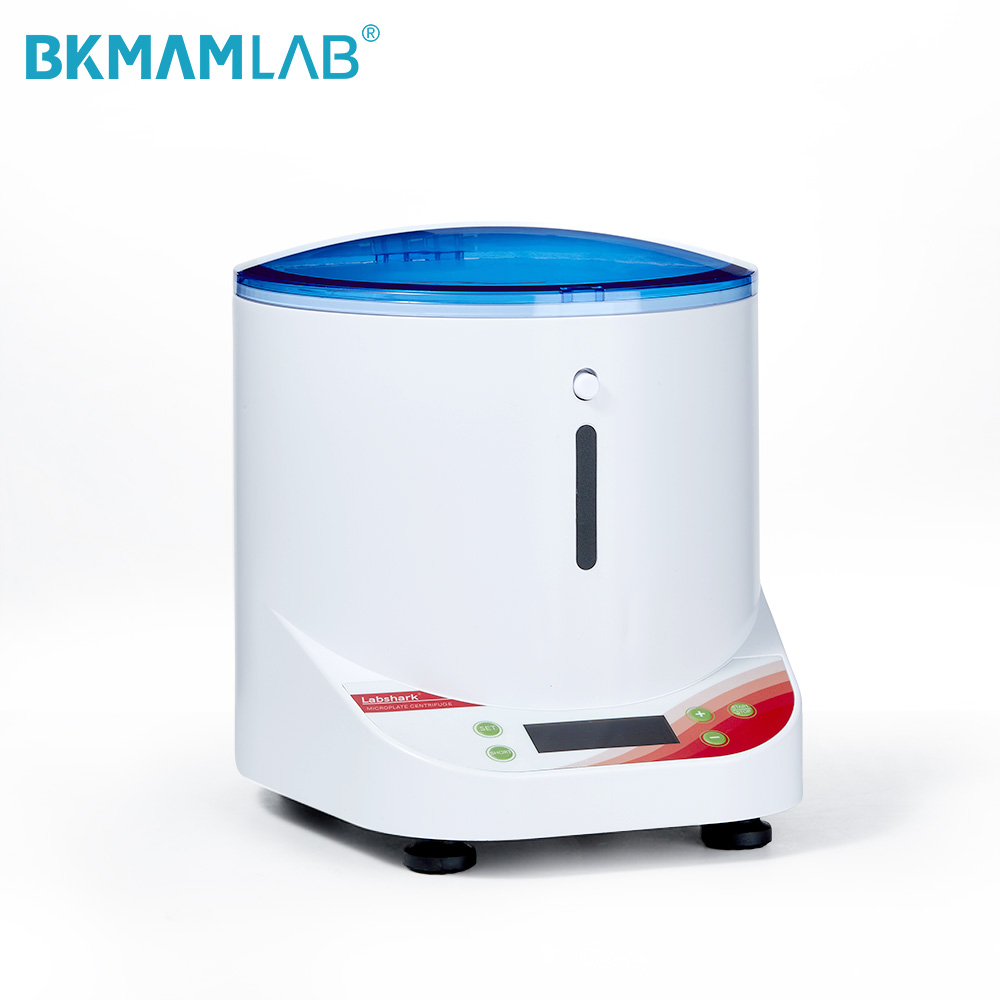

Simple push-button operation, lightweight and compact | LMP-25 – 650×g, push button, 235×195×215mm, 2.5kg. |
Both models support 2 × 96/384-well PCR plates, feature the same 300-3000 rpm speed range, and include the 95° flip-top lid design.
Place the microplate centrifuge on a stable, flat surface.
Open the 95° flip-top lid and place your 96-well or 384-well PCR plate (or microplate) onto the rotor.
Ensure the plate is properly seated and balanced.
For MPC-25L (Touch Screen): Use the holographic touch interface to set the desired speed (300-3000 rpm) and time (1 s - 99 min 59 s). Select Instant or Timed mode.
For LMP-25 (Push Button): Use the physical buttons to adjust speed and time settings.
Close the lid securely.
Press Start. The rotor will accelerate to the set speed within ≤10 seconds.
During operation, the lid is locked. Do not attempt to open the lid until the rotor stops completely.
When the run is complete, the rotor will brake to a stop within ≤4 seconds.
Open the lid and remove your plate.
Clean the rotor and lid with a mild detergent after each use. Do not immerse the main unit in liquid.
Precautions:
Do not plug or unplug the power cord with wet hands.
Do not open the lid while the rotor is spinning.
Do not operate on uneven, shaky, or vibrating work surfaces.
Ensure plates are balanced to prevent excessive vibration during operation.
Our plate centrifuge is widely used in:
Biomolecular Separation: Spinning down PCR plates and samples.
Virology Research: Rapid centrifugation of viral samples.
DNA/Protein Purification: Sample preparation for molecular biology workflows.
Cell Culture: Spinning down cell culture plates for harvesting or media changes.
High-Throughput Screening: Processing 384-well plates for drug discovery.
Whether you need a 96 well plate centrifuge for routine PCR prep, a deep well plate centrifuge for larger volumes, or a 384-well plate centrifuge for high-throughput screening, Labshark provides reliable and efficient solutions.
A: This centrifuge microplate is compatible with skirted and non-skirted PCR microplates, 96-well and 384-well plates, and microplates or cell culture plates of the same dimensions.
A: The microplate centrifuge offers a speed range of 300-3000 rpm with a maximum RCF of 600×g (MPC-25L) or 650×g (LMP-25).
A: With an acceleration time of ≤10 seconds and a braking time of ≤4 seconds, a typical spin-down can be completed in less than 15 seconds for standard applications.
A: MPC-25L features a holographic touch screen for intuitive control, while LMP-25 uses push-button controls for simple operation. Both support the same plates and speed range.
Whether you are a molecular biologist, virologist, or research scientist, Labshark microplate centrifuges offer the perfect combination of intelligence, versatility, and user-friendly design. Choose from MPC-25L (touch screen) or LMP-25 (push button) to match your specific needs.
Order your Labshark microplate centrifuge today! Bulk inquiries and custom configurations are welcome – contact our team for assistance.
