BKMAMLAB presents its premium multi-filter manifold (also referred to as a vacuum filtration manifold, multi-station filtration manifold, or multi-branch vacuum manifold), engineered for high-efficiency, simultaneous sample processing in demanding laboratory environments. Available in 3-place (BFI-03) and 6-place (BFI-06) configurations, this 316L stainless steel manifold allows you to filter multiple samples at once, saving valuable time and boosting throughput.
Designed with independent valves for each station, this multi-sample vacuum filtration system offers unparalleled flexibility—you can run single or multiple samples simultaneously without cross-interference. Whether you are performing water analysis, pharmaceutical quality control, or chemical synthesis, this autoclavable stainless steel manifold ensures reliable, contamination-free results every time.
Parameter | BFI-03 (3-Place) | BFI-06 (6-Place) |
|---|---|---|
Product Name | 3-Place Multi-Filter Manifold | 6-Place Multi-Filter Manifold |
Brand | BKMAMLAB | BKMAMLAB |
Filter Cup Material | 316L Stainless Steel | 316L Stainless Steel |
Filter Cup Capacity | 250 mL (per cup) | 250 mL (per cup) |
Number of Stations | 3 | 6 |
Compatible Membrane Size | 47 mm / 50 mm | 47 mm / 50 mm |
Weight | 6.5 kg | 11 kg |
Dimensions (L×W×H) | 450 × 300 × 230 mm | 750 × 300 × 230 mm |
Sterilization Method | Autoclavable (up to 180°C) | Autoclavable (up to 180°C) |

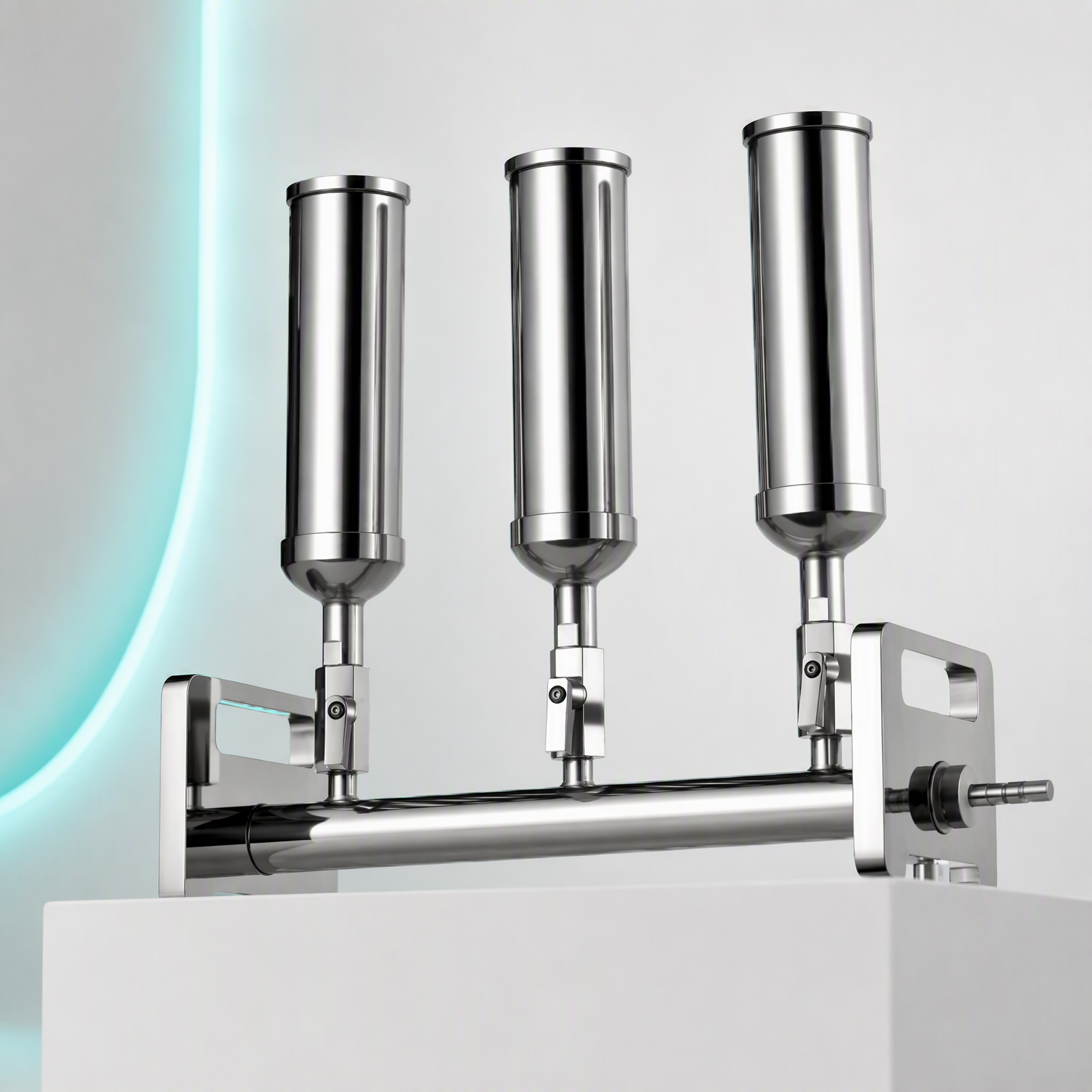

Each filter holder is equipped with an independent valve, allowing you to operate single or simultaneous multi-station filtration. This 316L stainless steel vacuum filtration manifold lets you start, pause, or stop individual sample flows without affecting others, making it the ideal high-throughput filtration manifold for pharma and research labs.

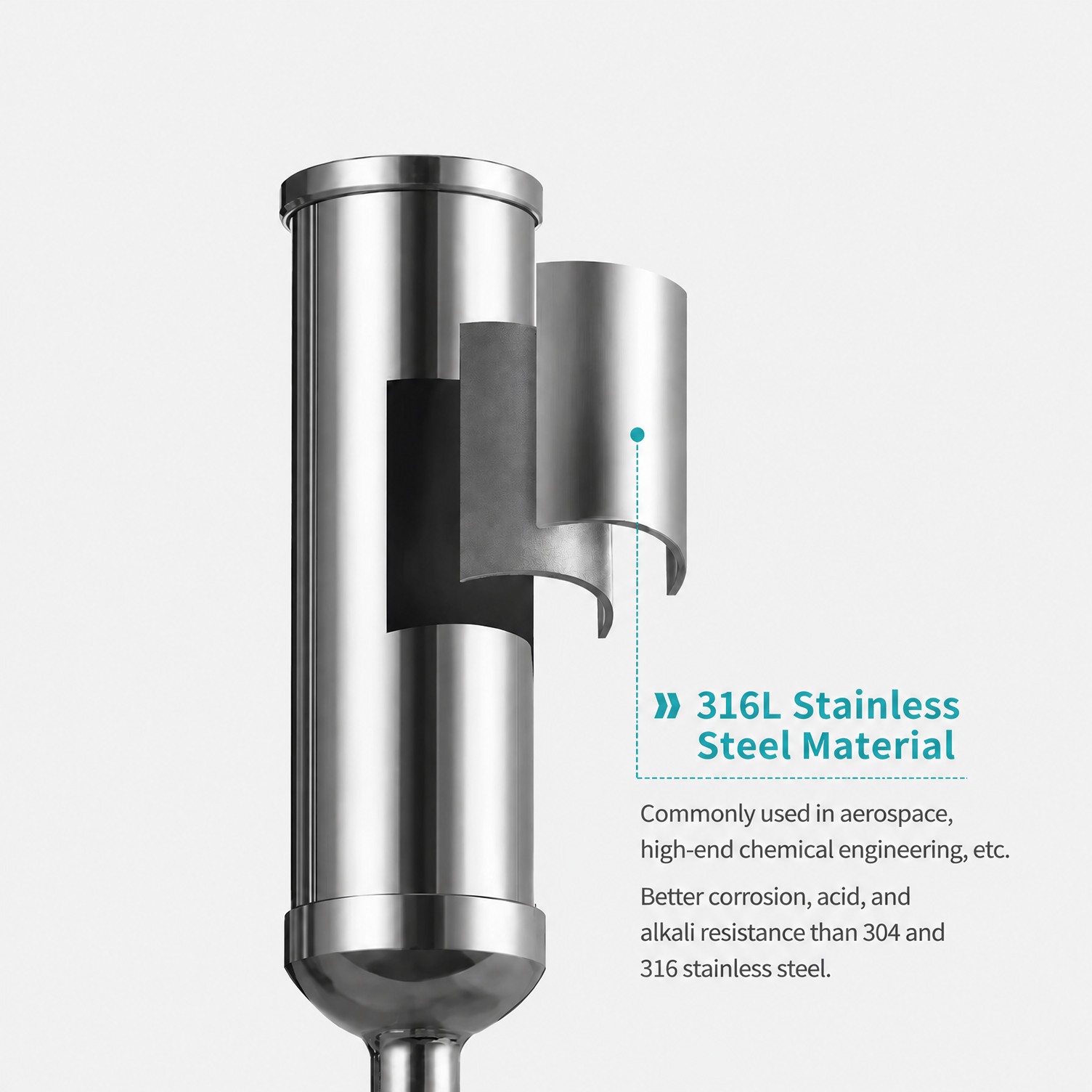

Made from high-grade 316L stainless steel, this acid-resistant vacuum manifold for laboratory offers superior resistance to strong acids, alkalis, and corrosion. It withstands repeated sterilization at 180°C, ensuring long-term durability and stable, reliable analytical results. Compared to 304 or 316 stainless steel, 316L provides enhanced protection in aggressive chemical environments.

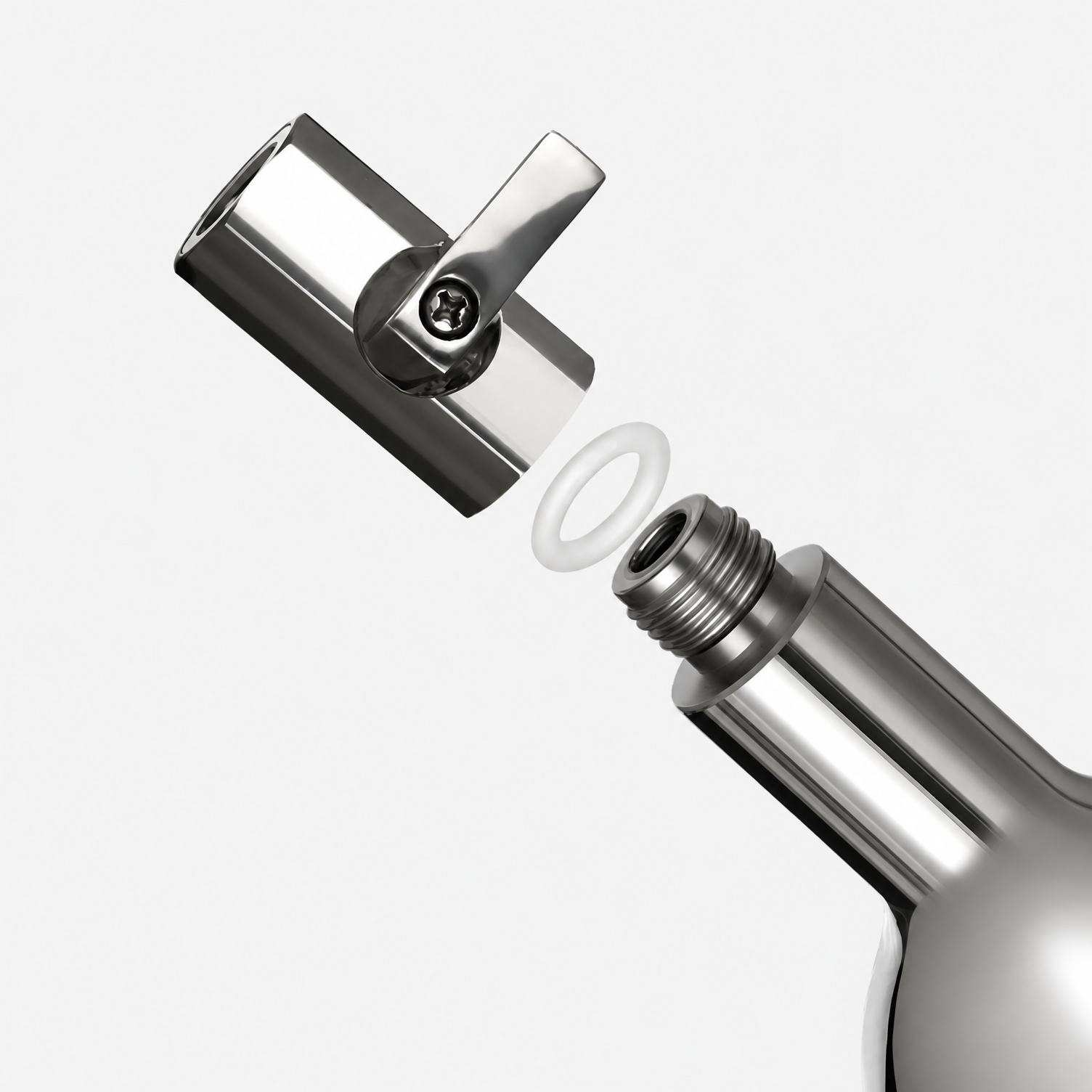

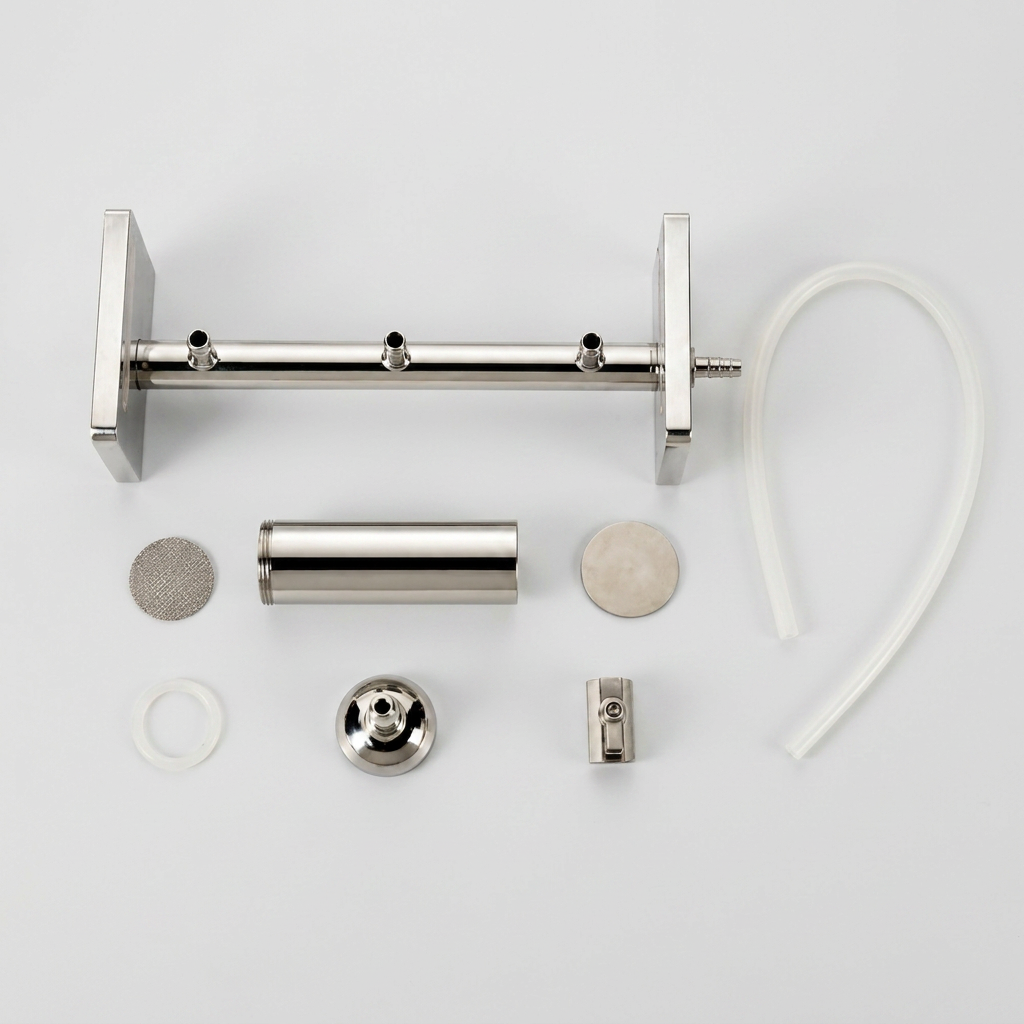

The threaded wire design ensures a tight, secure connection between components, eliminating leaks during vacuum operation. Each manifold comes equipped with high-quality silicone sealing rings, offering strong stability and a perfect seal. (Note: Sealing rings and silicone tubing are consumables; replace them periodically if aging occurs.)

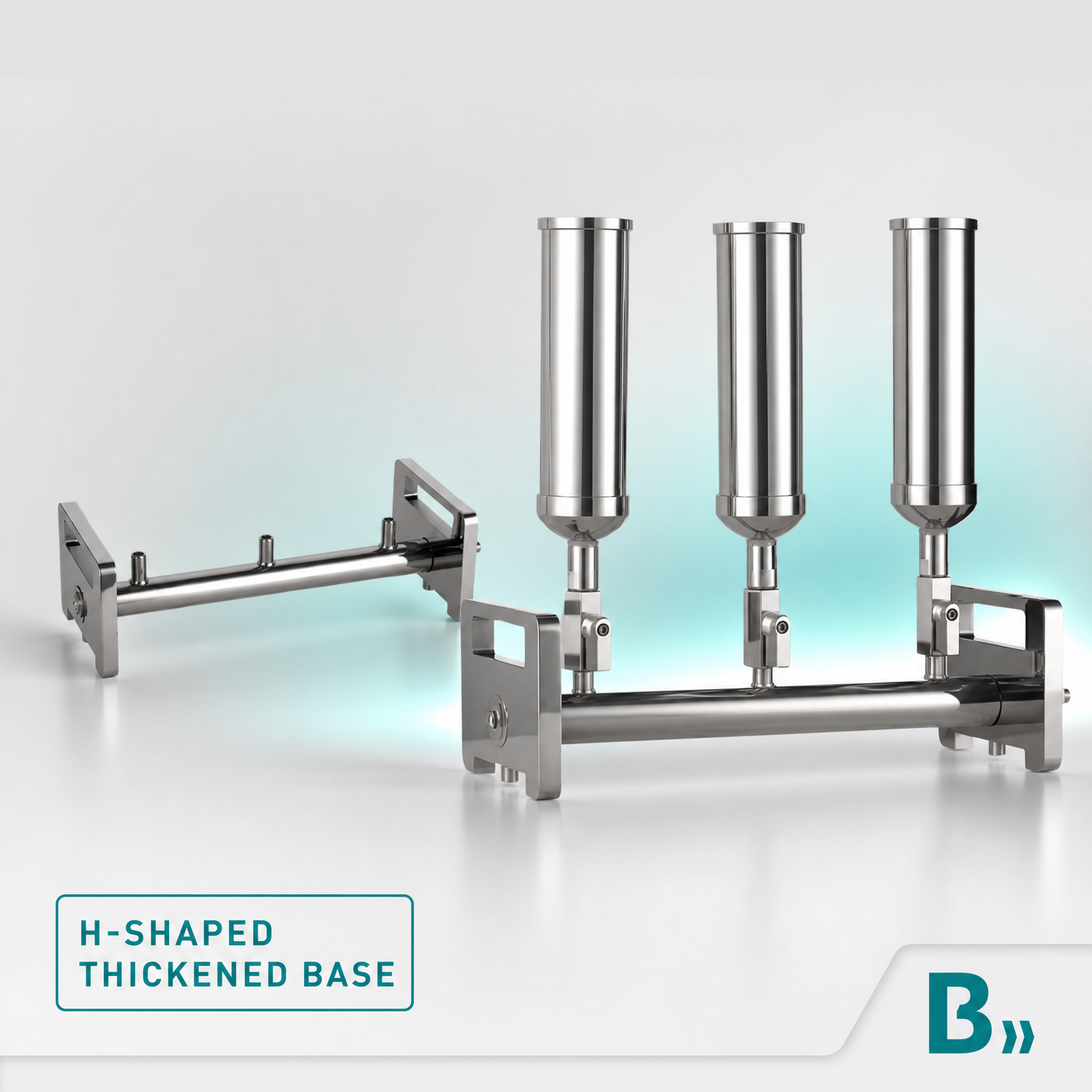

Unlike ordinary filters with round bases, our H-shaped thickened base and low-center-of-gravity filter cup design offer exceptional stability. Even when holding the maximum sample volume, the multi-branch vacuum manifold stands firm, preventing accidental tipping and sample loss.

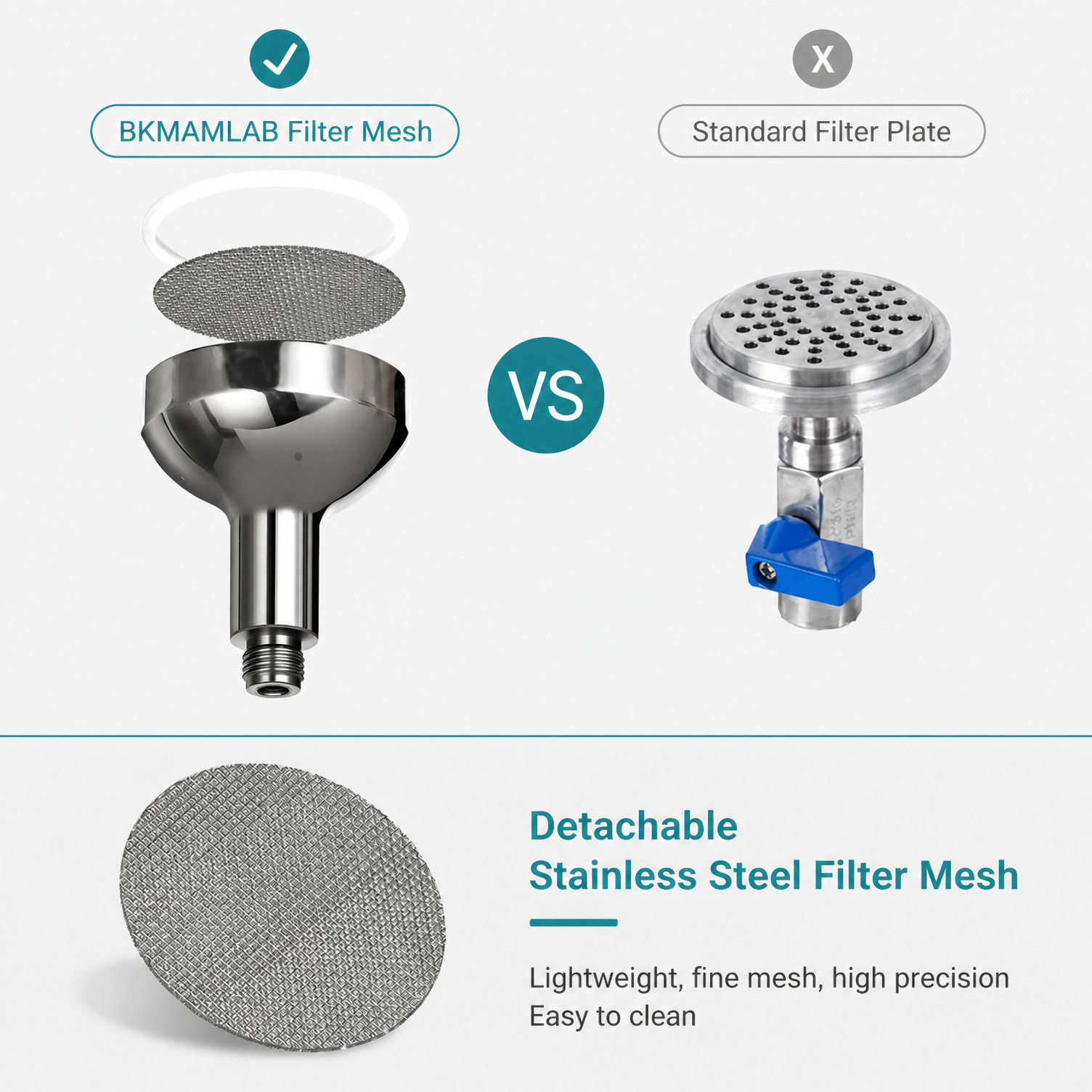

We use a high-precision stainless steel filter mesh instead of a standard perforated filter plate. The mesh is fine, lightweight, and highly accurate, providing better filtration results. All accessories are fully detachable, making cleaning and maintenance a breeze. The portable handle and rounded edge design further enhance ease of use.
Selecting the right vacuum manifold filtration system depends on your daily sample volume:
Choose BFI-03 (3-Place): Ideal for labs with moderate sample throughput (1–3 samples per batch). Compact dimensions (450mm) save bench space.

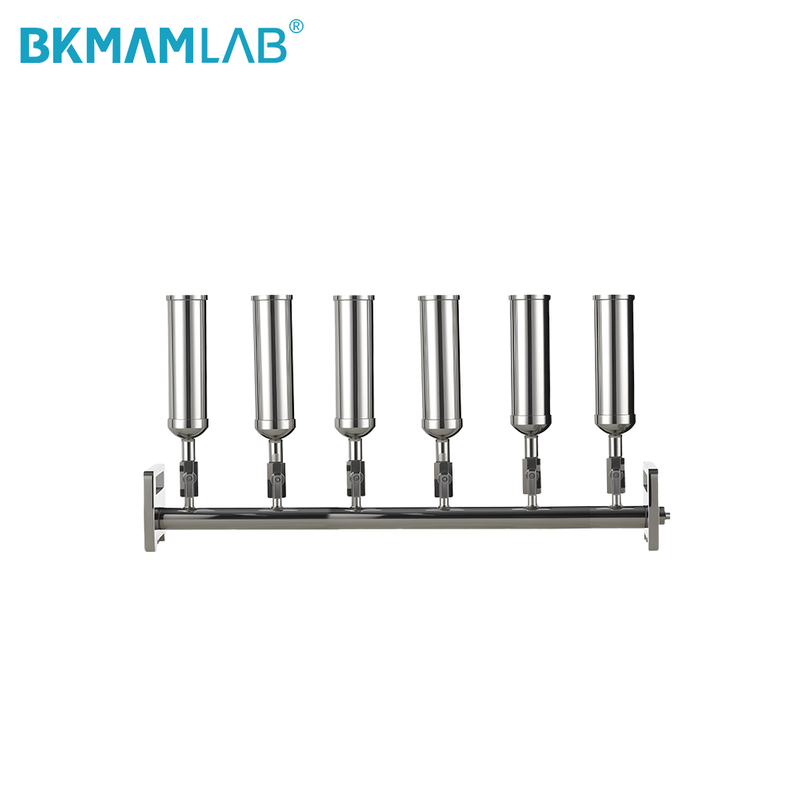

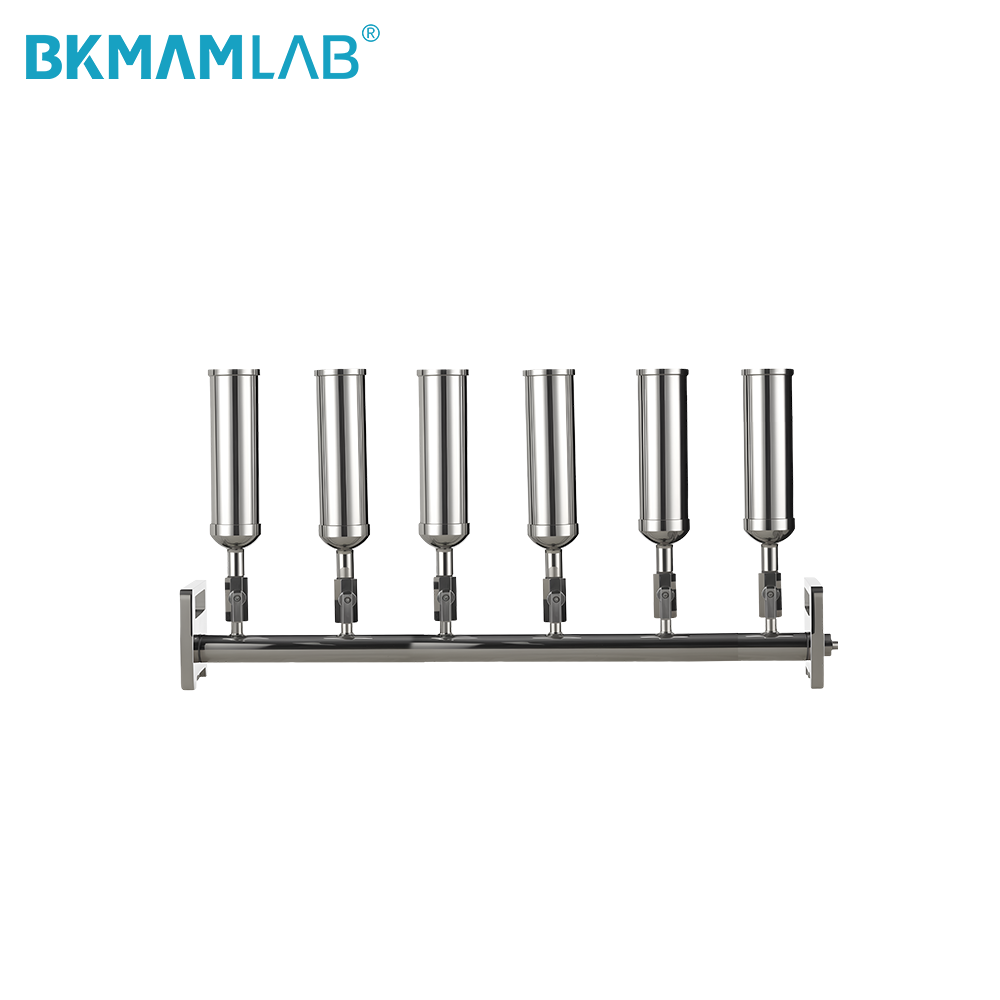

Choose BFI-06 (6-Place): Best for high-volume testing, such as simultaneous filtration manifold for water analysis or quality control labs requiring 6 samples per batch. Extra length (750mm) accommodates more stations.
Both models use the same 250 mL filter cups and 47/50 mm membrane sizes, so you can easily upgrade or expand your workflow.
Assemble the filter cups, valves, and base tightly. Connect the silicone tubing to your vacuum pump and ensure the overflow-protected collection bottle is in place to prevent liquid from being drawn into the pump.
Place the desired filter membrane (47mm or 50mm) onto the stainless steel mesh strainer. Carefully pour your sample into the 250 mL filter cup.
Turn on the vacuum pump. Open the independent valve for each station you wish to use. Adjust the flow as needed. The multi-station filtration manifold allows you to process multiple samples simultaneously.
When replacing or collecting the filter membrane, always check whether the solution in the filter cup has been fully filtered. Replace or collect the membrane only after filtration is complete.
After use, disassemble all components and clean them thoroughly to ensure no residue remains.
Precautions:
Sealing rings and silicone tubing are consumables. Aging after prolonged use is normal; please replace them in a timely manner.
An overflow-protected collection bottle is strongly recommended to prevent liquid from being drawn into your vacuum pump.
Our laboratory vacuum manifold is widely used in:
Chemical Analysis: Simultaneous filtration of reagents and solvents.
Pharmaceuticals: Sterility testing, dissolution testing, and quality control.
Water Analysis: Environmental water quality monitoring and microbiological testing.
Food & Beverage: Contaminant analysis and sample preparation.
Cosmetics & Bioengineering: Filtration of essences, cultures, and fermentation broths.
Whether you need a BFI-03 multi-filter manifold or a BFI-06 multi-filter manifold, BKMAMLAB delivers a robust, dependable vacuum filtration manifold for your daily lab work.
A: Yes. The 316L stainless steel construction is durable and fully autoclavable at temperatures up to 180°C, ensuring rigorous sterilization between experiments.
A: This multi-filter manifold is designed to fit standard 47mm and 50mm filter membranes.
A: Absolutely. The BKMAMLAB vacuum filtration system features fully detachable valves and silicone sealing rings. These are consumables and can be easily replaced when worn out.
A: Yes. Thanks to the independent valve design, you can operate just one station while keeping the others closed, offering high flexibility for occasional or single-sample testing.
Whether you are a chemist, microbiologist, or quality control specialist, BKMAMLAB multi-filter manifolds deliver the stability, corrosion resistance, and high throughput you need. Choose between the 3-place or 6-place models to match your workflow.
Order your BKMAMLAB multi-station vacuum manifold today! Bulk inquiries and custom specifications are welcome – contact our team for assistance.
